Driver and Passenger Safety 21
If a Child Requires Close
Attention
Many
parents say they prefer to
put an infant or small child in the
front passenger seat so they can
watch the child, or because the
child requires attention.
Placing a child in the front seat
exposes the child to hazards from
the airbag, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at
risk.
If a child requires physical
attention or frequent visual
contact, we strongly recommend
that another adult ride with the
child in the back seat. The back
seat is far safer for a child than the
front.
Additional Safety
Precautions
• Use child-safe door locks to
prevent children from opening
the doors. Using this feature
will prevent children from
opening the doors and
accidentally falling out (see
page 105).
•Use the main power window
switch to prevent children
from opening the rear
windows. Using this feature
will prevent children from
playing with the windows,
which could expose them to
hazards or distract the driver
(see page 107).
•Do not leave children alone in
your vehicle. Leaving children
without adult supervision is
illegal in most states and can be
very hazardous. For example,
infants and small children left
in a vehicle on a hot day can
die from heat stroke. And
children left alone with the key
in the ignition can accidentally
set the vehicle in motion,
possibly injuring themselves or
others.
•Keep vehicle keys and remote
transmitters out of the reach
of children. Even very young
children learn how to unlock
vehicle doors, turn on the
ignition, and open the tailgate,
which can lead to accidental
injury or death.

ENGINE COOLANT
TEMPERATURE GAUGEFUEL GAUGE
59Instruments and Controlsodometer by repeatedly pressing
and releasing the reset button.
To reset a trip odometer, display
it, then press and hold the reset
button until the odometer clears to
zero.
Fuel Gauge
The fuel gauge will register the
approximate fuel level in the tank
when the key is in the “
ON”
position. The following conditions
may be considered normal:
•Gas station pumps may shut off
before the fuel gauge indicates
“
F” (FULL).
•The amount of fuel required for
a fill-up may not exactly
correspond to the gauge.
•The needle may not move away
from “
F” (FULL) until some
time after fill-up.

60 Instruments and Controls
• The needle may move during
turning, stopping and
acceleration.
Gauge
ReadingRe maining Amount
Approx. Gallons (Liters)
F19.5 (75.0)
1/210.8 (41.0)
E3.6 (13.5)
Fuel Door
This is a reminder that the fuel fill
door is on the left side of the
vehicle. Always park with that
side closest to the service station
pumps.
Engine Coolant
Temperature Gauge
When the key is in the “ON”
position, the engine coolant
temperature gauge indicates the
temperature of the engine coolant.
The letters “
C” and “H” on the
gauge represent “Cold” and
“Hot,” respectively.

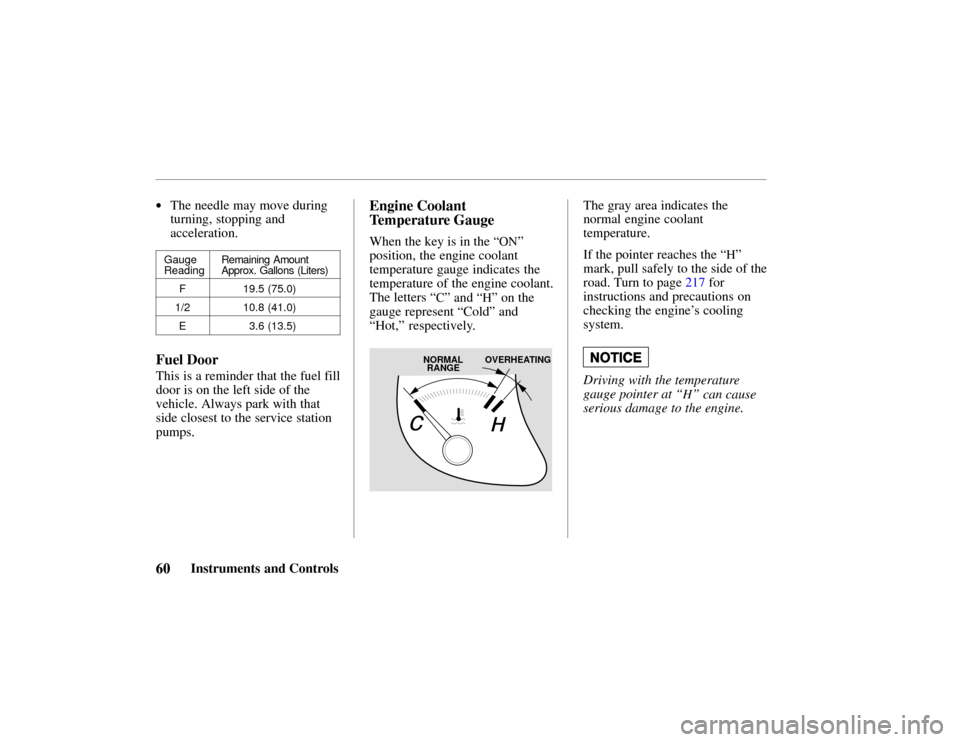

NORMAL RANGE OVERHEATING
The gray area indicates the
normal engine coolant
temperature.
If the pointer reaches the
“
H”
mark, pull safely to the side of the
road. Turn to page 217 for
instructions and precautions on
checking the engine ’s cooling
system.

Driving with the temperature
gauge pointer at “
H” can cause
serious damage to the engine.

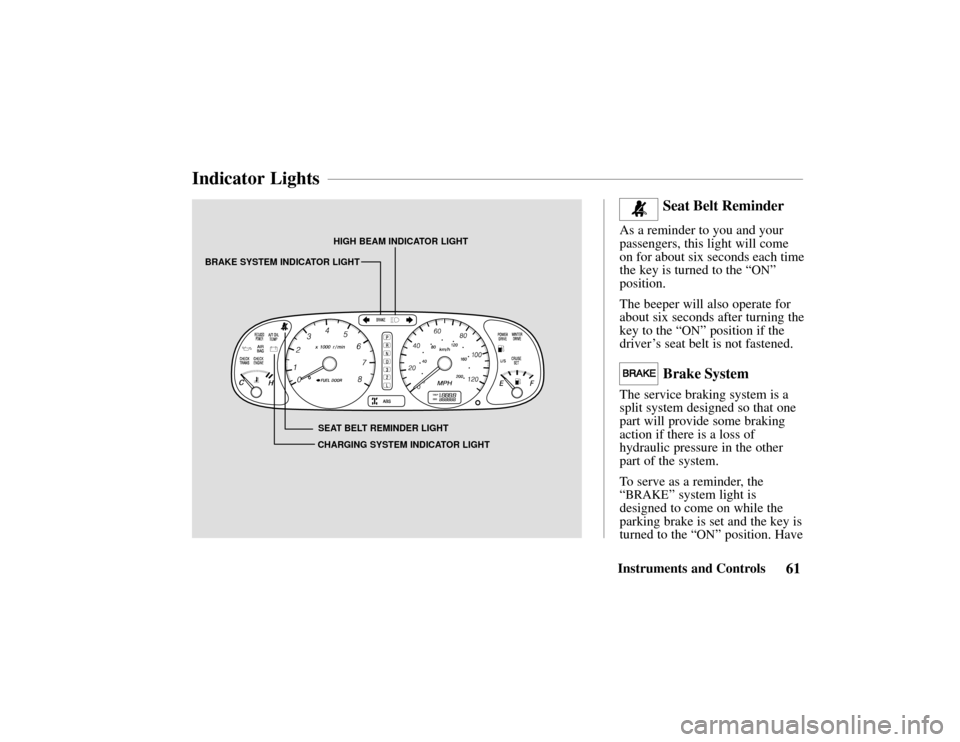

HIGH BEAM INDICATOR LIGHT
SEAT BELT REMINDER LIGHT
BRAKE SYSTEM INDICATOR LIGHT
CHARGING SYSTEM INDICATOR LIGHT
61Instruments and Controls
Seat Belt Reminder
As a reminder to you and your
passengers, this light will come
on for about six seconds each time
the key is turned to the “
ON”
position.
The beeper will also operate for
about six seconds after turning the
key to the “
ON” position if the
driver ’ s seat belt is not fastened.
Brake System
The service braking system is a
split system designed so that one
part will provide some braking
action if there is a loss of
hydraulic pressure in the other
part of the system.
To serve as a reminder, the
“
BRAKE” system light is
designed to come on while the
parking brake is set and the key is
turned to the “
ON” position. Have
Indicator Lights

62Instruments and Controls
the system repaired if the light
does not come on when the key is
turned to the “
ON” position
without the engine running or
when the parking brake is set.
This light does not eliminate the
need for brake inspection and
maintenance. The brake fluid
level must be checked regularly.
See the maintenance section of
this manual for other brake
checks.
If the light remains on after
engine start up with the parking
brake released, or comes on
during operation of the vehicle, it
may mean that there is something
wrong with the brake system.
What to do?
1. Check to see if the parking brake has been fully released. 2. If it has, pull off the road and
stop carefully. Remember that:
•Stopping distances may be
longer.
•You may have to push
harder on the pedal.
•The pedal may go down
farther than normal.
3. Have the vehicle towed to the nearest Honda dealer for
repair.
Do not continue to drive with the
brake system light on. There may
be a serious problem with the
braking system. Driving under
this condition is hazardous and
could lead to an accident.
The brake system light does not
indicate that the parking brake is
fully set. When applying the
parking brake, always pull it up as
far as possible.
High Beam
The headlight high beam indicator
lights up when the headlights are
on high beam.
Charging System
This light should come on when
the key is turned to the “
ON”
position and the alternator is not
charging. The light may stay on at
engine idle; however, it should go
off and stay off above the normal
engine idle speed. If the light
comes on while driving, the
charging system should be
checked at once so the battery will
not completely discharge. Stop the
engine, and check for a broken
drive belt. If it is broken, or if the
drive belt is not responsible for
the trouble, have your Honda
dealer inspect and correct the
fault. If the drive belt is broken,

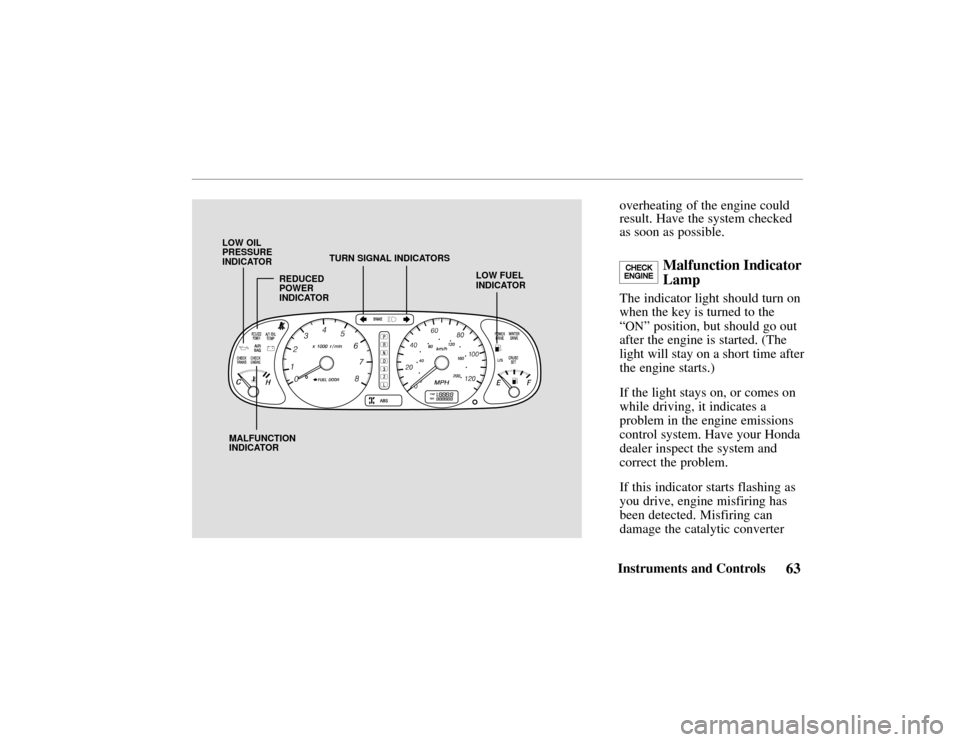

LOW FUEL
INDICATOR
MALFUNCTION
INDICATOR TURN SIGNAL INDICATORS
LOW OIL
PRESSURE
INDICATOR
REDUCED
POWER
INDICATOR
63Instruments and Controls
overheating of the engine could
result. Have the system checked
as soon as possible.
Malfunction Indicator
Lamp
The indicator light should turn on
when the key is turned to the
“
ON” position, but should go out
after the engine is started. (The
light will stay on a short time after
the engine starts.)
If the light stays on, or comes on
while driving, it indicates a
problem in the engine emissions
control system. Have your Honda
dealer inspect the system and
correct the problem.
If this indicator starts flashing as
you drive, engine misfiring has
been detected. Misfiring can
damage the catalytic converter

64Instruments and Controls
and the engine. Stop as soon as it
is safe, turn off the engine, and
call for assistance.

If you keep driving with the
malfunction indicator lamp on,
you can damage your vehicle ’s
emissions controls and engine.
Those repairs may not be covered
by your vehicle’ s warranties.
Reduced Power
Indicator
This light comes on for a few
seconds when you turn the key to
the “ON” position
If it comes on at any other time, it
indicates that there is a problem in
the throttle “drive-by-wire”
system. With the light on, your
vehicle goes into “limp home” mode — the engine runs on three
cylinders, and the accelerator
pedal no longer controls engine
speed.
As soon as it is safe, pull off the
road and turn off the engine.
Restart the engine to reset the
system. If the light remains on, or
comes on again while driving,
have the vehicle towed to your
Honda dealer for repair.
Turn Signal
Indicators
A green light flashing on the
instrument panel lets you know
that the front and rear turn signal
lights are working. If the light
stays on and does not flash, check
for a burned out bulb. If there is
no light when the lever is moved,
check the fuse and bulb.
Whenever the Hazard Warning Flasher Switch is on, both turn
signals will flash.
Low Fuel Indicator
This light comes on when the tank
becomes nearly empty. Fill up the
tank as soon as possible.
If the low fuel indicator light
comes on when the fuel tank is
not nearly empty, have the fuel
tank sensing unit and related
components inspected and
repaired by your Honda dealer.
Driving on a road with many
sharp curves may cause the fuel
indicator light to blink
intermittently. This is normal.

65Instruments and Controls
Low Oil
Pressure Indicator
This light is designed to come on
to provide a “bulb check” when
the key is turned to the “
ON”
position, but should go out after
the engine is started. If the light
fails to come on with the key
turned to the “
ON” position, it
could indicate a burned out bulb
or a blown fuse. Have the system
repaired if the light does not come
on when checking. Occasionally, this light may
flicker momentarily while the
engine is idling, but this will not
harm the system. However, if the
light remains on during normal
engine operation, the engine
should be stopped until the cause
of the trouble can be located and
corrected. The source of the
trouble could be either of the
following:
•Low engine oil level
•Loss of engine oil pressure

Running the engine with low oil
pressure can cause serious
mechanical damage almost
immediately. Turn off the engine
as soon as you can safely get the
vehicle stopped.

67Instruments and Controls
as indicated by the “
U/S” (upshift)
light on the instrument panel.
If vehicle speed drops below
20 mph (30 km/h), or if the
engine is not running smoothly,
you should downshift to the next
lower gear. You may need to
downshift two or more gears to
keep the engine running smoothly
or for satisfactory performance.
This indicator comes on for a few
seconds when you turn the
ignition switch to the “ON”
position.4-Wheel Drive
(4WD) Indicator
4WD models only
This indicator lights when the
4-Wheel Drive system is engaged.
With the 4WD-2WD switch in the
“
OFF” or 2WD position, this light
will come on to provide a “bulb
check” when the key is turned to
the “
ON” position, but should go
out after the engine is started.
If the 4WD-2WD switch is in the
“
ON” or 4WD position, this light
will come on when the key is
turned to the “
ON” position and
remain on after the engine is
started.
Anti-Lock Indicator
This light will come on and go out
when the ignition switch is turned
to the “
ON” position. (If the light
does not come on, see your Honda
dealer to have the system
repaired.)
If the light remains on after
engine start-up or comes on
during operation of the vehicle,
stop as soon as possible and turn
the key off. Then start the engine
to reset the system. If the light
stays on, or it comes on again
while you’re driving, the anti-lock
brake system should be checked
at your Honda dealer.
Until you get it fixed, you ’ll have
normal brakes, but you won ’t
have anti-lock.

73Instruments and Controls
Headlights-On Reminder
You will hear a continuous tone
when the key is out of the ignition
switch and the driver
’s door is
opened with the headlight switch
in the “
ON” position. This will
remind you to turn the headlights
off. Never leave the headlights on
when the engine is not running.
They can rapidly discharge the
battery.

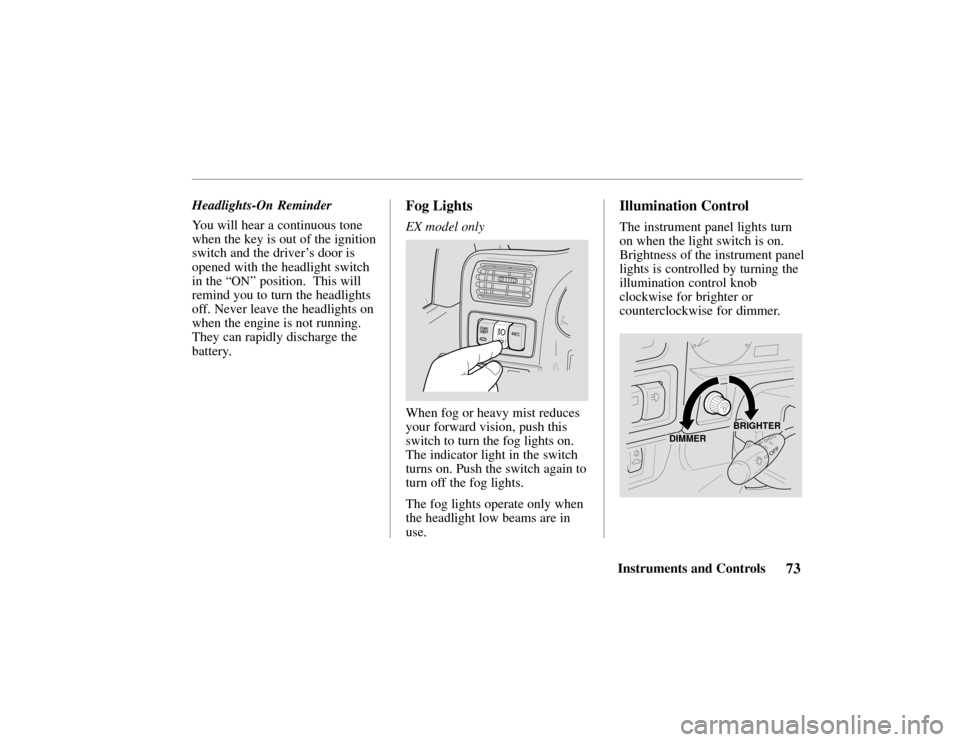

Fog Lights
EX model only
When fog or heavy mist reduces
your forward vision, push this
switch to turn the fog lights on.
The indicator light in the switch
turns on. Push the switch again to
turn off the fog lights.
The fog lights operate only when
the headlight low beams are in
use.
Illumination Control
The instrument panel lights turn
on when the light switch is on.
Brightness of the instrument panel
lights is controlled by turning the
illumination control knob
clockwise for brighter or
counterclockwise for dimmer.
DIMMER
BRIGHTER
