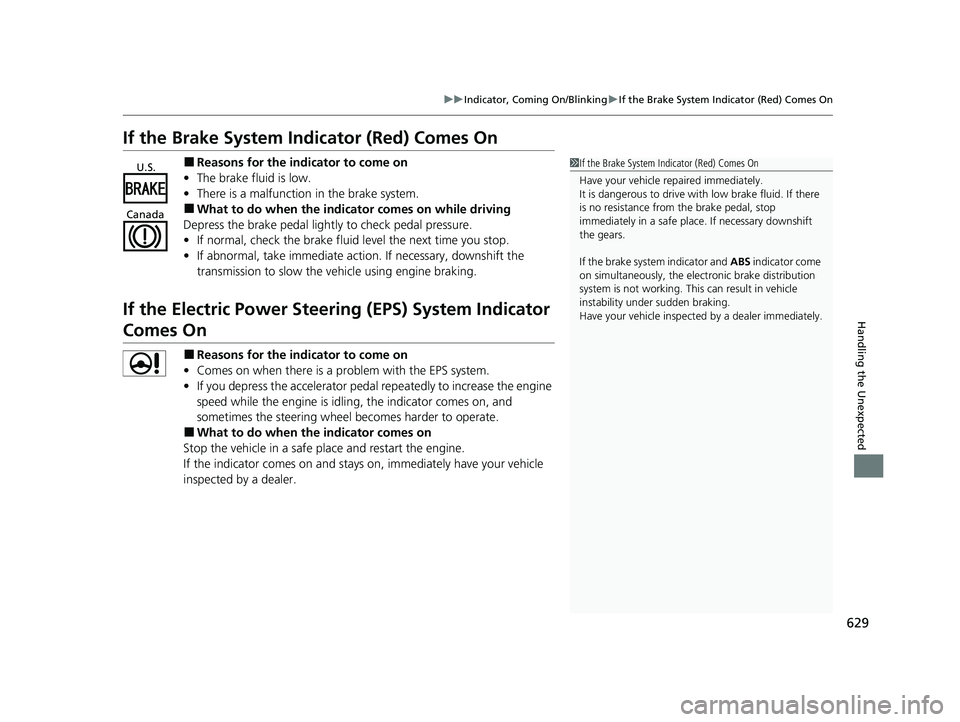

uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
19 PASSPORT-31TGS6020.book 629 ページ ２０２０年２月２０日　木曜日　午後３時２９分

630
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission Indicato r Blinks along with the
Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 452
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 636
19 PASSPORT-31TGS6020.book 630 ページ ２０２０年２月２０日　木曜日　午後３時２９分

631Continued
Handling the Unexpected

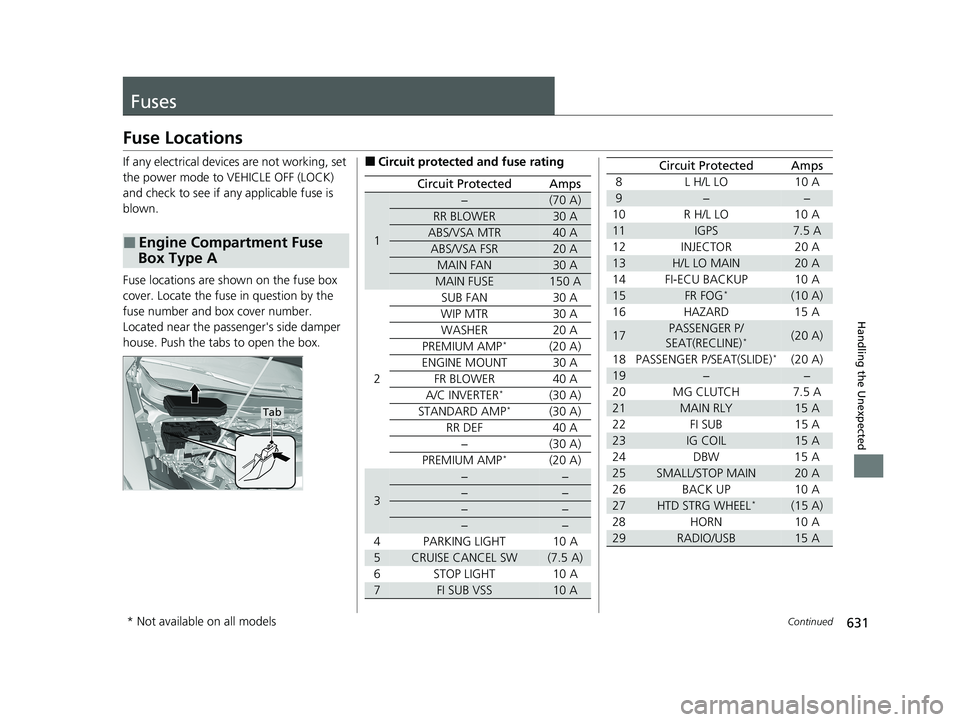

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
RR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
PREMIUM AMP*(20 A)
ENGINE MOUNT30 A
FR BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*(30 A)
RR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW(7.5 A)
6 STOP LIGHT 10 A
7FI SUB VSS10 A
8L H/L L O 1 0 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP 10 A
15FR FOG*(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19−−
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO/USB15 A
Circuit ProtectedAmps
* Not available on all models
19 PASSPORT-31TGS6020.book 631 ページ ２０２０年２月２０日　木曜日　午後３時２９分

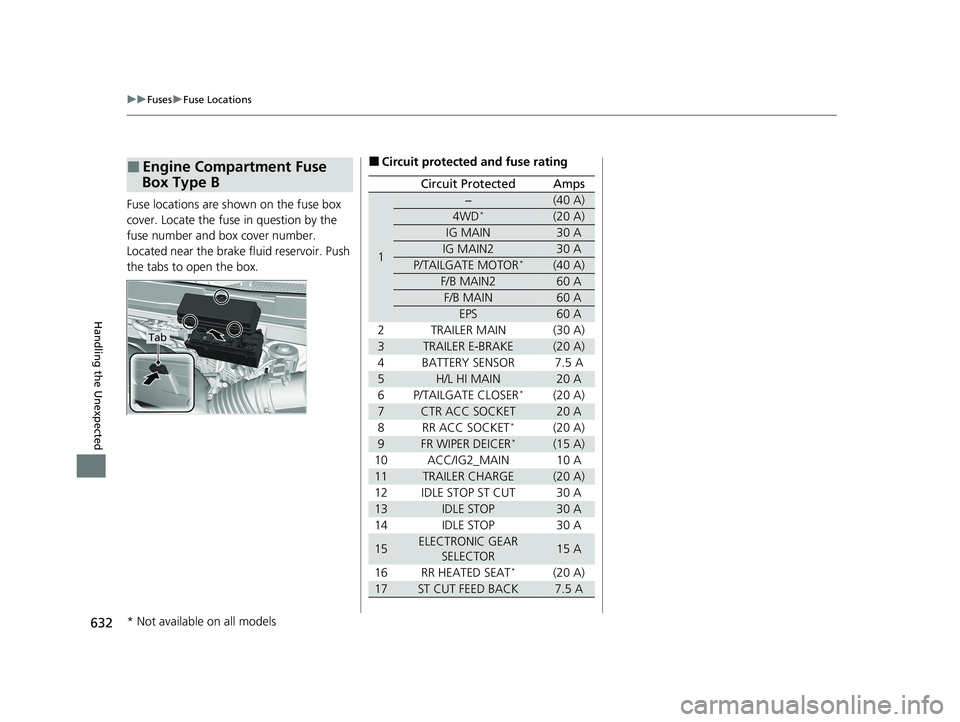

632
uuFuses uFuse Locations
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 RR ACC SOCKET*(20 A)
9FR WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT30 A
13IDLE STOP30 A
14IDLE STOP30 A
15ELECTRONIC GEAR SELECTOR15 A
16RR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
19 PASSPORT-31TGS6020.book 632 ページ ２０２０年２月２０日　木曜日　午後３時２９分

633
uuFuses uFuse Locations
Continued
Handling the Unexpected

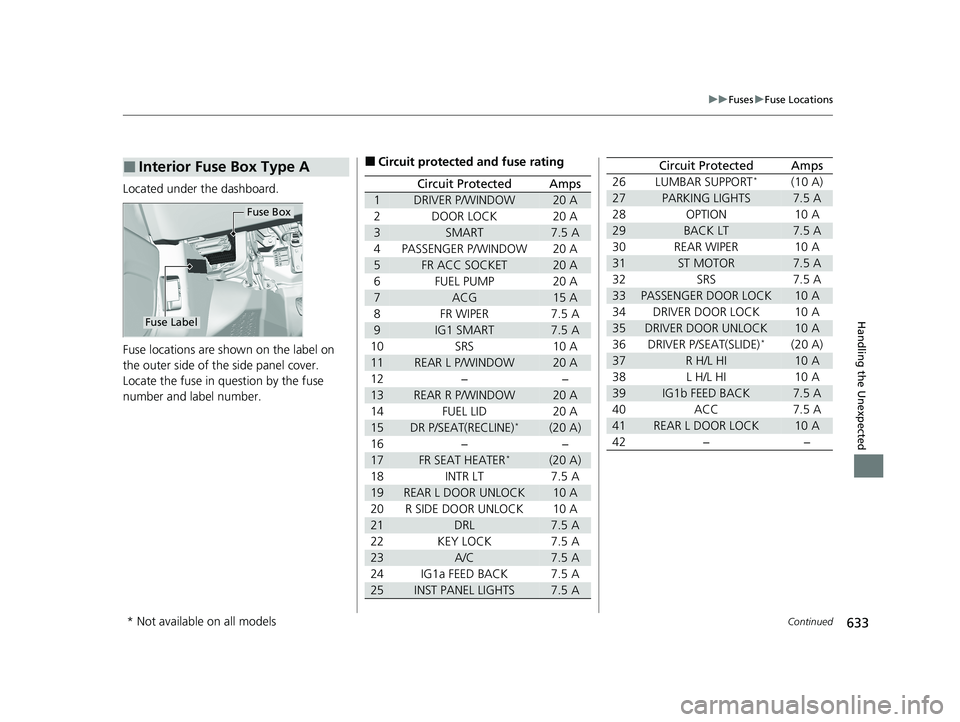

Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DRIVER P/WINDOW20 A
2DOOR LOCK20 A
3SMART7.5 A
4PASSENGER P/WINDOW20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FR WIPER7.5 A
9IG1 SMART7.5 A
10SRS10 A
11REAR L P/WINDOW20 A
12−−
13REAR R P/WINDOW20 A
14FUEL LID20 A
15DR P/SEAT(RECLINE)*(20 A)
16−−
17FR SEAT HEATER*(20 A)
18INTR LT7.5 A
19REAR L DOOR UNLOCK10 A
20R SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT*(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30REAR WIPER10 A
31ST MOTOR7.5 A
32SRS7.5 A
33PASSENGER DOOR LOCK10 A
34DRIVER DOOR LOCK10 A
35DRIVER DOOR UNLOCK10 A
36DRIVER P/SEAT(SLIDE)*(20 A)
37R H/L HI10 A
38L H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41REAR L DOOR LOCK10 A
42−−
Circuit ProtectedAmps
* Not available on all models
19 PASSPORT-31TGS6020.book 633 ページ ２０２０年２月２０日　木曜日　午後３時２９分

634

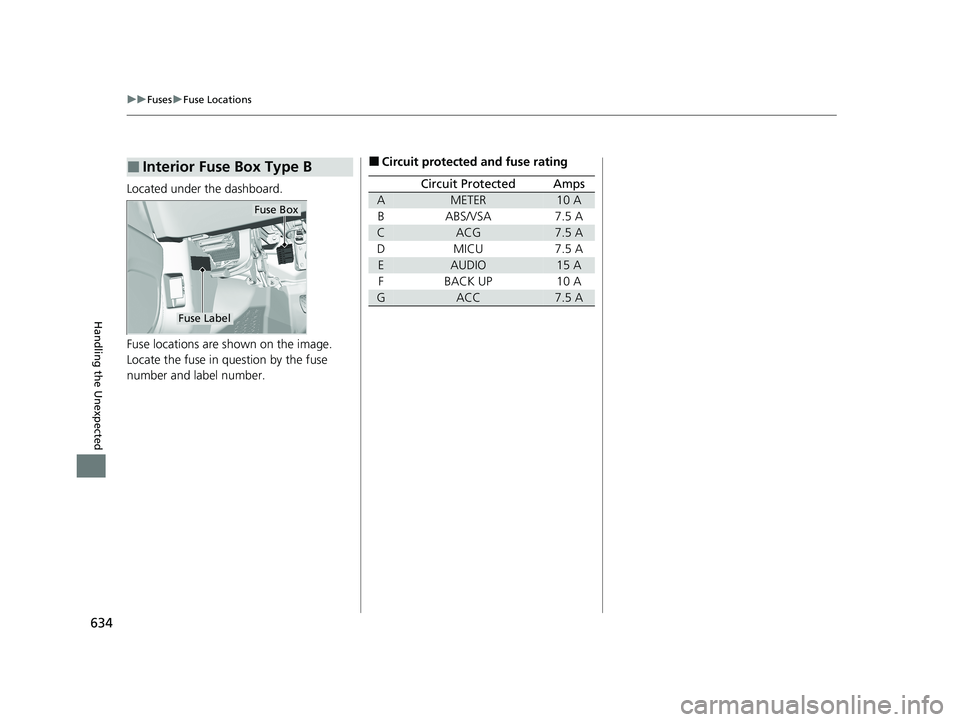

uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type B
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
AMETER10 A
BABS/VSA7.5 A
CACG7.5 A
DMICU7.5 A
EAUDIO15 A
FBACK UP10 A
GACC7.5 A
19 PASSPORT-31TGS6020.book 634 ページ ２０２０年２月２０日　木曜日　午後３時２９分

635
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 631 to P. 634.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
19 PASSPORT-31TGS6020.book 635 ページ ２０２０年２月２０日　木曜日　午後３時２９分

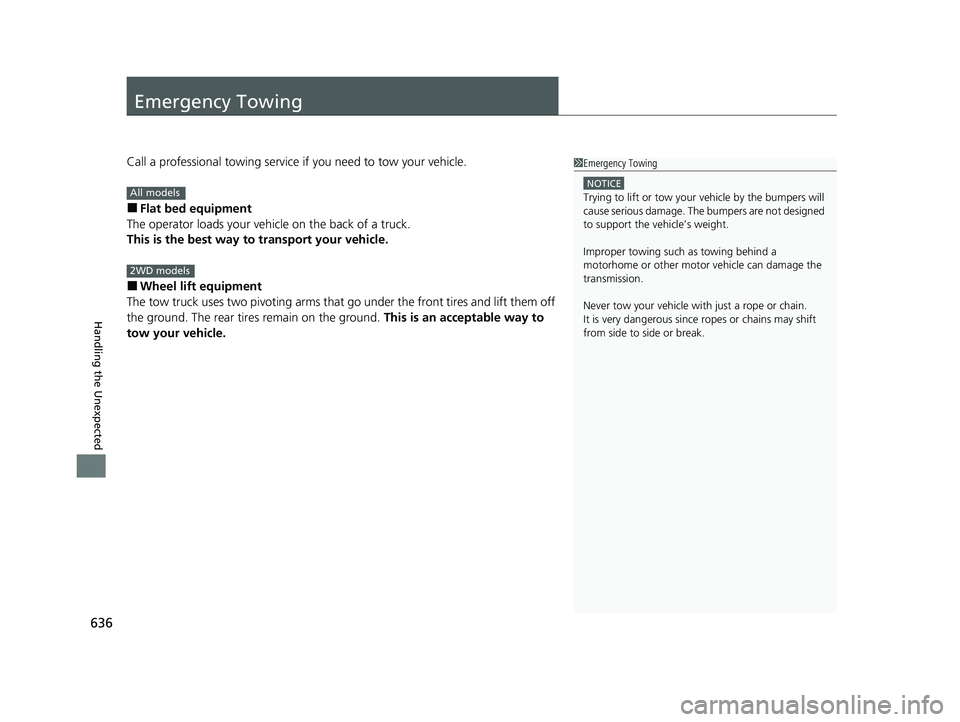

636
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.All models
2WD models
19 PASSPORT-31TGS6020.book 636 ページ ２０２０年２月２０日　木曜日　午後３時２９分

637

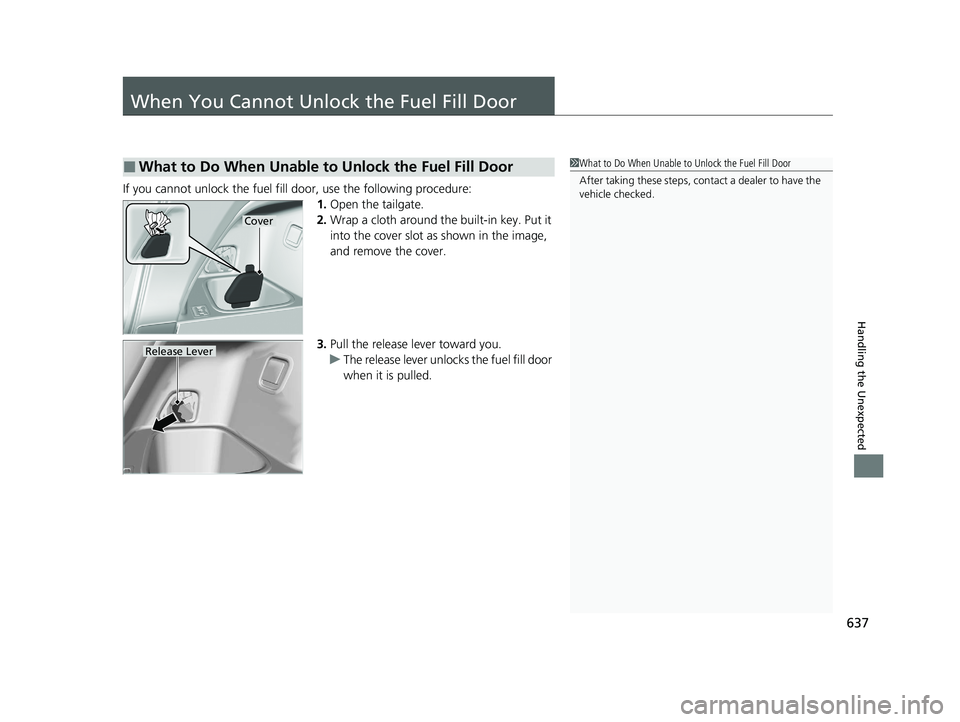

Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:
1.Open the tailgate.
2. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
3. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
19 PASSPORT-31TGS6020.book 637 ページ ２０２０年２月２０日　木曜日　午後３時２９分

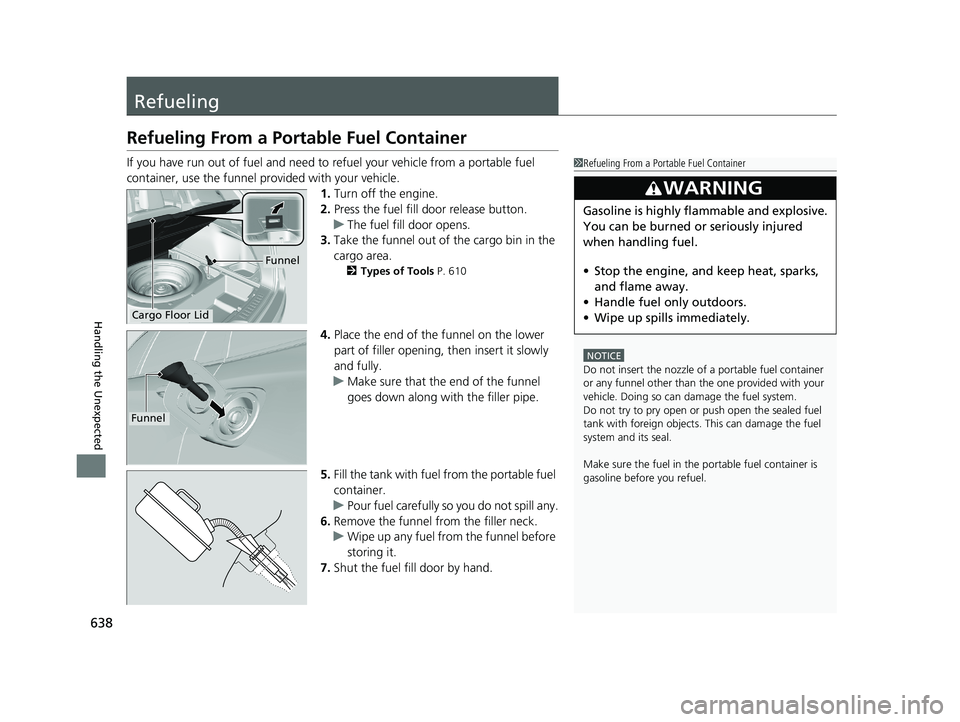

638
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the cargo bin in the
cargo area.
2 Types of Tools P. 610
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
Cargo Floor Lid
Funnel
19 PASSPORT-31TGS6020.book 638 ページ ２０２０年２月２０日　木曜日　午後３時２９分
