Page 637 of 667
635
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DRIVER P/WINDOW20 A
2DOOR LOCK20 A
3SMART7.5 A
4PASSENGER P/WINDOW20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FR WIPER7.5 A
9IG1 SMART7.5 A
10SRS10 A
11REAR L P/WINDOW20 A
12−−
13REAR R P/WINDOW20 A
14FUEL LID20 A
15DR P/SEAT(RECLINE)*(20 A)
16−−
17FR SEAT HEATER*(20 A)
18INTR LT7.5 A
19REAR L DOOR UNLOCK10 A
20R SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT*(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30REAR WIPER10 A
31ST MOTOR7.5 A
32SRS7.5 A
33PASSENGER DOOR LOCK10 A
34DRIVER DOOR LOCK10 A
35DRIVER DOOR UNLOCK10 A
36DRIVER P/SEAT(SLIDE)*(20 A)
37R H/L HI10 A
38L H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41REAR L DOOR LOCK10 A
42−−
Circuit ProtectedAmps
* Not available on all models
20 PASSPORT-31TGS6100.book 635 ページ ２０１９年８月３０日 金曜日 午後６時２２分
Page 641 of 667
639
Handling the Unexpected

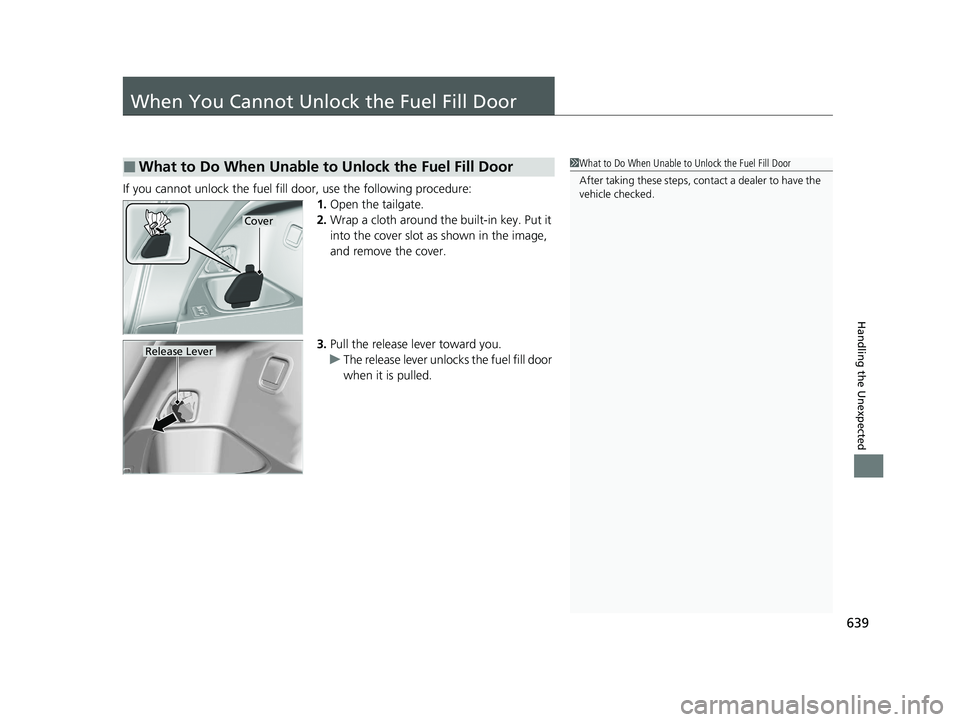

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:
1.Open the tailgate.
2. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
3. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
20 PASSPORT-31TGS6100.book 639 ページ ２０１９年８月３０日 金曜日 午後６時２２分
Page 659 of 667
657
Index
Coat Hook................................................ 210
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 495
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 613, 645
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 461
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 203
Customer Service Information ................ 654
Customized Features ............... 119, 354, 361
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 624
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows ................................................. 220
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 435
Adaptive Cruise Control (ACC) ................ 507
Automatic Transmission ........................... 461
Braking .................................................... 537
Off-Highway Driving Guidelines ............... 452
Shifting Gear ........................................... 462
Starting the Engine .................................. 454
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 476 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 631
Electronic Stability Control (ESC) ............. 479
Emergency ................................................ 638
Emissions Testing (Readiness Codes) ....... 649
Engine
Coolant ................................................... 577
Jump Starting .......................................... 624
Number................................................... 646
Oil ........................................................... 572
Remote Engine Start................................ 456
Starting ................................................... 454
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Maintenance Minder Information ........................................... 564
Low Oil Pressure Symbol.......................... 629
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 631
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 606
20 PASSPORT-31TGS6100.book 657 ページ ２０１９年８月３０日 金曜日 午後６時２２分
Page 661 of 667
659
Index
Operating ............................................... 169
Heated Steering Wheel ........................... 216
Heated Windshield Button ...................... 181
Heater (Steering Wheel) .......................... 216
Heaters (Seat) ........................... 213, 214, 215
HFL (HandsFreeLink ®) ...................... 383, 408
High Beam Indicator .................................. 82
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ........... 380
Honda App License Agreement .............. 334
Honda Sensing ®........................................ 24
HondaLink ®............................................ 313
I
Identification Numbers ............................ 646
Engine and Transmission ......................... 646
Vehicle Identification............................... 646
Illumination Control ................................ 182
Button .................................................... 182
Immobilizer System .................................. 158
Indicator ................................................... 83
Indicators .................................................... 76
Adaptive Cruise Control (ACC) (Amber) .... 88
Adaptive Cruise Control (ACC) (Green) ..... 88
All-wheel drive (AWD)............................... 85
Anti-lock Brake System (ABS) .................... 79
Auto High-Beam ....................................... 80
Auto Idle Stop (Amber) ............................. 85
Auto Idle Stop (Green) .............................. 85
Blind spot information ...................... 90, 483 Brake System (Red) .................................. 631
Charging System ............................... 77, 629
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 88, 89
Econ Mode ................................................ 84
Electric Power Steering (EPS) System .. 81, 631
Fog Light ................................................... 83
Gear Position ............................................. 77
Hazard Warning ........................................ 82
High Beam ................................................ 82
Immobilizer System .................................... 83
Lane Keeping Assist System (LKAS) .......... 522
Lane Keeping Assist System (LKAS) (Amber) ................................................... 86
Lane Keeping Assist System (LKAS) (Green) .................................................... 86
Lights On ................................................... 82
Low Fuel .................................................... 79
Low Oil Pressure Symbol .......................... 629
Low Tire Pressure/TPMS ..................... 82, 632
Malfunction Indicator Lamp ............... 77, 630
Parking Brake and Brake System .............. 631
Parking Brake and Brake System (Amber) ... 76
Parking Brake and Brake System (Red) ....... 76
Road Departure Mitigation (RDM) .............. 87
Seat Belt Reminder .............................. 38, 79
Security System Alarm ............................... 83
Supplemental Restraint System ............ 55, 80
System Message ........................................ 84
Turn Signal ................................................ 82
Vehicle Stability Assist
TM (VSA ®) OFF ... 81, 480 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 80, 479
Information .............................................. 643
Instant Fuel Economy ............................... 110
Instrument Panel ........................................ 75
Brightness Control................................... 182
Integrated Sunshades .............................. 212
Intelligent Traction Management
System ..................................................... 477
Intelligent VTM4 (i-VTM4
TM) .................... 487
Interior Lights ........................................... 198
Interior Rearview Mirror .......................... 186
iPad ........................................................... 332
iPhone ....................................................... 332
iPod ........................................... 244, 299, 332
J
Jack (Wheel Nut Wrench) ........................ 617
Jump Starting ........................................... 624
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 143
Keys ........................................................... 133
Lockout Prevention.................................. 143
Number Tag ............................................ 134
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Types and Functions ................................ 133
20 PASSPORT-31TGS6100.book 659 ページ ２０１９年８月３０日 金曜日 午後６時２２分
Page 662 of 667
660
Index
Kickdown (Automatic Transmission)....... 461
L
Lane Keeping Assist System (LKAS)......... 520
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 86
Lane Keeping Assist System (LKAS) Indicator (Green) ....................................... 86
LaneWatch
TM............................................. 485
LATCH (Child Seats) .............................. 63, 69
Legal Information on Apple CarPlay/ Android Auto .......................................... 346
License Information .................................. 349
Lights ................................................. 169, 581
Auto High-Beam ...................................... 174
Automatic ............................................... 170
Bulb Replacement .................................... 581
Daytime Running Lights ........................... 173
High Beam Indicator .................................. 82
Interior .................................................... 198
Light Switches ......................................... 169
Lights On Indicator .................................... 82
Turn Signals ............................................. 168
Load Limits ................................................ 439
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking .................. 147
Childproof Door Locks ............................. 146
From Inside .............................................. 144
From Outside ........................................... 136
Keys ........................................................ 133 Using a Key ............................................. 142
Lockout Prevention System ..................... 143
Low Battery Charge ................................. 629
Low Fuel Indicator ...................................... 79
Low Oil Pressure Symbol .......................... 629
Lower Anchors ...................................... 63, 69
Lubricant Specifications Chart ................. 645
Luggage (Maximum Load Limit) ............. 439
Lumbar Support ....................................... 189
Lumbar Support Adjustment Switch ....... 189
M
Maintenance..................................... 112, 559
Battery .................................................... 599
Brake Fluid .............................................. 580
Cleaning ................................................. 604
Coolant ................................................... 577
Maintenance Minder
TM............................ 563
Oil ........................................................... 573
Precautions ............................................. 560
Radiator .................................................. 578
Remote Transmitter ................................. 601
Replacing Light Bulbs .............................. 581
Safety...................................................... 561
Service Items ........................................... 566
Tires ........................................................ 590
Transmission Fluid ................................... 579
Under the Hood ...................................... 569
Malfunction Indicator Lamp .............. 77, 630
Map Lights ................................................ 199 Maximum Load Limit
............................... 439
Meters, Gauges ........................................ 104
Mirrors ...................................................... 186
Adjusting ................................................ 186
Door ....................................................... 187
Exterior ................................................... 187
Interior Rearview ..................................... 186
Modifications (and Accessories) .............. 609
Moonroof ................................................. 164
MP3 ........................................... 247, 302, 305
MP3/WMA/AAC ........................ 247, 302, 305
Multi-View Rear Camera ......................... 552
My Honda Music ...................................... 305
N
Navigation................................................ 111
Now Playing ............................................. 114
Numbers (Identification) ......................... 646
O
Odometer................................................. 106
Off-Highway Driving Guidelines ............. 452
Oil (Engine) .............................................. 572
Adding ................................................... 574
Checking ................................................ 573
Displaying Mainte nance Minder
Information ........................................... 564
Low Oil Pressure Symbol ......................... 629
Oil Life .................................................... 112
20 PASSPORT-31TGS6100.book 660 ページ ２０１９年８月３０日 金曜日 午後６時２２分
