key HONDA PASSPORT 2020 (in English) User Guide

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
142
ControlsIf the lock or unlock button of the sma rt entry remote does not work, use the key
instead. Fully insert the key and turn it.
1Using the Remote Transmitter
You can customize the door unlock mode setting.
2 Vehicle Customization P. 119
2 Customized Features P. 361
Models without Display Audio
Models with Display Audio
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and tailgate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting.
2 Vehicle Customization P. 119
2 Customized Features P. 361
Models without Display Audio
Models with Display Audio
Lock
Unlock
20 PASSPORT-31TGS6100.book 142 ページ ２０１９年８月３０日　金曜日　午後６時２２分

143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and tailgate cannot be locked when
the smart entry remote is inside the vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
20 PASSPORT-31TGS6100.book 143 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued153
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls
If you press the outer hand le of the tailgate for
no longer than one second, the tailgate opens
automatically. u The beeper sounds.
u If you want to open the tailgate
manually, press the button for more than
one second.
2 Opening and Closing the Tailgate
P. 148
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
To close the tailgate, press the outer handle
again while the tailgate is opening.
If you press the outer handle again while the
power tailgate is moving, it will reverse
direction.
■Using the Tailgate Outer Handle1 Opening/Closing the Power Tailgate*
Do not leave the key, remote transmitter, or smart
entry remote in the cargo area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
You can change the power tailgate operation setting
on and off. 2 Customized Features P. 361
Outer
Handle
* Not available on all models
20 PASSPORT-31TGS6100.book 153 ページ ２０１９年８月３０日　金曜日　午後６時２２分

156
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate outer handle and lift open
the tailgate.
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
■Using the Tailgate Outer Handle1 Using the Tailgate Outer Handle
Do not leave the key, remote transmitter, or smart
entry remote in the cargo area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
Outer
Handle
Inner Handle
20 PASSPORT-31TGS6100.book 156 ページ ２０１９年８月３０日　金曜日　午後６時２２分

158
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehi cle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. El ectronic device, such as televisions and
audio systems emit strong magnetic fields. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is opened with the key and then the hood is
opened before the power mode is set to ON.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
20 PASSPORT-31TGS6100.book 158 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued159
uuSecurity System uSecurity System Alarm
Controls
■When the security system alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the tailgate are locked from outside with the key, remote
transmitter, or smart entry system.
■When the security system alarm sets
The security system alarm in dicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system, or wh en the power mode is set to ON. The
security system alarm indicato r goes off at the same time.
1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
smart entry system.
20 PASSPORT-31TGS6100.book 159 ページ ２０１９年８月３０日　金曜日　午後６時２２分

163

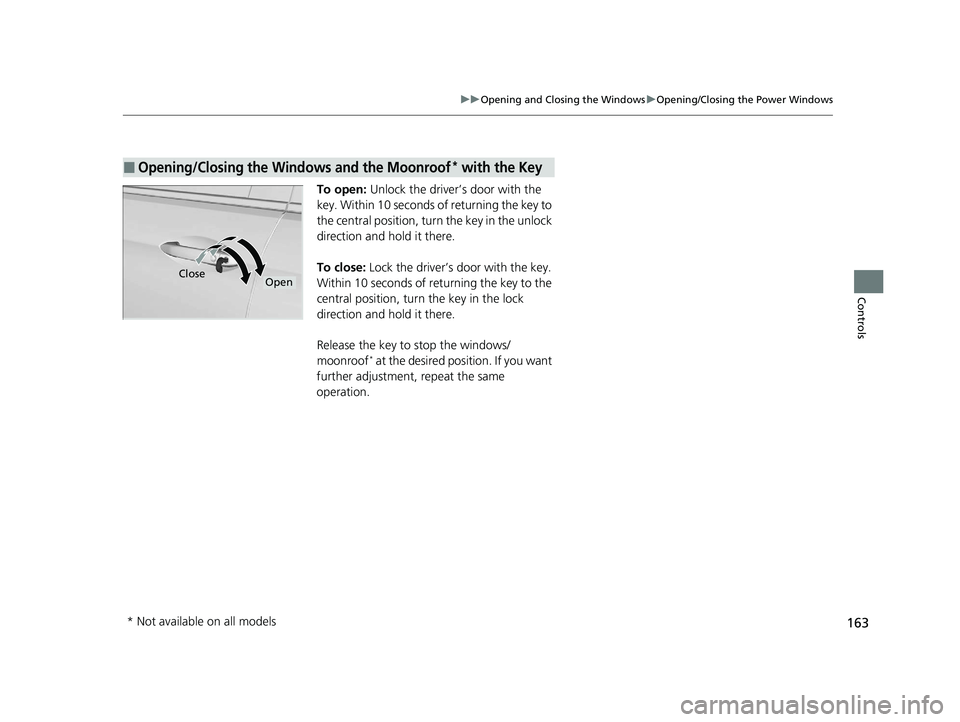

uuOpening and Closing the Windows uOpening/Closing the Power Windows
Controls
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows/
moonroof
* at the desired position. If you want
further adjustment, repeat the same
operation.
■Opening/Closing the Windows and the Moonroof* with the Key
CloseOpen
* Not available on all models
20 PASSPORT-31TGS6100.book 163 ページ ２０１９年８月３０日　金曜日　午後６時２２分

164
Controls
Moonroof*
Opening and Closing the Moonroof
You can operate the moonroof when the power mode is in ON. Use the switch in
the front of the ceiling to open and close the moonroof.
■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automa tically open or close
all the way. To stop the moonroof midway,
push the switch briefly.
■Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch forward lightly, and
hold it until the desired position is reached.
■Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch fo rward firmly, then
release.
■Using the Moonroof Switch
1 Opening and Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The moonroof can be opera ted for up to 10 minutes
after you set the power mode to OFF (LOCK).
Opening either front door cancels this function.
When resistance is detected, the auto reverse function
causes the moonroof to chan ge directions, then stop.
Auto reverse stops sensing when the moonroof is
almost closed to ensure that it fully closes.
You can use the remote transmitter or the key to
operate the moonroof. 2 Opening the Windows and the Moonroof
*
with the Remote P. 162
2 Opening/Closing the Windows and the
Moonroof
* with the Key P. 163
3WARNING
Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
CloseTilt
* Not available on all models
20 PASSPORT-31TGS6100.book 164 ページ ２０１９年８月３０日　金曜日　午後６時２２分

201
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

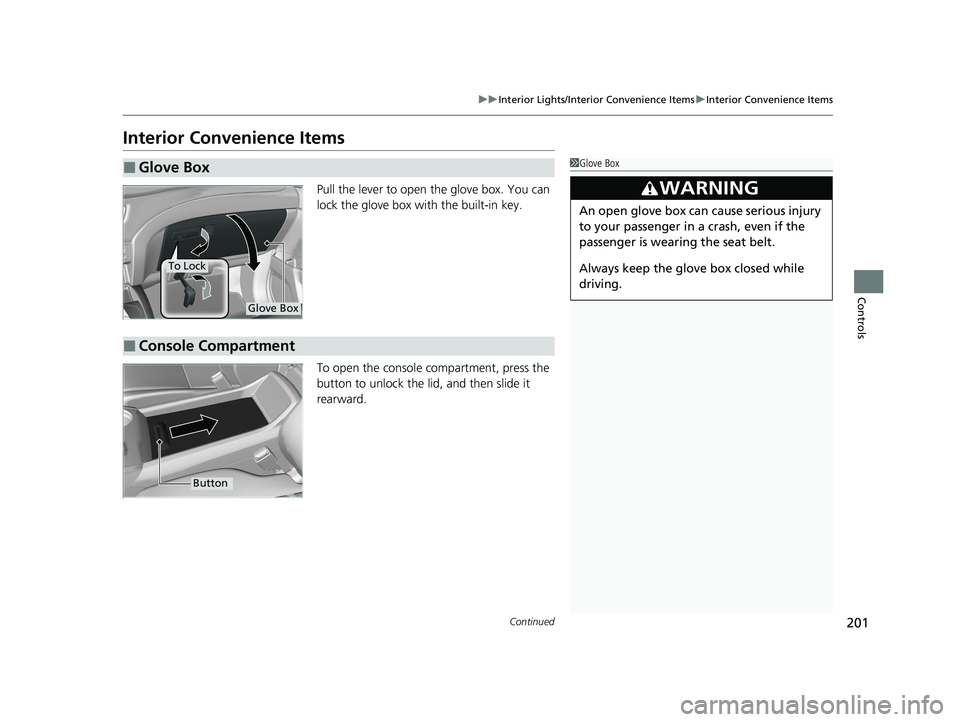

Interior Convenience Items
Pull the lever to open the glove box. You can
lock the glove box with the built-in key.
To open the console compartment, press the
button to unlock the lid, and then slide it
rearward.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
Button
20 PASSPORT-31TGS6100.book 201 ページ ２０１９年８月３０日　金曜日　午後６時２２分

285
uuAudio System Basic Operation uPlaying AM/FM Radio
Continued
Features
Playing AM/FM Radio
(Back) Icon
Select to go back to the previous
display.
Seek Icons
Select or to search up and down
the selected band for a station with a
strong signal.
VOL/ AUDIO (Volume/Power)
Knob
Push to turn the audio system on
and off.
Turn to adjust the volume.
Tune Icon
Select to use the on-screen keyboard for
entering the radio frequency directly. Audio/Information Screen
Scan Icon
Select to scan each station with a strong
signal.
Preset Icons
Tune the radio frequency for preset memory.
Select and hold the preset icon to store that
station. Select to display preset 5 onwards.
>
Settings Icon
Select whether to tune to
HD Radio
TM * automatically.
* Not available on all models
20 PASSPORT-31TGS6100.book 285 ページ ２０１９年８月３０日　金曜日　午後６時２２分
