HONDA PASSPORT 2020 Owner's Manual (in English)

649Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 PASSPORT-31TGS6100.book 649 ページ ２０１９年８月３０日　金曜日　午後６時２２分

650
uuEmissions Testing uTesting of Readiness Codes
Information

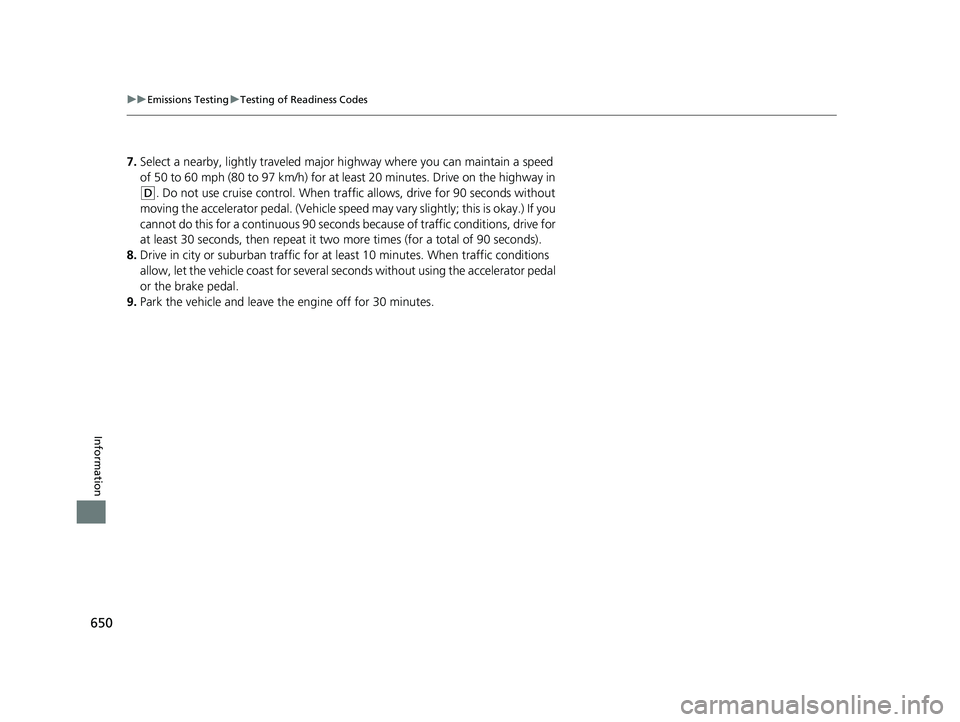

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
20 PASSPORT-31TGS6100.book 650 ページ ２０１９年８月３０日　金曜日　午後６時２２分

651Continued
Information

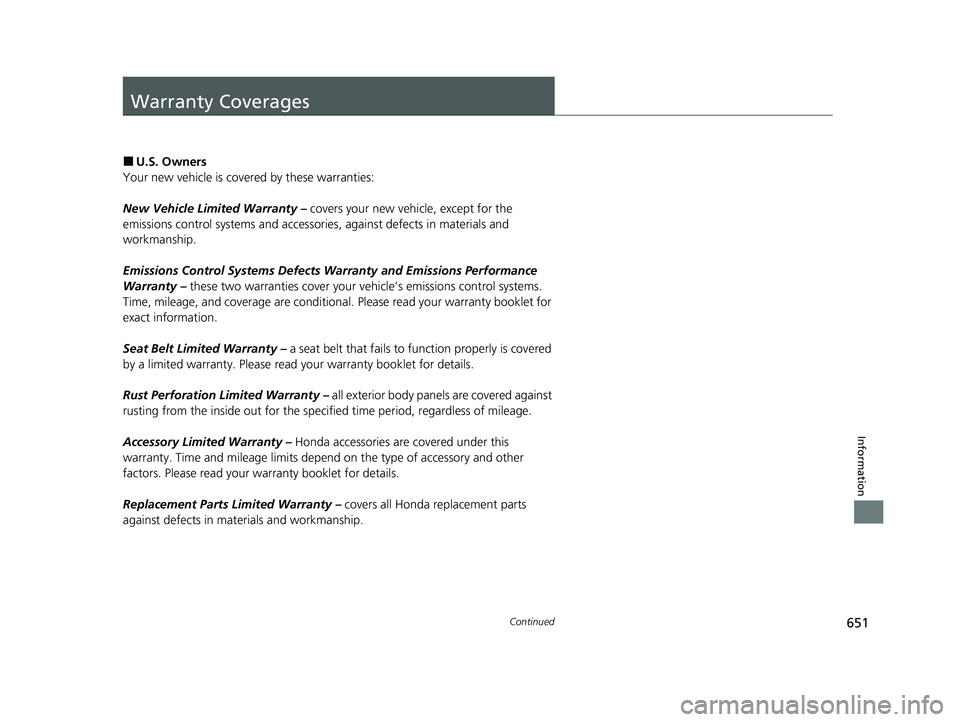

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
20 PASSPORT-31TGS6100.book 651 ページ ２０１９年８月３０日　金曜日　午後６時２２分

652
uuWarranty Coverages u
Information

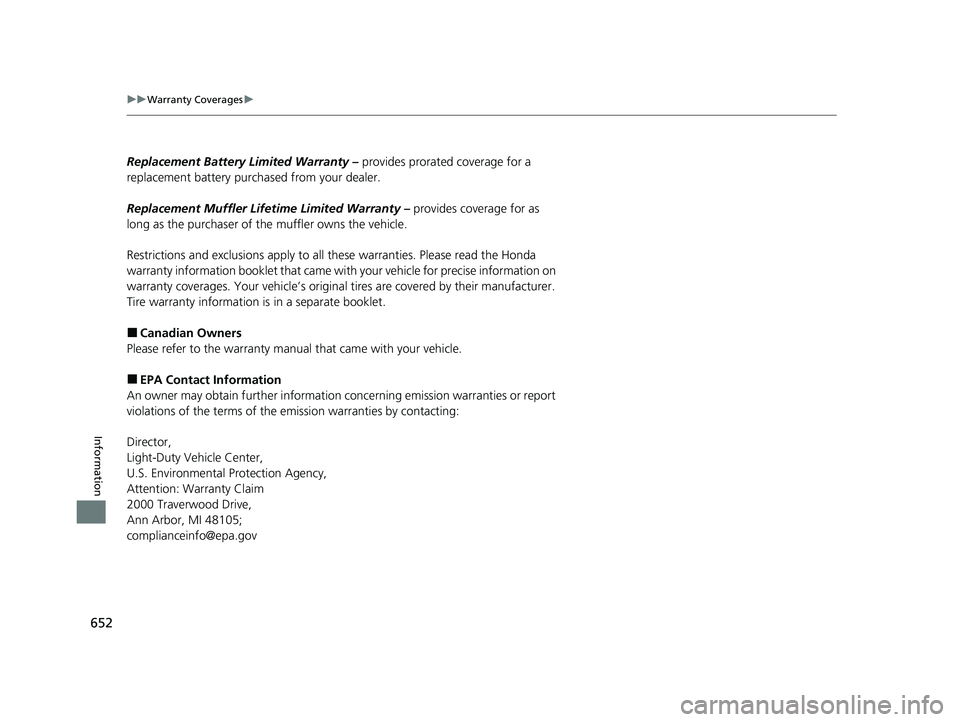

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came wi th your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
20 PASSPORT-31TGS6100.book 652 ページ ２０１９年８月３０日　金曜日　午後６時２２分

653
Information

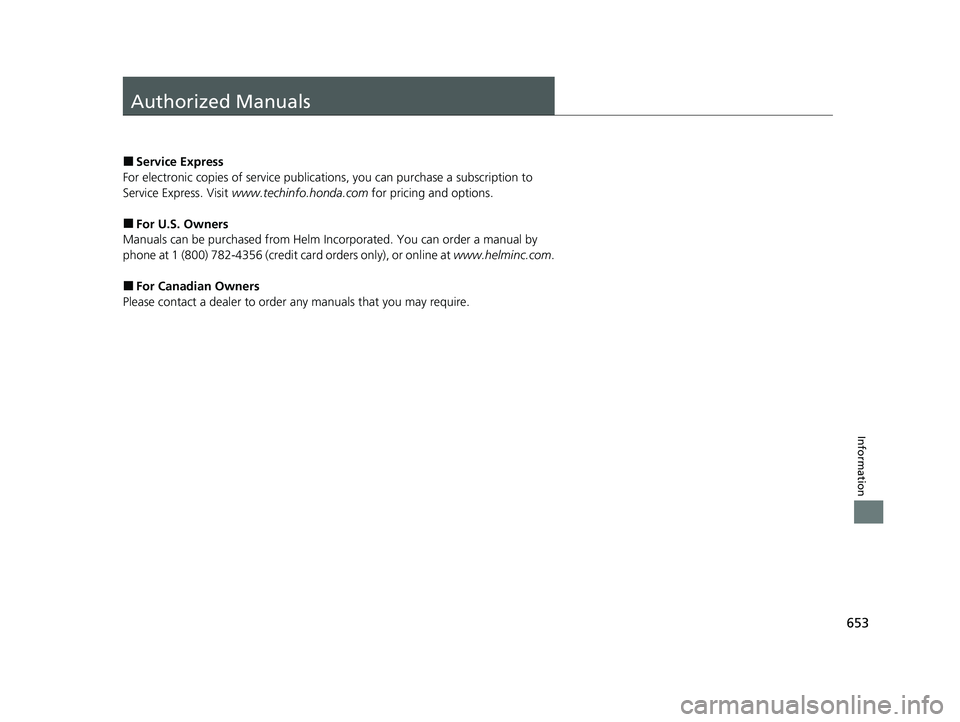

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit ca rd orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
20 PASSPORT-31TGS6100.book 653 ページ ２０１９年８月３０日　金曜日　午後６時２２分

654
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 646
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 PASSPORT-31TGS6100.book 654 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Index
655
Index
Index
A
AAC........................................... 247, 302, 305
ABS (Anti-lock Brake System) .................. 539
AC Power Outlet ...................................... 206
Accessories and Modifications ................ 609
Accessory Power Sockets ......................... 205
Adaptive Cruise Control (ACC) ................ 507
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 88
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 88
Additives Coolant .................................................. 577
Engine Oil ............................................... 572
Washer ................................................... 580
Additives, Engine Oil ............................... 572
Adjusting
Armrest .................................................. 197
Front Seats.............................................. 188
Head Restraints ............................... 194, 195
Mirrors.................................................... 186
Rear Seats ............................................... 192
Steering Wheel ....................................... 185
Agile Handling Assist ............................... 481
Air Conditioning System (Climate
Control System) ...................................... 219
Changing the Mode................................ 219
Defrosting the Windshield and
Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation/Fresh Air Mode................... 220 Sensor ..................................................... 225
Synchronization Mode ............................. 222
Using Automatic Climate Control ............ 219
Air Pressure ....................................... 591, 645
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 55, 80
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 45
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
All-wheel drive (AWD) Indicator ............... 85
AM/FM Radio .................................... 242, 285
Android Auto ............................................ 324
Anti-lock Brake System (ABS) .................. 539
Indicator .................................................... 79
Apple CarPlay ........................................... 321
Armrest ..................................................... 197
Audio Remote Controls ............................ 232
Audio System ............................ 228, 235, 253
Adjusting the Sound ........................ 240, 279
AM/FM Radio .................................. 242, 285
Android Auto .......................................... 324
Apple CarPlay .......................................... 321
Audio/Information Screen ................ 236, 254
Auxiliary Input Jack .................................. 230
Changing the Screen Brightness .............. 280 Display Setup .................................. 241, 280
Error Messages ........................................ 328
File Manager ........................................... 273
General Information ................................ 331
HD Subchannel ....................................... 288
Home Screen........................................... 259
HondaLink
®........................................... 313
How to Delete a File ................................ 276
How to Transfer a File ............................. 273
How to Update Wirelessly ....................... 267
How to Update with a USB Device........... 271
iPod ................................................ 244, 299
Limitations for Manual Operation ............ 281
MP3/WMA/AAC ...................... 247, 302, 305
My Honda Music ..................................... 305
Playing AM/FM Radio .............................. 285
Playing Bluetooth ® Audio ................ 250, 309
Playing SiriusXM ® Radio .......................... 289
Playing Social Playlist ............................... 311
Reactivating ............................................ 231
Remote Controls ..................................... 232
Security Code .......................................... 231
Selecting an Audio Source ....................... 281
Siri Eyes Free ........................................... 320
Status Area ............................................. 264
System Updates....................................... 267
Theft Protection ...................................... 231
Updating Apps ........................................ 265
USB Flash Drives

...................... 247, 302, 333
USB Port.................................................. 229
Wallpaper Setup.............................. 238, 257
20 PASSPORT-31TGS6100.book 655 ページ ２０１９年８月３０日　金曜日　午後６時２２分

656
Index
Wi-Fi Connection ..................................... 318
Audio/Information Screen ................ 236, 254
Authorized Manuals ................................. 653
Auto Door Locking/Unlocking ................. 147
Customize ....................................... 125, 375
Auto High-Beam ....................................... 174
Indicator .................................................... 80
Auto Idle Stop ........................................... 470
OFF Button .............................................. 471
Auto Idle Stop Indicator (Amber) .............. 85
Auto Idle Stop Indicator (Green) ............... 85
Automatic Intermittent Wipers ............... 178
Automatic Lighting .................................. 170
Automatic Transmission ........................... 461
Creeping ................................................. 461
Fluid ........................................................ 579
Kickdown ................................................ 461
Operating the Shift Button....................... 464
Shifting.................................................... 462
Auxiliary Input Jack .................................. 230
Average Fuel Economy ............................. 110
B
Back-Up Light............................................ 585
Battery ....................................................... 599
Charging System Indicator ................. 77, 629
Jump Starting .......................................... 624
Maintenance (Checking the Battery) ........ 599
Belts (Seat) .................................................. 37
Beverage Holders ...................................... 203 Blind Spot Information System
................ 482
Bluetooth® Audio............................. 250, 309
Bluetooth® HandsFreeLink ®........... 383, 408
Booster Seats (For Children) ...................... 72
Brake System ............................................ 537
Anti-lock Brake System (ABS)................... 539
Brake Assist System ................................. 540
Fluid ........................................................ 580
Foot Brake............................................... 538
Indicator............................................ 76, 631
Parking Brake .......................................... 537
Brake System (Red) Indicator.................................................. 631
Brightness Control (Instrument Panel) .... 182
Bulb Replacement .................................... 581
Back-Up Lights ........................................ 585
Brake lights ............................................. 584
Daytime Running Lights........................... 582
Fog Lights ............................................... 583
Front Side Marker Lights.......................... 582
Front Turn Signal Lights ........................... 583
Headlights ............................................... 581
High-Mount Brake Light .......................... 585
Parking Lights.......................................... 582
Rear License Plate Lights .......................... 585
Rear Side Marker Lights ........................... 584
Rear Turn Signal Lights ............................ 584
Side Turn Signal/Emergency Indicator
Lights .................................................... 584
Taillights.................................................. 584
Bulb Specifications ................................... 644
C
Car Wash Mode........................................ 466
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 437, 439
Certification Label ................................... 646
Changing Bulbs ........................................ 581
Charging System Indicator ................ 77, 629
Child Safety ................................................ 58
Childproof Door Locks ............................ 146
Child Seat ................................................... 58
Booster Seats ............................................ 72
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/
Shoulder Seat Belt ................................... 66
Larger Children ......................................... 71
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 146
Cleaning the Exterior ............................... 606
Cleaning the Interior ............................... 604
Climate Control System ........................... 219
Changing the Mode................................ 219
Defrosting the Windshield and Windows .............................................. 220
Dust and Pollen Filter .............................. 603
Recirculation and Fresh Air Mode ............ 220
Sensors ................................................... 225
Synchronization Mode ............................ 222
Using Automatic Climate Control............ 219
Clock ......................................................... 130
20 PASSPORT-31TGS6100.book 656 ページ ２０１９年８月３０日　金曜日　午後６時２２分

657
Index
Coat Hook................................................ 210
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 495
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 88, 89
Compact Spare Tire .......................... 613, 645
Console Compartment ............................. 201
Controls .................................................... 129
Coolant (Engine) ...................................... 577
Adding to the Radiator ........................... 578
Adding to the Reserve Tank .................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Creeping (Automatic Transmission) ........ 461
Cross Traffic Monitor ............................... 548
Cup Holders .............................................. 203
Customer Service Information ................ 654
Customized Features ............... 119, 354, 361
D
Daytime Running Lights .......................... 173
Dead Battery ............................................ 624
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows ................................................. 220
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 647
Dimming Headlights .............................................. 169
Rearview Mirror ...................................... 186 Dipstick (Engine Oil)
................................. 573
Directional Signals (Turn Signal) ............. 168
Door Mirrors ............................................. 187
Doors ......................................................... 133
Auto Door Locking .................................. 147
Auto Door Unlocking ............................... 147
Door Open Message .................................. 36
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside..................................................... 144
Locking/Unlocking the Doors from the
Outside.................................................. 136
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 593
Driver Information Interface ................... 105
Accessing Content ................................... 107
Warning and Information Messages .......... 91
Driving ....................................................... 435
Adaptive Cruise Control (ACC) ................ 507
Automatic Transmission ........................... 461
Braking .................................................... 537
Off-Highway Driving Guidelines ............... 452
Shifting Gear ........................................... 462
Starting the Engine .................................. 454
Driving Position Memory System ............. 183
Dust and Pollen Filter ............................... 603
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 476 Econ Mode
Indicator.................................................... 84
Electric Power Steering (EPS) System Indicator............................................ 81, 631
Electronic Stability Control (ESC) ............. 479
Emergency ................................................ 638
Emissions Testing (Readiness Codes) ....... 649
Engine
Coolant ................................................... 577
Jump Starting .......................................... 624
Number................................................... 646
Oil ........................................................... 572
Remote Engine Start................................ 456
Starting ................................................... 454
Engine Compartment Cover .................... 571
Engine Coolant ......................................... 577
Adding to the Radiator ............................ 578
Adding to the Reserve Tank..................... 577
Overheating ............................................ 627
Temperature Gauge ................................ 104
Engine Oil ................................................. 572
Adding .................................................... 574
Checking................................................. 573
Displaying Maintenance Minder Information ........................................... 564
Low Oil Pressure Symbol.......................... 629
Recommended Engine Oil ....................... 572
ENGINE START/STOP Button .................... 165
EPS (Electric Power Steering) System ...... 631
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 606
20 PASSPORT-31TGS6100.book 657 ページ ２０１９年８月３０日　金曜日　午後６時２２分

658
Index
Exterior Mirrors......................................... 187
F
Features..................................................... 227
File Manager ............................................. 273
Filters
Dust and Pollen ....................................... 603
Oil ........................................................... 575
Flat Tire ..................................................... 613
Floor Mats ................................................. 605
Fluids Automatic Transmission ........................... 579
Brake ....................................................... 580
Engine Coolant ........................................ 577
Windshield Washer .................................. 580
FM/AM Radio .................................... 242, 285
Fog Light Indicator ..................................... 83
Fog Lights .................................................. 172
Folding Down the Rear Seat .................... 193
Foot Brake ................................................. 538
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 188
Adjusting ................................................. 188
Front Sensor Camera ................................ 534
Fuel ...................................................... 23, 554
Economy ................................................. 557
Gauge ..................................................... 104
Instant Fuel Economy ............................... 110
Low Fuel Indicator ..................................... 79
Range ...................................................... 110 Recommendation .................................... 554
Refueling................................................. 554
Fuel Economy ........................................... 557
Fuel Fill Cap .............................................. 556
Fuel Fill Door ...................................... 23, 555
Unable to Unlock .................................... 639
Fuses .......................................................... 633
Inspecting and Changing......................... 637
Locations......................... 633, 634, 635, 636
G
Gasoline (Fuel)
Economy ................................................. 557
Gauge ..................................................... 104
Information ............................................. 554
Instant Fuel Economy .............................. 110
Low Fuel Indicator ..................................... 79
Refueling................................................. 554
Gauges ...................................................... 104
Gear Position Indicator ...................... 77, 464
Gear Shift Positions Automatic Transmission .......................... 462
Glass (care) ................................................ 607
Glove Box .................................................. 201
H
Handling the Unexpected ....................... 611
HandsFreeLink® (HFL)...................... 383, 408
Automatic Import of Cellular Phonebook
and Call History............................. 397, 417
Automatic Transferring ........................... 416
Caller’s ID Information ............................ 395
Displaying Messages ............................... 427
Favorite Contacts .................................... 418
HFL Buttons .................................... 383, 408
HFL Menus...................................... 385, 411
HFL Status Display ........................... 384, 410
In Case of Emergency ............................. 431
Limitations for Manual Operation .... 384, 410
Making a Call ................................. 402, 420
Options During a Call...................... 407, 423
Phone Setup ................................... 389, 413
Receiving a Call............................... 406, 423
Receiving a Text Message........................ 425
Ring Tone ....................................... 395, 416
Selecting a Phone ................................... 426
Speed Dial .............................................. 398
To Clear the System ................................ 396
To Set Up a Text Message Options .......... 424
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 288
Head Restraints ................................ 194, 195
Headlights ................................................ 169
Auto High-Beam ..................................... 174
Automatic Operation .............................. 170
Dimming......................................... 169, 173
20 PASSPORT-31TGS6100.book 658 ページ ２０１９年８月３０日　金曜日　午後６時２２分
