fuse HONDA PASSPORT 2020 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 37 Airbags P. 45
2Instrument Panel P. 75
Indicators P. 76 Gauges and Displays P. 104
2Controls P. 129
Clock P. 130 Locking and Unlocking the Doors P. 133
Moonroof* P. 164 Operating the Switches Around the Steering Wheel P. 165
Interior Lights/Interior Convenience Items P. 198
2 Features P. 227
Audio System P. 228
General Information on the Audio System P. 331
Bluetooth® HandsFreeLink ® P. 383, 408
2 Driving P. 435
Before Driving P. 436 Towing a Trailer P. 442
Parking Your Vehicle P. 541Multi-View Rear Camera P. 552
2Maintenance P. 559
Before Performing Maintenance P. 560 Maintenance MinderTM P. 563
Checking and Maintaining Wiper Blades P. 586
Remote Transmitter Care P. 601
Accessories and Modifications P. 609
2 Handling the Unexpected P. 611
Tools P. 612 If a Tire Goes Flat P. 613
Indicator, Coming On/Blinking P. 629 Fuses P. 633
Refueling P. 640 When You Cannot Open the Tailgate P. 641
2Information P. 643
Specifications P. 644 Identification Numbers P. 646
Emissions Testing P. 649 Warranty Coverages P. 651
20 PASSPORT-31TGS6100.book 2 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Visual Index
6
Quick Reference Guide❚Power Window Switches (P161)
❚Memory Buttons* (P184)
❚SET Button* (P184)
❚Master Door Lock Switch (P146)
❚Power Tailgate Button* (P152)
❚Fuel Fill Door Release Button
(P555)
❚Door Mirror Controls (P187)
❚Driver’s Front Airbag (P48)
❚Hood Release Handle (P570)
❚Glove Box (P201)
❚Interior Fuse Box (P636)
❚Parking Brake (P537)
❚Interior Fuse Box (P635)
❚Accessory Power Socket (P205)
❚USB Port (P229)
❚Rearview Mirror (P186)
❚HomeLink® Buttons* (P381)
❚Passenger’s Front Airbag (P48)
❚Accessory Power Socket (P205)
❚Auxiliary Input Jack (P230)
❚USB Port (P229)
❚Snow Button* (P477)
❚Mode Button* (P477)
❚Auto Idle Stop OFF Button (P471)
❚Shift Button (P462)
20 PASSPORT-31TGS6100.book 6 ページ ２０１９年８月３０日　金曜日　午後６時２２分

26
Quick Reference Guide
Handling the Unexpected (P611)
Flat Tire (P613)
●Park in a safe location and replace the
flat tire with the compact spare tire
located in the cargo area.
Indicators Come On (P629)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P621)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P633)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P627)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P638)
●Call a professional towing service if you
need to tow your vehicle.
20 PASSPORT-31TGS6100.book 26 ページ ２０１９年８月３０日　金曜日　午後６時２２分

Continued151
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF (LOCK).
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and open s at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 361
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your cargo in and out.
Make sure the power tailgate is fully closed before
you start the vehicle.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
20 PASSPORT-31TGS6100.book 151 ページ ２０１９年８月３０日　金曜日　午後６時２２分

446
uuTowing a Trailer uTowing Preparation
Driving
The trailer hitch harness is used to install the
controller for the electric trailer brakes.
Insert the trailer brake fuse into the engine
compartment sub fuse box.
2 Engine Compartment Fuse Box Type B
P. 634
Electric Brake
(Brown)
Brake (20A)
(Blue)
Ground
(Black)
Brake Lights
(Sky Blue)
20 PASSPORT-31TGS6100.book 446 ページ ２０１９年８月３０日　金曜日　午後６時２２分

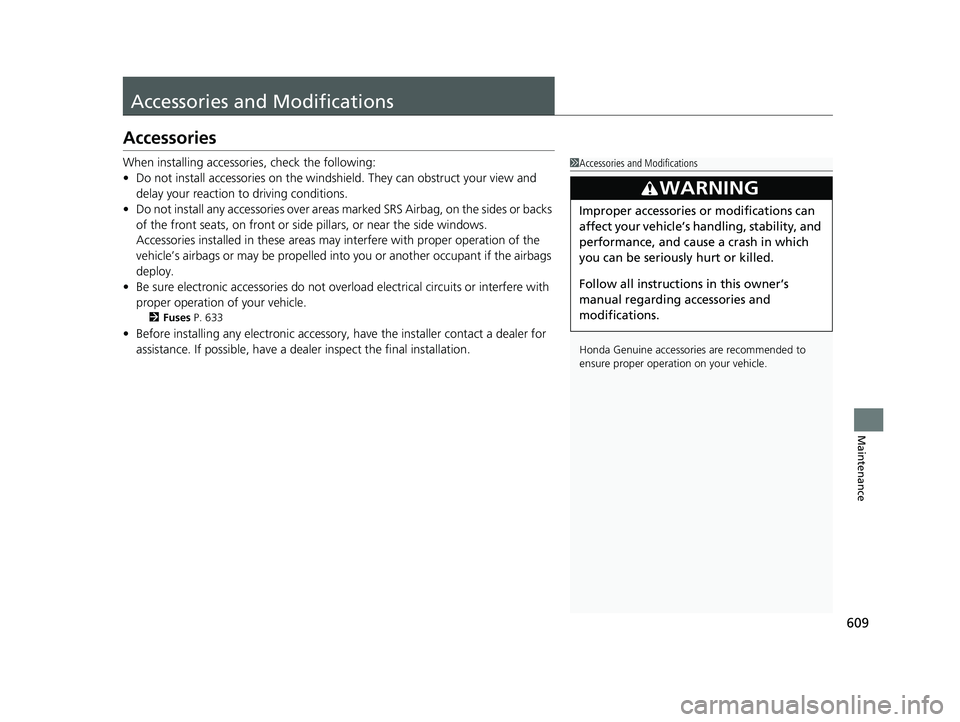

609
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 633
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
20 PASSPORT-31TGS6100.book 609 ページ ２０１９年８月３０日　金曜日　午後６時２２分

611
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 612
If a Tire Goes Flat Changing a Flat Tire ......................... 613
Engine Does Not Start Checking the Engine ........................ 621
If the Smart Entry Remote Battery is Weak .......................................... 622
Emergency Engine Stop ................... 623
Jump Starting .................................... 624
Overheating How to Handle Overheating ............. 627 Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ...... 629
If the Charging System Indicator Comes
On ................................................. 629
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 630
If the Brake System Indicator (Red) Comes On ................................................. 631
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 631
If the Low Tire Pressure/Tire Pressure
Monitoring System (TPMS) Indicator
Comes On or Blinks........................ 632 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 632
Fuses Fuse Locations ................................. 633
Inspecting and Changing Fuses ........ 637
Emergency Towing ........................... 638
When You Cannot Unlock the Fuel Fill Door ................................................. 639
Refueling
Refueling From a Portable Fuel Container ................................... 640
When You Cannot Open the Tailgate .. 641
20 PASSPORT-31TGS6100.book 611 ページ ２０１９年８月３０日　金曜日　午後６時２２分

621
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.
●If the To Start, Hold Remote Near Start Button message appears
2If the Smart Entry Remote Battery is Weak P. 622
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 165
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 599●If the interior lights come on normally 2 Fuses P. 633
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 454
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 158
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 104
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 637
If the problem continues:
2Emergency Towing P. 638
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 624
20 PASSPORT-31TGS6100.book 621 ページ ２０１９年８月３０日　金曜日　午後６時２２分

633Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
RR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
PREMIUM AMP*(20 A)
ENGINE MOUNT30 A
FR BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*(30 A)
RR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW(7.5 A)
6 STOP LIGHT 10 A
7FI SUB VSS10 A
8L H/L L O 1 0 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP 10 A
15FR FOG*(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19−−
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO/USB15 A
Circuit ProtectedAmps
* Not available on all models
20 PASSPORT-31TGS6100.book 633 ページ ２０１９年８月３０日　金曜日　午後６時２２分

634
uuFuses uFuse Locations
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 RR ACC SOCKET*(20 A)
9FR WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT30 A
13IDLE STOP30 A
14IDLE STOP30 A
15ELECTRONIC GEAR SELECTOR15 A
16RR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
20 PASSPORT-31TGS6100.book 634 ページ ２０１９年８月３０日　金曜日　午後６時２２分
