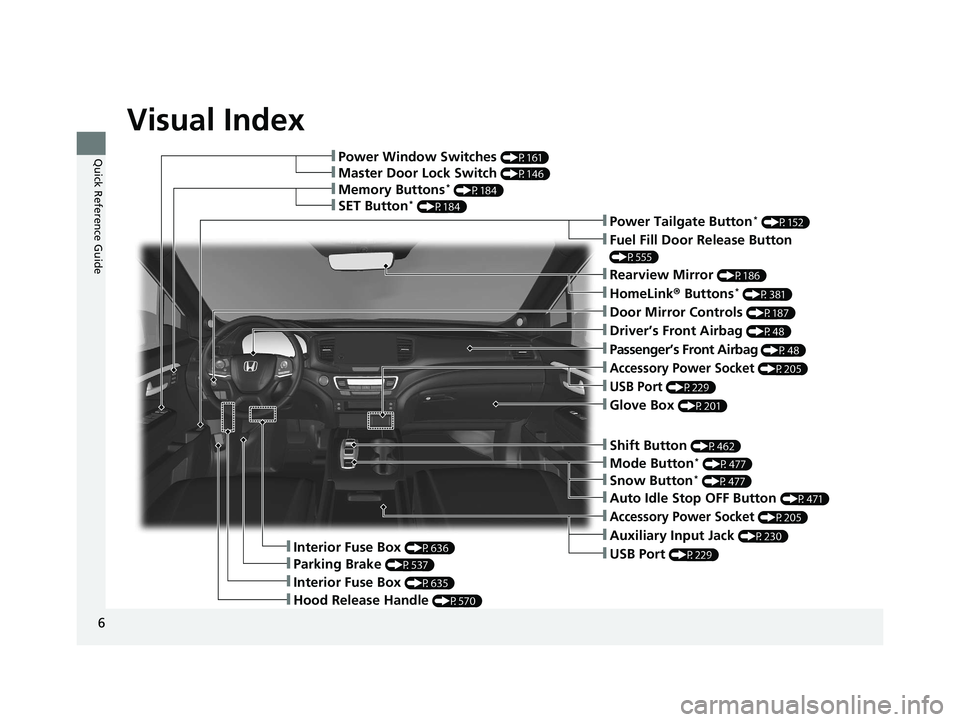

Quick Reference Guide❚Power Window Switches (P161)
❚Memory Buttons* (P184)
❚SET Button* (P184)
❚Master Door Lock Switch (P146)
❚Power Tailgate Button* (P152)
❚Fuel Fill Door Release Button
(P555)
❚Door Mirror Controls (P187)
❚Driver’s Front Airbag (P48)
❚Hood Release Handle (P570)
❚Glove Box (P201)
❚Interior Fuse Box (P636)
❚Parking Brake (P537)
❚Interior Fuse Box (P635)
❚Accessory Power Socket (P205)
❚USB Port (P229)
❚Rearview Mirror (P186)
❚HomeLink® Buttons* (P381)
❚Passenger’s Front Airbag (P48)
❚Accessory Power Socket (P205)
❚Auxiliary Input Jack (P230)
❚USB Port (P229)
❚Snow Button* (P477)
❚Mode Button* (P477)
❚Auto Idle Stop OFF Button (P471)
❚Shift Button (P462)
20 PASSPORT-31TGS6100.book 6 ページ ２０１９年８月３０日　金曜日　午後６時２２分

446
uuTowing a Trailer uTowing Preparation
Driving

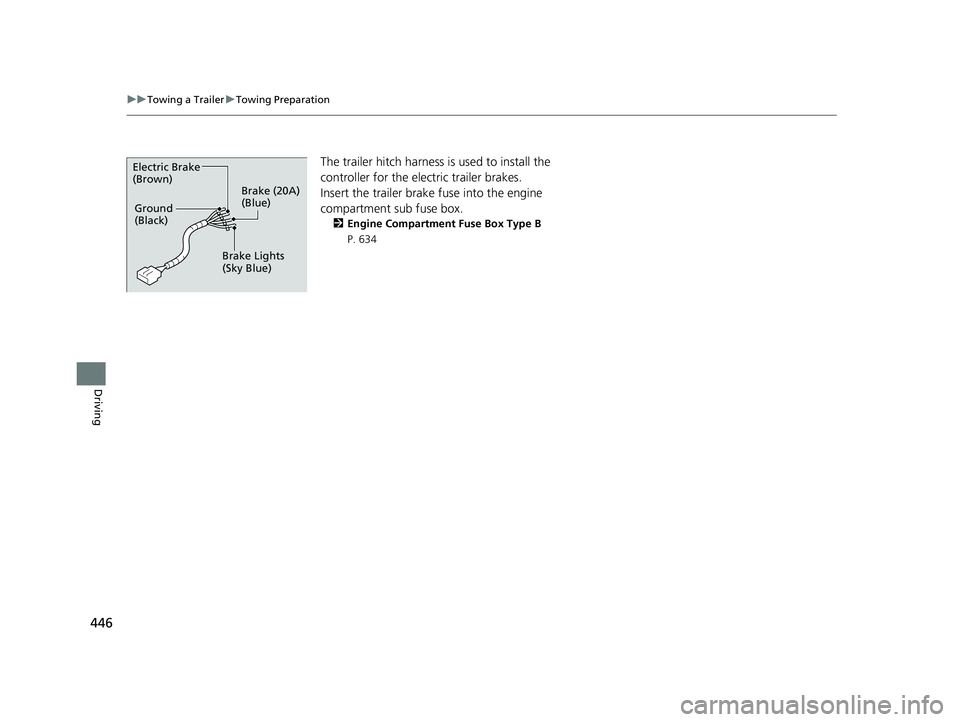

The trailer hitch harness is used to install the
controller for the electric trailer brakes.
Insert the trailer brake fuse into the engine
compartment sub fuse box.
2 Engine Compartment Fuse Box Type B
P. 634
Electric Brake
(Brown)
Brake (20A)
(Blue)
Ground
(Black)
Brake Lights
(Sky Blue)
20 PASSPORT-31TGS6100.book 446 ページ ２０１９年８月３０日　金曜日　午後６時２２分

633Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
RR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
PREMIUM AMP*(20 A)
ENGINE MOUNT30 A
FR BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*(30 A)
RR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW(7.5 A)
6 STOP LIGHT 10 A
7FI SUB VSS10 A
8L H/L L O 1 0 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP 10 A
15FR FOG*(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19−−
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO/USB15 A
Circuit ProtectedAmps
* Not available on all models
20 PASSPORT-31TGS6100.book 633 ページ ２０１９年８月３０日　金曜日　午後６時２２分

634
uuFuses uFuse Locations
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 RR ACC SOCKET*(20 A)
9FR WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT30 A
13IDLE STOP30 A
14IDLE STOP30 A
15ELECTRONIC GEAR SELECTOR15 A
16RR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
20 PASSPORT-31TGS6100.book 634 ページ ２０１９年８月３０日　金曜日　午後６時２２分

635
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.

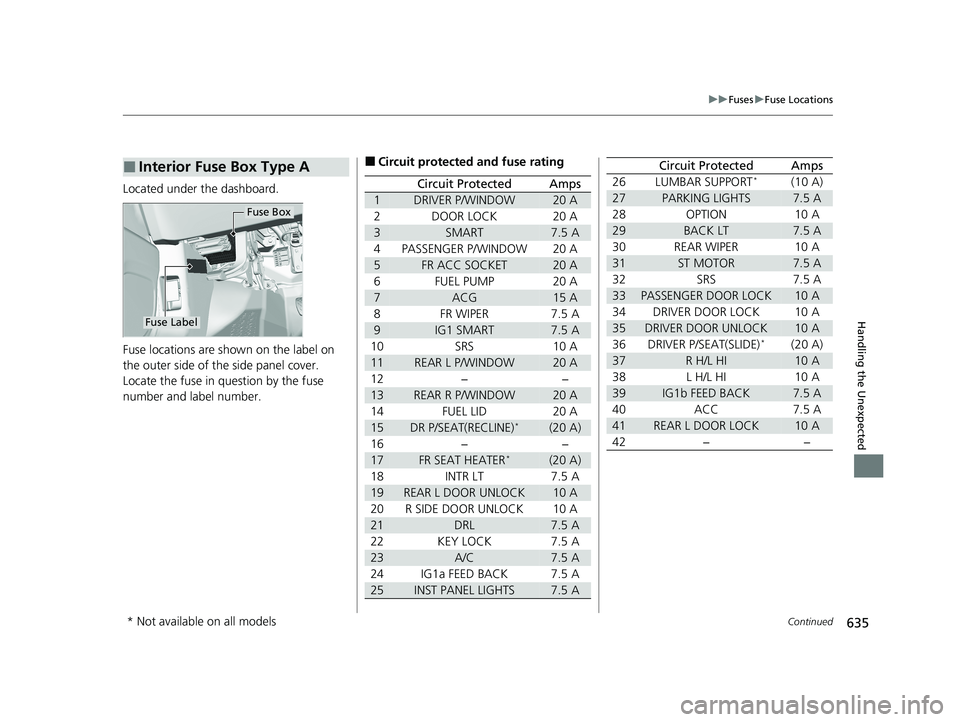

■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DRIVER P/WINDOW20 A
2DOOR LOCK20 A
3SMART7.5 A
4PASSENGER P/WINDOW20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FR WIPER7.5 A
9IG1 SMART7.5 A
10SRS10 A
11REAR L P/WINDOW20 A
12−−
13REAR R P/WINDOW20 A
14FUEL LID20 A
15DR P/SEAT(RECLINE)*(20 A)
16−−
17FR SEAT HEATER*(20 A)
18INTR LT7.5 A
19REAR L DOOR UNLOCK10 A
20R SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT*(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30REAR WIPER10 A
31ST MOTOR7.5 A
32SRS7.5 A
33PASSENGER DOOR LOCK10 A
34DRIVER DOOR LOCK10 A
35DRIVER DOOR UNLOCK10 A
36DRIVER P/SEAT(SLIDE)*(20 A)
37R H/L HI10 A
38L H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41REAR L DOOR LOCK10 A
42−−
Circuit ProtectedAmps
* Not available on all models
20 PASSPORT-31TGS6100.book 635 ページ ２０１９年８月３０日　金曜日　午後６時２２分

636
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.

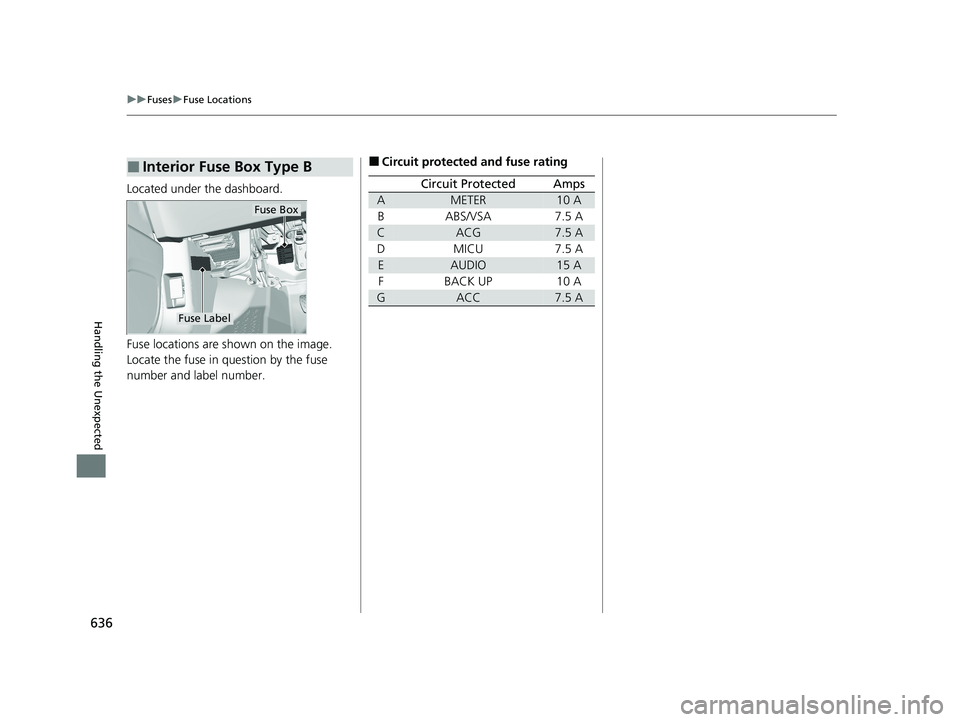

■Interior Fuse Box Type B
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
AMETER10 A
BABS/VSA7.5 A
CACG7.5 A
DMICU7.5 A
EAUDIO15 A
FBACK UP10 A
GACC7.5 A
20 PASSPORT-31TGS6100.book 636 ページ ２０１９年８月３０日　金曜日　午後６時２２分

637
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 633 to P. 636.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
