uuIndicator, Coming On/Blinking uIf the Transmission Indicator Blin ks along with the Warning Message
Handling the Unexpected

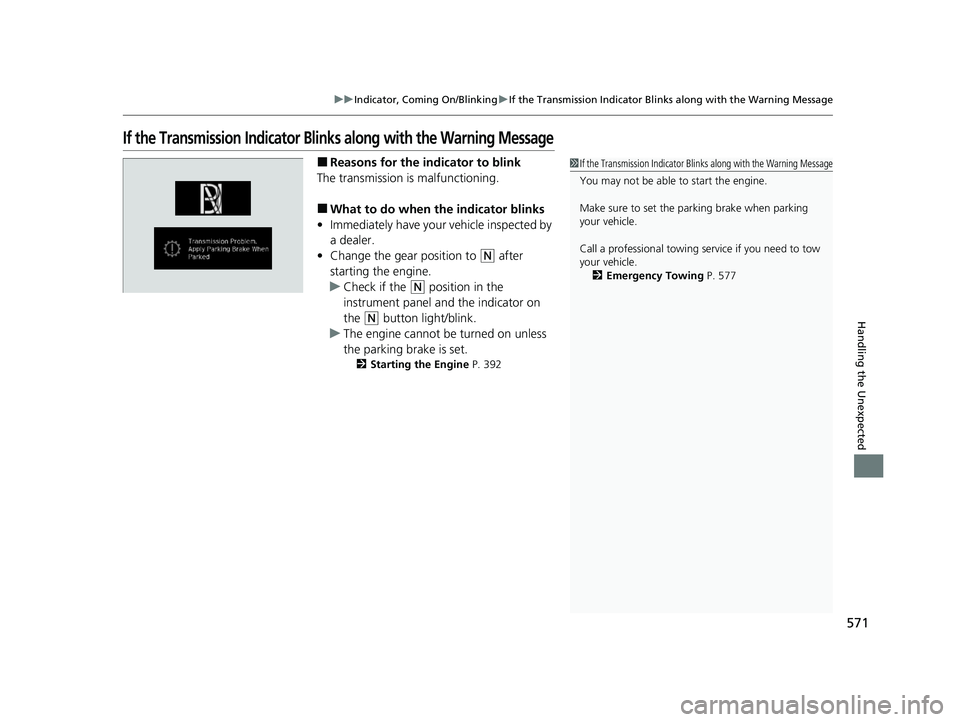

If the Transmission Indicator Blinks along with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Change the gear position to
(N after
starting the engine.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
u The engine cannot be turned on unless
the parking brake is set.
2 Starting the Engine P. 392
1If the Transmission Indicator Blin ks along with the Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle.
2 Emergency Towing P. 577
21 PASSPORT-31TGS6200.book 571 ページ ２０２０年９月４日　金曜日　午後２時３５分

572
Handling the Unexpected
Fuses
Fuse Locations

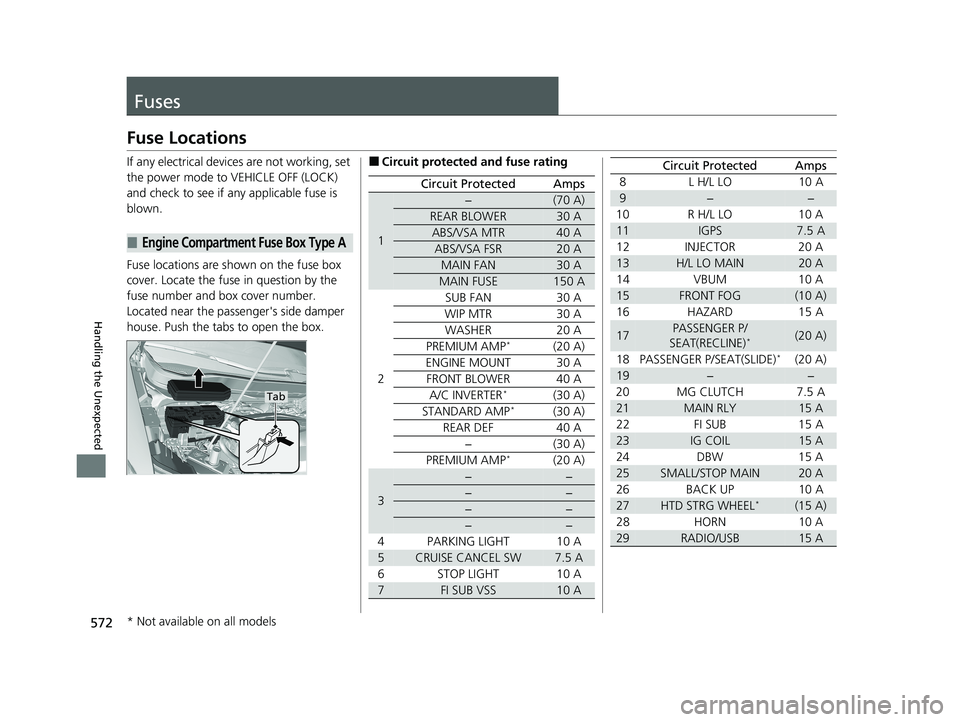

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
REAR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
PREMIUM AMP*(20 A)
ENGINE MOUNT30 A
FRONT BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*(30 A)
REAR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW7.5 A
6 STOP LIGHT 10 A
7FI SUB VSS10 A
8 L H/L LO 10 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 VBUM 10 A
15FRONT FOG(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19−−
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO/USB15 A
Circuit ProtectedAmps
* Not available on all models
21 PASSPORT-31TGS6200.book 572 ページ ２０２０年９月４日　金曜日　午後２時３５分

574
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DRIVER P/WINDOW20 A
2DOOR LOCK20 A
3SMART7.5 A
4PASSENGER P/WINDOW20 A
5FRONT ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9IG1 SMART7.5 A
10SRS10 A
11DRIVER REAR P/WINDOW20 A
12−−
13PASSENGER REAR P/
WINDOW20 A
14FUEL LID20 A
15DRIVER P/SEAT(RECLINE)*(20 A)
16−(7.5 A)
17FRONT SEAT HEATER*(20 A)
18INTR LT7.5 A
19DRIVER REAR DOOR UNLOCK10 A
20PASSENGER SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT*(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30REAR WIPER10 A
31ST MOTOR7.5 A
32SRS7.5 A
33PASSENGER SIDE DOOR
LOCK10 A
34DRIVER DOOR LOCK10 A
35DRIVER DOOR UNLOCK10 A
36DRIVER P/SEAT(SLIDE)*(20 A)
37PASSENGER H/L HI10 A
38DRIVER H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DRIVER REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps
* Not available on all models
21 PASSPORT-31TGS6200.book 574 ページ ２０２０年９月４日　金曜日　午後２時３５分

576
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses

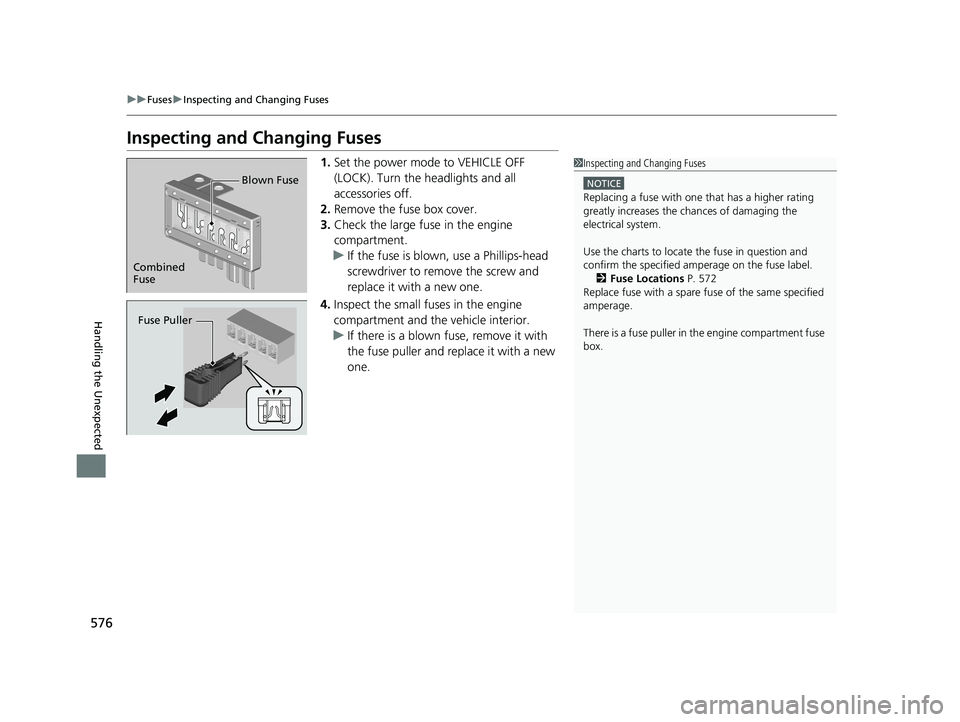

1. Set the power mode to VEHICLE OFF
(LOCK). Turn the headlights and all
accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 572
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
21 PASSPORT-31TGS6200.book 576 ページ ２０２０年９月４日　金曜日　午後２時３５分

582
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelPassport
No. of Passengers:
Front 2
Rear 3
Total
5Weights:Gross Vehicle
Weight RatingSee the certification label
on the driver's doorjamb
Gross Axle Weight
Rating (Front)See the certification label
on the driver's doorjamb
Gross Axle Weight
Rating (Rear)See the certification label
on the driver's doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*1
9,755 lbs (4,425 kg)*2
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)
Quantity 7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1
LED*2
Fog LightsLEDFront Turn Signal Lights28/8 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up Lights21 WRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior LightsFront Map Lights5 WRear Map Lights5 WAmbient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
21 PASSPORT-31TGS6200.book 582 ページ ２０２０年９月４日　金曜日　午後２時３５分

588
uuEmissions Testing uTesting of Readiness Codes
Information

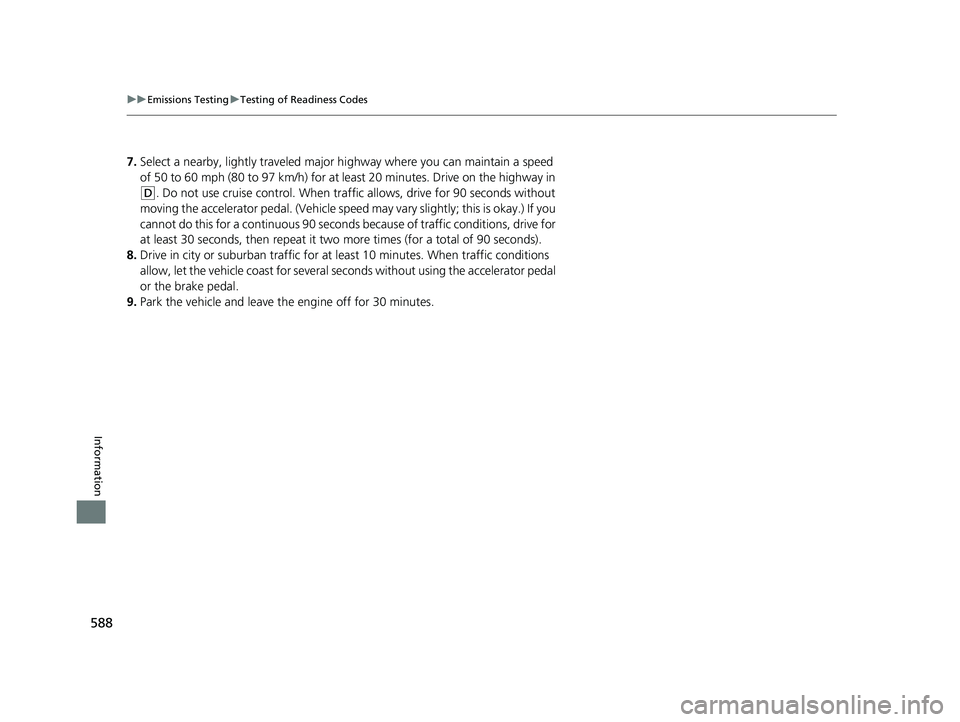

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
21 PASSPORT-31TGS6200.book 588 ページ ２０２０年９月４日　金曜日　午後２時３５分

591
uuWarranty Coverages u
Information

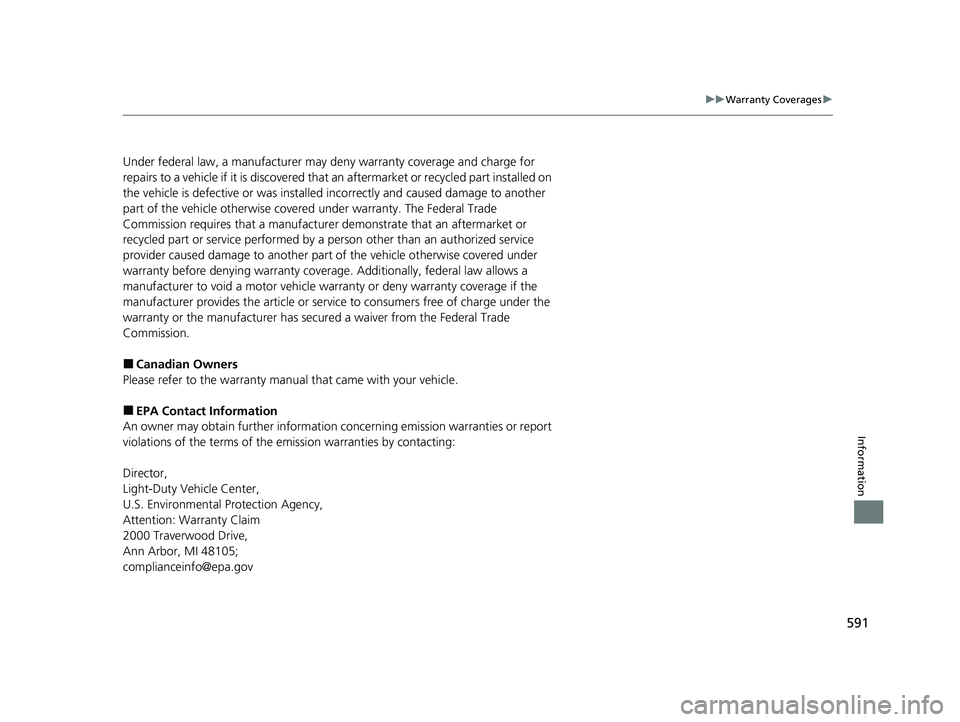

Under federal law, a manufacturer may deny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warr anty or deny warranty coverage if the
manufacturer provides the article or serv ice to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information conc erning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
21 PASSPORT-31TGS6200.book 591 ページ ２０２０年９月４日　金曜日　午後２時３５分

596
Index
USB Port .................................................. 219
Wallpaper Setup ...................................... 228
Wi-Fi Connection ..................................... 288
Audio/Information Screen ........................ 225
Authorized Manuals ................................. 592
Auto Door Locking/Unlocking ................. 138
Customize ............................................... 338
Auto High-Beam ....................................... 165
Indicator .................................................... 82
Auto Idle Stop ........................................... 409
OFF Button .............................................. 410
Auto Idle Stop Indicator (Amber) .............. 87
Auto Idle Stop Indicator (Green) ............... 87
Automatic Intermittent Wipers ............... 169
Automatic Lighting .................................. 161
Automatic Transmission ........................... 400
Creeping ................................................. 400
Fluid ........................................................ 517
Kickdown ................................................ 400
Operating the Shift Button....................... 403
Shifting.................................................... 401
Auxiliary Input Jack .................................. 220
Average Fuel Economy ............................. 112
B
Back-Up Light............................................ 523
Battery ....................................................... 537
Charging System Indicator ................. 79, 568
If the Battery Is Dead ............................... 562
Maintenance (Checking the Battery) ........ 537 Belts (Seat)
.................................................. 37
Beverage Holders ..................................... 194
Blind Spot Information System ................ 421
Bluetooth® Audio..................................... 279
Bluetooth® HandsFreeLink ®................... 346
Booster Seats (For Children) ...................... 74
Brake System ............................................ 476
Anti-lock Brake System (ABS)................... 478
Brake Assist System ................................. 479
Fluid ........................................................ 518
Foot Brake............................................... 477
Indicator............................................ 78, 569
Parking Brake .......................................... 476
Brightness Control (Instrument Panel) .... 173
Bulb Replacement .................................... 519
Back-Up Lights ........................................ 523
Brake lights ............................................. 522
Daytime Running Lights........................... 520
Fog Lights ............................................... 521
Front Side Marker Lights.......................... 520
Front Turn Signal Lights ........................... 521
Headlights ............................................... 519
High-Mount Brake Light .......................... 523
Parking Lights.......................................... 520
Rear License Plate Lights .......................... 523
Rear Side Marker Lights ........................... 522
Rear Turn Signal Lights ............................ 522
Side Turn Signal/Emergency Indicator
Lights .................................................... 522
Taillights.................................................. 522
Bulb Specifications ................................... 582
C
Car Wash Mode........................................ 405
Carbon Monoxide Gas ............................... 75
Carrying Cargo ................................. 375, 377
Certification Label ................................... 584
Changing Bulbs ........................................ 519
Charging System Indicator ................ 79, 568
Child Safety ................................................ 60
Childproof Door Locks ............................ 137
Child Seat ................................................... 60
Booster Seats ............................................ 74
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 68
Larger Children ......................................... 73
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Childproof Door Locks ............................. 137
Cleaning the Exterior ............................... 544
Cleaning the Interior ............................... 542
Climate Control System ........................... 210
Changing the Mode................................ 210
Defrosting the Windshield and Windows .............................................. 211
Dust and Pollen Filter .............................. 541
Recirculation and Fresh Air Mode ............ 211
Sensors ................................................... 216
Synchronization Mode ............................ 213
Using Automatic Climate Control............ 210
Clock ......................................................... 122
21 PASSPORT-31TGS6200.book 596 ページ ２０２０年９月４日　金曜日　午後２時３５分

597
Index
Coat Hook................................................ 201
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 434
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 90, 91
Compact Spare Tire .......................... 551, 583
Console Compartment ............................. 192
Controls .................................................... 121
Coolant (Engine) ...................................... 515
Adding to the Radiator ........................... 516
Adding to the Reserve Tank .................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Creeping (Automatic Transmission) ........ 400
Cross Traffic Monitor ............................... 487
Cup Holders .............................................. 194
Customer Service Information ................ 593
Customized Features ............................... 324
D
Daytime Running Lights .......................... 164
Dead Battery ............................................ 562
Defaulting All the Settings ...................... 342
Defrosting the Windshield and Windows ................................................. 211
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 585
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 177 Dipstick (Engine Oil)
................................. 511
Directional Signals (Turn Signal) ............. 159
Door Mirrors ............................................. 178
Doors ......................................................... 124
Auto Door Locking .................................. 138
Auto Door Unlocking ............................... 138
Door Open Message .................................. 36
Keys ........................................................ 124
Locking/Unlocking the Doors from the Inside..................................................... 135
Locking/Unlocking the Doors from the
Outside.................................................. 127
Lockout Prevention System ...................... 134
DOT Tire Quality Grading ........................ 531
Driver Information Interface ................... 107
Accessing Content ................................... 109
Warning and Information Messages .......... 93
Driving ....................................................... 373
Adaptive Cruise Control (ACC) ................ 446
Automatic Transmission ........................... 400
Braking .................................................... 476
Off-Highway Driving Guidelines ............... 390
Shifting Gear ........................................... 401
Starting the Engine .................................. 392
Driving Position Memory System ............. 174
Dust and Pollen Filter ............................... 541
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 415 Econ Mode
Indicator.................................................... 86
Electric Power Steering (EPS) System Indicator............................................ 83, 569
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 577
Emissions Testing (Readiness Codes) ....... 587
Engine
Coolant ................................................... 515
If the Battery Is Dead ............................... 562
Number................................................... 584
Oil ........................................................... 510
Remote Engine Start................................ 394
Starting ................................................... 392
Engine Compartment Cover .................... 509
Engine Coolant ......................................... 515
Adding to the Radiator ............................ 516
Adding to the Reserve Tank..................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Engine Oil ................................................. 510
Adding .................................................... 512
Checking................................................. 511
Displaying Maintenance Minder Information ........................................... 502
Low Oil Pressure Warning........................ 567
Recommended Engine Oil ....................... 510
ENGINE START/STOP Button .................... 156
EPS (Electric Power Steering) System ...... 569
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 544
21 PASSPORT-31TGS6200.book 597 ページ ２０２０年９月４日　金曜日　午後２時３５分

598
Index
Exterior Mirrors......................................... 178
F
Features..................................................... 217
File Manager ............................................. 244
Filters
Dust and Pollen ....................................... 541
Oil ........................................................... 513
Flat Tire ..................................................... 551
Floor Mats ................................................. 543
Fluids Automatic Transmission ........................... 517
Brake ....................................................... 518
Engine Coolant ........................................ 515
Windshield Washer .................................. 518
FM/AM Radio ............................................ 256
Fog Light Indicator ..................................... 85
Fog Lights .................................................. 163
Folding Down the Rear Seat .................... 184
Foot Brake ................................................. 477
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 179
Adjusting ................................................. 179
Front Sensor Camera ................................ 473
Fuel ...................................................... 24, 493
Economy ................................................. 496
Gauge ..................................................... 106
Instant Fuel Economy ............................... 112
Low Fuel Indicator ..................................... 81
Range ...................................................... 112 Recommendation .................................... 493
Refueling................................................. 493
Fuel Economy ........................................... 496
Fuel Fill Cap .............................................. 495
Fuel Fill Door ...................................... 24, 494
Unable to Unlock .................................... 578
Fuses .......................................................... 572
Inspecting and Changing......................... 576
Locations......................... 572, 573, 574, 575
G
Gasoline (Fuel)
Economy ................................................. 496
Gauge ..................................................... 106
Information ............................................. 493
Instant Fuel Economy .............................. 112
Low Fuel Indicator ..................................... 81
Refueling................................................. 493
Gauges ...................................................... 106
Gear Position Indicator ...................... 79, 403
Gear Shift Positions Automatic Transmission .......................... 401
Glass (care) ................................................ 545
Glove Box .................................................. 192
H
Handling the Unexpected ....................... 549
HandsFreeLink® (HFL).............................. 346
Automatic Import of Cellular Phonebook
and Call History..................................... 355
Automatic Transferring ........................... 354
Displaying Messages ............................... 365
Favorite Contacts .................................... 356
HFL Buttons ............................................ 346
HFL Menus.............................................. 349
HFL Status Display ................................... 348
In Case of Emergency ............................. 369
Limitations for Manual Operation ............ 348
Making a Call ......................................... 358
Options During a Call.............................. 361
Phone Setup ........................................... 351
Receiving a Call....................................... 361
Receiving a Text Message........................ 363
Ring Tone ............................................... 354
Selecting a Phone ................................... 364
To Set Up a Text Message Options .......... 362
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 258
Head Restraints ................................ 185, 186
Headlights ................................................ 160
Auto High-Beam ..................................... 165
Automatic Operation .............................. 161
Dimming......................................... 160, 164
Operating ............................................... 160
Heated Steering Wheel ........................... 207
Heated Windshield Button ...................... 172
21 PASSPORT-31TGS6200.book 598 ページ ２０２０年９月４日　金曜日　午後２時３５分
