cruise control HONDA PASSPORT 2021 Navigation Manual (in English)

Continued457
uuHonda Sensing ®u Adaptive Cruise Control (ACC)
Driving
Press and hold the (interval) button for one
second. Cruise Mode Selected appears on
the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC, press and hold the
button again for one second.
■When to use
Desired speed in a range above roughly 25 mph (40 km/h) ~.
Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
Each time you press the RES/+ or –/SET button, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
If you keep the RES/+ or –/SET button pressed, the vehicle speed increases or
decreases until you release it . This speed is then set.
■To Switch ACC to Cruise Control1To Switch ACC to Cruise Control
Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.
ACC ON Cruise
Control ON
■To Set the Vehicle Speed
■To Adjust the Vehicle Speed
21 PASSPORT-31TGS6200.book 457 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuHonda Sensing ®u Adaptive Cruise Control (ACC)
458
Driving

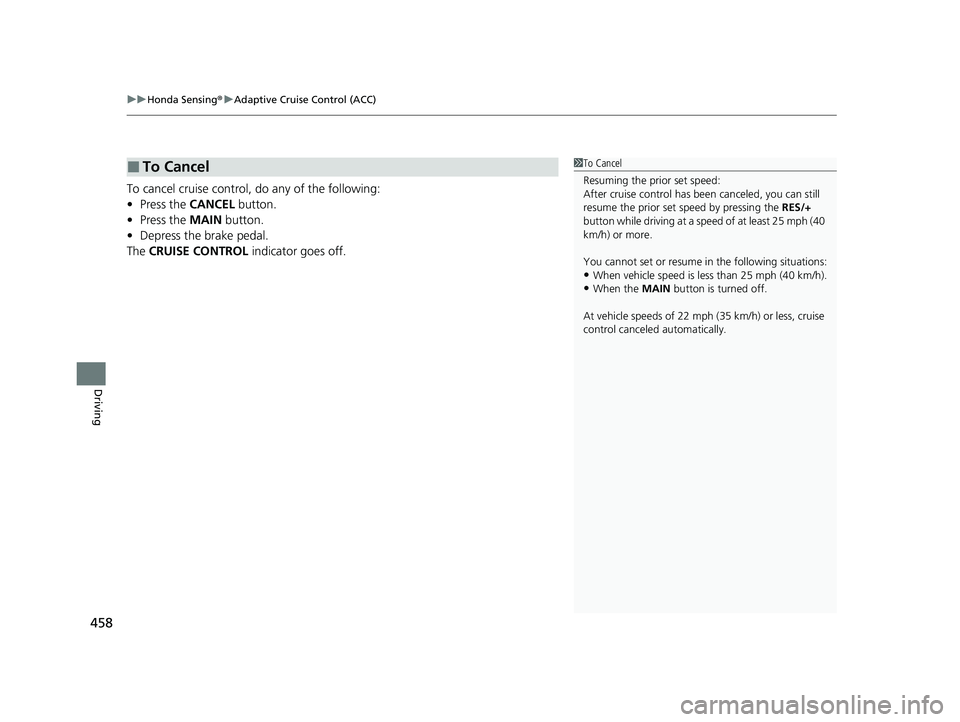

To cancel cruise control, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.
■To Cancel1To Cancel
Resuming the prior set speed:
After cruise control has be en canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h).
•When the MAIN button is turned off.
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control canceled automatically.
21 PASSPORT-31TGS6200.book 458 ページ ２０２０年９月４日　金曜日　午後２時３５分

588
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
21 PASSPORT-31TGS6200.book 588 ページ ２０２０年９月４日　金曜日　午後２時３５分

Index
595
Index
Index
A
AAC................................................... 272, 275
ABS (Anti-lock Brake System) .................. 478
AC Power Outlet ...................................... 197
Accessories and Modifications ................ 547
Accessory Power Sockets ......................... 196
Adaptive Cruise Control (ACC) ................ 446
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 90
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 90
Additives Coolant .................................................. 515
Engine Oil ............................................... 510
Washer ................................................... 518
Additives, Engine Oil ............................... 510
Adjusting
Armrest .................................................. 188
Front Seats.............................................. 179
Head Restraints ............................... 185, 186
Mirrors.................................................... 177
Rear Seats ............................................... 183
Steering Wheel ....................................... 176
Agile Handling Assist ............................... 420
Air Conditioning System
(Climate Control System) ....................... 210
Changing the Mode................................ 210
Defrosting the Windshield and
Windows .............................................. 211
Dust and Pollen Filter .............................. 541
Recirculation/Fresh Air Mode................... 211 Sensor ..................................................... 216
Synchronization Mode ............................. 213
Using Automatic Climate Control ............ 210
Air Pressure ....................................... 529, 583
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 56, 82
Passenger Airbag Off Indicator .................. 57
Sensors ...................................................... 45
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
All-wheel drive (AWD) Indicator ............... 87
AM/FM Radio ............................................ 256
Android Auto ............................................ 295
Anti-lock Brake System (ABS) .................. 478
Indicator .................................................... 81
Apple CarPlay ........................................... 292
Armrest ..................................................... 188
AT&T Hotspot ........................................... 290
Audio Remote Controls ............................ 222
Audio System .................................... 218, 224
Adjusting the Sound ................................ 250
AM/FM Radio .......................................... 256
Android Auto .......................................... 295
Apple CarPlay .......................................... 292
AT&T Hotspot .......................................... 290
Audio/Information Screen ........................ 225 Auxiliary Input Jack.................................. 220
Changing the Screen Brightness .............. 251
Display Setup .......................................... 251
Error Messages ........................................ 299
File Manager ........................................... 244
General Information ................................ 302
HD Subchannel ....................................... 258
Home Screen........................................... 230
HondaLink
®........................................... 283
How to Delete a File ................................ 247
How to Transfer a File ............................. 244
How to Update Wirelessly ....................... 238
How to Update with a USB Device........... 242
iPod ........................................................ 269
Limitations for Manual Operation ............ 252
MP3/WMA/AAC .............................. 272, 275
My Honda Music ..................................... 275
Playing AM/FM Radio .............................. 256
Playing Bluetooth ® Audio ........................ 279
Playing SiriusXM ® Radio .......................... 259
Playing Social Playlist ............................... 281
Reactivating ............................................ 221
Remote Controls ..................................... 222
Security Code .......................................... 221
Selecting an Audio Source ....................... 252
Siri Eyes Free ........................................... 291
Status Area ............................................. 235
System Updates....................................... 238
Thef

t Protection ...................................... 221
Updating Apps ........................................ 236
USB Flash Drives .............................. 272, 303
21 PASSPORT-31TGS6200.book 595 ページ ２０２０年９月４日　金曜日　午後２時３５分

597
Index
Coat Hook................................................ 201
Collision Mitigation Braking SystemTM
(CMBSTM) ................................................. 434
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator ............................. 90, 91
Compact Spare Tire .......................... 551, 583
Console Compartment ............................. 192
Controls .................................................... 121
Coolant (Engine) ...................................... 515
Adding to the Radiator ........................... 516
Adding to the Reserve Tank .................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Creeping (Automatic Transmission) ........ 400
Cross Traffic Monitor ............................... 487
Cup Holders .............................................. 194
Customer Service Information ................ 593
Customized Features ............................... 324
D
Daytime Running Lights .......................... 164
Dead Battery ............................................ 562
Defaulting All the Settings ...................... 342
Defrosting the Windshield and Windows ................................................. 211
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 585
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 177 Dipstick (Engine Oil)
................................. 511
Directional Signals (Turn Signal) ............. 159
Door Mirrors ............................................. 178
Doors ......................................................... 124
Auto Door Locking .................................. 138
Auto Door Unlocking ............................... 138
Door Open Message .................................. 36
Keys ........................................................ 124
Locking/Unlocking the Doors from the Inside..................................................... 135
Locking/Unlocking the Doors from the
Outside.................................................. 127
Lockout Prevention System ...................... 134
DOT Tire Quality Grading ........................ 531
Driver Information Interface ................... 107
Accessing Content ................................... 109
Warning and Information Messages .......... 93
Driving ....................................................... 373
Adaptive Cruise Control (ACC) ................ 446
Automatic Transmission ........................... 400
Braking .................................................... 476
Off-Highway Driving Guidelines ............... 390
Shifting Gear ........................................... 401
Starting the Engine .................................. 392
Driving Position Memory System ............. 174
Dust and Pollen Filter ............................... 541
E
Eco Assist® System ...................................... 12
ECON Button ............................................. 415 Econ Mode
Indicator.................................................... 86
Electric Power Steering (EPS) System Indicator............................................ 83, 569
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 577
Emissions Testing (Readiness Codes) ....... 587
Engine
Coolant ................................................... 515
If the Battery Is Dead ............................... 562
Number................................................... 584
Oil ........................................................... 510
Remote Engine Start................................ 394
Starting ................................................... 392
Engine Compartment Cover .................... 509
Engine Coolant ......................................... 515
Adding to the Radiator ............................ 516
Adding to the Reserve Tank..................... 515
Overheating ............................................ 565
Temperature Gauge ................................ 106
Engine Oil ................................................. 510
Adding .................................................... 512
Checking................................................. 511
Displaying Maintenance Minder Information ........................................... 502
Low Oil Pressure Warning........................ 567
Recommended Engine Oil ....................... 510
ENGINE START/STOP Button .................... 156
EPS (Electric Power Steering) System ...... 569
Exhaust Gas Hazard (Carbon Monoxide) .. 75
Exterior Care (Cleaning) ........................... 544
21 PASSPORT-31TGS6200.book 597 ページ ２０２０年９月４日　金曜日　午後２時３５分

599
Index
Heater (Steering Wheel).......................... 207
Heaters (Seat) ........................... 204, 205, 206
HFL (HandsFreeLink ®) .............................. 346
High Beam Indicator .................................. 84
Hill Start Assist System ............................. 398
HomeLink ® Universal Transceiver ........... 343
Honda App License Agreement .............. 304
Honda Sensing ®........................................ 25
HondaLink ®............................................ 283
I
Identification Numbers ............................ 584
Engine and Transmission ......................... 584
Vehicle Identification............................... 584
If the Transmission Indicator Blinks
along with the Warning Message ......... 571
Illumination Control ................................ 173
Button .................................................... 173
Immobilizer System .................................. 149
Indicator ................................................... 85
Indicators .................................................... 78
Adaptive Cruise Control (ACC) (Amber) .... 90
Adaptive Cruise Control (ACC) (Green) ..... 90
All-wheel drive (AWD)............................... 87
Anti-lock Brake System (ABS) .................... 81
Auto High-Beam ....................................... 82
Auto Idle Stop (Amber) ............................. 87
Auto Idle Stop (Green) .............................. 87
Blind spot information ...................... 92, 422
Brake System (Amber) ............................... 78 Brake System (Red) ............................ 78, 569
Charging System ............................... 79, 568
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 90, 91
Econ Mode ................................................ 86
Electric Power Steering (EPS) System .. 83, 569
Fog Light ................................................... 85
Gear Position ............................................. 79
Hazard Warning ........................................ 84
High Beam ................................................ 84
Immobilizer System .................................... 85
Lane Keeping Assist System (LKAS) (Amber) ................................................... 88
Lane Keeping Assist System (LKAS)
(Green) ............................................ 88, 461
Lights On ................................................... 84
Low Fuel .................................................... 81
Low Oil Pressure Warning ........................ 567
Low Tire Pressure/TPMS ..................... 84, 570
Malfunction Indicator Lamp ............... 79, 568
Parking Brake and Brake System (Amber) ... 78
Parking Brake and Brake System
(Red)................................................ 78, 569
Road Departure Mitigation (RDM) .............. 89
Seat Belt Reminder .............................. 38, 81
Security System Alarm ............................... 85
Supplemental Restraint System ............ 56, 82
System Message ........................................ 86
Turn Signal ................................................ 84
Vehicle Stability Assist
TM (VSA ®) OFF ... 83, 419 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 82, 418
Information .............................................. 581
Instant Fuel Economy ............................... 112
Instrument Panel ........................................ 77
Brightness Control................................... 173
Integrated Sunshades .............................. 203
Intelligent Traction Management
System ..................................................... 416
Intelligent VTM4 (i-VTM4
TM) .................... 426
Interior Lights ........................................... 189
Interior Rearview Mirror .......................... 177
iPad ........................................................... 303
iPhone ....................................................... 303
iPod ................................................... 269, 303
J
Jack (Wheel Nut Wrench) ........................ 555
Jump Starting ........................................... 562
K
Key Number Tag ....................................... 125
Keyless Lockout Prevention ..................... 134
Keys ........................................................... 124
Lockout Prevention.................................. 134
Number Tag ............................................ 125
Rear Door Won’t Open............................ 137
Remote Transmitter ................................. 132
Types and Functions ................................ 124
21 PASSPORT-31TGS6200.book 599 ページ ２０２０年９月４日　金曜日　午後２時３５分
