lock HONDA PASSPORT 2021 Navigation Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 37 Airbags P. 45
2Instrument Panel P. 77
Indicators P. 78 Gauges and Displays P. 106
2Controls P. 121
Clock P. 122 Locking and Unlocking the Doors P. 124
Opening and Closing the Windows P. 152 Moonroof* P. 155
Adjusting the Seats P. 179 Interior Lights/Interior Convenience Items P. 189
2 Features P. 217
Audio System P. 218
General Information on the Audio System P. 302
Bluetooth® HandsFreeLink ® P. 346
2 Driving P. 373
Before Driving P. 374 Towing a Trailer P. 380
Parking Your Vehicle P. 480Multi-View Rear Camera P. 491
2Maintenance P. 497
Before Performing Maintenance P. 498 Maintenance MinderTM P. 501
Checking and Maintaining Wiper Blades P. 524
Remote Transmitter Care P. 539
Accessories and Modifications P. 547
2 Handling the Unexpected P. 549
Tools P. 550 If a Tire Goes Flat P. 551
Indicator, Coming On/Blinking P. 567 Fuses P. 572
Refueling P. 579 If You Cannot Open the Tailgate P. 580
2Information P. 581
Specifications P. 582 Identification Numbers P. 584
Emissions Testing P. 587 Warranty Coverages P. 589
21 PASSPORT-31TGS6200.book 4 ページ ２０２０年９月４日　金曜日　午後２時３５分

Contents
Child Safety P. 60Exhaust Gas Hazard P. 75Safety Labels P. 76
Opening and Closing the Tailgate P. 139 Security System P. 149
Operating the Switches Around the Steering Wheel P. 156 Adjusting the Mirrors P. 177
Interior Lights/Interior Convenience It ems P. 189 Climate Control System P. 210
Audio System Basic Operation P. 224 Audio Error Messages P. 299
Customized Features P. 324 HomeLink® Universal Transceiver* P. 343
Off-Highway Driving Guidelines P. 390 When Driving P. 392 Honda Sensing ® P. 431 Braking P. 476
Refueling P. 493 Fuel Economy and CO
2 Emissions P. 496
Maintenance Under the Hood P. 507 Replacing Light Bulbs P. 519
Checking and Maintaining Tires P. 528 Battery P. 537
Climate Control System Maintenance P. 540 Cleaning P. 542
Engine Does Not Start P. 559 If the Battery Is Dead P. 562Overheating P. 565
Emergency Towing P. 577 If You Cannot Unlock the Fuel Fill Door P. 578
Devices that Emit Radio Waves P. 585 Reporting Safety Defects P. 586
Authorized Manuals P. 592 Customer Service Information P. 593
Quick Reference GuideP. 6
Safe DrivingP. 31
Instrument PanelP. 77
ControlsP. 121
FeaturesP. 217
DrivingP. 373
MaintenanceP. 497
Handling the UnexpectedP. 549
InformationP. 581
IndexP. 595
21 PASSPORT-31TGS6200.book 5 ページ ２０２０年９月４日　金曜日　午後２時３５分

Visual Index
8
Quick Reference Guide❚Power Window Switches (P152)
❚Memory Buttons* (P175)
❚SET Button* (P175)
❚Master Door Lock Switch (P137)
❚Power Tailgate Button* (P143)
❚Fuel Fill Door Release Button
(P494)
❚Door Mirror Controls (P178)
❚Driver’s Front Airbag (P48)
❚Hood Release Handle (P508)
❚Glove Box (P192)
❚Interior Fuse Box (P575)
❚Parking Brake (P476)
❚Interior Fuse Box (P574)
❚Accessory Power Socket (P196)
❚USB Port (P219)
❚Rearview Mirror (P177)
❚HomeLink® Buttons* (P344)
❚Passenger’s Front Airbag (P48)
❚Accessory Power Socket (P196)
❚Auxiliary Input Jack (P220)
❚USB Port (P219)
❚Snow Button* (P416)
❚Mode Button* (P416)
❚Auto Idle Stop OFF Button (P410)
❚Shift Button (P401)
21 PASSPORT-31TGS6200.book 8 ページ ２０２０年９月４日　金曜日　午後２時３５分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P507)
❚Windshield Wipers (P168, 524)
❚Tires (P528, 551)
❚Power Door Mirrors (P178)
❚Headlights (P160, 519)
❚Front Side Marker Lights (P160, 520)
❚Side Turn Signal Lights* (P159, 522)
❚Daytime Running Lights /Parking Lights
(P160, 164, 520)
❚How to Refuel (P494)
❚High-Mount Brake Light (P523)
❚Rear Wiper (P170, 526)
❚Rear Side Marker Lights (P522)
❚Rear Turn Signal Lights (P522)
❚Brake/Taillights (P522)
❚Opening/Closing the Tailgate (P139)
❚Door Lock/Unlock Control (P127)
❚Fog Lights (P163, 521)
❚Front Turn Signal Lights (P159, 521)
❚Back-Up Lights (P523)
❚Tailgate Outer Handle (P144)
❚Multi-View Rear Camera (P491)
❚Rear License Plate Lights (P523)
21 PASSPORT-31TGS6200.book 10 ページ ２０２０年９月４日　金曜日　午後２時３５分

14
Quick Reference Guide
Instrument Panel (P77)
System Indicators
Malfunction Indicator
Lamp
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
VSA ® OFF Indicator Low Tire Pressure/
TPMS Indicator
Immobilizer System
Indicator/Security
System Alarm Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
Lane Keeping Assist
System (
LKAS)
Indicator (Green/
Amber) Seat Belt Reminder
Indicator
System Indicators
Econ Mode Indicator
System Message
Indicator Parking Brake and
Brake System Indicator
(Red)
Supplemental
Restraint System
Indicator
Driver Information Interface Tachometer
M
(Sequential mode) Indicator/
Sequential Mode Gear Selection Indicator
Speedometer
Fuel Gauge
Gear Position Indicator/
Transmission System
Indicator Auto Idle Stop System
Indicator (Amber)/
Auto Idle Stop
Indicator (Green)
Gauges (P106)/Driver Information Interface (P107)/System
Indicators
(P78)
Adaptive Cruise
Control ( ACC)
Indicator (Green/
Amber) Turn Signal and
Hazard Warning
Indicators
Electric Power Steering
(EPS) System Indicator
Blind spot information
System Indicator
*
Temperature Gauge
Parking Brake and
Brake System Indicator
(Amber)U.S.
Canada
System Indicators
U.S.
Canada
Low Fuel Indicator
Auto High-Beam
Indicator
Road Departure
Mitigation (RDM)
Indicator
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator
All-wheel drive
system (AWD)
I

ndicator
*
Intelligent Traction
Management
Indicator
21 PASSPORT-31TGS6200.book 14 ページ ２０２０年９月４日　金曜日　午後２時３５分

15
Quick Reference Guide
Controls (P121)
Clock (P122)
To adjust time
To adjust date
aSelect , then select Settings.
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
eSelect Set Date or Set Time.
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P156)
Press the button to ch ange the vehicle’s
power mode.
34
Models with navigation system
Turn Signals (P159)
Lights (P160)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
21 PASSPORT-31TGS6200.book 15 ページ ２０２０年９月４日　金曜日　午後２時３５分

16
Quick Reference Guide
Wipers and Washers
(P168)
*1:Models with automatic intermittent operation
*2:Models with manual intermittent operation
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO: Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:
( +:(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P176)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
pull up the lever back in place.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P136)
●Pull either front door inner handle to
unlock and open it at the same time.
21 PASSPORT-31TGS6200.book 16 ページ ２０２０年９月４日　金曜日　午後２時３５分

17
Quick Reference Guide

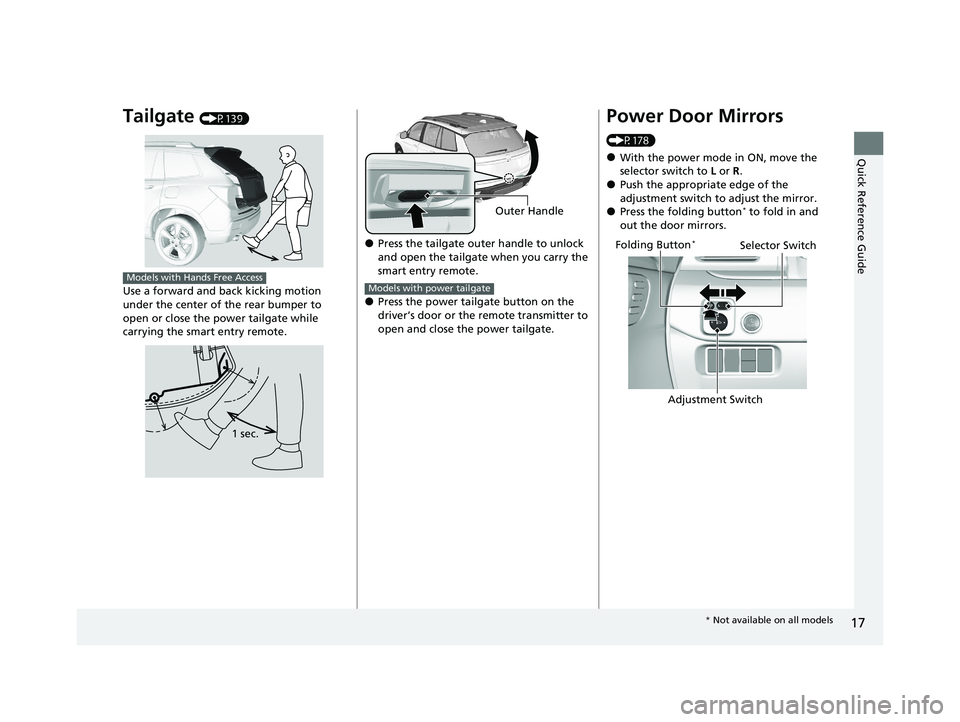

Tailgate (P139)
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with Hands Free Access
1 sec.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
smart entry remote.
●Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Outer Handle
Models with power tailgate
Power Door Mirrors
(P178)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button*
*
Not available on all models
21 PASSPORT-31TGS6200.book 17 ページ ２０２０年９月４日　金曜日　午後２時３５分

18
Quick Reference Guide

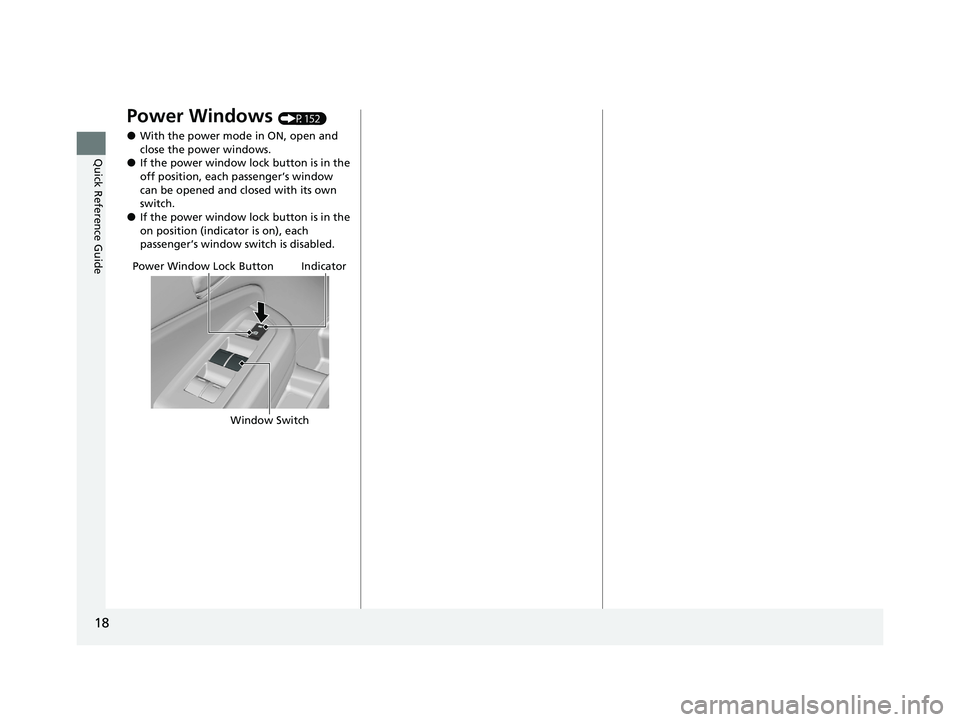

Power Windows (P152)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock ButtonIndicator
Window Switch
21 PASSPORT-31TGS6200.book 18 ページ ２０２０年９月４日　金曜日　午後２時３５分

22
Quick Reference Guide

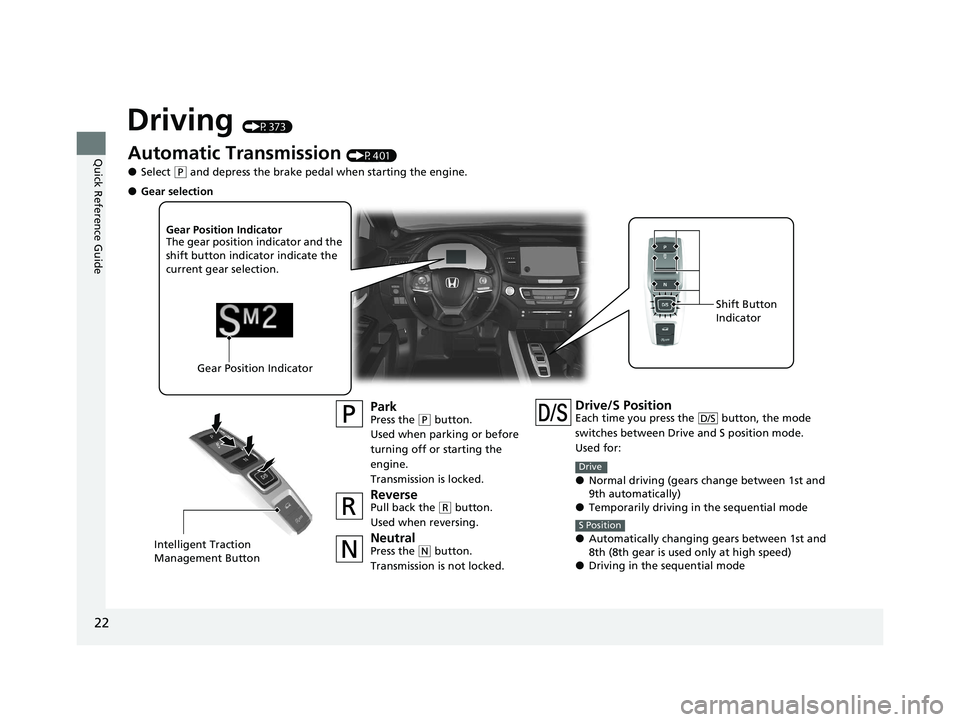

Driving (P373)
Automatic Transmission (P401)
●Select (P and depress the brake pedal when starting the engine.
ParkPress the (P button.
Used when parking or before
turning off or starting the
engine.
Transmission is locked.
ReversePull back the ( R button.
Used when reversing.
NeutralPress the ( N button.
Transmission is not locked.
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
●Gear selection
Intelligent Traction
Management Button
Drive/S PositionEach time you press th
e button, the mode
switches between Drive and S position mode.
Used for:
●Normal driving (gears change between 1st and
9th automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st and
8th (8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
