fuse box HONDA PASSPORT 2021 Navigation Manual (in English)

Visual Index
8
Quick Reference Guide❚Power Window Switches (P152)
❚Memory Buttons* (P175)
❚SET Button* (P175)
❚Master Door Lock Switch (P137)
❚Power Tailgate Button* (P143)
❚Fuel Fill Door Release Button
(P494)
❚Door Mirror Controls (P178)
❚Driver’s Front Airbag (P48)
❚Hood Release Handle (P508)
❚Glove Box (P192)
❚Interior Fuse Box (P575)
❚Parking Brake (P476)
❚Interior Fuse Box (P574)
❚Accessory Power Socket (P196)
❚USB Port (P219)
❚Rearview Mirror (P177)
❚HomeLink® Buttons* (P344)
❚Passenger’s Front Airbag (P48)
❚Accessory Power Socket (P196)
❚Auxiliary Input Jack (P220)
❚USB Port (P219)
❚Snow Button* (P416)
❚Mode Button* (P416)
❚Auto Idle Stop OFF Button (P410)
❚Shift Button (P401)
21 PASSPORT-31TGS6200.book 8 ページ ２０２０年９月４日　金曜日　午後２時３５分

384
uuTowing a Trailer uTowing Preparation
Driving
The trailer hitch harness is used to install the
controller for the electric trailer brakes.
Insert the trailer brake fuse into the engine
compartment sub fuse box.
2 Engine Compartment Fuse Box Type B
P. 573
Electric Brake
(Brown)
+B (20A)
(Blue)
Ground
(Black)
Brake Lights
(Sky Blue)
21 PASSPORT-31TGS6200.book 384 ページ ２０２０年９月４日　金曜日　午後２時３５分

572
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
REAR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
PREMIUM AMP*(20 A)
ENGINE MOUNT30 A
FRONT BLOWER40 A
A/C INVERTER*(30 A)
STANDARD AMP*(30 A)
REAR DEF40 A
−(30 A)
PREMIUM AMP*(20 A)
3
−−
−−
−−
−−
4 PARKING LIGHT 10 A
5CRUISE CANCEL SW7.5 A
6 STOP LIGHT 10 A
7FI SUB VSS10 A
8 L H/L LO 10 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 VBUM 10 A
15FRONT FOG(10 A)
16 HAZARD 15 A
17PASSENGER P/
SEAT(RECLINE)*(20 A)
18 PASSENGER P/SEAT(SLIDE)
*(20 A)
19−−
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)
28 HORN 10 A
29RADIO/USB15 A
Circuit ProtectedAmps
* Not available on all models
21 PASSPORT-31TGS6200.book 572 ページ ２０２０年９月４日　金曜日　午後２時３５分

573
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.

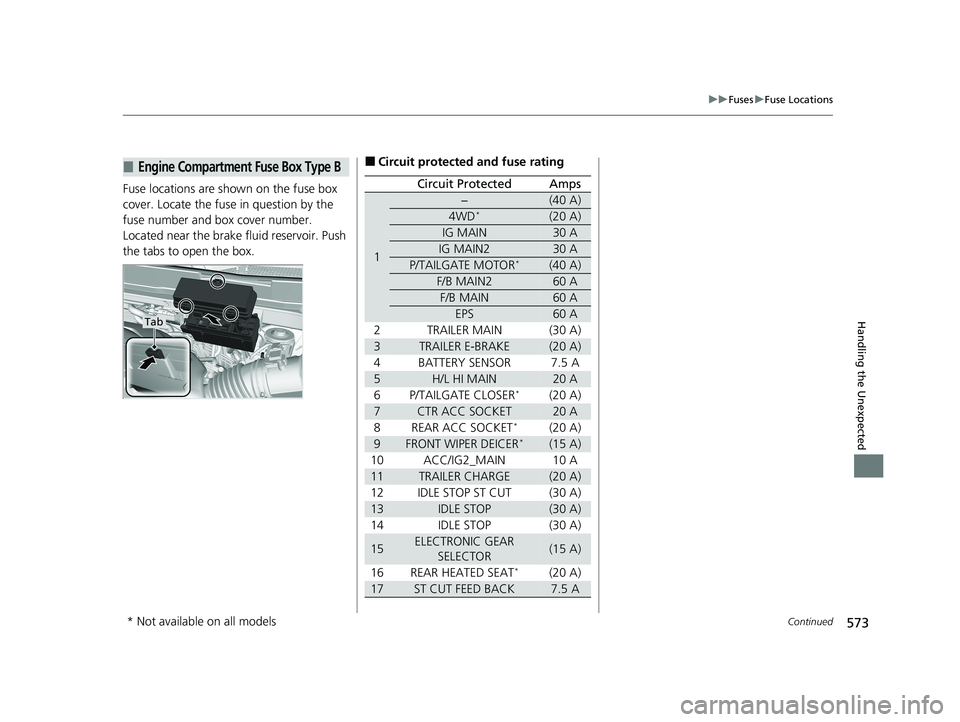

■Engine Compartment Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 REAR ACC SOCKET*(20 A)
9FRONT WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT(30 A)
13IDLE STOP(30 A)
14IDLE STOP(30 A)
15ELECTRONIC GEAR SELECTOR(15 A)
16REAR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
21 PASSPORT-31TGS6200.book 573 ページ ２０２０年９月４日　金曜日　午後２時３５分

574
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DRIVER P/WINDOW20 A
2DOOR LOCK20 A
3SMART7.5 A
4PASSENGER P/WINDOW20 A
5FRONT ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9IG1 SMART7.5 A
10SRS10 A
11DRIVER REAR P/WINDOW20 A
12−−
13PASSENGER REAR P/
WINDOW20 A
14FUEL LID20 A
15DRIVER P/SEAT(RECLINE)*(20 A)
16−(7.5 A)
17FRONT SEAT HEATER*(20 A)
18INTR LT7.5 A
19DRIVER REAR DOOR UNLOCK10 A
20PASSENGER SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT*(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30REAR WIPER10 A
31ST MOTOR7.5 A
32SRS7.5 A
33PASSENGER SIDE DOOR
LOCK10 A
34DRIVER DOOR LOCK10 A
35DRIVER DOOR UNLOCK10 A
36DRIVER P/SEAT(SLIDE)*(20 A)
37PASSENGER H/L HI10 A
38DRIVER H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DRIVER REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps
* Not available on all models
21 PASSPORT-31TGS6200.book 574 ページ ２０２０年９月４日　金曜日　午後２時３５分

575
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.

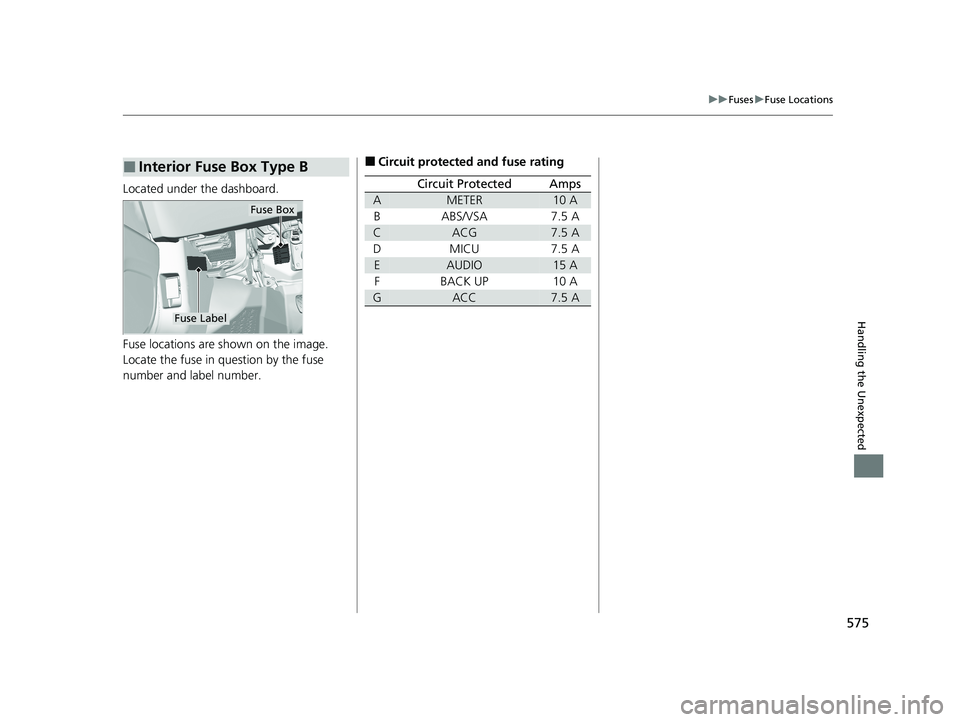

■Interior Fuse Box Type B
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
AMETER10 A
BABS/VSA7.5 A
CACG7.5 A
DMICU7.5 A
EAUDIO15 A
FBACK UP10 A
GACC7.5 A
21 PASSPORT-31TGS6200.book 575 ページ ２０２０年９月４日　金曜日　午後２時３５分

576
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn the headlights and all
accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 572
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
21 PASSPORT-31TGS6200.book 576 ページ ２０２０年９月４日　金曜日　午後２時３５分

598
Index
Exterior Mirrors......................................... 178
F
Features..................................................... 217
File Manager ............................................. 244
Filters
Dust and Pollen ....................................... 541
Oil ........................................................... 513
Flat Tire ..................................................... 551
Floor Mats ................................................. 543
Fluids Automatic Transmission ........................... 517
Brake ....................................................... 518
Engine Coolant ........................................ 515
Windshield Washer .................................. 518
FM/AM Radio ............................................ 256
Fog Light Indicator ..................................... 85
Fog Lights .................................................. 163
Folding Down the Rear Seat .................... 184
Foot Brake ................................................. 477
Front Airbags (SRS) ..................................... 48
Front Seats ................................................ 179
Adjusting ................................................. 179
Front Sensor Camera ................................ 473
Fuel ...................................................... 24, 493
Economy ................................................. 496
Gauge ..................................................... 106
Instant Fuel Economy ............................... 112
Low Fuel Indicator ..................................... 81
Range ...................................................... 112 Recommendation .................................... 493
Refueling................................................. 493
Fuel Economy ........................................... 496
Fuel Fill Cap .............................................. 495
Fuel Fill Door ...................................... 24, 494
Unable to Unlock .................................... 578
Fuses .......................................................... 572
Inspecting and Changing......................... 576
Locations......................... 572, 573, 574, 575
