HONDA PASSPORT 2023 Owners Manual

uuAudio System Basic Operation uAudio/Information Screen
240
Features
■To create shortcuts for apps displayed on the home screen
Three shortcut icons for accessing apps di splayed on the home screen are displayed
in the upper left area of the screen. You can replace any of these shortcut icons with
an icon of your preference. 1.From the home screen, select and hold the
icon that you want to store in the upper left
of the screen.
u The screen will switch to the
customization screen.
2. Drag the icon over to the upper left of the
screen and drop it over the icon that you
want to replace.
u The new icon will appear in place of the
old icon.
3. Select Done.
u The screen will return to the home
screen.1To create shortcuts for apps displayed on the home screen
Select Tips to show tips. To hide t h em , s e le c t i t a g ai n .
Select and hold.
Drag and
drop to preset
icon.Preset
Icons
23 PASSPORT-31TGS6400.book 240 ページ ２０２２年８月５日　金曜日　午後９時２分

241
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
1. Select the system status icon.
u The status area appears.
2. Select an item to see the details.
3. Select or the system status icon to close
the area.

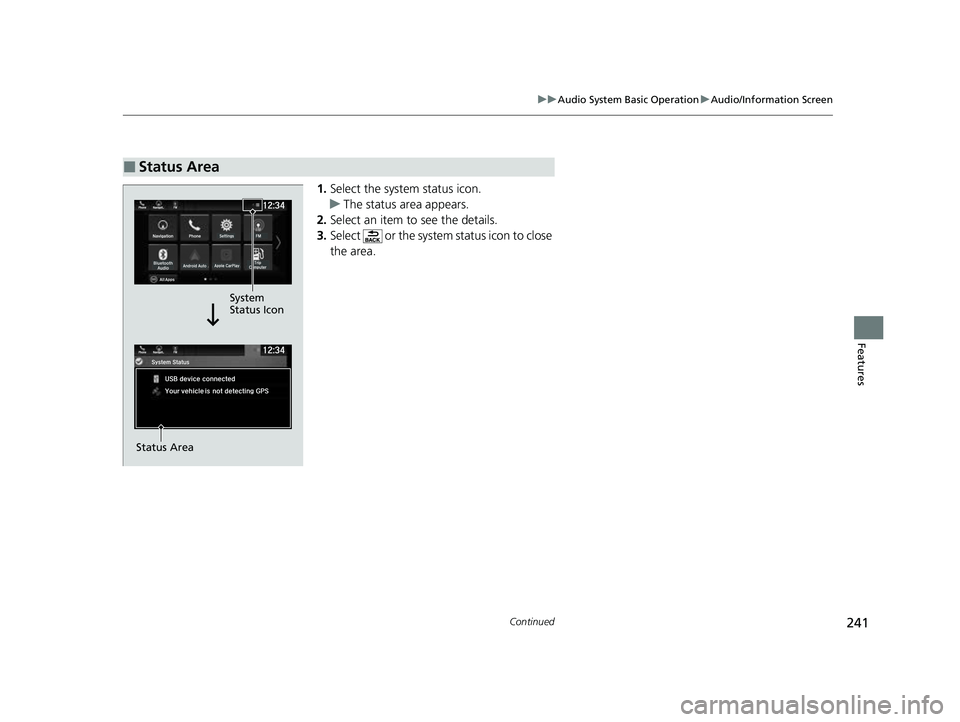

■Status Area
System
Status Icon
Status Area
23 PASSPORT-31TGS6400.book 241 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uAudio/Information Screen
242
Features
Some of the audio system’s apps can be updated wirelessly when connected via Wi-
Fi, or Bluetooth ® in conjunction with the HondaLink ® app installed on a compatible
iOS or Android device. If an update is available, a notification is displayed at the top
of the screen with the resp ective app’s update icon.
■To update an app:
1.A notification appears and notifies you of
an update message on the header area.
2. Select the system stat us icon, and then
select the software update notification
from the list.
■Updating Apps1 Updating Apps
The wireless updates are for the apps on the audio
system only.
To update compatible a pps on your iPhone or
Android phone, please visit the App Store or Google
Play Store, respectively.
23 PASSPORT-31TGS6400.book 242 ページ ２０２２年８月５日　金曜日　午後９時２分

243
uuAudio System Basic Operation uAudio/Information Screen
Features

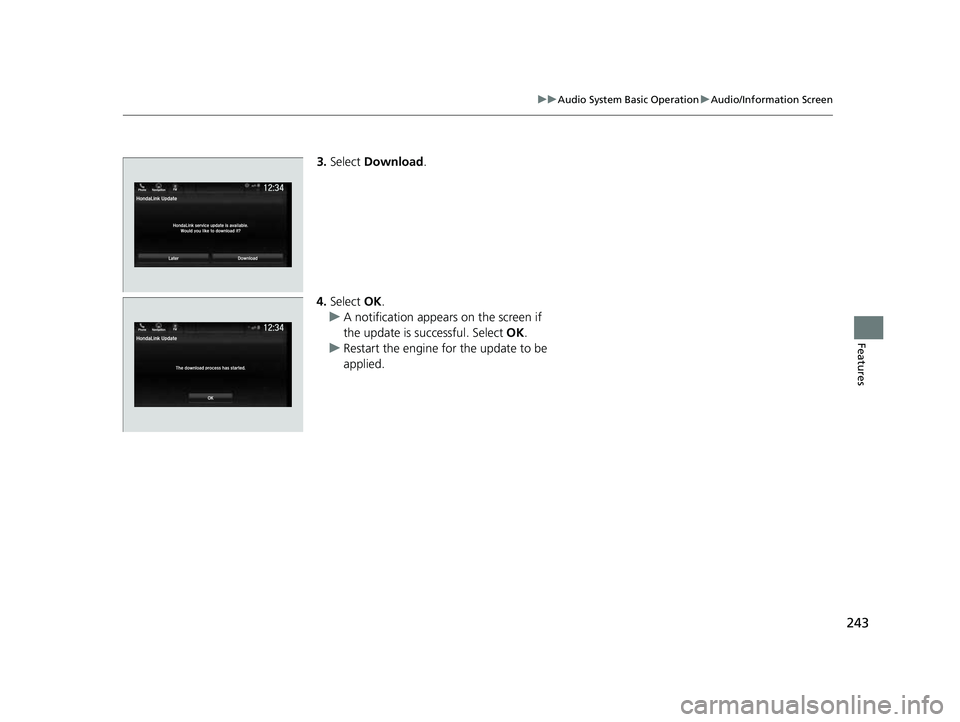

3. Select Download .
4. Select OK.
u A notification appears on the screen if
the update is su ccessful. Select OK.
u Restart the engine for the update to be
applied.
23 PASSPORT-31TGS6400.book 243 ページ ２０２２年８月５日　金曜日　午後９時２分

244
uuAudio System Basic Operation uSystem Updates
Features
System Updates
The audio system’s firmware can be update d with a Wi-Fi connection or with a USB
device.
■Wireless connecti on mode setup
1.Select .
2. Select System Updates .
3. Select Settings .
4. Select Connection Setup .
5. Select Change Mode .
6. Select Network, then Save.
u The display returns to the network list.
7. Select an access point from the network list,
then Connect .
u If the audio system requires a password,
enter a password.
■How to Update Wirelessly
1Wireless connection mode setup
If your vehicle has a telema tics control unit (TCU), you
do not need the wireless connection mode setup.
23 PASSPORT-31TGS6400.book 244 ページ ２０２２年８月５日　金曜日　午後９時２分

245
uuAudio System Basic Operation uSystem Updates
Continued
Features

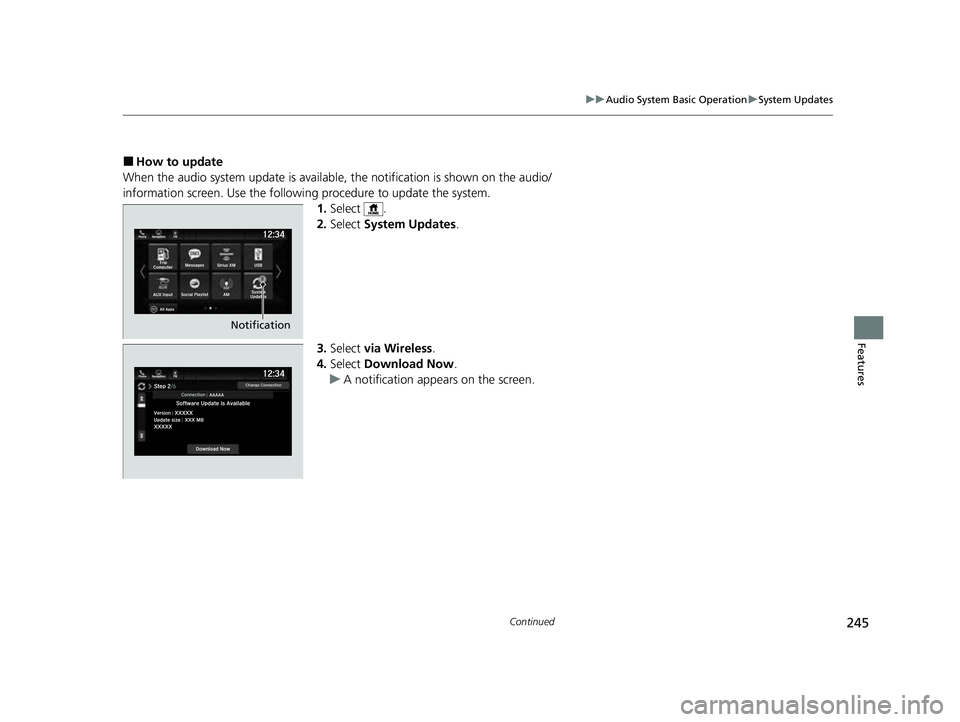

■How to update
When the audio system update is available, the notification is shown on the audio/
information screen. Use the following procedure to update the system.
1. Select .
2. Select System Updates .
3. Select via Wireless .
4. Select Download Now .
u A notification appears on the screen.
Notification
23 PASSPORT-31TGS6400.book 245 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uSystem Updates
246
Features
5. Select Install Now or Install while
Vehicle OFF .
u A notification appears on the screen if
the update is successful.1How to update
If Install while Vehicle OFF is selected and the user
turns the vehicle back on after the update has been
completed, for 3 to 5 minutes the system will rebuild
the applications, during which time the Honda logo
will be displayed.
23 PASSPORT-31TGS6400.book 246 ページ ２０２２年８月５日　金曜日　午後９時２分

247
uuAudio System Basic Operation uSystem Updates
Continued
Features

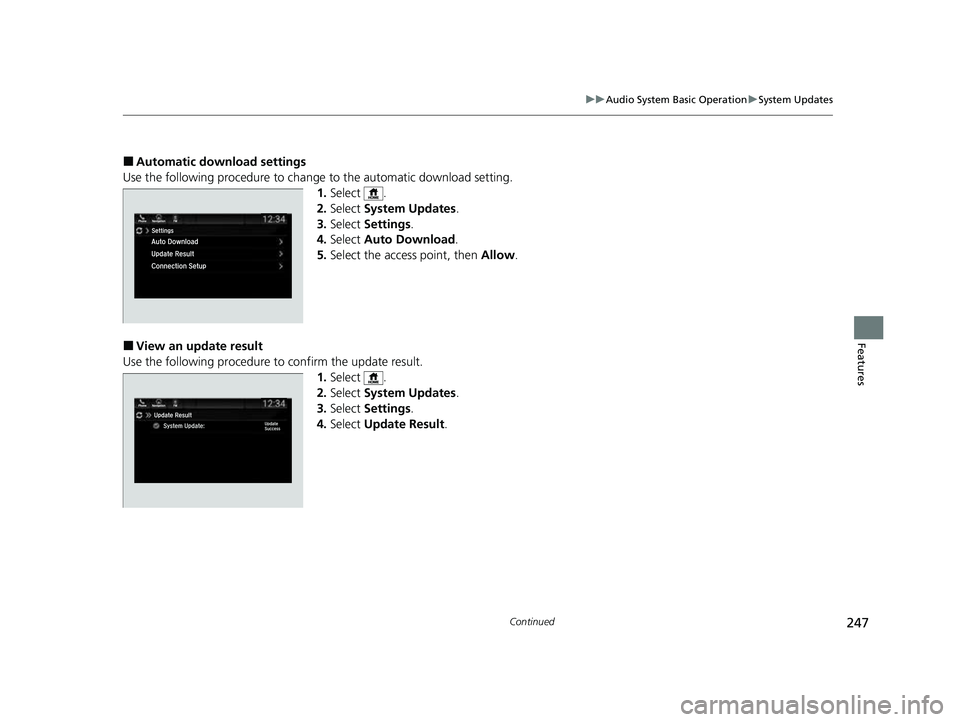

■Automatic download settings
Use the following procedure to change to the automatic download setting.
1. Select .
2. Select System Updates .
3. Select Settings .
4. Select Auto Download .
5. Select the access point, then Allow.
■View an update result
Use the following procedure to confirm the update result.
1.Select .
2. Select System Updates .
3. Select Settings .
4. Select Update Result .
23 PASSPORT-31TGS6400.book 247 ページ ２０２２年８月５日　金曜日　午後９時２分

uuAudio System Basic Operation uSystem Updates
248
Features

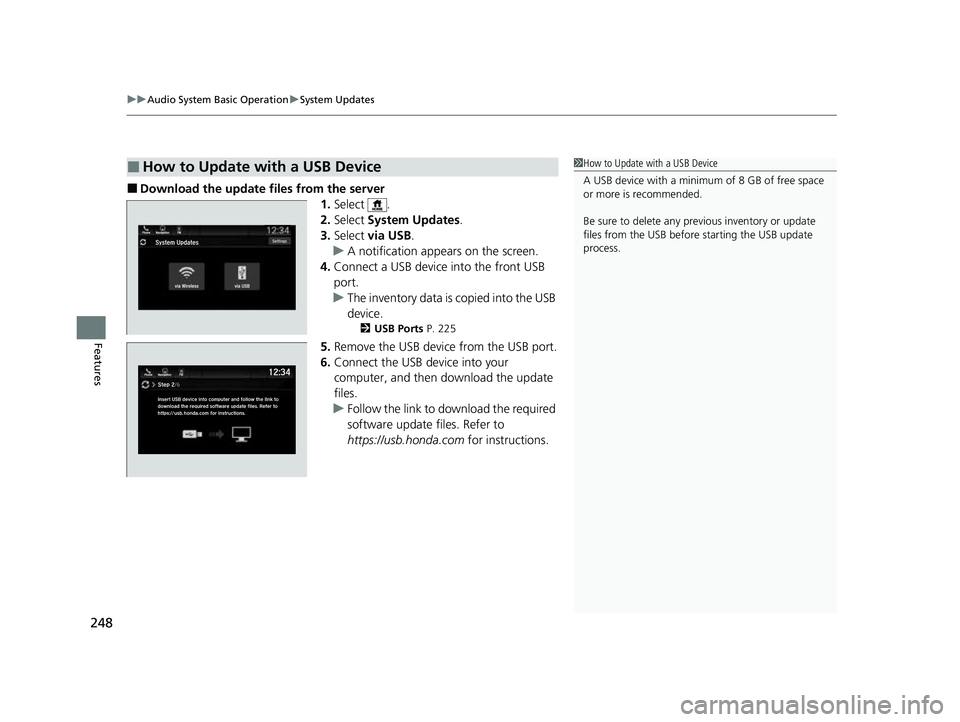

■Download the update files from the server
1.Select .
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect a USB device into the front USB
port.
u The inventory data is copied into the USB
device.
2 USB Ports P. 225
5.Remove the USB device from the USB port.
6. Connect the USB device into your
computer, and then download the update
files.
u Follow the link to download the required
software update files. Refer to
https://usb.honda.com for instructions.
■How to Update with a USB Device1How to Update with a USB Device
A USB device with a minimum of 8 GB of free space
or more is recommended.
Be sure to delete any pr evious inventory or update
files from the USB before starting the USB update
process.
23 PASSPORT-31TGS6400.book 248 ページ ２０２２年８月５日　金曜日　午後９時２分

249
uuAudio System Basic Operation uSystem Updates
Features
■Update the audio system
1.Select .
2. Select System Updates .
3. Select via USB .
u A notification appears on the screen.
4. Connect the USB device with the update
files into the USB port.
u A notification appears on the screen.
2 USB Ports P. 225
5.Select Install Now or Install while
Vehicle OFF .
u A notification appears on the screen if
the update is successful.
1Update the audio system
If Install while Vehicle OFF is selected and the user
turns the vehicle back on after the update has been
completed, for 3 to 5 minutes the system will rebuild
the applications, during which time the Honda logo
will be displayed.
23 PASSPORT-31TGS6400.book 249 ページ ２０２２年８月５日　金曜日　午後９時２分
