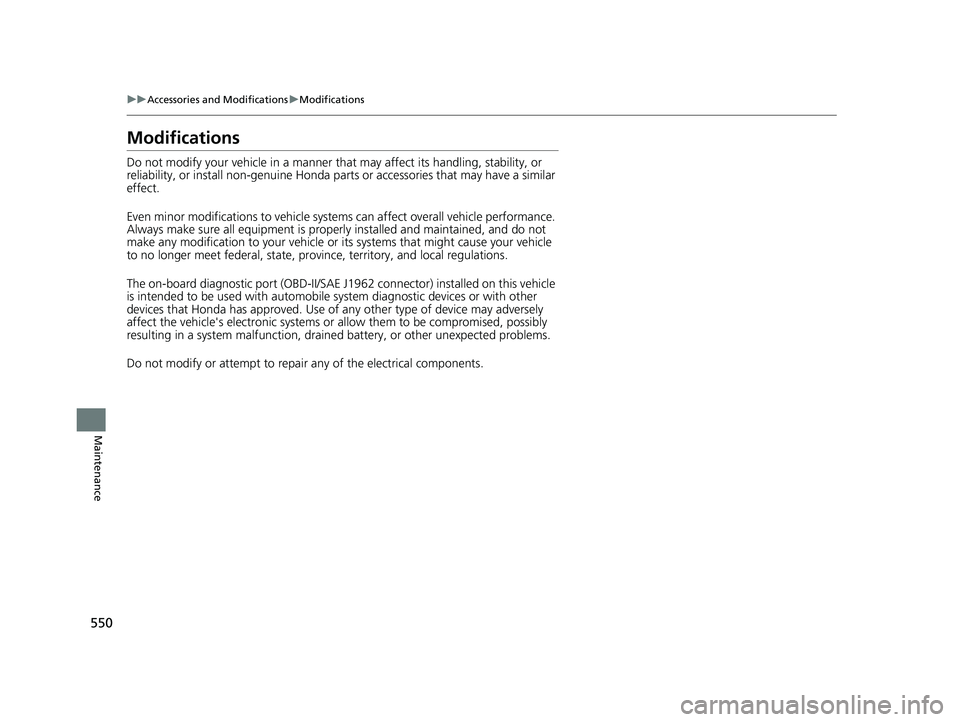

uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle system s can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, prov ince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle's electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair any of the electrical components.
23 PASSPORT-31TGS6400.book 550 ページ ２０２２年８月５日　金曜日　午後９時２分

551
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 552
If a Tire Goes Flat Changing a Flat Tire ......................... 553
Engine Does Not Start Checking the Engine ........................ 561
If the Keyless Remote Battery is Weak .. 563
Emergency Engine Stop ................... 564
If the Battery Is Dead ....................... 565
Overheating How to Handle Overheating ............. 568 Indicator, Coming On/Blinking
If the Engine Oil Low Warning Appears ........ 570If the Charging System Indicator Comes
On ................................................. 571
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 571
If the Brake System Indicator (Red) Comes
On ................................................. 572
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 572
If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator
Comes On or Blinks........................ 573 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 574
Fuses Fuse Locations ................................. 575
Inspecting and Changing Fuses ........ 579
Emergency Towing ........................... 580
If You Cannot Unlock the Fuel Fill Door.. 581
Refueling
Refueling From a Portable Fuel
Container ................................... 582
If You Cannot Open the Tailgate .... 583
23 PASSPORT-31TGS6400.book 551 ページ ２０２２年８月５日　金曜日　午後９時２分

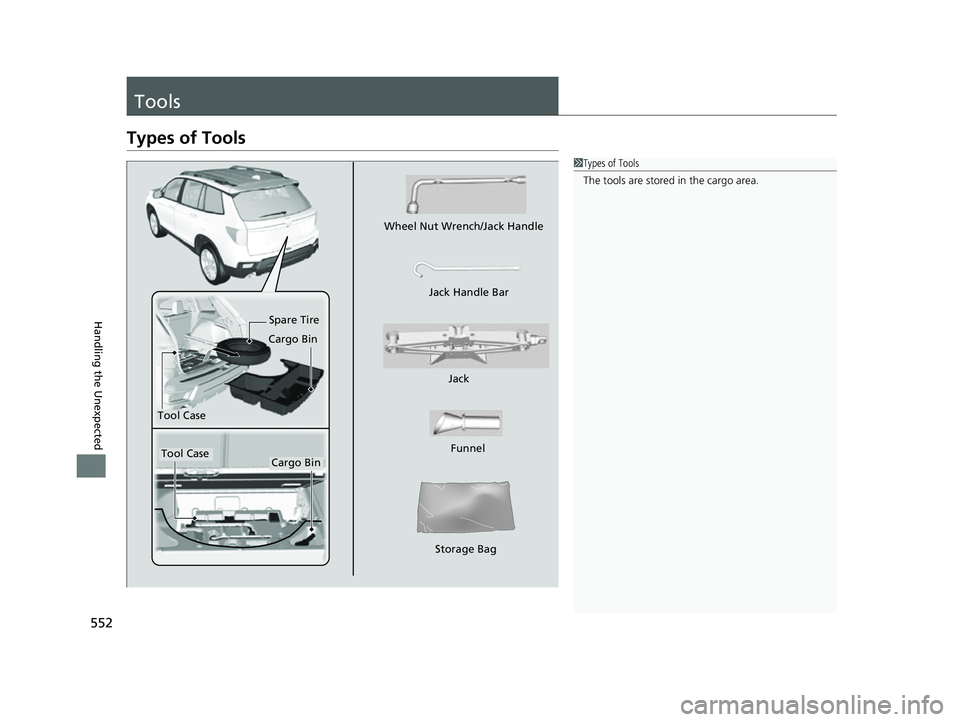

552
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/Jack Handle
Jack
Jack Handle Bar
Funnel
Storage Bag
Spare Tire
Tool CaseCargo Bin
Cargo Bin
Tool Case
23 PASSPORT-31TGS6400.book 552 ページ ２０２２年８月５日　金曜日　午後９時２分

553Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
23 PASSPORT-31TGS6400.book 553 ページ ２０２２年８月５日　金曜日　午後９時２分

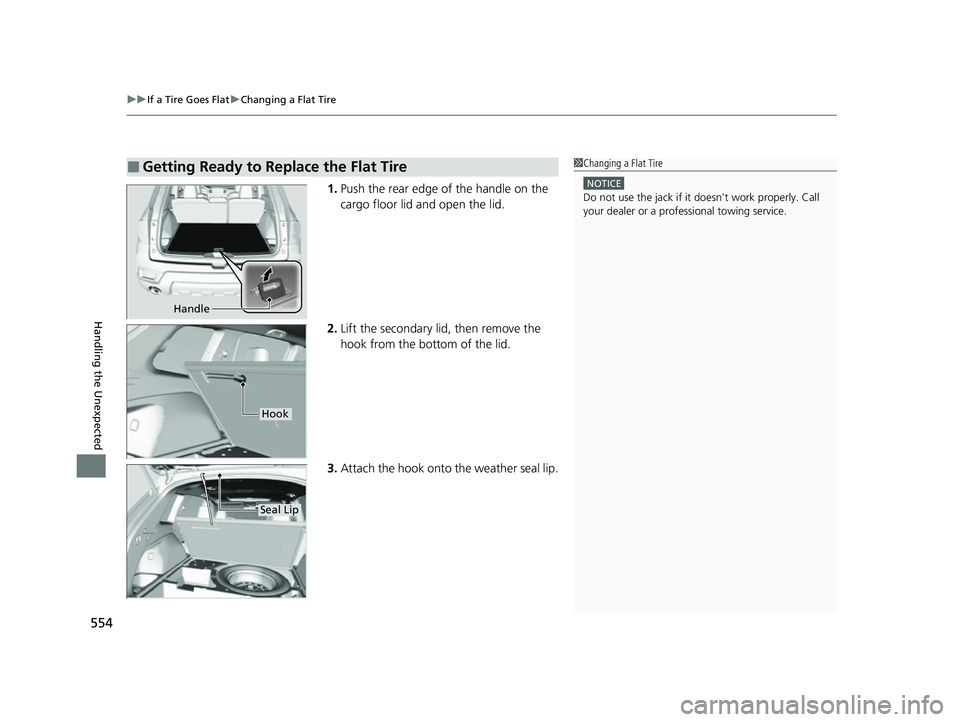

uuIf a Tire Goes Flat uChanging a Flat Tire
554
Handling the Unexpected
1. Push the rear edge of the handle on the
cargo floor lid and open the lid.
2. Lift the secondary lid, then remove the
hook from the bottom of the lid.
3. Attach the hook onto the weather seal lip.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Handle
Hook
Seal Lip
23 PASSPORT-31TGS6400.book 554 ページ ２０２２年８月５日　金曜日　午後９時２分

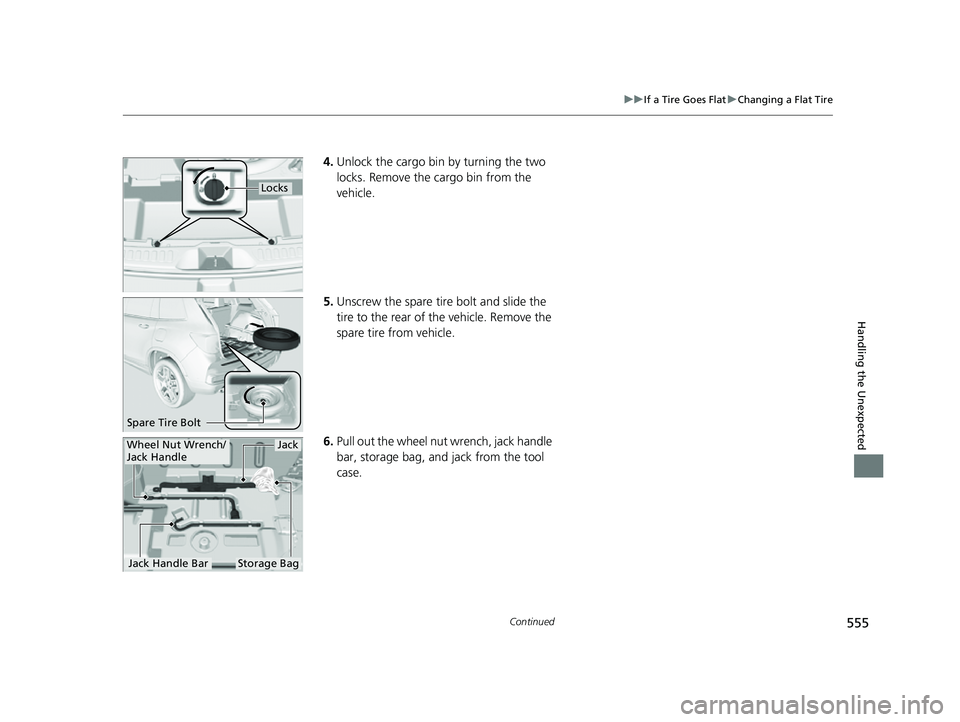

555
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
4. Unlock the cargo bin by turning the two
locks. Remove the cargo bin from the
vehicle.
5. Unscrew the spare tire bolt and slide the
tire to the rear of the vehicle. Remove the
spare tire from vehicle.
6. Pull out the wheel nut wrench, jack handle
bar, storage bag, and jack from the tool
case.
Locks
Spare Tire Bolt
Wheel Nut Wrench/
Jack HandleJack
Jack Handle BarStorage Bag
23 PASSPORT-31TGS6400.book 555 ページ ２０２２年８月５日　金曜日　午後９時２分

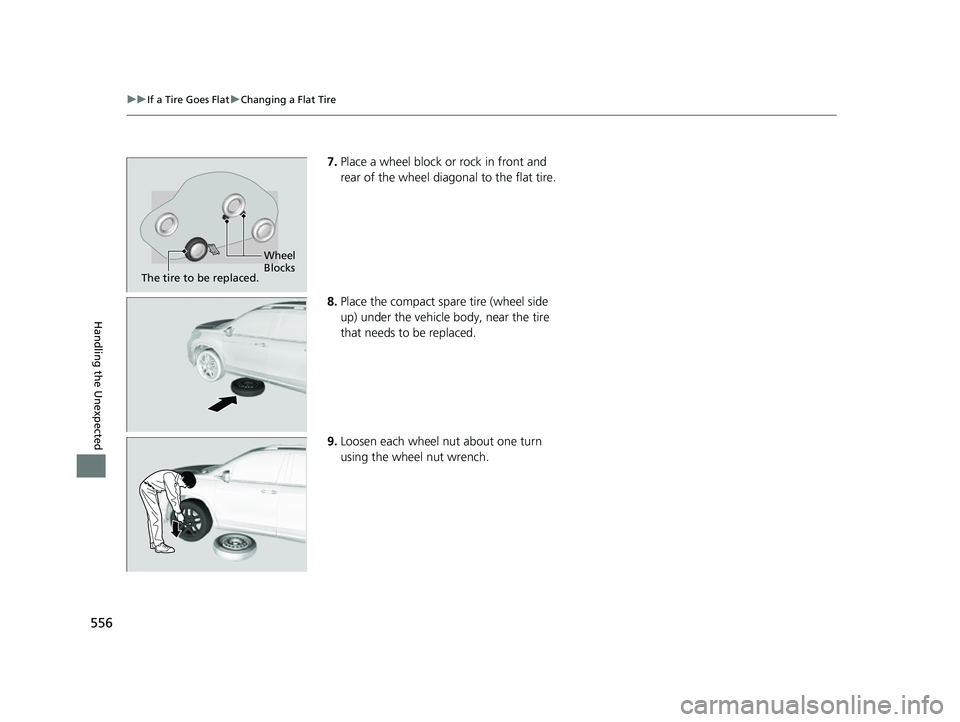

556
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
7. Place a wheel block or rock in front and
rear of the wheel diagonal to the flat tire.
8. Place the compact spare tire (wheel side
up) under the vehicle body, near the tire
that needs to be replaced.
9. Loosen each wheel nut about one turn
using the wheel nut wrench.
Wheel
Blocks
The tire to be replaced.
23 PASSPORT-31TGS6400.book 556 ページ ２０２２年８月５日　金曜日　午後９時２分

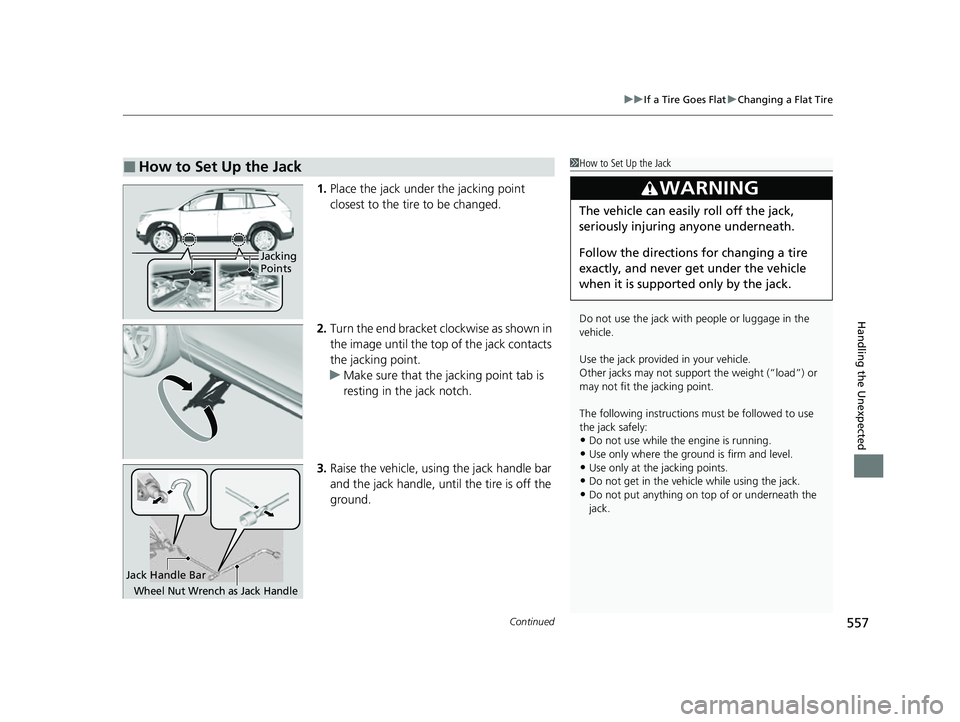

Continued557
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking
Points
Jack Handle Bar
Wheel Nut Wrench as Jack Handle
23 PASSPORT-31TGS6400.book 557 ページ ２０２２年８月５日　金曜日　午後９時２分

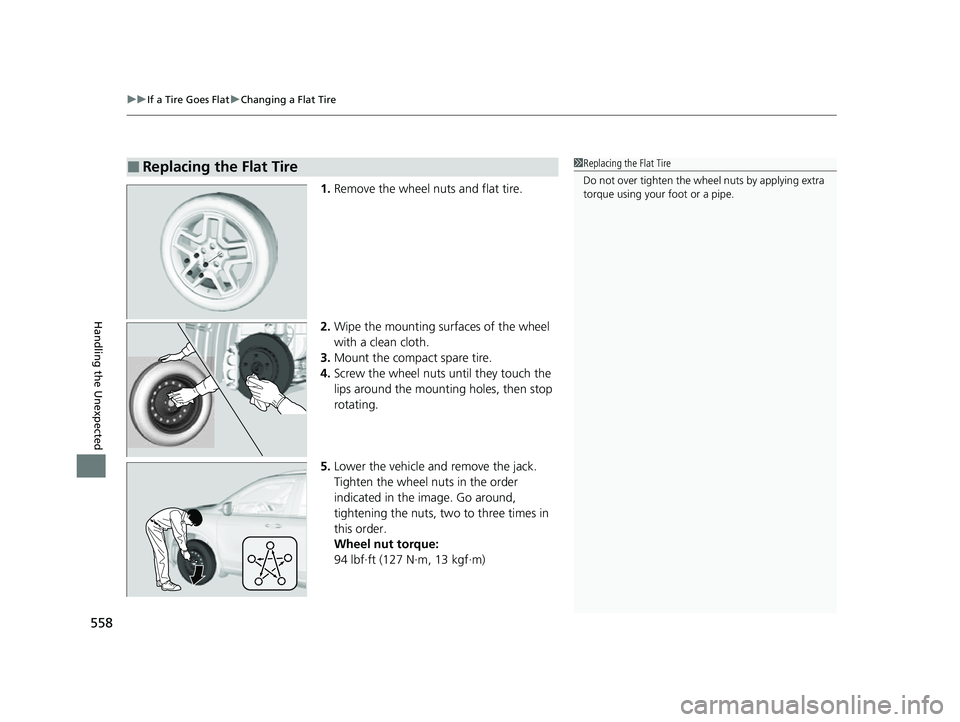

uuIf a Tire Goes Flat uChanging a Flat Tire
558
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
23 PASSPORT-31TGS6400.book 558 ページ ２０２２年８月５日　金曜日　午後９時２分

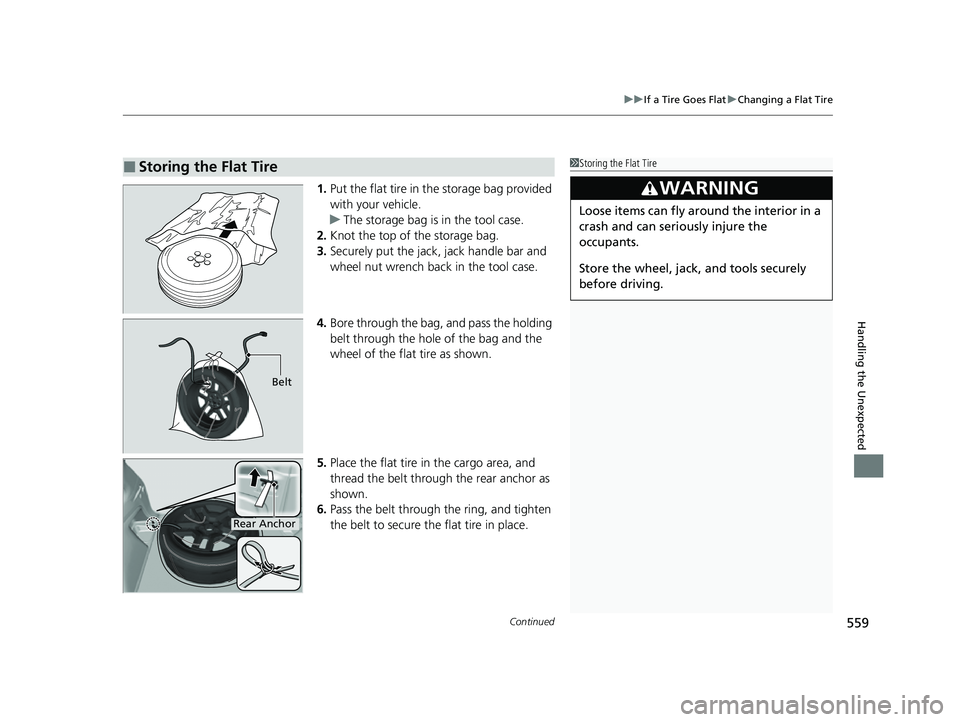

Continued559
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Put the flat tire in the storage bag provided
with your vehicle.
u The storage bag is in the tool case.
2. Knot the top of the storage bag.
3. Securely put the jack, jack handle bar and
wheel nut wrench back in the tool case.
4. Bore through the bag, and pass the holding
belt through the hole of the bag and the
wheel of the flat tire as shown.
5. Place the flat tire in the cargo area, and
thread the belt through the rear anchor as
shown.
6. Pass the belt through the ring, and tighten
the belt to secure the flat tire in place.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Belt
Rear Anchor
