The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
CONT INUED
Radio Reception
Radio Frequencies
Radio Reception
Features
109

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Radio Reception
110

Playing a CD
Features
111

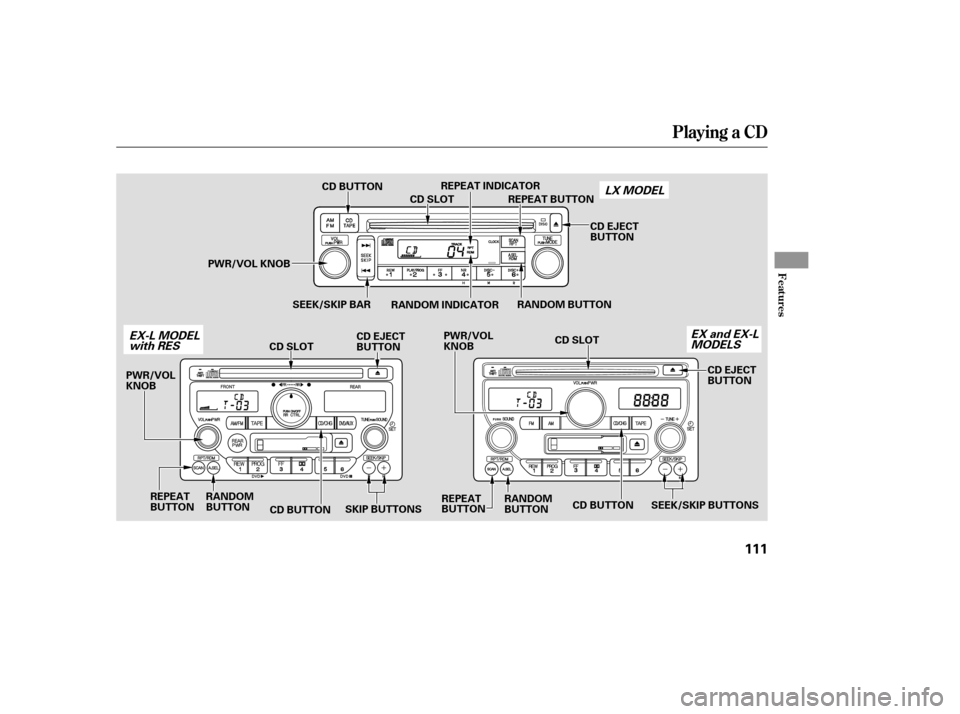

PWR/VOL KNOBREPEAT INDICATOR
CD SLOT
CD EJECT
BUTTON
CD SLOT
PWR/VOL
KNOB PWR/VOL
KNOB
CD SLOT
CD EJECT
BUTTON
SEEK/SKIP BUTTONS
SKIP BUTTONS
SEEK/SKIP BAR
RANDOM INDICATOR
CD BUTTON
CD BUTTON CD BUTTON
CD EJECT
BUTTON
RANDOM BUTTON
RANDOM
BUTTON
REPEAT
BUTTON
RANDOM
BUTTON
REPEAT
BUTTON REPEAT BUTTON
LX MODEL
EX-L MODEL with RES EX and EX-L
MODELS

µµ
µ
´
µ
´
µ
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it.
You operate the CD player with the
same controls used f or the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes. To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
Each time you press and
release /( ), the player skips
f orward to the beginning of the next
track. Press and release /( )
to skip backward to the beginning of
the previous track.
To move rapidly within a track, press
andholdthe /( )or /
( ). You will see CUE or REW in
the display.
Playing a CD, CD Changer
T o Play a CD REPEA T
RANDOM
SK IP
112
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µ´
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot.
Standard on EX-L model with Navigation
SystemOptional on LX model
T o Stop Playing a CD Operating the CD Changer
Playing a CD, CD Changer
Features
113

µ
µ
´
If you select an empty slot in the
magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. This
continues until it f inds a CD to load
and play. To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the appropriate
preset buttons (1 6). On the model
with Navigation System, use the
preset 5 (DISC ) button to select
previous disc, or the preset 6 (DISC ) button to select the next disc in
sequence. The audio system has an in-dash CD
changer that holds up to six discs.
To load CDs or operate CD changer,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
You cannot load and play 3-inch
(8-cm)discsinthissystem. Press and release any of the
numbered buttons on the CD
changer. The indicator over the
button begins to blink green.
When the indicator blinks green
and red insert a CD into the slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. If you do not load a CD
within 10 seconds, the indicator
stops f lashing, and system selects
the next CD in the changer.
To load another CD, repeat steps 1
and 2. Do this again until all six
positions are loaded. The system
will begin playing the last CD
loaded.
1.
2.
3.
EX and EX-L modelsOperating the In-Dash CD
Changer
L oading CDs in the Changer
CD Changer
114

If you press the eject button while
listening to the radio or tape, or with
the audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in the numerical order. By
doing this six times, you can remove
all the CDs f rom the changer.
If you stop loading CDs bef ore all six
positions are f illed, and you do not
press any of the numbered button,
the system will wait f or 10 seconds,
then stop the load operation and
begin playing the last CD loaded.
If you press any of the numbered
button while a disc is playing, the
system will stop playing that disc and
start the loading sequence. It will
then play the disc just loaded.
You can also load a CD into an empty
position while a CD is playing by
pressing the appropriate numbered
button. Select an empty position, and
press the numbered button f or that
position (1 to 6). The system will
stop playing the current CD and start
the loading sequence. It will then
play the CD just loaded. To remove the disc that is currently
playing, press the eject button. The
system automatically begins the load
sequence so you can load another
CD in that position. If you do not
load another CD, after 10 seconds
the system begins playing the next
disc in the changer.
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds and begin
playing it.
To remove a dif f erent CD f rom the
changer,firstselectitwiththe
appropriate numbered button.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. You
can eject up to six discs, one at a
time.
Removing CDs f rom the Changer
CD Changer
Features
115

When using CD-R discs, use only
high quality CDs labeled f or audio
use.
When recording a CD-R, the
recording must be closed f or it to
be used by the system.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping. See
this page.When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
General Inf ormation
Protecting CDs
Protecting Your CDs
116

Error MessageCause Solution
FOCUS Error
Mechanical Error,
or a DVD has
been loaded in the
CD player
High TemperaturePress the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation. If
the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
the vehicle to your dealer.
CD Player Error Messages
Features
117

Error MessageCause Solution
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High Temperature
No CD magazine in the
CD changer.Press the magazine EJECT button and pull it
out. Check f or an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert a CD.
Press the magazine EJECT button and pull it
out. Check for an error message and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
the vehicle to your dealer.
CD Changer Error Messages
118
