Your seat belt system includes lap/
shoulder belts in all seating positions.
The front seat belts are also
equipped with automatic seat belt
tensioners.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
This
system uses the same sensors
as the front airbags to monitor
whether the front seat belts are
latched or unlatch ed, and how much
weight is on the f ront passenger’s
seat (see pages and ). If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no f ront
seat passenger and no items on the
front seat, something may be
interf ering with the monitoring
system. Look f or and remove:
Any objects hanging on the seat or
in the seat-back pocket.
Any objects, such as a f olded-down
back seat, that is touching the rear
of the seat-back. Any items under the f ront
passenger’s seat.
If no obstructions are f ound, have
your vehicle checked by a dealer.
If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either the driver or a f ront
passenger does not f asten their seat
belt, the beeper will sound and the
indicator will f lash again at regular
intervals.
When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If
your seat belt is not f astened bef ore the beeper stops, the indicator will
stop f lashing but remain on.
3130
Seat Belt System Components
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety
21

CONT INUED
Additional Inf ormation About Your Airbags
A irbag System Components
Driver and Passenger Saf ety
25
(2)(3)
(4) (5)
(6)
(8)
(10)
(8)
(7)(9)
(9) (11)
(5)
(4)
(12)
(13) (14)
(1)

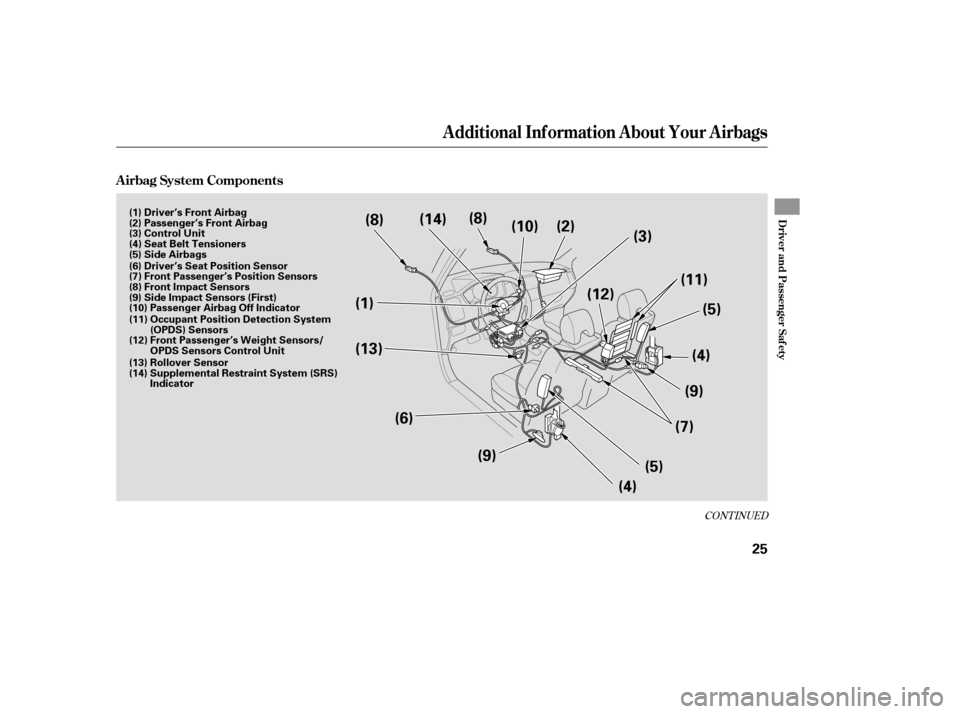

(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Position Sensors
(8) Front Impact Sensors
(9) Side Impact Sensors (First)
(10) Passenger Airbag Off Indicator (11) Occupant Position Detection System (OPDS) Sensors
(12) Front Passenger’s Weight Sensors/ OPDS Sensors Control Unit
(13) Rollover Sensor
(14) Supplemental Restraint System ( SRS)
Indicator

Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
ba cks. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Your
Airbag System includes:
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stor ed in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page ). 28
31
33
Additional Inf ormation About Your Airbags
26

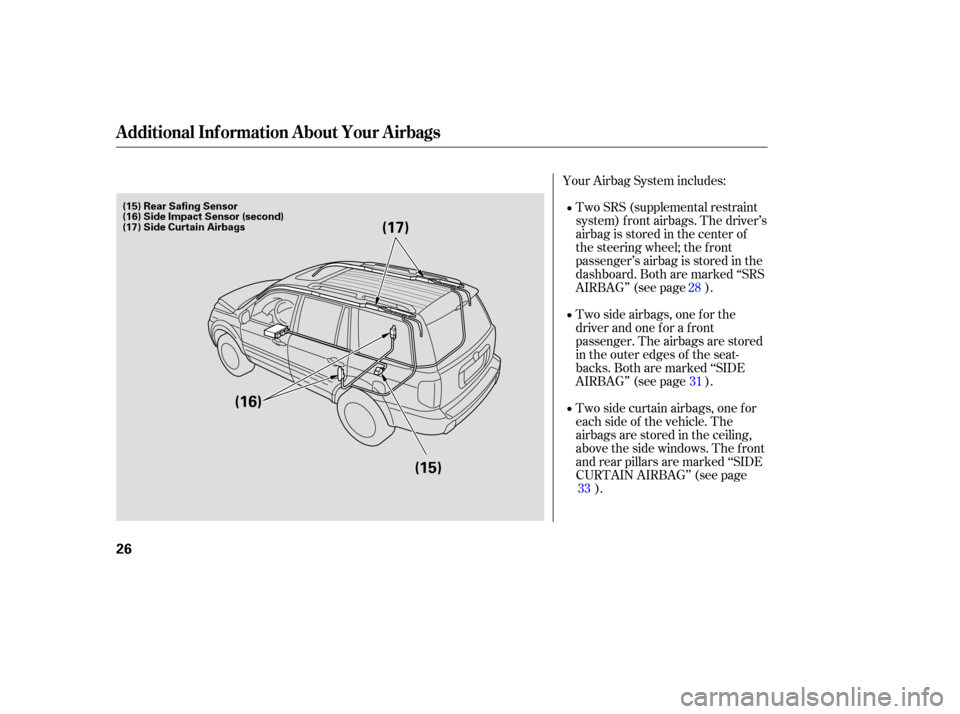

(15) Rear Safing Sensor
(16) Side Impact Sensor (second)
(17) Side Curtain Airbags
(17)
(16) (15)

Automatic front seat belt
tensioners (see page ).
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned off (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
Sensors
that can detect a
moderate to severe front impact,
side impact, or if your vehicle is
about to rollover. Weight
sensors that monitor the
weight on the front passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
infant or sm all child), the
passenger’s front airbag will be
turned off (see page ).
A sophisticated electronic system
that continually monitors and
reco rds information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position. An
indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
A rollover sensor that can detect if
your vehicle is about to roll over
and signal the control unit to
deploy both side curtain airbags
and front seat belt tensioners (see
page ).
A
driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
).
Sensors
that can detect whether
the driver’s seat belt and a front
passenger’s seat belt is latched or
unlatch ed (see page ).
Sensors
that can detect whether a
small person or child is in the
passenger’s side airbag path and
signal the control unit to turn the
airbag off (see page ).
23
34 33
34
30
33
21
30 35
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
27

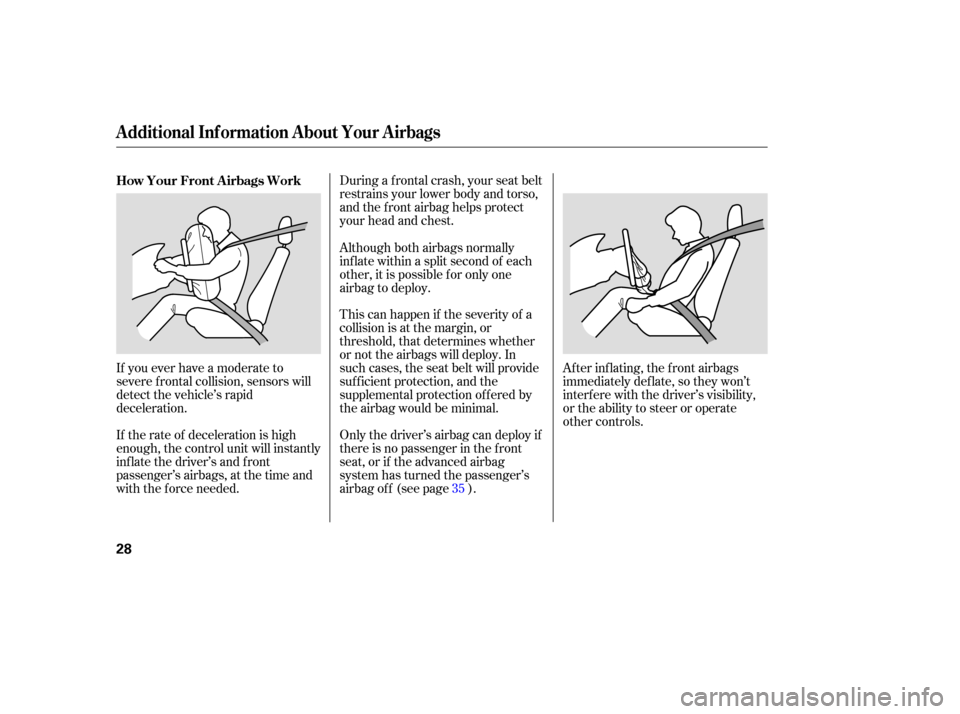

During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airb ags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
Only the driver’s airbag can deploy if
there is no passenger in the front
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inf late the driver’s and f ront
passenger’s airbags, at the time and
with the f orce needed. Af ter inf lating, the f ront airbags
immediately def late, so they won’t
interf ere with the driver’s visibility,
or the ability to steer or operate
other controls.
Although both airbags normally
inf late within a split second of each
other, it is possible f or only one
airbag to deploy.
35
How Your Front Airbags Work
Additional Inf ormation About Your Airbags
28

Your f ront airbags are also dual-
threshold airbags. Airbags with this
f eature have two deployment
thresholds that depend on whether
sensors detect the occupant is
wearing a seat belt or not.
If the occupant’s belt is ,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
Your f ront airbags are dual-stage
airbags. This means they have two
inf lation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inf lation time
with a little less force.
The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.
If the occupant’s belt is , the
airbag will inf late at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
CONT INUED
Dual-T hreshold A irbags
not lat ched
Dual-Stage A irbags
more severeless severe latched
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
29

Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children who ride in f ront.
For both advanced airbags to work
properly:Occupants must sit upright and
wear their seat belts properly. The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too f ar f orward, the airbag will
inf late with less f orce, regardless of
the severity of the impact. The passenger’s advanced f ront
airbag system has weight sensors
under the seat. Although Honda
does not encourage carrying an
inf ant or small child in f ront, if the
sensors detect the weight of an
inf ant or small child (up to about 65
lbs or 29 kg), the system will
automatically turn the passenger’s
front airbag off.
Second-row passengers should not
put their f eet under the f ront seats.
Failure to f ollow these instructions
could damage the sensors or prevent
them f rom working properly. If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inf late in the normal
manner regardless of the driver’s
seating position.
Be aware that objects placed on the
passenger’s seat can also cause the
airbag to be turned off.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any cargo or metal objects
under the f ront seats.
Advanced Airbags
Additional Inf ormation About Your Airbags
30

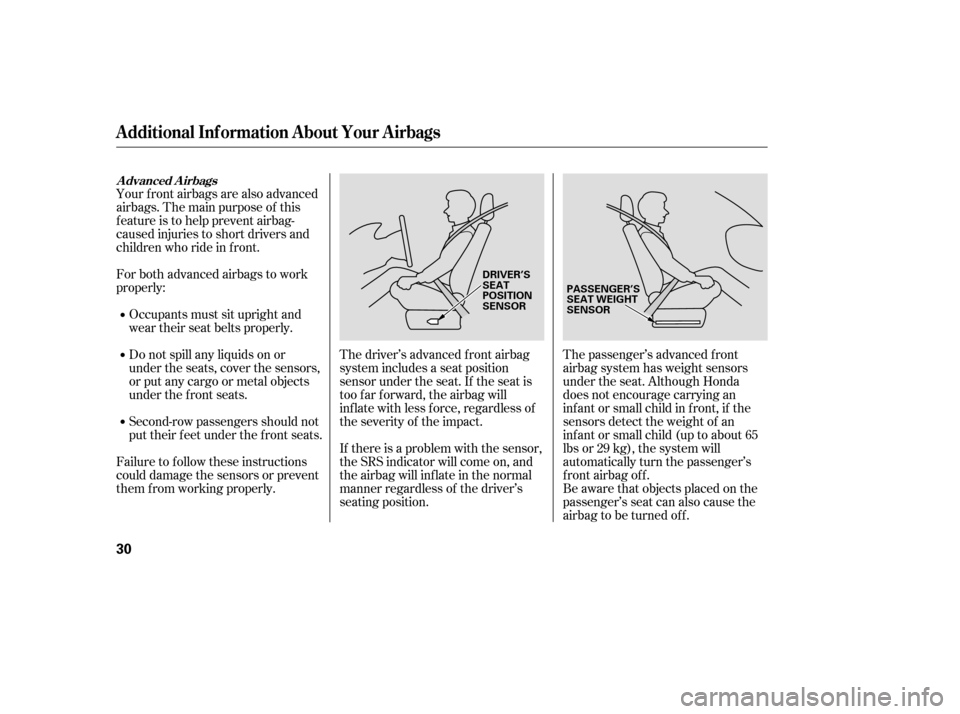

DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSOR

Moving the front seat forcibly
back against cargo on the seat or
floor behind it.
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
Wh

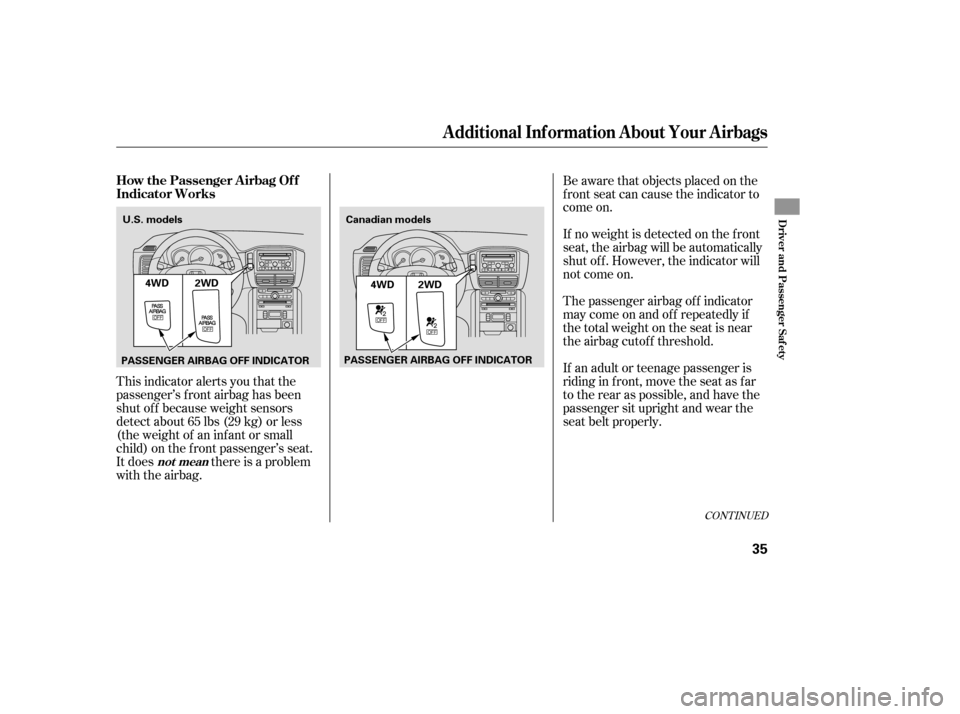

en the airbag is turned off, a
‘‘passenger airbag off’’ indicator in
the center of the dashboard comes
on (see page ).
If you ever have a moderate to
severe side impact, sensors will
detect rapid acceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag and activate the seat belt
tensioner.
Moving the front seat or seat-back
f orcibly back against the f olded
rear seat.
If the weight sensors detect that
there is no passenger in the f ront
seat, the airbag will be off. However,
the Passenger Airbag Of f indicator
will not come on.
To ensure that the passenger’s
advanced airbag system will work
properly,
A second-row passenger pushing
or pulling on the back of the f ront
passenger’s seat. 35
CONT INUED
How Your Side A irbags Work
Additional Inf ormation About Your Airbags
do not do anyt hing t hat
would increase or decrease t he weight on the f ront passenger’s seat,such as hanging heavy objects on theseat .
Driver and Passenger Saf ety
31

If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
When you turn the ignition switch to
the ON (II) position, this indicator
comes on briefly then goes off. This
tells you the system is wo rking
properly.
In a moderate to severe side impact,
sensors will detect rapid acceleration
and signal the control unit to
instantly inflate the side curtain
airbag and activate the seat belt
tensioner on the driver’s or the
passenger’s side of the vehicle. The
SRS indicator alerts
you to a poten tial problem
with your airbags or seat belt
tensioners (see page ).
If the rollover sensor detects your
vehicle is about to roll over, it will
signal the control unit which will
instan tly deploy both side curtain
airbags and activate the front seat
belt tensioners (see page ).
The airbag on the passenger’s side
will deploy, and the seat belt
tensioner will activate, even if there
are no passengers on that side of the
vehicle.
To get the best protection f rom the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats. 23
23
CONT INUED
How Your Side Curtain A irbags
Work
How the SRS Indicator Works
In a Side ImpactIn a Rollover
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
33
SIDE CURTAIN AIRBAG

This indicator alerts you that the
passenger’s f ront airbag has been
shut of f because weight sensors
detect about 65 lbs (29 kg) or less
(the weight of an inf ant or small
child) on the f ront passenger’s seat.
It does there is a problem
with the airbag.Be aware that objects placed on the
f ront seat can cause the indicator to
come on.
If no weight is detected on the f ront
seat, the airbag will be automatically
shut of f . However, the indicator will
not come on.
The passenger airbag of f indicator
may come on and of f repeatedly if
the total weight on the seat is near
the airbag cutof f threshold.
If an adult or teenage passenger is
riding in f ront, move the seat as f ar
to the rear as possible, and have the
passenger sit upright and wear the
seat belt properly.
CONT INUED
Additional Inf ormation About Your Airbags
How the Passenger Airbag Of f
Indicator Works
not mean
Driver and Passenger Saf ety
35
U.S. models
Canadian models
2WD
4WD
PASSENGER AIRBAG OFF INDICATOR2WD
4WD
PASSENGER AIRBAG OFF INDICATOR
