HONDA PILOT 2008 1.G Owners Manual

To apply the parking brake, push the
pedal down with your f oot. To
release it, push on the pedal again.
The parking brake indicator on the
instrument panel should go out when
the parking brake is fully released
(see page ).63
Parking Brake
Inst rument s and Cont rols
97
PARKING BRAKE PEDAL
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound
if the vehicle is driven with the parking
brake on.
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

Î
Î
Î
If equipped.
:
Interior Convenience Items
98
BEVERAGE HOLDERS
BEVERAGE HOLDERS
GLOVE BOX
ACCESSORY POWER SOCKETS
VANITY MIRROR VANITY MIRROR
SUN VISOR
BEVERAGE HOLDERS ACCESSORY POWER SOCKET
SUNGLASS HOLDER WITH
CONVERSATION MIRROR
SUN VISOR
CONSOLE COMPARTMENT
\f—\f—\fy

\f\fy
(+\fy\f
\fy
2008 Pilot

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
f rom the rear door pocket beverage
holders when you close the rear
doors. Use only resealable
containers in the door pockets. The
f ront beverage holders can be
installed under the slide.
Spilled liquids can damage the
upholstery, carpeting, and electrical
components in the interior.Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.
To open the console compartment,
pull up on the lever, and lif t the lid.
Pivot the door of the console f orward
and you can store a cellular phone, a
small notepad, and business cards in
it. The glove box light comes on when
the parking lights are on.
Interior Convenience Items
Beverage Holders Console Compartment Glove Box
Inst rument s and Cont rols
99
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
\f—\f—\fy


\fy
(+\fy\f
\fy
2008 Pilot

You may also store small items in
thisholder.Makesuretheyare
small enough to let the holder close
and latch, and that they are not
heavy enough to cause the holder to
pop open while driving.
To open the sunglasses holder, push
on the f ront edge. Make sure the
holder is closed while you are driving.
Some larger styles of sunglasses
may not f it in the holder.
The sunglasses holder uses a convex
mirror f or its bottom panel. You can
see all the vehicle passengers in this
mirror. To use the mirror, open the
sunglasses holder f ully, push it to the
f irst detent, and release it.On EX-L, EX-SE, and Canadian EX
models
Interior Convenience Items
Sunglasses Holder Conversation Mirror
100
Push
SUNGLASSES HOLDER
\f—\f—\fy


y
(+\fy\f
\fy
2008 Pilot

Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle. Do not use
the extended sun visor over the rear
view mirror.None of the sockets will power an
automotive type cigarette lighter
element. When both sockets are
being used, the combined power
rating of the accessories should be
120 watts or less (10 amps).
The light comes on when you pull up
the cover.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip and swing it out. Slide
the extension out to get more
coverage on the side window. To use the vanity mirror on the back
of the sun visor, pull up the cover.
The vanity mirror light will not come
on if the sun visor is slid outward.Each socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
Sun Visor A ccessory Power Sockets
Vanity Mirror
Interior Convenience Items
Inst rument s and Cont rols
101
SUN VISOR
EXTENSION
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

Always run the engine when you use
the AC power outlet.The maximum capacity f or this
power outlet is 115 volt AC at 100
watts or less. If you use an appliance
which requires more than 100 watts,
it automatically stops supplying the
power. If this happens, turn the
ignition switch of f and turn it on
again.
The AC power outlet is not
designed f or electric appliances
which require high initial peak
wattage such as cathode-ray tube
type televisions, ref rigerators,
electric pumps, etc. It is also not
suitable f or devices that process
precise data such as medical
equipment or measuring instruments.
Any appliances that require an
extremely stable power supply such
as microcomputer-controlled electric
blankets, touch sensor lamps, etc.,
should not be connected to this
outlet. All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
The individual map lights in the
f ront can be turned on and of f with
the switches next to the lights.
None of the lights come on when a
door or the tailgate is opened.
There is a 115 volt AC power outlet
in the console compartment. To use
the AC power outlet, open the
console compartment lid and open
the outlet cover. Insert the plug into
the receptacle slightly, turn it 90°
clockwise, then push in the plug all
the way.
When this switch is in the ON position:
If equipped
When the switch is in the OFF position:
Interior Convenience Items, Interior L ights
AC Power Outlet Light Control Switch
102
NOTE:
DOOR
ACTIVATED
POSITIONOFF
ON
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

The individual map lights in the
second and third rows cannot be
turned on.The courtesy light between the map
lights comes on when you turn the
parking lights on. To adjust its
brightness, turn the select/reset
knob on the instrument panel.
The individual map lights come on
whenanydoororthetailgateis
opened, or when the remote
transmitter is used to unlock the
doors.
The individual map lights in the
second and third rows can be
turned on and of f by pressing the
lens.
The tailgate light comes on when
you open the tailgate if the light
switch is in the ON position.
The lights go out about 6 seconds
after all the doors and the tailgate
are closed. With any door or the
tailgate lef t open, the lights stay
on about 3 minutes, then go out. The light in the tailgate has an on-of f
switch to control if the light comes
on when the tailgate is opened.
The courtesy lights in the f ront
doors and around the ignition switch
come on when you open any door.
Af ter you close the door, the ignition
switch light stays on f or several
seconds.
Turn on the f ront and rear individual
map lights by pushing the lens of
each light. Push the lens again to
turn it off. You can also operate
these lights with the light control
switch (see page ).
102
When the switch is in the door activated
position:
Interior Lights
Courtesy Lights
Individual Map L ights
Tailgate Light
Individual Interior L ights
Inst rument s and Cont rols
103
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

104
\f—\f—\fy

\fy
(+\fy\f
\fy
2008 Pilot

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to dis-
courage vandalism and thef t of your
vehicle..............
Vents, Heating, and A/C .106
......
Automatic Climate Control .112
.........
Using the Rear A/C Unit .113
................................
Audio System .115
..........................
Playing the Radio .117
............................
Radio Reception .122
.
Playing the XM
Satellite Radio .124
................................
Playing a Disc .130
........................
Disc Changer .131,134
..................
Protecting Your Discs .135
.......
Disc Player Error Messages .138
Disc Changer Error
...................................
Messages .139
................
Remote Audio Controls .140
.................
Radio Thef t Protection .141
..........................
Setting the Clock .142
........
Rear Entertainment System .144
............................
Security System .176
...............................
Cruise Control .177
.........................................
Compass .179
.
Rear View Camera and Monitor .182
HomeLink Universal
................................
Transceiver .183
Except f or LX models
Features
Features
105
\f—\f—\fy

y
(+\fy\f

\fy
2008 Pilot

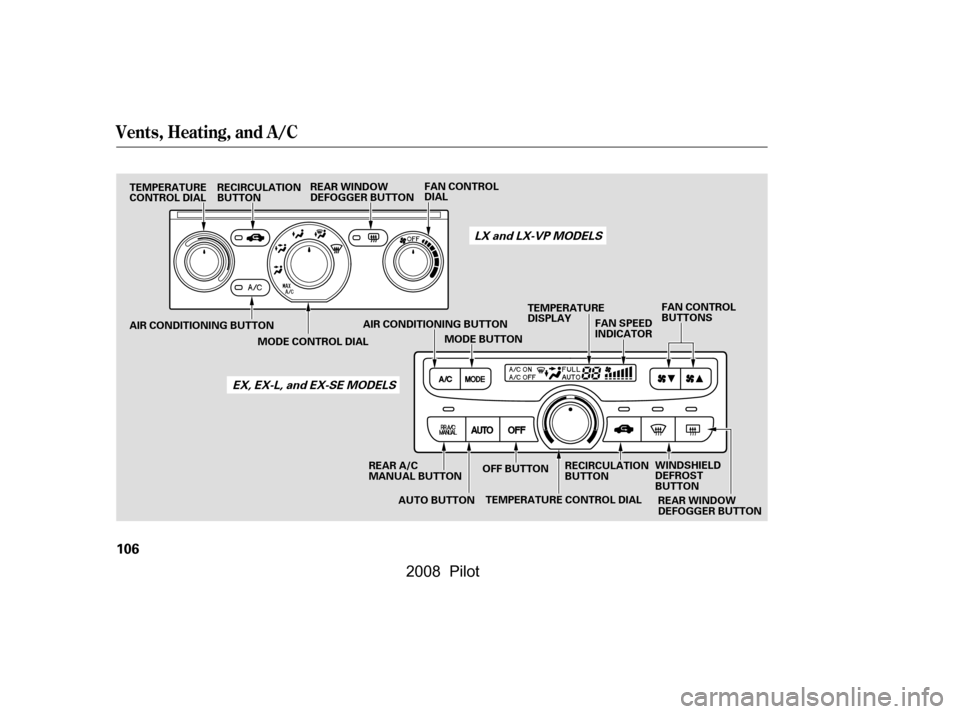

Vents, Heating, and A/C
106
TEMPERATURE
CONTROL DIALRECIRCULATION
BUTTON FAN CONTROL
DIAL
REAR WINDOW
DEFOGGER BUTTON
MODE CONTROL DIAL AIR CONDITIONING BUTTON
MODE BUTTON FAN SPEED
INDICATORFAN CONTROL
BUTTONS
TEMPERATURE CONTROL DIAL
AUTO BUTTON
REAR WINDOW
DEFOGGER BUTTON
OFF BUTTON
RECIRCULATION
BUTTON WINDSHIELD
DEFROST
BUTTON
AIR CONDITIONING BUTTON
TEMPERATURE
DISPLAY
REAR A/C
MANUAL BUTTON
LX and LX-VP MODELS
EX, EX-L, and EX-SE MODELS
\f—\f—\fy

\f
y
(+\fy\f


y
2008 Pilot
