HONDA PILOT 2008 1.G Repair Manual

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.With the tailgate open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system/climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconf ined area, adjust the heating
and cooling system/climate control
system as f ollows:
Have the exhaust system inspected
f or leaks whenever:
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Saf ety
57
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
\f—\f—\fy

\f
\fy
(+\fy\f\fy
2008 Pilot

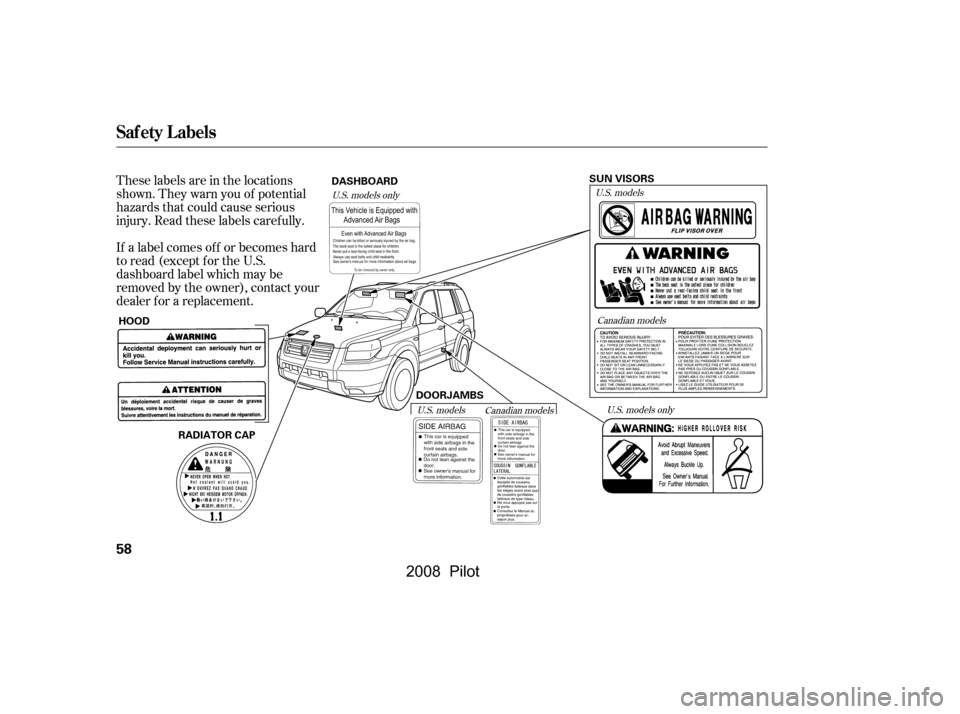

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.
U.S. models onlyCanadian models
U.S. models
U.S. models only
U.S. models Canadian models
Saf ety L abels
58
RADIATOR CAP
HOOD DASHBOARD
DOORJAMBS SUN VISORS
\f—\f—\fy

\f
y
(+\fy\f\fy
2008 Pilot

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60
............................
Instrument Panel .61
..........
Instrument Panel Indicators .62
.............................................
Gauges .70
...................................
Trip Meter .70
.....................................
Odometer .70
..................................
Fuel Gauge .70
...................
Temperature Gauge .71
Outside Temperature
...................................
Indicator .71
..........
Check Fuel Cap Message .72
Controls Near the Steering ...........................................
Wheel .73
.
Windshield Wipers and Washers .74
.........
Turn Signals and Headlights .75
Automatic Lighting Off .....................................
Feature .76
............
Daytime Running Lights .76
........
Instrument Panel Brightness .76
.................
Hazard Warning Button .77
.................
Rear Window Def ogger .77
..........
Steering Wheel Adjustment .78
...............................
Keys and Locks .79
........................
Immobilizer System .80
................................
Ignition Switch .81 ......................................
Door Locks .82
......................
Power Door Locks .82
........................................
Tailgate .82
..................
Childproof Door Locks .83
.......................
Remote Transmitter .83
....................................
Seat Heaters .86
.................................................
Seats .87
..........................
Head Restraints .91
.............................................
Mirrors .92
..............................
Power Windows .94
.........................................
Moonroof .96
.................................
Parking Brake .97
...........
Interior Convenience Items .98
.......................
Beverage Holders .99
...............
Console Compartment .99
....................................
Glove Box .99
....................
Sunglasses Holder .100
................
Conversation Mirror .100
...................................
Sun Visor .101
............................
Vanity Mirror .101
........
Accessory Power Sockets .101
...............................
Interior Lights .102
Instruments and Controls
Inst rument s and Cont rols
59
\f—\f—\fy

\fy
(+\fy\f\fy
2008 Pilot

Î
ÎIf equipped.
Control L ocations
60

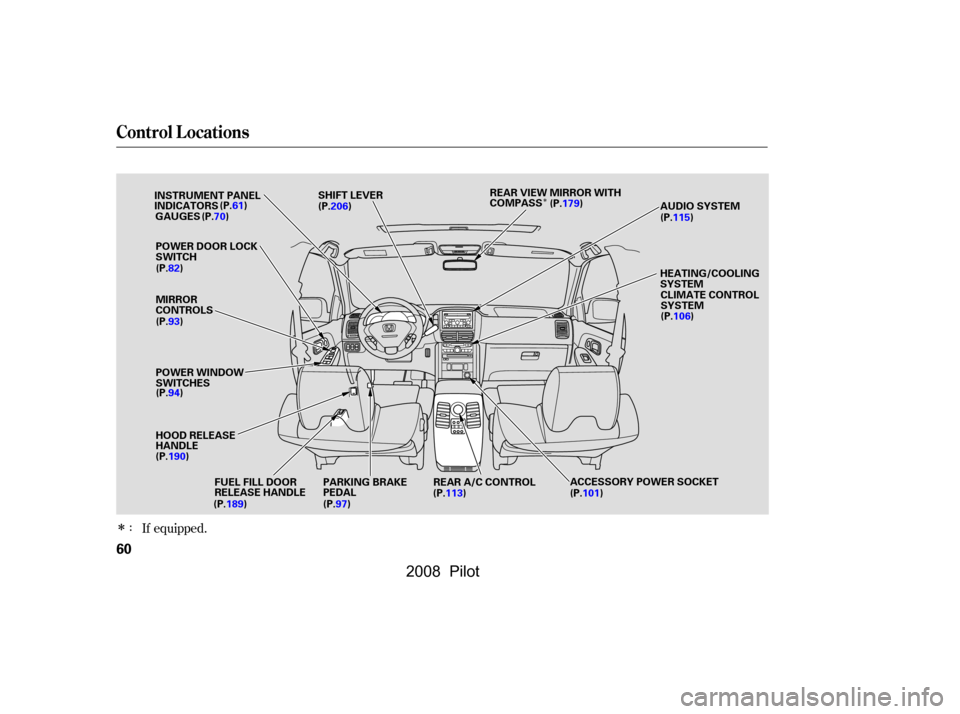

MIRROR
CONTROLS
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLEAUDIO SYSTEM
PARKING BRAKE
PEDAL
GAUGES (P.70)
(P.82)
(P.93)
(P.94)
(P.97)REAR VIEW MIRROR WITH
COMPASS
(P.115)
(P.106)
: FUEL FILL DOOR
RELEASE HANDLE HEATING/COOLING
SYSTEM
INSTRUMENT PANEL
INDICATORS
(P.61)
CLIMATE CONTROL
SYSTEM
ACCESSORY POWER SOCKET
(P.101)
(P.113) REAR A/C CONTROL
SHIFT LEVER
POWER DOOR LOCK
SWITCH (P.179)
(P.206)
(P.190) (P.189)
\f—\f—\fy

\fy
(+\fy\f\fy
2008 Pilot

Î
ÎÎ
Î Î
If equipped.
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
:
Instrument Panel
Inst rument s and Cont rols
61

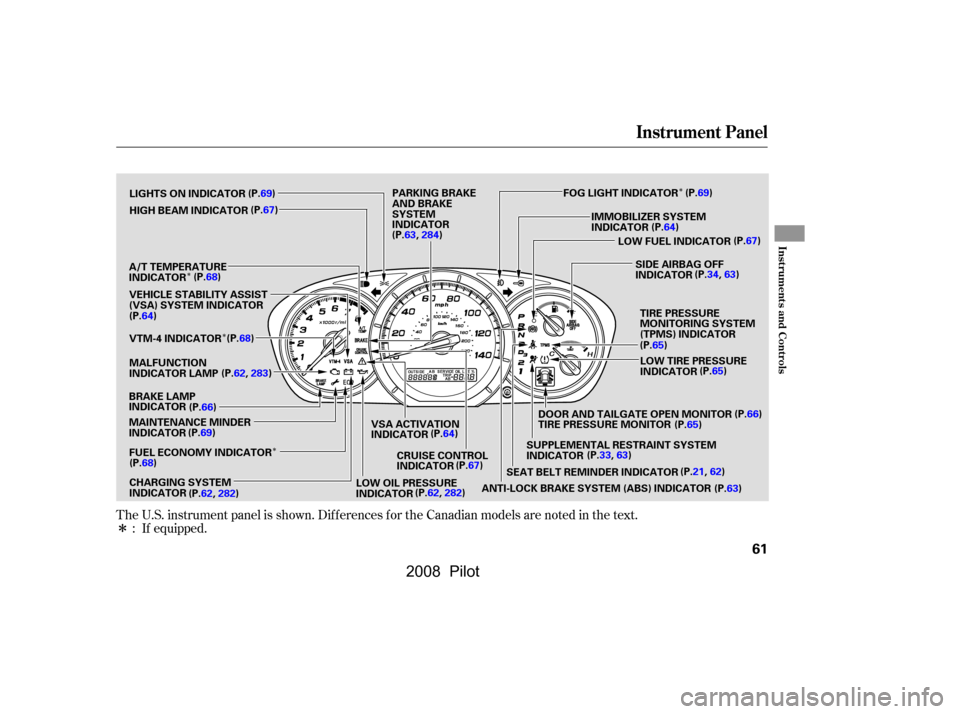

LIGHTS ON INDICATOR
HIGH BEAM INDICATOR
A/T TEMPERATURE
INDICATOR
MAINTENANCE MINDER
INDICATOR LOW OIL PRESSURE
INDICATORVSA ACTIVATION
INDICATOR
CRUISE CONTROL
INDICATOR SIDE AIRBAG OFF
INDICATOR
LOW FUEL INDICATOR
FOG LIGHT INDICATOR
(P.69)
(P.69) (P.69)
SEAT BELT REMINDER INDICATOR
(P.67)
(P.68)
(P.64)
VTM-4 INDICATOR (P.68)
FUEL ECONOMY INDICATOR (P.68)
CHARGING SYSTEM
INDICATOR (P.64)
(P.67) (P.65)
(P.66)
(P.65)
IMMOBILIZER SYSTEM
INDICATOR
(P.64)
(P.67)
PARKING BRAKE
AND BRAKE
SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR
MALFUNCTION
INDICATOR LAMP
BRAKE LAMP
INDICATOR (P.66) LOW TIRE PRESSURE
INDICATOR
(P.65) TIRE PRESSURE
MONITORING SYSTEM
(TPMS) INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR(P.34,63)
(P.33,63)
DOOR AND TAILGATE OPEN MONITOR
TIRE PRESSURE MONITOR
(P.63)
(P.21,62)
(P.62,283)
(P.62,282) (P.62,282)
(P.63,284)
\f—\f—\fy

\fy
(+\fy\f\fy
2008 Pilot

The instrument panel has many
indicators to give you important
inf ormation about your vehicle. See page .The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals. 21
283
282
282
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator
Seat Belt Reminder
Indicator
Instrument Panel Indicators
62
\f—\f—\fy


\f
y
(+\fy\f\fy
2008 Pilot

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more inf ormation, see
page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
cutof f system, side curtain airbags,
automatic seat belt tensioners,
driver’s seat position sensor, or the
f ront passenger’s weight sensors.
For more inf ormation, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
1.
2.
34 33
284 217
Instrument Panel Indicators
Anti-lock Brake System
(A BS) Indicator
Parking Brake and Brake System
Indicator
Supplemental Restraint
System Indicator
Side Airbag Of f
Indicator
Inst rument s and Cont rols
63
U.S. Canada
U.S. Canada
\f—\f—\fy




y
(+\fy\f\fy
2008 Pilot

This indicator has three f unctions:It comes on as a reminder that you
have turned off the vehicle
stability assist (VSA) system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
then go of f if you have inserted a
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink, and the engine
will not start (see page ). If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Take
your vehicle to a dealer to have it
checked. Without VSA, your vehicle
still has normal driving ability, but
will not have VSA traction and
stability enhancement. See page
f or more inf ormation on the
VSA system. It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
1.
2.
3.
80
218 218
218
Instrument Panel Indicators
VSA A ctivation Indicator
Vehicle Stability Assist
(VSA ) System Indicator
Immobilizer System
Indicator
64
\f—\f—\fy



y
(+\fy\f\fy
2008 Pilot

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator and the tire
pressure monitor will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure on the tire
pressure monitor, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). Ref er to page
f or more inf ormation. The appropriate tire indicator will
come on along with the low tire
pressure indicator if a tire is
signif icantly underinf lated or has
suddenly lost pressure. See
for what to
do if this indicator comes on.
211 272
285 Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator T ire Pressure Monitor
Low
Tire Pressure Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
65
\f—\f—\fy


\fy
(+\fy\f\f\fy
2008 Pilot

If a brake light does not work, theindicator comes on
when you push the brake pedal with
the ignition switch in the ON (II)
position.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling. The appropriate indicator comes on
in this display if the tailgate or any
door is not closed tightly.
All of the indicators in the monitor
display come on f or a f ew seconds
when you turn the ignition switch to
the ON (II) position.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash. A burned out brake light is a hazard
when drivers behind you cannot tell
you are braking. Replace the bulb as
soon as possible (see page ).
255258
258
Turn Signal and
Hazard Warning
Indicators
Brake L amp Indicator Door and Tailgate Open Monitor
Instrument Panel Indicators
66
BRAKE LAMP
\f—\f—\fy


y
(+\fy\f\f
y
2008 Pilot
