HONDA PILOT 2008 1.G Owner's Manual

CONT INUED
For the third row outer positions,
slide out the outer shoulder belt
f rom the clip and pull the belt out to
extend it.
Pull out the anchor latch and the
latch plate f rom each holding slot in
the ceiling, and pull out the seat belt
to extend it.
Insert the hook at the end of the
anchor latch into the anchor buckle
by lining up the triangle marks on
the anchor latch and buckle. Makesure the belt is not twisted. Push the
anchor latch until it locks. Then
f ollow the procedure f or f astening
and positioning an ordinary seat belt
(see page ).
15
Protecting A dults and Teens
Using t he L ap/Shoulder Belt
Driver and Passenger Saf ety
17
LATCH PLATE
ANCHOR LATCH
ANCHOR BUCKLEANCHOR LATCH
TRIANGLE
MARKS
THIRD ROW OUTER POSITION
SECOND AND THIRD ROW CENTER
POSITION
CLIPLATCH PLATE
ANCHOR LATCH
Using a seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
\f—\f—\fy


y
(+\fy\f\fy
2008 Pilot

This could cause
very serious injuries in a crash.
See page f or additional
inf ormation about your seat belts
and how to take care of them.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible. After all occupants have adjusted
their seats and head restraints, and
put on their seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is parked and the engine is
of f .
To unlatch the detachable seat belt
anchor before folding down the seat-
back, insert your ignition key into
the slot on the side of the anchor
buckle and allow the seat belt to
retract. For the center seating
positions, place the latch plate and
anchor latch into their holding slots
in the ceiling. For the third row outer
seating positions, re-f asten the belt
with the clip. Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both f eet up, the
chance of injury during a crash is
greatly increased.
21
Protecting A dults and Teens
Maintain a Proper Sitting
Position
6.Never place t he shoulder port ion of a
lap/shoulder belt under your arm orbehind your back.
No one should sit in a seat wit h aninoperat ive seat belt .
18
ANCHOR LATCH
ANCHOR BUCKLE
\f—\f—\fy


y
(+\fy\f\fy
2008 Pilot

If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.Each time you have a checkup, ask
your doctor if it’s okay f or you to
drive.
In addition, an occupant who is out of
position in the f ront seat can be
seriously or f atally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
When driving, remember to sit
upright and adjust the seat as f ar
back as possible while allowing f ull
control of the vehicle. When riding
as a f ront passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Advice f or Pregnant Women
Protecting A dults and Teens
Driver and Passenger Saf ety
19
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
\f—\f—\fy


\fy
(+\fy\f\fy
2008 Pilot

If they do, they
could be very seriously injured in a
crash.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
If they do, they
could be very seriously injured in a
crash. Objects on
the covers marked ‘‘SRS AIRBAG’’
could interf ere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inf late.
Devices intended to improve
occupant comf ort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your f ront airbag inf lates.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inf lates. If a side airbag or a
side curtain airbag inf lates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Additional Saf ety Precautions
Never let passengers ride in t he
cargo area or on t op of a f olded-down back seat .
Passengers should not stand up orchange seats while the vehicle ismoving.
T wo people should never use t hesame seat belt . Do not at t ach or place object s on
the f ront airbag covers.
Do not put any accessories on seat
belts.
Do not place hard or sharp object sbet ween yourself and a f rontairbag.
K eep your hands and arms awayf rom t he airbag covers. Do not at t ach hard object s on or
near a door.
Protecting A dults and Teens
20
\f—\f—\fy



\fy
(+\fy\f\fy
2008 Pilot

This system uses the same sensors
as the front airbags to monitor
whether the f ront seat belts are
latched or unlatched, and how much
weight is on the f ront passenger’s
seat (see pages and ).If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no f ront
seat passenger and no items on the
front seat, something may be
interf ering with the monitoring
system. Look f or and remove:
Any object(s) hanging on the seat
or in the seat-back pocket.
Any objects, such as a f olded-down
back seat, that are touching the
rear of the seat-back.
Any items under the f ront
passenger’s seat.
If no obstructions are f ound, have
your vehicle checked by a dealer.
Your seat belt system includes lap/
shoulder belts in all eight seating
positions. The f ront seat belts are
also equipped with automatic seat
belt tensioners.
This system monitors the f ront seat
belts. If you turn the ignition switch
to the ON (II) position bef ore your
seat belt is f astened, the beeper will
sound and the indicator will f lash. If your seat belt is not f astened bef ore
the beeper stops, the indicator will
stop f lashing but remain on.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
f asten your seat belts. If a f ront passenger does not f asten
their seat belt, the indicator will
come on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either the driver or a f ront
passenger does not f asten their seat
belt while driving, the beeper will
sound and the indicator will f lash
again at regular intervals.
When no one is sitting in the f ront
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
31
30
Seat Belt System Components
Seat Belt Reminder
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety
21
\f—\f—\fy


\fy
(+\fy\f\fy
2008 Pilot

The lap/shoulder belt in the center
seat of the second and third row
seats is equipped with a detachable
anchor that has two parts: a small
latch plate and a buckle.
The detachable anchor should
normally be latched whenever the
seats-backs are in an upright position.
For more inf ormation about the
detachable anchor (see page ).
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page f or how to
properly position the belt).To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. Af ter exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move f reely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all positions except
the driver’s have a lockable retractor
that must be activated to secure a
child seat (see page ).
If the shoulder part of the belt is
pulled all the way out, the lockable
retractor will activate. The belt will
retract, but it will not allow the
passenger to move f reely.
To deactivate the lockable retractor,
unlatch the buckle and let the seat
belt fully retract. To refasten the
seat belt, pull it out only as f ar as
needed.
The lap/shoulder belt goes over
your shoulder, across your chest,
and across your hips.
1517
49
Additional Inf ormation About Your Seat Belts
L ap/Shoulder Belt
22
\f—\f—\fy


y
(+\fy\f\fy
2008 Pilot

For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully, and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
The tensioners can also be activated
during a collision in which the f ront
airbags . In this case, the
airbags would not be needed, but the
additional restraint could be helpf ul.
If a side airbag or side curtain airbag
deploys during a side impact, the
tensioner on that side of the vehicle
will also deploy.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled.
Honda provides a limited warranty
on seat belts. See yourbooklet f or
details.
For added protection, the f ront seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a f ront passenger in position.
The tensioners are designed to
activate in any collision severe
enough to cause the f ront airbags to
deploy. 260
CONT INUED
do not deploy
Honda
Warranty Inf ormation
Additional Inf ormation About Your Seat Belts
A utomatic Seat Belt T ensioners Seat Belt Maintenance
Driver and Passenger Saf ety
23
\f—\f—\fy


y
(+\fy\f\fy
2008 Pilot

The dealer should also inspect the
anchors f or damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
If a seat belt is worn during a crash,
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
Additional Inf ormation About Your Seat Belts
24
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
\f—\f—\fy


y
(+\fy\f\fy
2008 Pilot

CONT INUED
Additional Inf ormation About Your Airbags

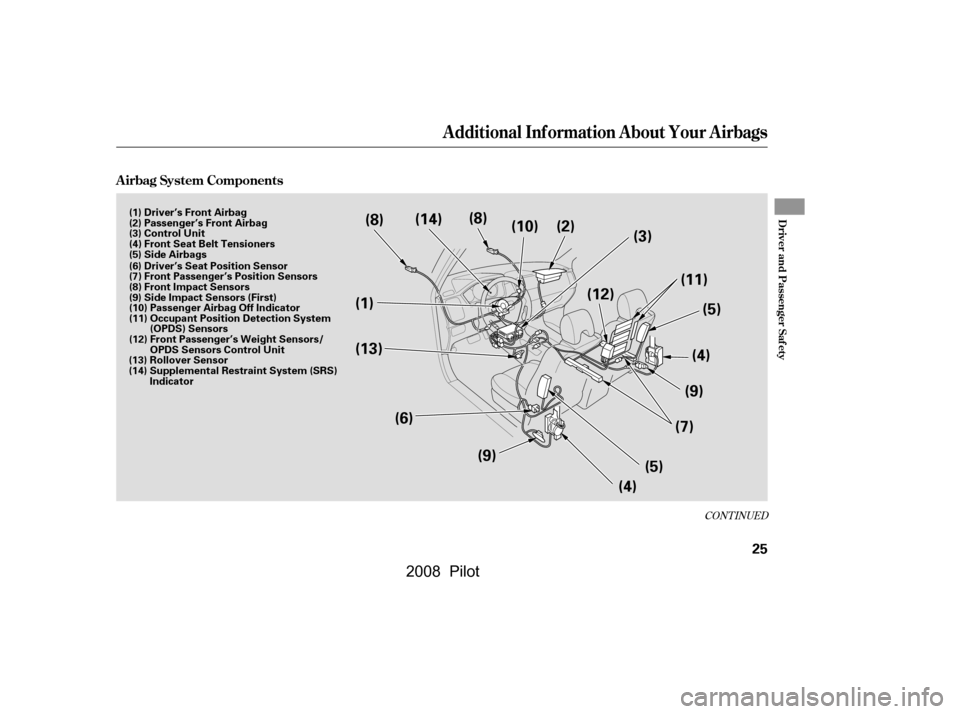

A irbag System Components
Driver and Passenger Saf ety
25
(2)(3)
(4) (5)
(6)
(8)
(10)
(8)
(7)(9)
(9) (11)
(5)
(4)
(12)
(13)
(1) (14)
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Position Sensors
(8) Front Impact Sensors
(9) Side Impact Sensors (First)
(10) Passenger Airbag Off Indicator
(11) Occupant Position Detection System
(OPDS) Sensors
(12) Front Passenger’s Weight Sensors/ OPDS Sensors Control Unit
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(13) Rollover Sensor
(14) Supplemental Restraint System ( SRS)
Indicator
\f—\f—\fy


y
(+\fy\f\f\fy
2008 Pilot

Two SRS (supplemental restraint
system) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Your Airbag System includes:
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The f ront
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page ). 28
31
33
Additional Inf ormation About Your Airbags
26
(15) Rear Safing Sensor
(16) Side Impact Sensor (second)
(17) Side Curtain Airbags
(17)
(16) (15)
\f—\f—\fy


y
(+\fy\f\f
y
2008 Pilot
