HONDA PILOT 2009 2.G Owners Manual

To adjust the second row seats
f orward and backward, pull up on the
bar under the f ront edge of the seat
cushion. Move the seat to the
desired position and release the bar.
Trytomovetheseattomakesureit
is locked in position.
This reduces the distance between
the restraint and the occupant’s head.
It also helps protect the occupants
against whiplash and injuries to the
neck and upper spine.
Af ter a collision, the activated
restraint should return to its normal
position.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer.
For a head restraint system to work
properly:
Do not hang any items on the head
restraints, or f rom the restraint
legs.
Only use genuine Honda
replacement head restraints. Install each restraint in its proper
location. Do not place any object between
an occupant and the seat-back.
CONT INUED
Seats
Adjusting the Second Row Seats
Inst rument s and Cont rols
157
——
y
y
(/y
y
2009 Pilot

Reverse this procedure to return the
seat to the upright position. Make
sure the seat is locked securely
bef ore driving.
Make sure that the folded seat-back
does not press against the f ront
passenger’s seat, as this could cause
the weight sensors to work
improperly.
The left and right halves can be
f olded separately.
To unlatch the detachable anchor
bef ore f olding the seat-back, insert
the latch plate into the slot on the
side of the anchor buckle (see
page ) and allow the seat belt
to retract. Store the detachable
anchor and seat belt latch plates in
the retractor housing.
Pull up the handle on the outside
of the seat-back. Lower the head restraints to their
lowest positions.
Fold the seat-back forward.
To change the seat-back angle of the
seats in the second row, pull up on
thehandleontheoutsideof theseat-
back, and push the seat-back.
2.
3.
4. 1.
160
Seats
Folding the Second Row Seats
158
HANDLE
——
y
y
(/y
y
2009 Pilot

To get into the third row seats, pull
uptheleveronthesideof the
passenger’s side second row seat-
back. The seat-back will tilt f orward,
and then can be slid forward.
After you return the seat-back to the
upright position, push the whole seat
backwards until it latches. Make
sure the seat is f ully latched bef ore
sitting in it.Use the latch plate to release the
seat belt from the detachable
anchor (see page ).
Lower the head restraints to their
lowest positions.
To f old the third row seat,
the second row seat-back must be
f olded down or in the f ull up right
position.
Unlock the seat-back by pulling
the handle. Push the seat-back
forward.
Make sure the outer shoulder belts
are positioned in each holding slot on
the side panel whenever the third
seat is f olded.
1.
2.
3.
160
CONT INUED
T hird Row A ccess
Folding the T hird Row Seat
Seats
Inst rument s and Cont rols
159
NOTE:
HANDLE
RELEASE LEVER Third seat
——
y
y
(/y
y
2009 Pilot

When the seats are returned to the
upright position, these detachable
anchors should be latched back
properly.
The seat belts in the second row
center seat and the third row seats
are equipped with detachable
anchors.
To unlatch the detachable anchor,
insert the latch plate into the slot on
the side of the anchor buckle. Store
the detachable anchor and seat belt
latch plates in the retractor housing.
Reverse this procedure to return the
seat to the upright position. Make
sure the seat is locked securely
bef ore driving. Reconnect the seat
belts to the detachable anchors.
Make sure all items in the cargo area
are secured. Loose items can f ly
f orward and cause injury if you have
to brake hard (See
on page ).
408 Detachable Anchor
Carrying Cargo
Seats
160
LATCH PLATE
Using the seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
——
y

y
(/y
y
2009 Pilot

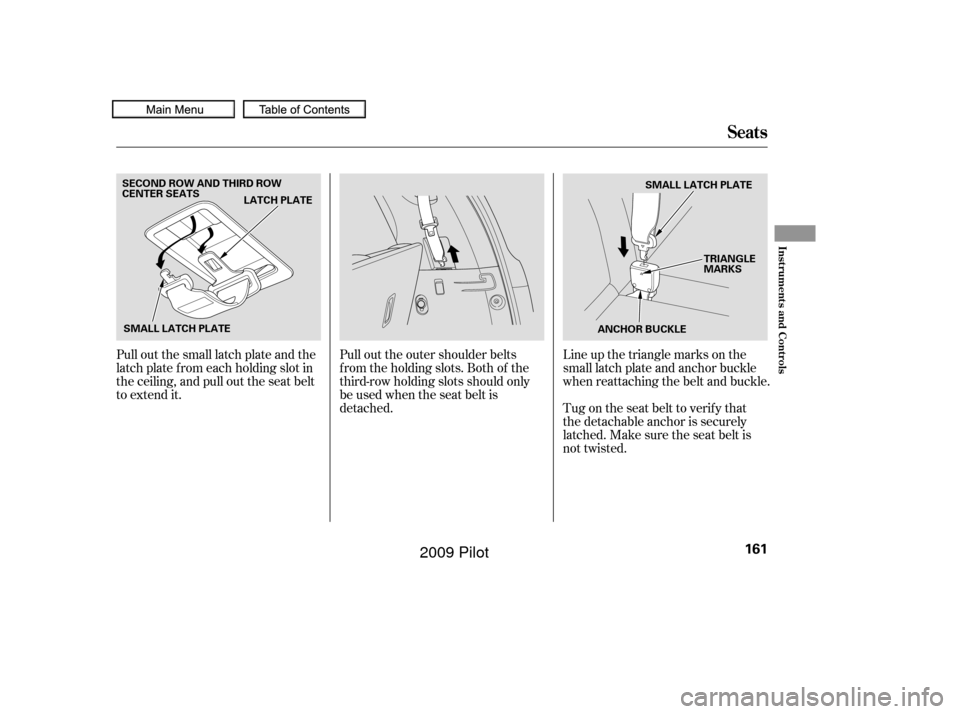

Pull out the small latch plate and the
latch plate f rom each holding slot in
the ceiling, and pull out the seat belt
to extend it.Line up the triangle marks on the
small latch plate and anchor buckle
when reattaching the belt and buckle.
Tug on the seat belt to verify that
the detachable anchor is securely
latched. Make sure the seat belt is
not twisted.
Pull out the outer shoulder belts
f rom the holding slots. Both of the
third-row holding slots should only
be used when the seat belt is
detached.
Seats
Inst rument s and Cont rols
161
SMALL LATCH PLATE LATCH PLATE
TRIANGLE
MARKS
SECOND ROW AND THIRD ROW
CENTER SEATS
SMALL LATCH PLATE
ANCHOR BUCKLE
——
y

y
(/y
y
2009 Pilot

Both f ront seats are equipped with
seat heaters. Because of the sensors
f or the side airbag cutof f system,
there is no heater in the passenger’s
seat-back. The ignition switch must
be in the ON (II) position to use the
heaters.The outer second row seat cushions
and seat-backs are equipped with
seat heaters. Turning the switch on
the driver side warms the outer seat
behind the driver’s seat only. The
passenger side switch warms the
outer seat behind the f ront
passenger seat.
Push the right side of the switch, HI,
to rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the lef t side of the switch. This will
keep the seat warm.
On EX-L, Touring models, and Canadian
EX models On Canadian Touring models
Seat Heaters
162
HI
Front seat Second row seat
HEATERS Passenger’s
Seat
Driver’s
Seat LOW
——
y
y
(/y
y
2009 Pilot

µ
CONT INUED
The windows will operate f or up to
10 minutes af ter you turn of f the
ignition switch. Opening either f ront
door cancels this f unction.To open either f ront
window f ully, push the window
switch f irmly down to the second
detent, then release it. The window
automatically goes down all the way.
To stop the window f rom going all
the way down, pull back on the
window switch briefly.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Follow these precautions when using
the seat heaters:
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting. Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open a window, push the
switchdownandholdit.Releasethe
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window.
AUTO
Power Windows
Seat Heaters, Power Windows
Inst rument s and Cont rols
163
DRIVER’S WINDOW
SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
——
y
y
(/y
y
2009 Pilot

µIf your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction may be disabled. If
the AUTO f unction is disabled, the
power window system will need to be
reset af ter reconnecting the battery
or installing the f use.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer.
If either f ront
window senses any obstacle while it
is closing automatically, it will
reverse direction and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it.
To close either f ront window f ully,
pull back the window switch f irmly
to the second detent, then release it.
The window automatically goes all
the way up. To stop the window f rom
going all the way up, push down on
the window switch briefly.
When you push the MAIN switch in,
the switch is off, and the passengers’
windows cannot be raised or lowered.
To cancel this f eature, push on the
switch again to get it to pop out.
Keep the MAIN switch pushed in
whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
1.
2.
AUTO REVERSE
Power Windows
164
——
y
y
(/y
y
2009 Pilot

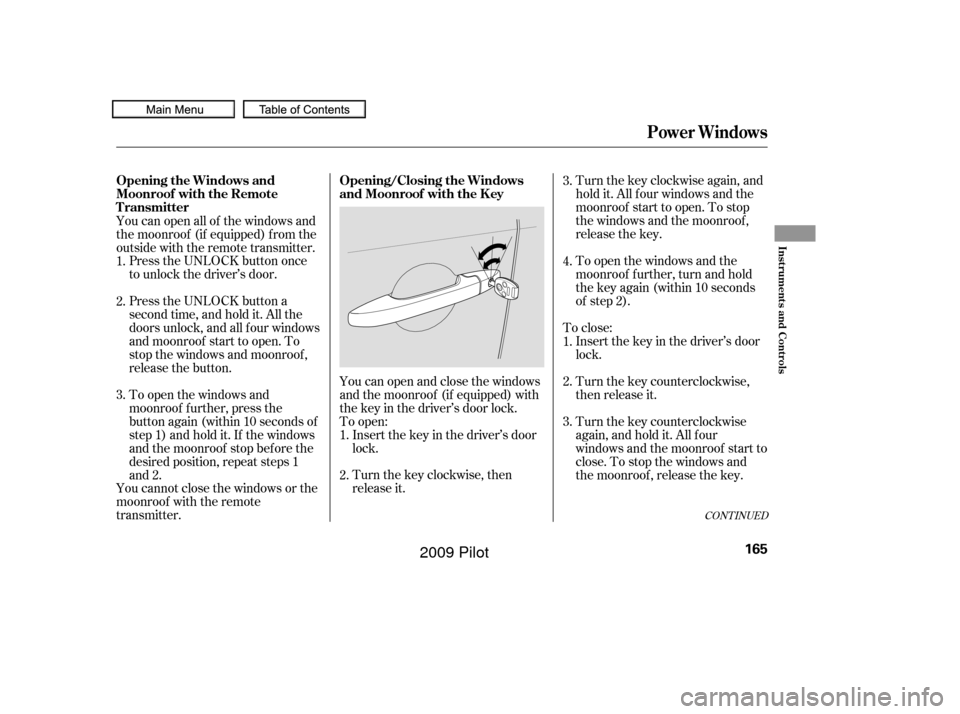

Insert the key in the driver’s door
lock.
Turn the key clockwise, then
release it.Turnthekeyclockwiseagain,and
hold it. All f our windows and the
moonroof start to open. To stop
the windows and the moonroof ,
release the key.
To open:
You cannot close the windows or the
moonroof with the remote
transmitter. To open the windows and
moonroof f urther, press the
button again (within 10 seconds of
step 1) and hold it. If the windows
and the moonroof stop bef ore the
desired position, repeat steps 1
and 2. Press the UNLOCK button a
second time, and hold it. All the
doors unlock, and all f our windows
and moonroof start to open. To
stop the windows and moonroof ,
release the button. Press the UNLOCK button once
to unlock the driver’s door.
To open the windows and the
moonroof f urther, turn and hold
the key again (within 10 seconds
of step 2).
To close: Insert the key in the driver’s door
lock.
Turn the key counterclockwise,
then release it.
Turn the key counterclockwise
again, and hold it. All four
windows and the moonroof start to
close. To stop the windows and
the moonroof , release the key.
You can open all of the windows and
the moonroof (if equipped) f rom the
outside with the remote transmitter.
You can open and close the windows
and the moonroof (if equipped) with
the key in the driver’s door lock.
1.
2.
2.
3. 3.
1.
2.
3. 4.
1.
CONT INUED
Opening/Closing the Windows
and Moonroof with the K ey
Opening the Windows and
Moonroof with the Remote
Transmitter
Power Windows
Inst rument s and Cont rols
165
——
y
y
(/y
y
2009 Pilot

To tilt up the moonroof , push on the
center of the moonroof switch. To
stop the moonroof f rom tilting up
f ully, push the switch brief ly.
To close the moonroof f ully, f irmly
push the moonroof switch f orward,
then release it. The moonroof
automatically closes all the way. To
stop the moonroof f rom closing,
push the switch briefly.
To open or close the moonroof
partially, pull back or push f orward
the moonroof switch lightly and hold
it. The moonroof will stop when you
release the switch.
To close the windows and the
moonroof f urther, turn and hold
the key again (within 10 seconds
of step 2).
Auto reverse does not work when
closing the windows and moonroof
with the key.
NOTE: If the windows and the
moonroof stop bef ore the desired
position, repeat steps 2 and 3.
Turn the ignition switch to the ON
(II) position bef ore operating the
moonroof switch on the ceiling
console.
To open the moonroof f ully, pull
back the moonroof switch f irmly.
The moonroof opens all the way. To
stop the moonroof f rom opening
f ully, push the switch brief ly.
4.
On EX-L and Touring models
Moonroof
Power Windows, Moonroof
166
MOONROOF SWITCH
——
y
y
(/y

y
2009 Pilot
