HONDA PILOT 2009 2.G Owners Manual

µµ
µ
µ
CONT INUED
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Press the XM button. Either XM1
or XM2 will show in the display.
Use the selector knob,
CATEGORY bar, or SCAN button
to tune to a desired channel.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep. In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected. Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, simply
press and release the proper preset
button to tune to it.
Thepresetsmaybelostif your
vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
3. 4.
5.
2. 1.
Playing the XMSatellite Radio (EX-L and U.S. EX models)
Preset XM Satellite Radio Display
Messages
‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
Features
237
——
y

y
(/yy
2009 Pilot

µ
µ µThe signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:
‘‘NO SIGNA L ’’
‘‘----’’
‘‘A NT ENNA ’’
Playing the XMSatellite Radio (EX-L and U.S. EX models)
238

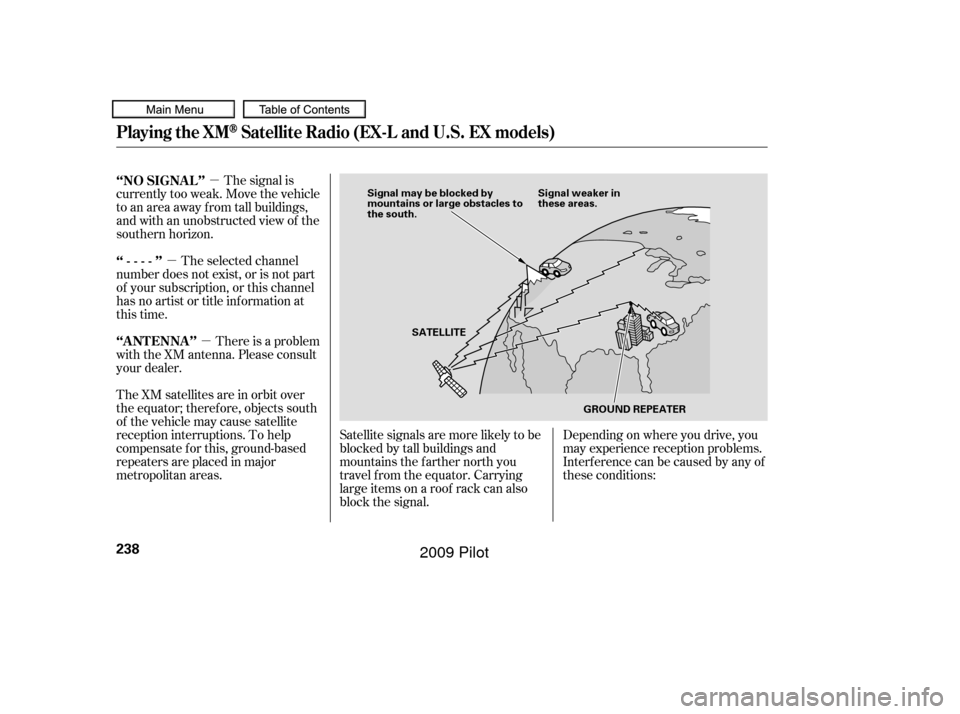

Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
——
y
y
(/yy
2009 Pilot

Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Large items carried on a roof rack.
There may be other geographic
situations that could affect XM
Satellite Radio reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
power/volume knob to turn on the
audio system, and press the
button. A variety of music
types and styles will play.
If you decide to purchase XM
Satellite Radio service, contact XM
Radio at , or at
1-800-852-9696. In Canada, contact , or call 1-877-438-
9677. You will need to give them
your radio I.D. number and your
credit card number. To get your
radio I.D. number, press the button, then turn the
selector knob until ‘‘CH 000’’ appears
in the display. Your I.D. will appear
in the display. After you’ve registered with XM
Radio, keep your audio system in the
XM Satellite Radio mode while you
wait f or activation. This should take
about 30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated,
‘‘CATEGORY’’ or ‘‘CH’’ will appear in
the display, and you’ll be able to
listen to XM Radio broadcasts. XM
Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment. www.xmradio.com
www.xmradio.ca
Receiving Satellite Radio Service
Playing the XMSatellite Radio (EX-L and U.S. EX models)
Features
239
——
y
y
(/yy
2009 Pilot

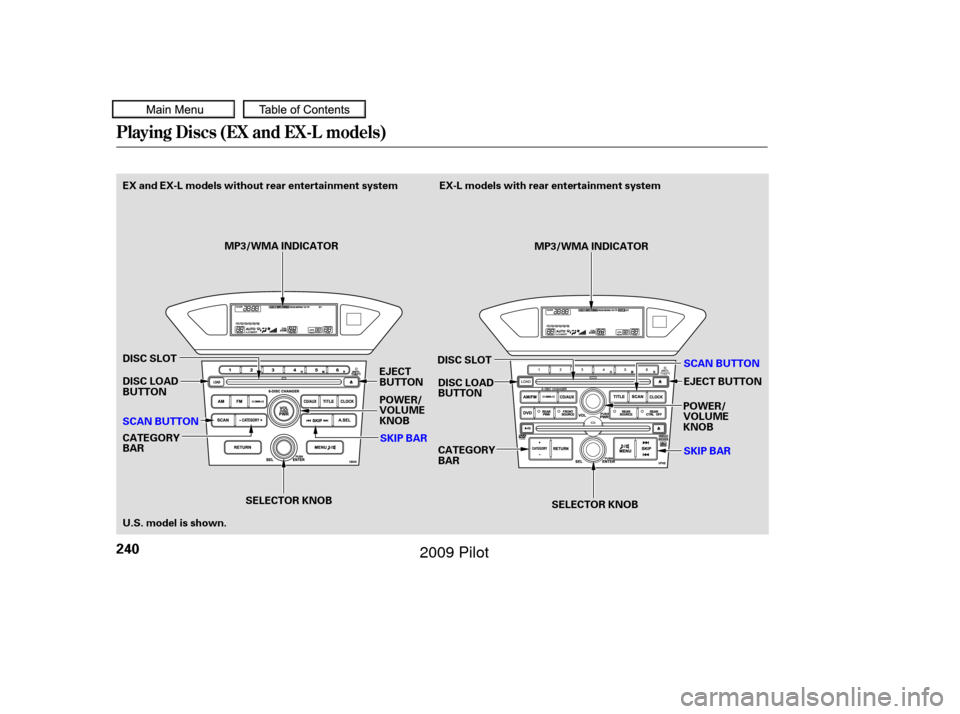

Playing Discs (EX and EX-L models)
240
DISC SLOT
DISC LOAD
BUTTON
SCAN BUTTON EX and EX-L models without rear entertainment systemMP3/WMA INDICATOR
DISC SLOTDISC LOAD
BUTTON
SKIP BAR
CATEGORY
BAR
U.S. model is shown. MP3/WMA INDICATOR
CATEGORY
BAR
SKIP BAR
EJECT
BUTTON
POWER/
VOLUME
KNOB
POWER/
VOLUME
KNOBEJECT BUTTON SCAN BUTTON
EX-L models with rear entertainment system
SELECTOR KNOB
SELECTOR KNOB
——
y


y
(/yy
2009 Pilot

µ
µ
µ
µ
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. The disc, f older and track
numbers are displayed. You can
select up to 255 f olders or tracks.
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD/AUX or CD button. You will see
‘‘CD’’ in the display. The disc and
track numbers, and the elapsed time
areshowninthedisplay.Youcan
also select the displayed inf ormation
with the TITLE button (see page
). The system will continuously
play a disc until you change modes. The specif ications f or
compatible MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1), 16/
22.05/24 kHz (MPEG2)
Bit rate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bit rate
and multi-session.
Maximum layers
(including ROOT): 8 layers
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
f ormat to listen by pressing and
holding CD/AUX or CD button until
you hear a beep.
Video CDs and DVD discs do not
work in this unit.
243
CONT INUED
To Play a Disc
Playing Discs (EX and EX-L models)
Features
241
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
——
y
y
(/yy
2009 Pilot

µ
µ
µ
µYour vehicle’s in-dash disc changer
holdsuptosixdiscs.
You cannot load and play 3-inch
(8-cm) discs in this unit.
When the disc load indicator turns
green and ‘‘LOAD’’ appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD’’ appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It then plays the disc just
loaded.
The specif ications f or compatible
WMA f iles are:
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers
NOTE:
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED, and then
skips to the next f ile. Sampling f requency:
22.05/32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
To load more than one disc, press
the LOAD button until you hear a
beep and see ‘‘LOAD’’ in the
display. To load only one disc,
press and release the LOAD
button.
The disc number f or an empty
position begins blinking.
Insert the disc into the disc slot
when the green disc load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
disc load indicator turns red and
blinks as the disc is loaded.
1.
2.
3.
4.
5.
L oading Discs
Playing Discs (EX and EX-L models)
242
——
y
y
(/yy
2009 Pilot

CONT INUED
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to about 16
characters of selected text data (the
f older name, f ile name, etc.). Each time you press the TITLE
button, the display shows you the
text data on a disc, if the disc was
recorded with text data.
When you press and release the
TITLE button while a disc without
text data is playing, you will see ‘‘NO
INFO’’ on the display.If the text data has more than 16
characters, you will see the first 16
characters and the indicator in
the display. Press and hold the
TITLE button until the next 16
characters are shown. You can see
up to about 32 characters of the text
data.
If youpressandholdtheTITLE
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected. When you turn on the audio system
next time, the system keeps your
selection with the TITLE button. When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you insert a disc, and the
system begins to play. When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
T ext Data Display Function
Playing Discs (EX and EX-L models)
Features
243
——
y

y
(/yy
2009 Pilot

µ
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ). Use the SKIP bar while a disc is
playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
In MP3 or WMA mode, use the
CATEGORY bar to select f olders in
the disc and use either side of the
SKIP bar to change f iles. Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track (f ile in
MP3 or WMA mode). Press and
releasethe sideof thebarto
skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or ) of the SKIP bar.
In MP3 or WMA mode, you can also
select a f older or track/f ile f rom the
list by using the selector knob. Push
the selector knob (ENTER) to
switch the display to the list
displayed with three segments, then
turn the knob to select a f older.
Press the selector knob (ENTER) to
change the display to the track/file
list, then turn the same knob to
select a track/f ile. Press the selector
knob (ENTER) to set your selection.
242T o Change or Select T racks/Files
Playing Discs (EX and EX-L models)
SK IP
244
——
y
y
(/yy
2009 Pilot

µ
µ
µ
µ
µ´ ´ µ
µ This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, select the disc
random play f rom the menu items.
You will see RANDOM in the display.
Selectthenormalplaymodeto
return to normal play.
This feature,
when activated, replays all the f iles
on the selected f older in the order
they are compressed in MP3 or
WMA. To activate folder repeat
mode, select the f older repeat mode
from the menu items. You will see F-
REPEAT in the display. The system
continuously replays the current
f older. Select the normal play mode
to turn it of f . Selecting a dif f erent
folder with the CATEGORY bar also
turns of f repeat f eature.
This feature
continuously replays the current disc.
To active disc repeat, select the disc
repeat mode f rom the menu items.
You will see D-REPEAT in the
display. Select the normal play mode
to turn it off.
To
select a dif f erent f older, press either
side ( or ) of the CATEGORY
bar. Press the side to skip to the
next f older, and press the side to
skip to the beginning of the previous
f older.
To
continuously replay a track (f ile in
MP3 or WMA mode), select the
track repeat mode f rom the menu
items. You will see REPEAT in the
display. Select the normal play mode
to turn it off.
Pressing either side of the SKIP bar
also turns of f the repeat f eature.
In MP3 or WMA mode In MP3 or WMA mode
Playing Discs (EX and EX-L models)
RANDOM (Random within a
disc)
FOLDER REPEAT
DISC REPEAT
FOLDER SELECTION
REPEAT (Track Repeat)
Features
245
——
y
y
(/yy
2009 Pilot

µ
µ µ
This f eature, when
activated, samples the first file in
each f older on the disc in the order
they are recorded. To activate the
f older scan f eature, press and
release the SCAN button repeatedly.
You will see F-SCAN in the display.
The system will then play the first
f ile in the main f olders f or about 10
seconds. If you do nothing, the
system will then play the f ollowing
f irst f iles f or 10 seconds each. When
it plays a file that you want to
continue listening to, press and hold
the SCAN button.
Pressing either side of the SKIP bar,
or selecting a dif f erent disc (using
the preset buttons) or f older (using
the CATEGORY bar) turns of f the
SCAN or F-SCAN f eature.
This
f eature, when activated, plays the
f iles within the current f older in
random order, rather than in the
order they are compressed in MP3
or WMA. To activate folder random
play, select the f older random mode
from the menu items. You will see
F-RANDOM in the display. The
system will then select and play f iles
randomly. This continues until you
deactivate f older random play by
selecting the normal play mode, or
you select a dif f erent f older with the
CATEGORY bar. The SCAN f unction
samples all the tracks on the disc in
the order they are recorded on the
disc (all f iles in the selected f older in
MP3 or WMA mode). To activate the
scan feature, press and release the
SCAN button. You will see SCAN in
the display. You will get a 10 second
sampling of each track/f ile in the
disc/f older. Press and hold the
SCAN button until you hear a beep
to get out of scan mode and play the
last track sampled.
In MP3 or WMA mode
In MP3 or WMA mode
F-SCAN
FOLDER RANDOM SCAN
Playing Discs (EX and EX-L models)
246
——
y
y
(/y
y
2009 Pilot
