Page 541 of 575

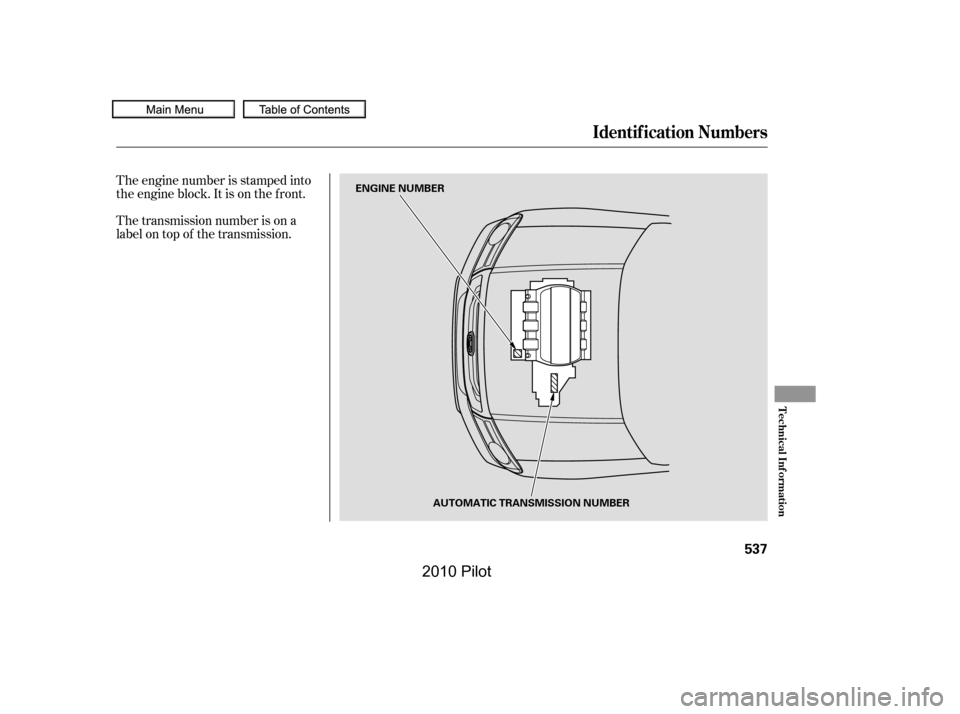

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
537
ENGINE NUMBER
AUTOMATIC TRANSMISSION NUMBER
— —
y
y
(/
y y
2010 Pilot
Page 542 of 575
µµ
Î
Î
ÎÎ
Î
ÎÎ
Î
ÎÎ
Î Î
Î
Î
Specif ications
538
Seating Capacities
Air Conditioning
Dimensions Capacities
Weights
1.98 US gal (7.5)2.48 US gal (9.4)
4.5 US qt (4.3)
4.2 US qt (4.0)
5.3 US qt (5.0)
190.9 in (4,850 mm) 78.5 in (1,995 mm)70.9 in (1,802 mm)21.00 US gal (79.5)
TotalFrontSecondThird 33 28
Refrigerant type Charge quantityLubricant type ND-OIL821.2 22.9 oz (600 650 g)HFC-134a (R-134a)
The GCWR must be reduced 2 percent for every 1,000 feet (305meters) of elevation.
See the tire information label atta-ched to the driver’s doorjamb.8,466 lbs (3,840 kg)
LengthWidthHeight
Wheelbase Track67.5 in (1,715 mm) 67.7 in (1,720 mm)109.3 in (2,775 mm)
Excluding the oil remaining in the engine0.196 US gal (0.74)
Including the coolant in the reserve tank and that remaining in the engineReserve tank capacity:
4.2 US qt (4.0)
Fuel tank
Engine coolantEngine oil
Automatic transmissionfluid
Rear differentialfluid (4WD)Transferassemblyfluid (4WD)Windshieldwasherreservoir6.9 US qt (6.5)
72.7 in (1,846 mm)
9,579 lbs (4,345 kg)
3.6 US qt (3.4)8.6 US qt (8.1)3.6 US qt (3.4)8.6 US qt (8.1)2.96 US qt (2.80)3.01 US qt (2.85)
0.45 US qt (0.43)0.48 US qt (0.45)
Gross vehicle weight rating
Gross combined weight rating (GCWR)
Approx.
FrontRear
1:
2:
U.S. vehicles Canadianvehicles
1 :2 : Except U.S. LX modelsU.S. LX models
2WD models
1:
2:3: 4WDmodels
2WD
4WD
Change TotalChangeIncludingfilterWithoutfilterTotalChangeTotalChangeTotalChangeTotal
Change Total
1
1 2
2 3
1
2
— —
y
y
(/
y y
2010 Pilot
Page 543 of 575
µ µµµ
Î
µµµµµ
µ µµµµµµµµµµµ
Î
Specif ications
Technical Inf ormation
539
Battery
Fuses
Engine
Alignment
Tires
Lights60 W12 V 12 V 55 W
12 V 8 W 12 V 5 W8W5W1.4 W3.8 W
12 V12 V12 V12 V
12 V 12 V28/8 W3CP
12 V 5 W12 V 18 W
55 W12 V
60 W12 V
Capacity12 V12 V60 AH/5 HR 72 AH/20 HR
12 V 21/5 W12 V 21/5 W5W12 V
Interior
Rear
Under-hood
Type
BorexStroke DisplacementCompression ratioSpark plugs
Water cooled 4-stroke SOHC i-VTECVCM 6-cylinder (V6) gasoline engine3.50 x 3.66 in (89.0 x 93.0 mm)212 cu-in (3,471 cm)10.5 : 1SXU22HCR11ILZKR7B11
Toe-in
Camber
Caster
0.00 in (0.0 mm) 0.08 in (2.0 mm)0°30’0°30’4°12’
Size
Pressure
P245/65R17 105TT165/80D17 104M32 psi (220 kPa , 2.2 kgf/cm)60 psi (420 kPa , 4.2 kgf/cm)
Seepage530orthefuselabel attached on the side panel.Seepage529orthefuselabelattached to the inside of the fusebox lid.Seepage528and529orthefusebox cover.
Headlights
Daytime running lights Front side marker lightsFront turn signal/parking lightsFront fog lightsRear turn signal/taillightsStop/taillightsRear side marker lightsBackup lightsLicense plate lightsIndividual map lights
Cargo area lights High mount brake lightsVanity mirror lightsDoor courtesy lights
Front/RearSpareFront/RearSpare
Front RearFrontRearFront
FrontRear
:
(H11)
(HB3)
(HB3)
DENSO: NGK:
(H11)HighLow
Except LX models
— —
y
y
(/
y y
2010 Pilot
Page 544 of 575
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
Unif orm T ire Quality Grading
T readwearT raction
T readwear 200
Traction AA
Temperature A
DOT Tire Quality Grading (U.S. Vehicles)
540
— —
y
y
(/
y y
2010 Pilot
Page 545 of 575
Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.
DOT Tire Quality Grading (U.S. Vehicles)
Temperature
Technical Inf ormation
541
— —
y
y
(/
y y
2010 Pilot
Page 546 of 575
µ
µ
µ
µ
µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Whenever tires are replaced, they
should be replaced with tires of the
same size. The f ollowing is an
exampleof tiresizewithan
explanation of what each component
means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark.
P
R
DOT
B97R
245
65
17
105
T
Tire Labeling
Tire Size
T ire Ident if icat ion Number (T IN)
542

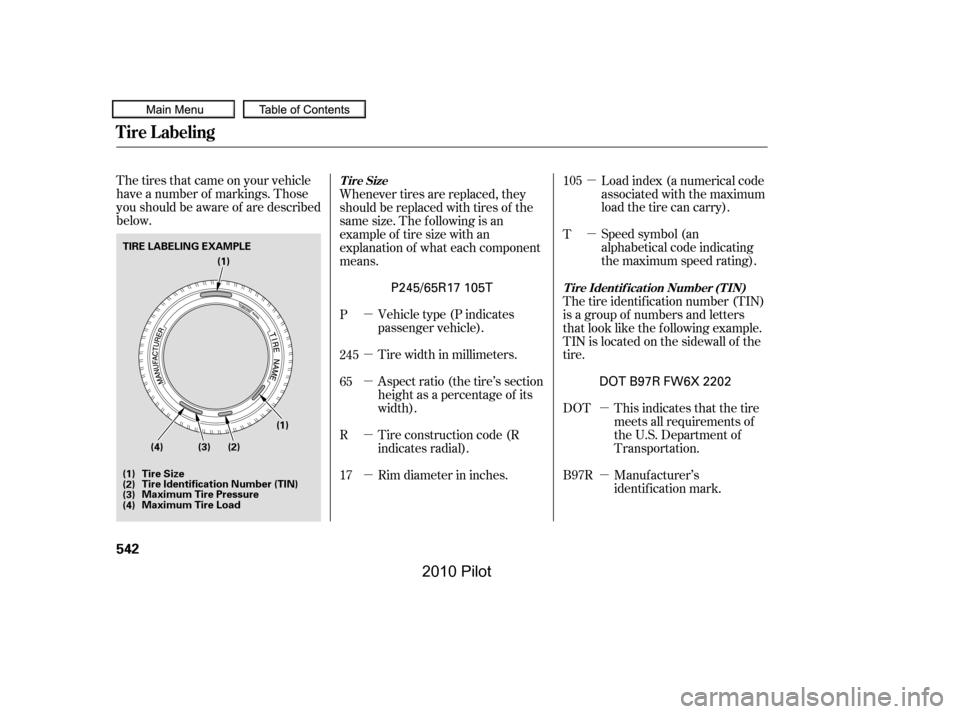

TIRE LABELING EXAMPLE
(1) (2)(3)(4)
Tire Size Tire Identification Number (TIN) Maximum Tire PressureMaximum Tire Load
(1)
(1)
(3) (2)(4)
DOT B97R FW6X 2202
P245/65R17 105T
— —
y
y
(/
y y
2010 Pilot
Page 547 of 575
µ
µ
µ
µ
µ
µ
µ
µTire type code.
Date of manufacture.
Week
Year
Cold Tire Pressure The tire air
pressure when the vehicle has been
parked f or at least three hours or
driven less than 1 mile (1.6 km).
Load Rating Means the maximum
load that a tire is rated to carry for a
given inf lation pressure.
Maximum Inf lation Pressure The
maximum tire air pressure that the
tire can hold.
Maximum Load Rating Means the
load rating for a tire at the maximum
permissible inf lation pressure f or
that tire.
Recommended Inf lation Pressure
The cold tire inf lation pressure
recommended by the manuf acturer.
Treadwear Indicators (TWI)
Means the projections within the
principal grooves designed to give a
visual indication of the degrees of
wear of the tread.
FW6X
2202
Tire Labeling
Glossary of T ire T erminology
Technical Inf ormation
543
— —
y
y
(/
y y
2010 Pilot
Page 548 of 575
µ
Each tire, including the spare (if
provided), should be checked
monthly when cold and inf lated to
the inf lation pressure recommended
by the vehicle manuf acturer on the
vehicle placard or tire inf lation
pressure label.
(If your vehicle has tires of a
dif f erent size than the size indicated
on the vehicle placard or tire
inf lation pressure label, you should
determine the proper tire inf lation
pressure f or those tires.)
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale
when one or more of your tires is
signif icantly under-inf lated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inf late them to
the proper pressure.
Driving on a signif icantly under
inf lated tire causes the tire to
overheat and can lead to tire failure.
Underinf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-inf lation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
544
— —
y
y
(/
y y
2010 Pilot
Page 549 of 575
µ
Always check the TPMS malf unction
telltale af ter replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to f unction
properly.
Your vehicle has also been equipped
with a TPMS malf unction indicator
to indicate when the system is not
operating properly. The TPMS
malf unction indicator is provided by
a separate telltale, which displays the
symbol ‘‘TPMS’’ when illuminated.
TPMS malf unctions may occur f or a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS f rom
f unctioning properly.
When the malf unction indicator is
illuminated,
the system may not be able to detect
or signal low tire pressure as
intended.
Except Touring models
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
Technical Inf ormation
545
— —
y
y
(/
y y
2010 Pilot
Page 550 of 575
µ
TPMS malf unctions may occur f or a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS f rom
f unctioning properly.
Always check the TPMS malf unction
telltale af ter replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to f unction
properly.
When the malf unction indicator is
illuminated, the system may not be
able to detect or signal low tire
pressure as intended.
Your vehicle has also been equipped
with a TPMS malf unction indicator
to indicate when the system is not
operating properly. The TPMS
malf unction indicator is combined
with the low tire pressure telltale.
When the system detects a
malf unction, the telltale will f lash f or
approximately one minute and then
remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long
as the malfunction exists.
On Touring models
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
546
— —
y
y
(/
y
y
2010 Pilot
