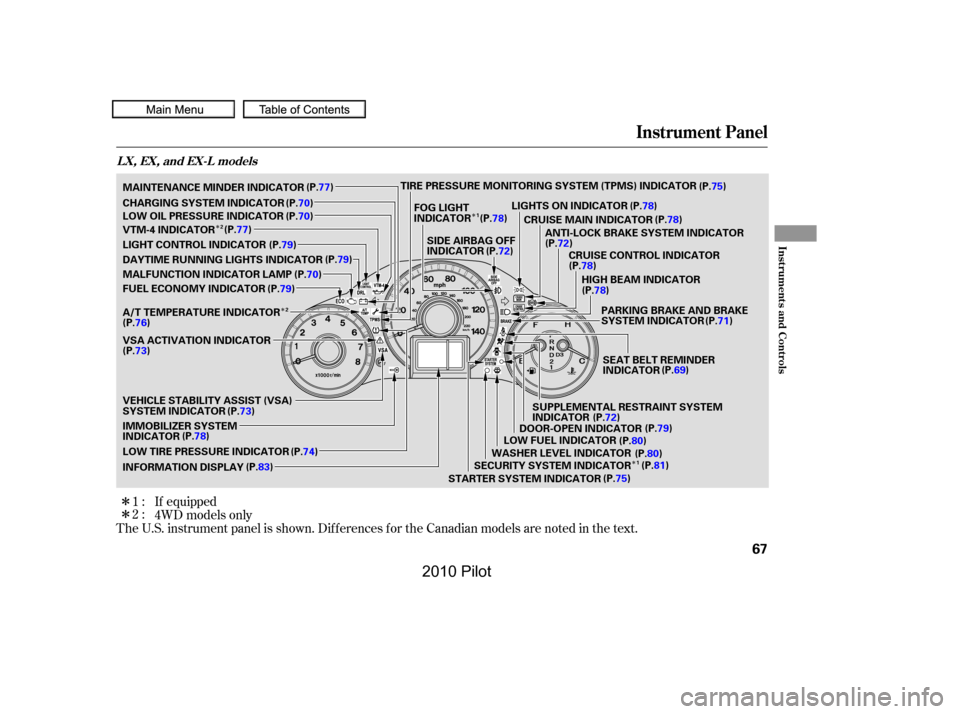

Instrument Panel
LX, EX, and EX-L models
Inst rument s and Cont rols
67
HIGH BEAM INDICATOR
CRUISE CONTROL INDICATOR
CRUISE MAIN INDICATOR
PARKING BRAKE AND BRAKESYSTEM INDICATOR
SEAT BELT REMINDERINDICATOR
TIRE PRESSURE MONITORING SYSTEM (TPMS) INDICATOR
SIDE AIRBAG OFFINDICATOR
FOG LIGHTINDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR
CHARGING SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR
VTM-4 INDICATOR
LIGHT CONTROL INDICATOR
DAYTIME RUNNING LIGHTS INDICATOR
MALFUNCTION INDICATOR LAMP
FUEL ECONOMY INDICATOR
IMMOBILIZER SYSTEM INDICATOR
LOW TIRE PRESSURE INDICATOR
INFORMATION DISPLAY
VSA ACTIVATION INDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM INDICATOR
A/T TEMPERATURE INDICATOR
STARTER SYSTEM INDICATOR
DOOR-OPEN INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
MAINTENANCE MINDER INDICATOR(P.77)
(P.70)(P.70)
(P.77)
(P.79)
(P.79)
(P.70)
(P.79)
(P.76)
(P.73)
(P.73)
(P.78)
(P.74)
(P.83)(P.75)SECURITY SYSTEM INDICATOR(P.81)WASHER LEVEL INDICATOR(P.80)
LOW FUEL INDICATOR(P.80)(P.79)(P.72)
(P.69)
(P.71)
(P.78)
(P.78)
(P.72)
(P.78)
LIGHTSONINDICATOR(P.78)
(P.75)
(P.78)
(P.72)
12
2
1
——
y
y
(/
yy
2010 Pilot

Î
Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
: 4WD models only

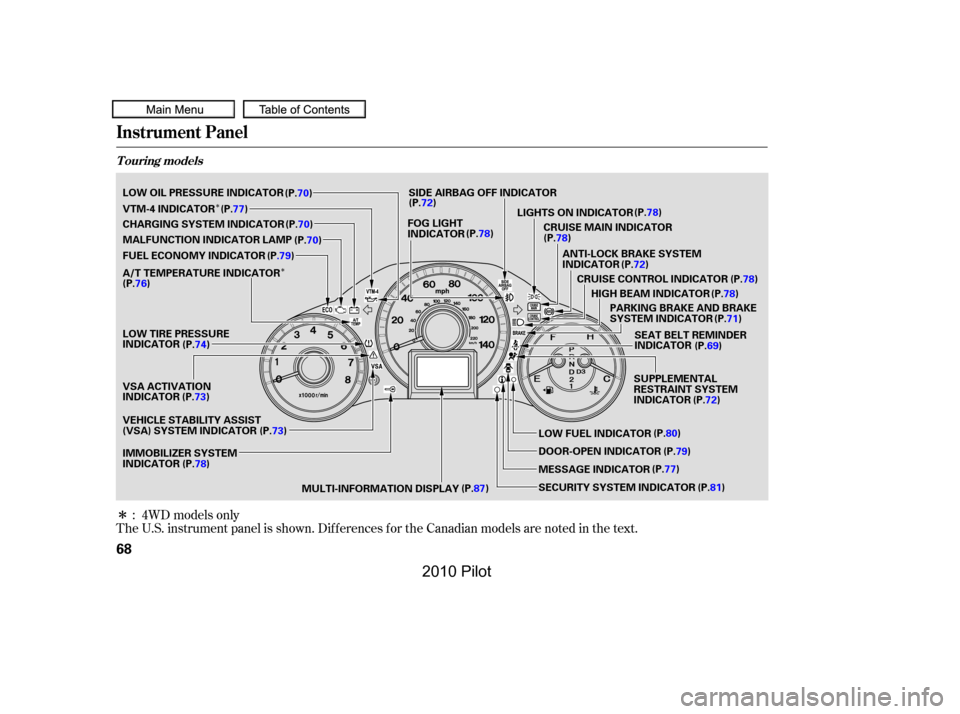

Instrument Panel
T ouring models
68
ANTI-LOCK BRAKE SYSTEM INDICATOR
HIGH BEAM INDICATOR
SIDE AIRBAG OFF INDICATOR
CRUISE MAIN INDICATORFOG LIGHTINDICATOR
PARKING BRAKE AND BRAKESYSTEM INDICATOR
SEAT BELT REMINDERINDICATOR
SUPPLEMENTALRESTRAINT SYSTEMINDICATOR
DOOR-OPEN INDICATOR
MESSAGE INDICATOR
SECURITY SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR
VTM-4 INDICATOR
CHARGING SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
FUEL ECONOMY INDICATOR
IMMOBILIZER SYSTEM INDICATOR
MULTI-INFORMATION DISPLAY
LOW FUEL INDICATOR
LIGHTS ON INDICATOR
CRUISE CONTROL INDICATOR
VSA ACTIVATIONINDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM INDICATOR
LOW TIRE PRESSURE INDICATOR
A/T TEMPERATURE INDICATOR
(P.70)
(P.77)
(P.70)
(P.70)
(P.79)
(P.76)
(P.74)
(P.73)
(P.73)
(P.78)
(P.87)(P.81)
(P.77)
(P.79)
(P.80)
(P.72)
(P.69)
(P.71)
(P.78)
(P.78)
(P.72)
(P.78)
(P.78)
(P.78)
(P.72)
——
y
y
(/
yy
2010 Pilot

The instrument panel has many
indicators to give you important
inf ormation about your vehicle. This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
You will also see a ‘‘FASTEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
inf ormation display (see page ).
For more inf ormation, see page .
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds,
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
22
95
22
On Touring models
Seat Belt Reminder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
69
——
y
y
(/
yy
2010 Pilot

The engine can be severely
damaged if this indicator f lashes
or stays on when the engine is
running. For more inf ormation,
see page .
You will also see a ‘‘CHECK
ENGINE OIL LEVEL’’ message
on the multi-information display
(see page ).
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
You will also see a ‘‘CHECK
CHARGING SYSTEM’’ message on
the multi-information display (see
page ).
For more inf ormation, see page
.
You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display (see
page ). For more inf ormation, see
page .
521
95
521
95
522
95
522
On Touring models
On Touring models
On Touring models
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Instrument Panel Indicators
70
——
y
y
(/
yy
2010 Pilot

This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not f ully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
You will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ).
If it remains on af ter you have
fully released the parking brake
while the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
You will also see a ‘‘LOW BRAKE
FLUID’’ or ‘‘CHECK BRAKE
SYSTEM’’ message on the multi-
inf ormation display (see page ).
1.
2.
95
523
95
On Touring models
On Touring models
Instrument Panel Indicators
Parking Brake
and Brake
System
Indicator (Red)
Inst rument s and Cont rols
71
U.S. Canada
——
y

y
(/
yy
2010 Pilot

This indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates a potential problem with
your f ront airbags. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
side curtain airbags, automatic seat
belt tensioners, driver’s seat position
sensor, or the f ront passenger’s
weight sensors. For more
inf ormation, see page .
You will also see a ‘‘CHECK
AIRBAG SYSTEM’’ message on the
multi-inf ormation display (see page
).
This indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
This indicator normally comes on
f or a f ew seconds when you turn
the ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START
(III) position. If it comes on at any
other time, there is a problem with
theABS.If thishappens,have
your vehicle checked at a dealer.
With this indicator on, your
vehicle still has normal braking
ability but no anti-lock f unction.
For more inf ormation, see page
.
You will also see a ‘‘CHECK ABS
SYSTEM’’ message on the multi-
inf ormation display (see page
).
You will also see a ‘‘PASSENGER
SIDE AIRBAG OFF’’ message on the
multi-inf ormation display (see page
).35
95
35
95429
95
On Touring modelsOn Touring models
On Touring models
Supplemental Restraint
System Indicator
Anti-lock Brake System
(A BS) IndicatorSide Airbag Of f
Indicator
Instrument Panel Indicators
72
U.S. Canada
——
y
y
(/
yy
2010 Pilot

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. For more inf ormation, see
page .
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page
).
This indicator has three f unctions:
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA or Hill Start
Assist systems. Take your vehicle to
a dealer to have it checked. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page for more information
on the VSA system.
It comes on along with the VSA
system indicator if there is a
problem with the VSA or Hill Start
Assist systems.
You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display (see page ).
1.
2.
3.
431
95
431
431
95
484
On Touring models
On Touring models
Instrument Panel Indicators
Vehicle Stability Assist
(VSA ) System Indicator
VSA Activation Indicator Turn Signal and
Hazard Warning
Indicators
Inst rument s and Cont rols
73
——
y
y
(/
yy
2010 Pilot

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .
This indicator has two f unctions:
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
You will also see a ‘‘CHECK TIRE
PRESSURE’’ message on the
multi-inf ormation display (see
page ).
Check the tire pressure monitor
on the multi-information display
and determine the cause (see page
).
If this happens, pull to the side
of the road when it is saf e,
check which tire has lost
pressure on the multi-
inf ormation display, and
determine the cause. If it is
because of a flat tire, have the
flat tire repaired as soon as
possible. If two or more tires are
underinf lated, call a prof essional
towing service. For more
inf ormation, see page .
1.
508
420
96
424
531
531
On Touring modelsExcept Touring models
Instrument Panel Indicators
Low Tire Pressure/
TPMS Indicator
Low Tire Pressure
Indicator
74
——yy
(/
yy
2010 Pilot

This indicator comes on when there
is a problem with the starter system.
For more inf ormation, see page .
If you see a ‘‘CHECK STARTER
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the starter system (see
page ).
If this indicator begins to f lash,
there is a problem with the tire
pressure monitoring system
(TPMS). You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display. The indicator continues to
f lash f or a while (approximately 1
minute), then stays on. If this
happens, have your dealer check
the system as soon as possible.
For more inf ormation, see page
.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator and the tire
pressure monitor will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
2.
426
411
96
On Touring models
Except Touring models
Except Touring models
Instrument Panel Indicators
Starter System
Indicator
Tire Pressure Monitoring
System (T PMS) Indicator
Inst rument s and Cont rols
75
U.S. Canada
——
y
y
(/
yy
2010 Pilot

This indicator monitors the
temperature of the automatic
transmission f luid. It should come on
f or a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it means the transmission f luid
temperature is too high. Pull to the
side of the road when it is saf e, shif t
to Park, and let the engine idle until
the indicator goes out.
You will also see an ‘‘A/T TEMP
HIGH’’ message on the multi-
inf ormation display (see page ).96
4WD models only
On 4WD Touring models
Instrument Panel Indicators
A/T Temperature
Indicator
76
Continuing to drive with the A/T
temperature indicator on may cause
serious damage to the transmission.
——
y
y
(/
y
y
2010 Pilot
