This indicator comes on when there
is a system message on the multi-
inf ormation display. Press the INFO
button on the steering wheel (see
page ) to see the message (see
page ).
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See page
f or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem in the 4WD
system. Take the vehicle to your
dealer to have it checked.
If the indicator blinks while driving,
the VTM-4 fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the indicator
goes out.
455
87
94
Except Touring modelsOn Touring models4WD models only
Message IndicatorMaintenance Minder
Indicator
VTM-4 Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
77
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the system.
——
y
y
(/
yy
2010 Pilot

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page .
135
128
126
350
350
Except LX models
Cruise Control Indicator
Cruise Main Indicator
High Beam Indicator
Fog L ight Indicator
Lights On IndicatorImmobilizer System
Indicator
Instrument Panel Indicators
78
——
y

y
(/
yy
2010 Pilot

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
automatic lighting control system.
Have your vehicle checked by your
dealer as soon as possible.
If you see a ‘‘CHECK LIGHT
CONTROL SYSTEM’’ message on
the multi-information display, there
is a problem with the automatic
headlight control system. Take your
vehicle to a dealer to have it checked.
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the high beam headlight’s circuit.
Have your vehicle checked by your
dealer.
If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
It goes of f when your vehicle uses
extra f uel.
This indicator comes on if any door
is not closed tightly.
On Touring models
On Touring models
Except Touring modelsExcept Touring models
Light Control IndicatorDaytime Running Lights
Indicator
Door-open Indicator
Fuel Economy Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
79
——
y
y
(/
yy
2010 Pilot

This indicator comes on as a
reminder that you must ref uel soon.
You will see a ‘‘LOW WASHER
FLUID’’ message on the multi-
inf ormation display (see page ).
You will also see a ‘‘LOW FUEL’’
message on the multi-information
display.This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
come on (see page ).
When the indicator comes on, there
are about 2.9 U.S. gal (10.8)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
477
96
Except Touring models
On Touring models
On Touring modelsLow Fuel IndicatorWasher Level Indicator
Instrument Panel Indicators
80
LOW FUEL INDICATOR
——
y

y
(/
yy
2010 Pilot

This indicator comes on when the
security system is set. See page
f or more inf ormation on the
security system.
Your vehicle has a door, glass hatch,
andtailgateopenindicatoronthe
inf ormation display. If any door(s),
the glass hatch, or the tailgate is not
closed tightly, the appropriate light/
lights will come on to remind you to
close the tailgate, the glass hatch or
the door(s).
The door, glass hatch, and tailgate
open indicator appears on the multi-
inf ormation display (see page ).
This indicator is displayed as the
system message on the multi-
inf ormation display (see page ).
The appropriate tire indicator will
come on along with the low tire
pressure indicator if a tire is
signif icantly underinf lated or has
suddenly lost pressure. See
for what to
do if this indicator comes on.
349
13
424
Except LX models
Except Touring models
On Touring models
On Touring models
Except Touring models
Security System IndicatorDoor, Glass Hatch, and Tailgate
Open Indicator
T ire Pressure Monitor
Low
Tire Pressure Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
81
SECURITY SYSTEM INDICATOR
——
y

y
(/
yy
2010 Pilot

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .
This shows how much f uel you
have. It may show slightly more
or less than the actual amount.
519
Gauges
Temperature Gauge
Fuel Gauge
82

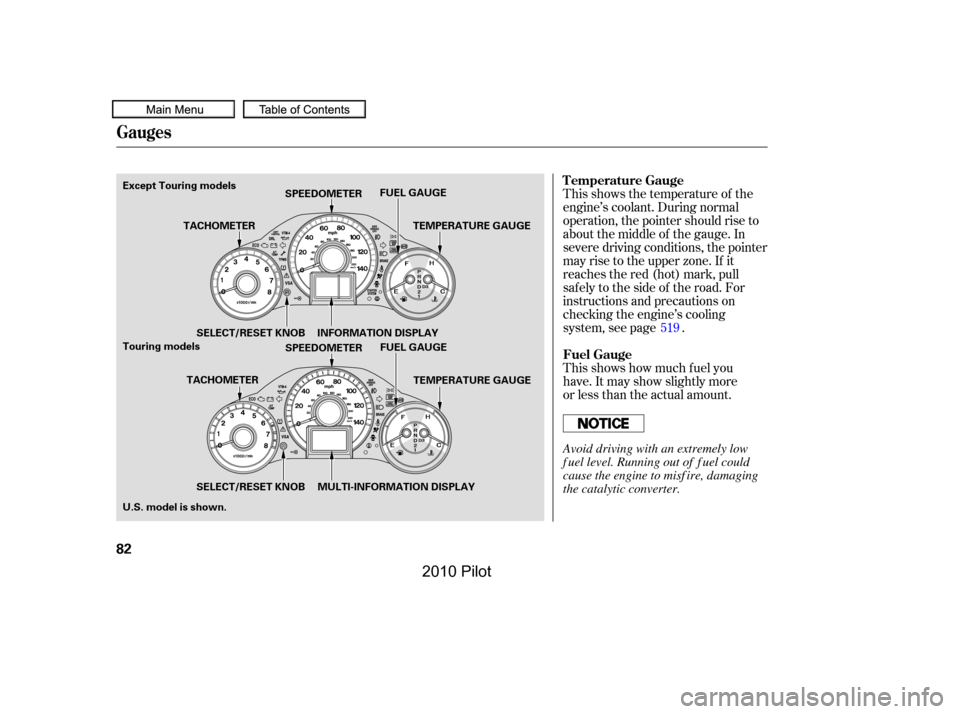

U.S. model is shown.
SPEEDOMETERFUEL GAUGE
TEMPERATURE GAUGETACHOMETER
INFORMATION DISPLAYSELECT/RESET KNOB
SPEEDOMETERFUEL GAUGE
TEMPERATURE GAUGE
SELECT/RESET KNOB
Touring models
Except Touring models
TACHOMETER
MULTI-INFORMATION DISPLAY
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——
y

y
(/
yy
2010 Pilot

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.
To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
For inf ormation about the multi-
inf ormation display, see page .
The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
instant f uel economy, average f uel
economy, range (estimated distance),
and maintenance item code(s).
87
On Touring models
Except Touring models
Odometer
Inf ormation Display
Trip Meter
Gauges
Inst rument s and Cont rols
83

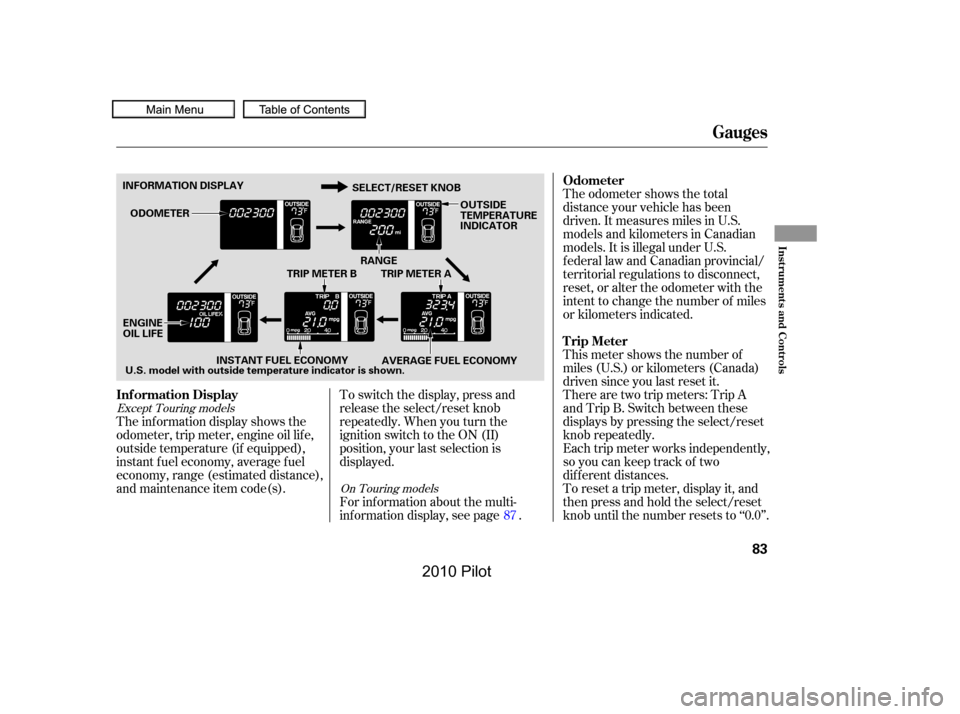

INFORMATION DISPLAY
TRIP METER A
OUTSIDE TEMPERATUREINDICATOR
U.S. model with outside temperature indicator is shown.
ODOMETER
RANGE
ENGINEOIL LIFE
TRIP METER B
INSTANT FUEL ECONOMY
SELECT/RESET KNOB
AVERAGE FUEL ECONOMY
——
y
y
(/
yy
2010 Pilot

When either of the trip meters (trip
A or B) is displayed, your vehicle’s
average f uel economy since you last
resetthattripmetercanbeshown
on the inf ormation display (mpg on
U.S. models and l/100 km on
Canadian models). This number is
updated once per 10 seconds. To see
the average f uel economy, press and
release the select/reset knob
repeatedly.
When you reset a trip meter, the
average f uel economy f or that trip
meter also resets.
This display shows the estimated
distance you can travel on the fuel
remaining in the tank.
This distance is estimated f rom the
f uel economy you have achieved
over the last f ew miles (kilometers),
so it will vary with changes in speed,
traffic condition, etc.
This display shows the instant f uel
economy you are getting.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
Range (Estimated Distance)Instant Fuel EconomyAverage Fuel Economy
Gauges
84
——
y
y
(/
yy
2010 Pilot

¶¶
µµ
µµµ
µµµ
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
To adjust the outside temperature
indicator, press and hold the select/
reset knob f or 10 seconds. The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4,
3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the select/
reset knob. You should see the new
outside temperature displayed.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models).
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
Except LX models
Gauges
Outside Temperature Indicator
Inst rument s and Cont rols
85
NOTE:
——
y

y
(/
yy
2010 Pilot

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the select/reset knob.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message of f .
If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
455
522
Gauges
Maintenance MinderCheck Fuel Cap Message
86
——
y
y
(/
y
y
2010 Pilot
