Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.As you read this manual, you will
f ind inf ormation that is preceded by
a
symbol. This
inf ormation is intended to help you
avoid damage to your vehicle, other
property, or the environment.
One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Af terwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Maintaining your vehicle according to the maintenance inf ormation shown in
the instrument panel helps to keep your driving trouble-f ree while it
preserves your investment. When your vehicle needs maintenance, keep in
mind that your dealer’s staff is specially trained in servicing the many
systems unique to your vehicle. Your dealer is dedicated to your satisf action
and will be pleased to answer any questions and concerns. Congratulations! Your selection of a 2011 Honda Pilot was a wise investment.
It will give you years of driving pleasure.
Introduction
i
10/01/26 18:22:32 31SZA620_002
2011 Pilot
Page 2 of 574
Calif ornia Proposition 65 WarningThis product contains or emits chemicals known to the State of California to cause cancer and birth
def ects or other reproductive harm.
Event Data Recorders
This data belongs to the vehicle owner and may not be accessed by anyone else
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record inf ormation about powertrain perf ormance. The data
can be used to verif y emissions law requirements and/or help technicians diagnose and solve service problems. It may
also be combined with data f rom other sources f or research purposes, but it remains conf idential.
Introduction
WARNING:
This vehicle is equipped with one or more devices commonly ref erred to as event data recorders. These
devices record f ront seat belt use, f ront passenger seat occupancy, airbag deployment data, and the f ailure
of any airbag system component.
ii
10/01/26 18:22:36 31SZA620_003
2011 Pilot
Page 3 of 574
µ
µ
µ
µ
µ
µ
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make inf ormed
decisions about saf ety, we have
provided operating procedures and
other inf ormation on labels and in
this manual. This inf ormation alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement. You will f ind this important saf ety inf ormation in a variety of f orms,
including:
preceded by a saf ety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Saf ety Reminders or Important
Safety Precautions. such as Driver and Passenger Safety.
how to use this vehicle correctly and safely.
This entire book is f illed with important saf ety inf ormation please read it
caref ully. on the vehicle.
Saf ety Messages
Saf ety Headings
Saf ety Section
Instructions Saf ety L abels
AFewWordsAboutSafety
DANGER WARNING CAUTION
iii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
10/01/26 18:22:49 31SZA620_004
2011 Pilot
Page 4 of 574
These advantages come at some cost. Because your vehicle is taller and rides higher of f the ground, it has a high
center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a
signif icantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is signif icantly
more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear
seat belts.
For inf ormation on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page of this manual and thesection on page . Failure to operate your vehicle correctly might result in loss of
control, a crash, or rollover. Your Pilot has higher ground clearance than a passenger vehicle designed f or use only on pavement. Higher ground
clearance has many advantages f or of f -highway driving. It allows you to travel over bumps, obstacles, and rough
terrain. It also provides good visibility so you can anticipate problems earlier.
449410
Of f -Highway Driving Guidelines
Important Handling Inf ormation
iv
10/01/26 18:22:55 31SZA620_005
2011 Pilot
Page 5 of 574
(f luid capacities and tire pressures)
(main controls)
(seat belts, SRS, and child protection)
(indicators, gauges, multi-inf ormation display, dashboard, and steering column)
(climate control, audio, steering wheel, rear entertainment, security, cruise control, and HomeLink
)
(fuel, vehicle break-in, and cargo loading)
(engine and transmission operation)
(f lat tire, jump starting, overheating, and f uses)
(vehicle specif ications, tires, and emissions controls)
(warranty and contact inf ormation)
(how to order)
(inf ormation, f luid checking, minor services, and vehicle storage)
Contents
........................................................................\
........................................................................
Index .I
Service Inf ormation Summary ........................................................................\
.......................
Your Vehicle at a Glance .3
............................................................
Driver and Passenger Saf ety .5
.......
Instruments and Controls .65
..
Features .191
.......................................................................
Bef ore Driving .393
........................................................................\
.................
Driving .409
........................................
T aking Care of the Unexpected .507
..............................................
T echnical Inf ormation .535
..................
Warranty and Customer Relations (U.S. and Canada only) .553
........................................................................\
..........
A uthorized Manuals (U.S. only) .557
...........................................
Maintenance .453
1
10/01/26 18:23:07 31SZA620_006
Owner's Identification Form
2011 Pilot
00X31-SZA-6200
\251 American Honda Motor Co., Inc. - All Rights Reserved
2011 Pilot Online Reference Owner's Manual
Page 6 of 574
A convenient ref erence to the
sections in this manual.
A quick ref erence to the main
controls in your vehicle.
Explains the purpose of each
instrument panel indicator and gauge,
and how to use the controls on the
dashboard and steering column.What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
The proper way to start the engine,
shif t the transmission, and park; plus
what you need to know if you’re
planning to tow a trailer.
ID numbers, dimensions, capacities,
and technical information.
Important inf ormation about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints.
How to operate the climate control
system, the audio system, rear
entertainment system, and other
convenience f eatures. The maintenance information shows
you when you need to take your
vehicle to the dealer for maintenance
service. There is also a list of things
to check and instructions on how to
check them.
This section covers several problems
motorists sometimes experience,
and details how to handle them.A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual f or detailed
inf ormation.
A summary of the inf ormation you
need when you pull up to the f uel
pump. How to order manuals and other
technical literature.
Contents
Your Vehicle at a Glance
Driver and Passenger Saf ety
Instruments and Controls
Features Bef ore Driving
Driving
Maintenance
T echnical Inf ormation
T aking Care of the Unexpected Warranty and Customer
Relations
(U.S. and Canada only)
Service Inf ormation Summary Index Authorized Manuals
(U.S. only)
Overview of Contents
2
10/01/26 18:23:29 31SZA620_007
2011 Pilot
Page 7 of 574
Î
Î
Î
Î
Î
Î
Î Î
CONT INUED: If equipped
Your Vehicle at a Glance
Your Vehicle at a Glance
3

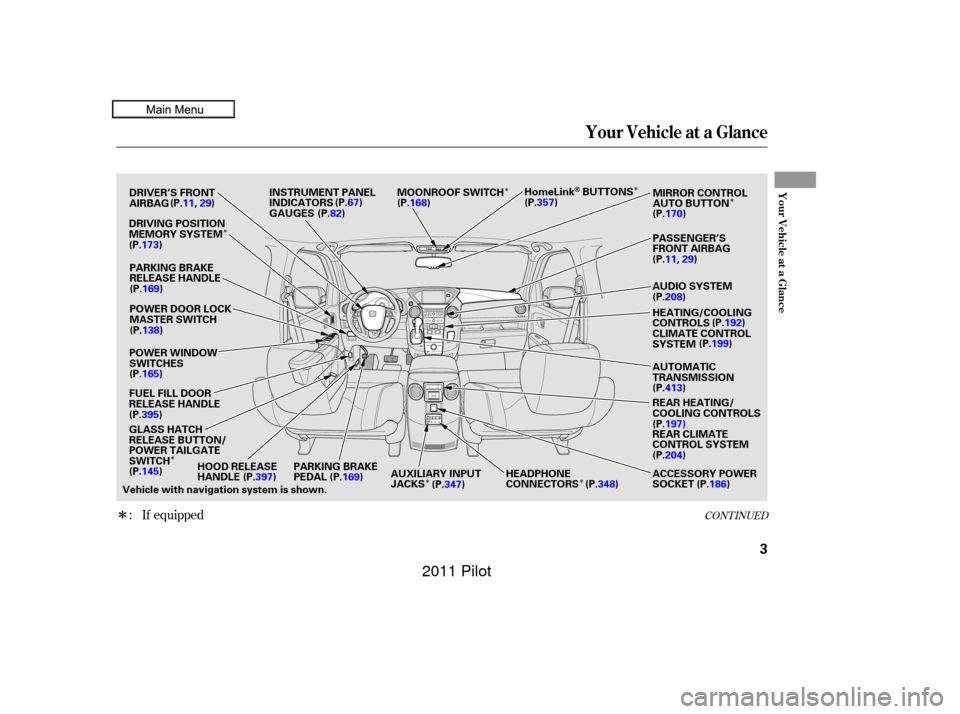

GAUGES INSTRUMENT PANEL
INDICATORS
AUTOMATIC
TRANSMISSION
POWER WINDOW
SWITCHES MIRROR CONTROL
AUTO BUTTON
PARKING BRAKE
PEDAL PASSENGER’S
FRONT AIRBAG
DRIVER’S FRONT
AIRBAG
POWER DOOR LOCK
MASTER SWITCH
HOOD RELEASE
HANDLE HEADPHONE
CONNECTORSAUDIO SYSTEM
DRIVING POSITION
MEMORY SYSTEM
PARKING BRAKE
RELEASE HANDLE MOONROOF SWITCH
HomeLink
BUTTONS
ACCESSORY POWER
SOCKET
Vehicle with navigation system is shown. FUEL FILL DOOR
RELEASE HANDLE
REAR CLIMATE
CONTROL SYSTEM REAR HEATING/
COOLING CONTROLS HEATING/COOLING
CONTROLS
CLIMATE CONTROL
SYSTEM
GLASS HATCH
RELEASE BUTTON/
POWER TAILGATE
SWITCH (P.11,
29)
(P.173)
(P.169)
(P.138)
(P.165)
(P.395)
(P.145) (P.397)(P.169)AUXILIARY INPUT
JACKS
(P.347) (P.348)(P.
186 )
(P.204) (P.197) (P.413) (P.199)
(P.192)
(P.208) (P.11,
29)
(P.170)
(P.357)
(P.168)
(P.
67)
(P. 82)
10/01/26 18:23:38 31SZA620_008
2011 Pilot
Page 8 of 574
Î
Î
Î
Î Î
Î
Î Î
Î
Î Î
Î
Î
Î
Î
Î
To use the horn, press the center pad of the steering wheel.
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
If equipped
1:
2:
3:
4 : 4WD models only
Your Vehicle at a Glance
4
HORN HAZARD WARNING
BUTTON
Vehicle with navigation system is shown. GLASS HATCH RELEASE BUTTON/
POWER TAILGATE SWITCH FUEL FILL DOOR RELEASE
HANDLE POWER WINDOW
SWITCHES POWER DOOR LOCK MASTER
SWITCH MIRROR CONTROLS DRIVING POSITION MEMORY
SYSTEM VEHICLE STABILITY ASSIST
SYSTEM OFF SWITCH
PARKING SENSOR SYSTEM
SWITCH HEADLIGHT/TURN SIGNAL/
FRONT FOG LIGHTS
STEERING WHEEL AUDIO CONTROLS
(P.361)
PARKING BRAKE RELEASE
HANDLE VOICE CONTROL
BUTTONSSTEERING WHEEL
ADJUSTMENTPASSENGER AIRBAG
OFF INDICATOR
VTM-4 LOCK
BUTTON ACCESSORY POWER
SOCKET
SEAT HEATER
SWITCHES
CRUISE CONTROL
BUTTONS
MULTI-INFORMATION
BUTTONS
WINDSHIELD WIPERS/
WASHERS
REAR WINDOW
DEFOGGER/HEATED
MIRROR BUTTON
(P.126)
(P.432)
(P.386) (P.173) (P.171)
(P.138)
(P.165)
(P.395)
(P.145) (P.169) (P.133)(P.87)(P.
350 )
(P.
164 )
(P.
186 )
(P.130,
172)(P.
418 )
(P.124) (P.
36)
(P.130)
(P.311)
BLUETOOTH
HANDSFREELINK SYSTEM
VOICE CONTROL BUTTONS1
3
3
3 3
3
2 4
3
3 3
3
10/01/26 18:23:48 31SZA620_009
2011 Pilot
Page 9 of 574
µ
This section gives you important
inf ormation about how to protect
yourself and your passengers. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
inf ants and children in your vehicle.
.........
Important Safety Precautions . 6
.......
Your Vehicle’s Saf ety Features . 8
.......................................
Seat Belts .9
.........................................
Airbags .11
.........
Protecting Adults and Teens . 13
.....
1. Close and Lock the Doors . 13
...........
2. Adjust the Front Seats . 15
............
3. Adjust the Seat-Backs . 16
...
4. Adjust the Head Restraints . 16
5. Fasten and Position the .............................
Seat Belts .17
6. Maintain a Proper Sitting ................................
Position .19
.....
Advice f or Pregnant Women . 20
...
Additional Safety Precautions . 21Additional Inf ormation About
.......................
Your Seat Belts .22
..
Seat Belt System Components . 22
......................
Lap/Shoulder Belt .23
Automatic Seat Belt ...............................
Tensioners .24
...............
Seat Belt Maintenance . 25
Additional Inf ormation About ...........................
Your Airbags .26
......
Airbag System Components . 26
How Your Front Airbags .........................................
Work .29
...
How Your Side Airbags Work . 32
How Your Side Curtain Airbags .........................................
Work .34
..
How the SRS Indicator Works . 35
How the Side Airbag Of f ......................
Indicator Works .35
How the Passenger Airbag ...............
Of f Indicator Works . 36
.............................
Airbag Service .37
...
Additional Safety Precautions . 37
Protecting Children General ................................
Guidelines .39
All Children Must Be ...............................
Restrained .39 All Children Should Sit in a
.................................
Back Seat .40
The Passenger’s Front Airbag .........
Can Pose Serious Risks . 40
If You Must Drive with Several ...................................
Children .42
If a Child Requires Close ..................................
Attention .42
...
Additional Safety Precautions . 43
Protecting Inf ants and .........................
Small Children .44
.......................
Protecting Inf ants .44
.........
Protecting Small Children . 45
.....................
Selecting a Child Seat .47
....................
Installing a Child Seat .48
...............................
With LATCH .49
.........
With a Lap/Shoulder Belt . 53
..............................
With a Tether .54
...........
Protecting Larger Children . 57
...............
Checking Seat Belt Fit . 57
..................
Using a Booster Seat . 58
When Can a Larger Child Sit in .........................................
Front .59
...
Additional Safety Precautions . 60
.............
Carbon Monoxide Hazard . 61
...................................
Saf ety Labels .62
Driver and Passenger Saf ety
Driver and Passenger Saf ety
5
10/01/26 18:23:53 31SZA620_010
2011 Pilot
Page 10 of 574
µ
You’ll f ind many saf ety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Inf ants, young children, and short
adults are at the greatest risk. Be
sure to f ollow all instructions and
warnings in this manual.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your f riends
drink and drive, either.
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat
(see pages ).
17
39 60
Important Saf ety Precautions
Be Aware of Airbag Hazards
Don’t Drink and Drive
Always Wear Your Seat Belt
Restrain All Children
6
10/01/26 18:24:02 31SZA620_011
2011 Pilot
