This f unction searches up and down
a f requency f or the strongest signal
f rom the f requencies that carry the
selected RDS category inf ormation.
This can help you to find a station in
your favorite category. To activate it,
press either side of the FOLDER bar
to select an RDS category, then
press and release either side
( or ) of the SKIP bar. You
will see the selected RDS category
name blinking while searching it.
When the system finds a station, the
selected RDS category name will be
displayed again for about 10 seconds.The scan f unction samples all
stations with strong signals on the
selected RDS category. To activate it,
press either side of the FOLDER bar
or the CATEGORY bar to select an
RDS category, then press and
release the SCAN button. You will
see SCAN in the display. The system
will scan f or a station with a strong
signal in the selected RDS category.
You will also see the selected RDS
category name blinking while
searching it. When it f inds a strong
signal, it will stop and play that
station f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘No selected category f ound

µµ
µ
µ
µ
µ
Press the SETUP button to display
the Setup menu. Turn the selector
knob to select Sound Settings, then
press the selector knob. Turn the
selector knob to select an
appropriate setting: Bass, Treble,
Fader, Balance, Subwoof er, and SVC
(speed-sensitive volume
compensation). Press the selector
knob to enter the setting, then turn
the selector knob to adjust the setting. Press the selector knob
again to set your setting.
Adjusts the volume level
basedonthevehiclespeed. Adjusts
the strength of sound from the
subwoof er speaker. Adjusts the side-to-
side strength of the sound. Adjusts the front-to-back
strength of the sound. Adjusts the treble.
Adjusts the bass.
Press the SETUP button to display
the sound settings. Turn the selector
knob to select an appropriate setting:
BASS, TREBLE, FADER,
BALANCE, SUBW (subwoof er), and
SVC (speed-sensitive volume
compensation). Press the selector
knob to enter the setting, then turn
the selector knob to adjust the
setting.
CONT INUED
On EX-L and Canadian EX models
On U.S. EX and Canadian LX models
Adjusting the Sound
SVC
SUBW (SUBWOOFER)
BAL ANCE
FADER
TREBLE
BASS
Playing the FM/AM Radio (EX, EX-L , and Canadian L X models without navigation system)
Features
235
Main MenuTable of Contents

Eachmodeisshowninthedisplayas
it changes. Turn the selector knob to
adjust the setting to your liking. The SVC mode controls the volumebased on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the selector knob to
adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high. You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
Wait a f ew seconds and the display
returns to normal or press the
RETURN or MENU button. 130Speed-sensit ive Volume
Compensat ion (SVC)A udio System L ighting
Playing the FM/AM Radio (EX, EX-L , and Canadian L X models without navigation system)
236
Main MenuTable of Contents

CONT INUED

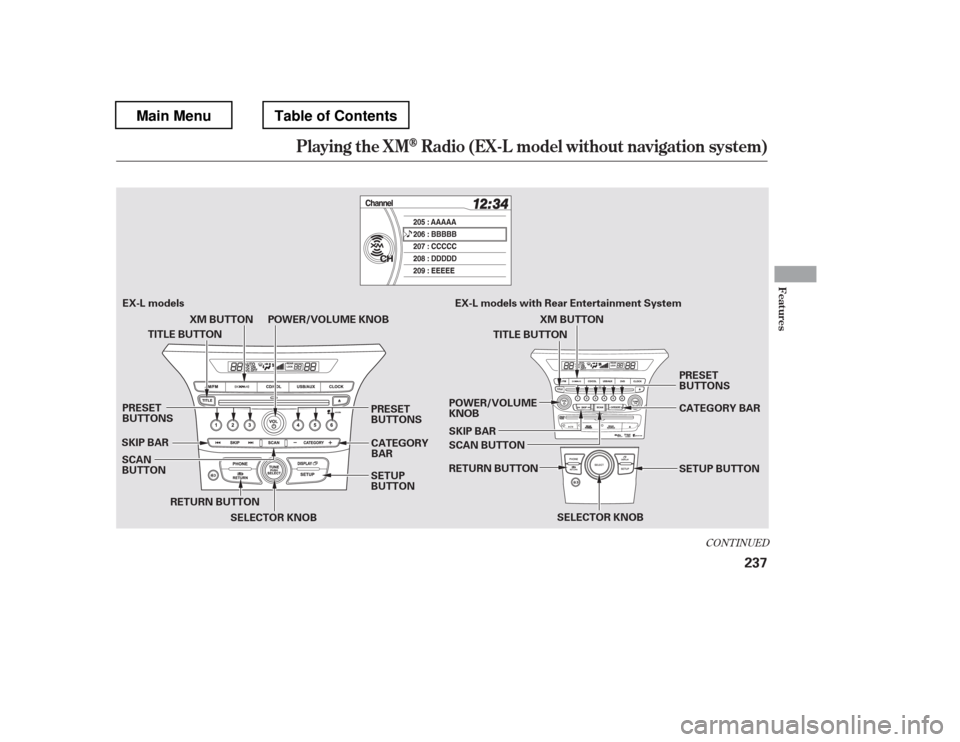

Playing t he XMRadio (EX-L model wit hout navigat ion syst em)
Features
237
SCAN
BUTTON
SKIP BAR
SETUP
BUTTONCATEGORY
BAR
POWER/VOLUME KNOB
PRESET
BUTTONS
PRESET
BUTTONS TITLE BUTTON
XM BUTTON
RETURN BUTTON SELECTOR KNOB SELECTOR KNOB
EX-L models
EX-L models with Rear Entertainment System
TITLE BUTTON XM BUTTON
POWER/VOLUMEKNOB
SKIP BAR
SCAN BUTTON CATEGORY BAR
SETUP BUTTON
RETURN BUTTON PRESET
BUTTONS
Main MenuTable of Contents

µ
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position, and press the
button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Your vehicle is capable of receivingXM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc. You can also change the mode from
the setup menu. Press the SETUP
button to display the setup menu.
Turn the selector knob to select XM
Mode and press the selector knob.
You can select Channel mode or
Category mode by turning and
pressing the selector knob.
Each time you press and release the
TITLE button, the display changes
f rom artist name to song name.
You may experience periods when
XM Radio does not transmit the
artist

µµ´µ
µ
The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Press
either side of the CATEGORY bar to
select another category.
Turn the selector knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
You can also select a channel from
the list by using the selector knob.
Push the selector knob to switch the
display to the list, then turn the knob
to select a channel. Press the
selector knob to set your selection.
CONT INUED
SCAN
CA T EGORY ( or )
TUNE
Playing t he XMRadio (EX-L model wit hout navigat ion syst em)
Features
239
Main MenuTable of Contents

µµ
µ
µ
µ µ
µ
µ
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Press the button. Either
XM1 or XM2 will show in the
display. Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, simply
press and release the proper preset
button to tune to it. Press the button again.
The other XM band will show.
Store the next six channels using
steps 2 and 3.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected
channel has no artist or title
inf ormation at this time.
XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting. The
encryption code is being updated.
Wait until the encryption code is
f ully updated. Channels 0 and 1
should still work normally.
There is
a problem with the XM antenna.
Please consult your dealer.
Use the selector knob, SKIP bar,
CATEGORYbarorSCANbutton
to tune to a desired channel.
The selected
channel number does not exist, is
not part of your subscription, or this
channel has no artist or title
inf ormation at this time.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
3. 4. 5.
2.
1.
Preset
XM Radio Display Messages‘‘NO SIGNA L

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels. Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Large items carried on a roof rack.
CONT INUED
Playing t he XMRadio (EX-L model wit hout navigat ion syst em)
Features
241
Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
Main MenuTable of Contents

Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts
available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, press the
button. A variety of music
types and styles will play.
If you decide to purchase XM radio
service, contact XM Radio at ,orat
1-800-852-9696. In Canada, contact
XM CANADA
at , or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, press the button, then turn the
selector knob until ‘‘CH 000

CONT INUED

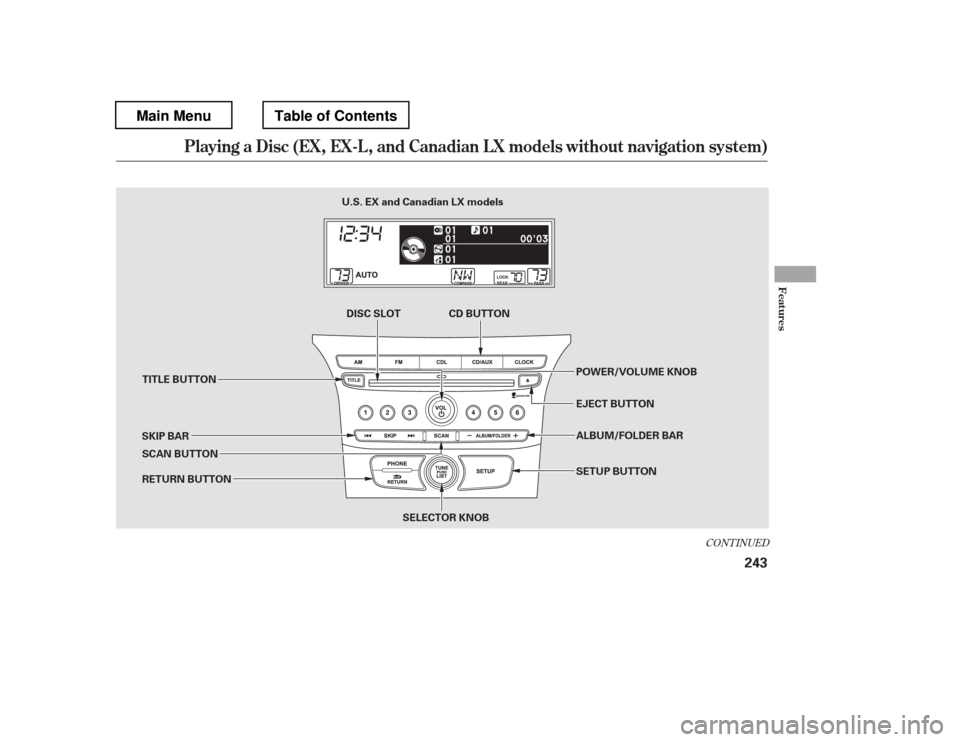

Playing a Disc (EX, EX-L, and Canadian LX models without navigation system)
Features
243
SELECTOR KNOB
RETURN BUTTON
SCAN BUTTON TITLE BUTTON
SETUP BUTTON
POWER/VOLUME KNOB
ALBUM/FOLDER BAR
SKIP BAR EJECT BUTTON
DISC SLOT CD BUTTON
U.S. EX and Canadian LX models
