HONDA PILOT 2012 2.G Owners Manual

Select ‘‘ALBUM DB VER.

Playing an iPod(EX-L and Canadian EX models without navigation system)
Features
265

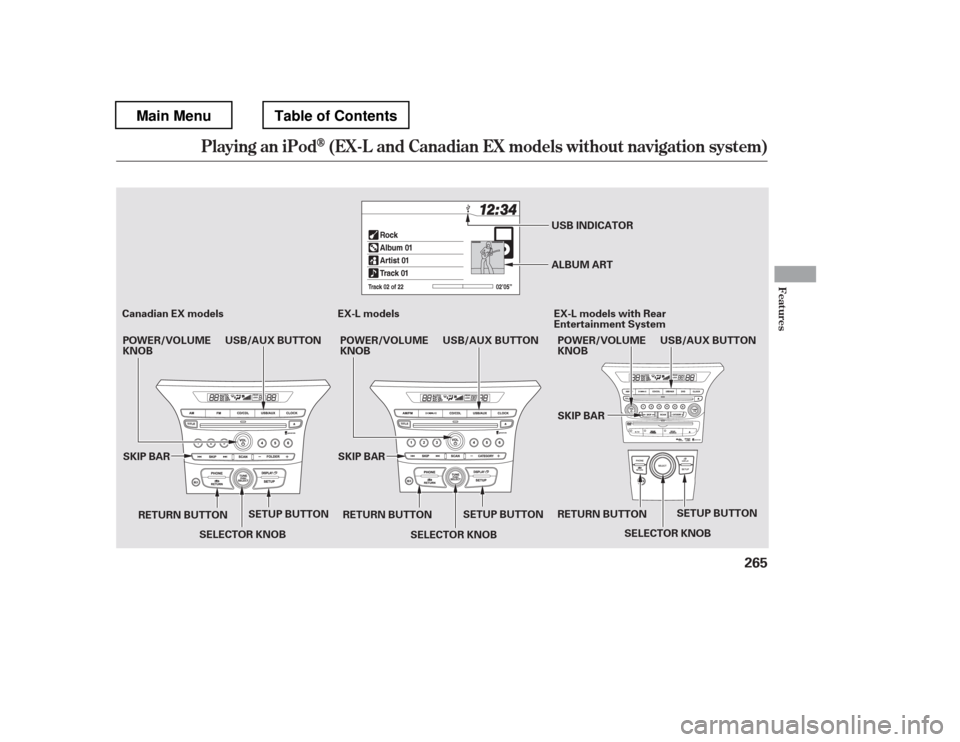

SELECTOR KNOB
EX-L models
Canadian EX models EX-L models with Rear
Entertainment System
SKIP BAR USB INDICATOR
ALBUM ART
SKIP BAR RETURN BUTTONRETURN BUTTON
SETUP BUTTON SETUP BUTTON
POWER/VOLUME KNOB
SELECTOR KNOB
RETURN BUTTON USB/AUX BUTTON
POWER/VOLUMEKNOB
SKIP BAR
SETUP BUTTON
SELECTOR KNOB
POWER/VOLUME KNOB
USB/AUX BUTTON
USB/AUX BUTTON
Main MenuTable of Contents

The audio system reads and plays
playable sound f iles on the iPod. The
system cannot operate an iPod as a
mass storage device. The system will
only play songs stored on the iPod
with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
iPods compatible with your audio
system using the USB adapter cable
are:
This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the in-
dash disc player. To play an iPod,
connect it to the USB adapter cable
in the console compartment by using
your dock connector, then press the
USB/AUX button. The ignition
switch must be in the ACCESSORY
(I) or ON (II) position. The iPod will
also be charged with the ignition
switch in these settings.
Sof tware
Ver. 1.3 or more
Ver. 1.1.2 or more
Ver. 1.3.1 or more
Ver. 1.1.3 or more
Ver. 1.1.3 or more
Ver. 1.0.4 or more
Ver. 1.1.1 or more
Ver. 2.2.1 or more
Ver. 2.1.0 or more
Ver. 2.1.0 or more
Ver. 5.12.1 or more
Model
iPod 5th
generation
iPod classic
iPod nano
1st generation
iPod nano
2nd generation
iPod nano
3rd generation
iPod nano
4th generation
iPod nano
1st generation
iPod touch
2nd generation
iPhone
iPhone 3G
iPhone 3GS
Playing an iPod(EX-L and Canadian EX models without navigation system)
To Play an iPod
266
Main MenuTable of Contents

Connect your dock connector to
the iPod correctly and securely.
Install the dock connector to the
USB adapter cable securely.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
We recommend backing up your
data bef ore playing it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
Do not keep the iPod and dock
connector cable in the vehicle.
Direct sunlight and high heat will
damage it.
Do not connect your iPod using ahub.
UseonlycompatibleiPodswiththe
latest sof tware. iPods that are not
compatible will not work in this audio
unit.
Unclip the USB connector by
pivoting it, and pull out the USB
adapter cable in the console
compartment.
1.
2.
3.
CONT INUED
Connect ing an iPod
Playing an iPod(EX-L and Canadian EX models without navigation system)
Features
267
NOTE:
DOCK CONNECTOR
USB ADAPTER CABLE
USB ADAPTER CABLE
USB CONNECTOR
Main MenuTable of Contents

µEach time you press and
releasethe sideof theSKIPbar,
the system skips forward to the
beginning of the next track. Press
and release the side of the bar
to skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
Use the SKIP bar while an iPod is
playing to select passages and
change f iles.
To move rapidly within playing track,
press and hold either side ( or
) of the SKIP bar.
If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at
Turning the selector knob to the
right or lef t also changes a f ile.You can also select a file from any
list on the iPod menu: playlists,
artists, albums, songs, genres,
composers and podcasts by using the
selector knob. Push the selector
knob to switch the display to an iPod
menu, then turn the selector knob to
select a desired list. Press the
selector knob to set your selection.
The current f ile number and total of
the selected playable f iles are on the
display. It also shows the artist,
album and track (file) names on the
display.
If a f ile on your iPod has an album
art, it will be shown in the display.
www.apple.com/ T o Change or Select Files
SK IP
Playing an iPod(EX-L and Canadian EX models without navigation system)
268
Main MenuTable of Contents

If you select ‘‘ALL

µ
You can select any type of repeat and
shufflemodebyusingtheSETUP
button and the selector knob. Press
the SETUP button to display the
menu items, then turn the selector
knob to select ‘‘Play Mode.

µµ µ
µ
This f eature plays all
available f iles in a selected list
(playlists, artists, albums, songs,
genres, composers and podcasts) in
random order. You will see the
shuf f le all icon in the display. Select
normal play to turn off this feature.
This feature
repeats the shuffle all feature. When
the system f inishes playing the
shuf f le all f eature, it will repeat
playing the songs in the same
shuf f led order. You will see the
shuf f le all and the repeat icon in the
display. Select normal play to turn of f
this feature. This feature
plays all available albums in a
selected list (playlists, artists, albums,
songs and genres) in random order.
The f iles in each album are played in
the recorded order. You will see the
shuf f le albums icon in the display.
Select normal play to turn of f this
feature.
This
f eature repeats the shuf f le album
f eature. When the system f inishes
playing the shuf f le album f eature, it
will repeat playing the albums in the
same shuf f led order. You will see the
shuf f le albums and the repeat icon in
the display. Select normal play to
turn off this feature. Available operating f unctions vary on
models or versions. Some f unctions
may not be available on the vehicle

ÎÎ
The displayed message may
vary on models or versions. On
some models, there is no
message to disconnect.
You can disconnect the iPod at any
time when you see the ‘‘OK to
disconnect

If you see an error message on the
audio display while playing an iPod,
f ind the solution in the chart to the
right. If you cannot clear the error
message, take your vehicle to your
dealer.Error Message Solution
There is a problem with the USB adapter unit.
Appears when the overcurrent protection f eature of the system stops
supplying power to USB because an incompatible device is connected.
Disconnect the device. Then, turn the audio system of f , and turn it on
again. Do not reconnect the device that caused the error.
Appears when the iPod is empty. Store some f iles in the iPod.
Appears when an unsupported device is connected. Disconnect the
device.
Appears when an unsupported iPod is connected. See page 266 for
specif ication information for iPods. If it appears when a supported
iPod is connected, update the iPod sof tware to the newer version.
Appears when the system does not acknowledge the iPod. Reconnect
the iPod.
iPodError Messages (EX-L and Canadian EX models without navigation syst em)
Features
273
USB ERROR
BAD USB DEVICE
PLEASE CHECK OWNERSMANUAL
NO SONG
UNSUPPORTED
UNSUPPORTED VER. CONNECT RETRY
