HONDA PILOT 2013 2.G Owners Manual

110
Controls

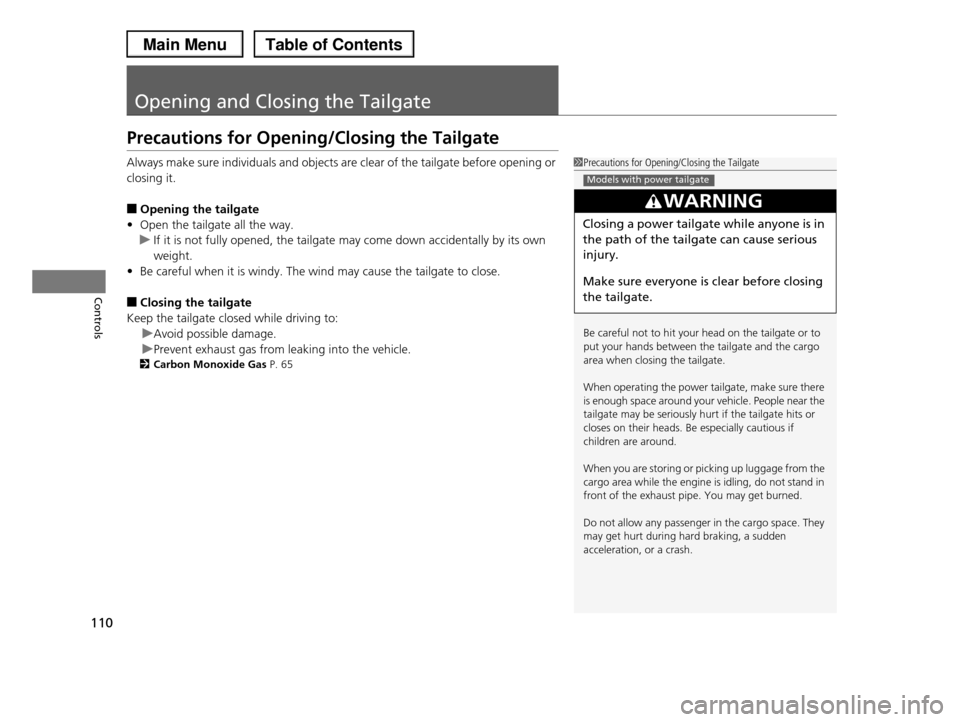

Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
■Opening the tailgate
•Open the tailgate all the way.
uIf it is not fully opened, the tailgate may come down accidentally by its own
weight.
•Be careful when it is windy. The wind may cause the tailgate to close.
■Closing the tailgate
Keep the tailgate closed while driving to:
uAvoid possible damage.
uPrevent exhaust gas from leaking into the vehicle.
2Carbon Monoxide Gas P. 65
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between the tailgate and the cargo area when closing the tailgate.
When operating the power tailgate, make sure there is enough space around your vehicle. People near the
tailgate may be seriously hurt if the tailgate hits or
closes on their heads. Be especially cautious if children are around.
When you are storing or picking up luggage from the cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.
Make sure everyone is clear before closing
the tailgate.
Models with power tailgate

111
uuOpening and Closing the TailgateuOpening/Closing the Tailgate Using the Tailgate Release Button
Controls

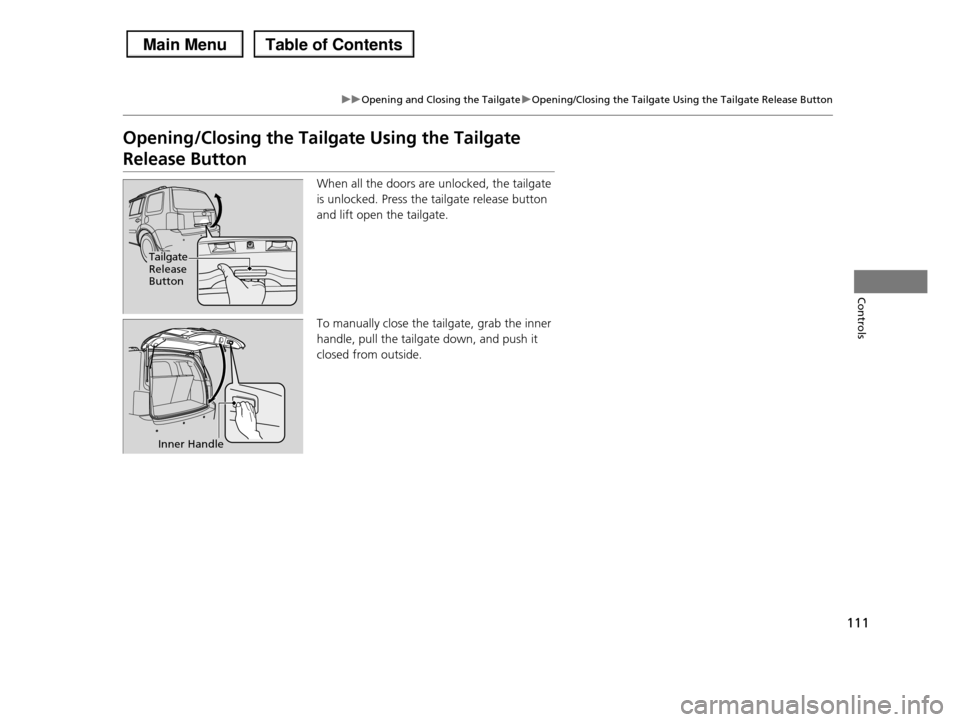

Opening/Closing the Tailgate Using the Tailgate
Release Button
When all the doors are unlocked, the tailgate
is unlocked. Press the tailgate release button
and lift open the tailgate.
To manually close the tailgate, grab the inner
handle, pull the tailgate down, and push it
closed from outside.
Tailgate Release Button
Inner Handle

112
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*
Controls

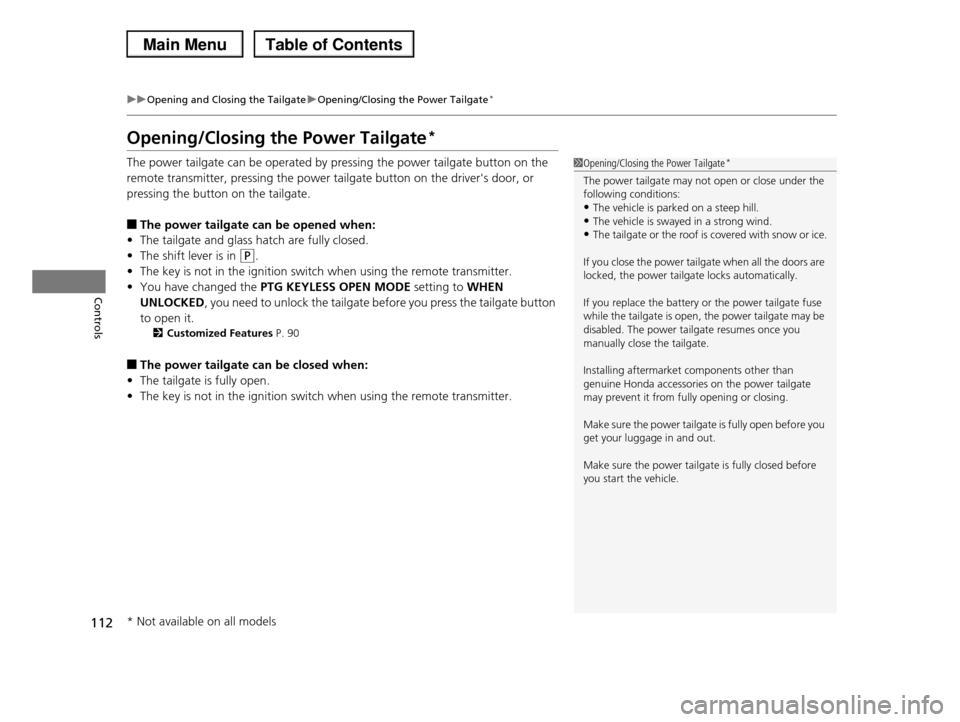

Opening/Closing the Power Tailgate*
The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tailgate button on the driver's door, or
pressing the button on the tailgate.
■The power tailgate can be opened when:
•The tailgate and glass hatch are fully closed.
•The shift lever is in (P.
•The key is not in the ignition switch when using the remote transmitter.
•You have changed the PTG KEYLESS OPEN MODE setting to WHEN
UNLOCKED, you need to unlock the tailgate before you press the tailgate button
to open it.
2Customized Features P. 90
■The power tailgate can be closed when:
•The tailgate is fully open.
•The key is not in the ignition switch when using the remote transmitter.
1Opening/Closing the Power Tailgate*
The power tailgate may not open or close under the following conditions:
•The vehicle is parked on a steep hill.
•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tailgate when all the doors are locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse while the tailgate is open, the power tailgate may be
disabled. The power tailgate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda accessories on the power tailgate may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you get your luggage in and out.
Make sure the power tailgate is fully closed before you start the vehicle.
* Not available on all models

Continued113
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*
Controls

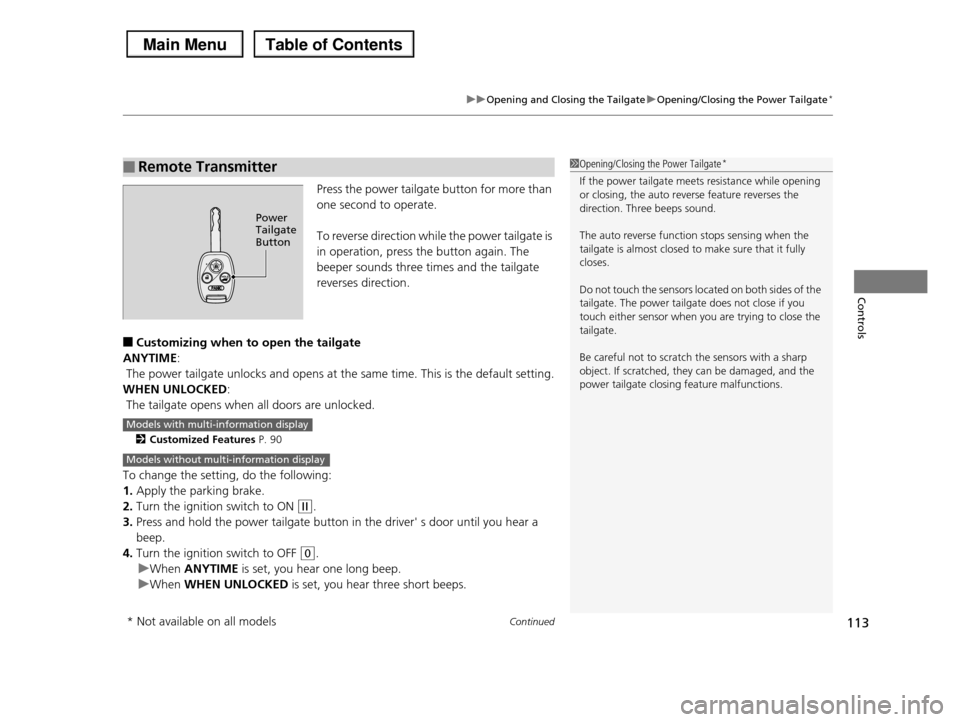

Press the power tailgate button for more than
one second to operate.
To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
■Customizing when to open the tailgate
ANYTIME:
The power tailgate unlocks and opens at the same time. This is the default setting.
WHEN UNLOCKED:
The tailgate opens when all doors are unlocked.
2Customized Features P. 90
To change the setting, do the following:
1.Apply the parking brake.
2.Turn the ignition switch to ON (w.
3.Press and hold the power tailgate button in the driver' s door until you hear a
beep.
4.Turn the ignition switch to OFF (0.
uWhen ANYTIME is set, you hear one long beep.
uWhen WHEN UNLOCKED is set, you hear three short beeps.
■Remote Transmitter1Opening/Closing the Power Tailgate*
If the power tailgate meets resistance while opening
or closing, the auto reverse feature reverses the direction. Three beeps sound.
The auto reverse function stops sensing when the tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailgate does not close if you
touch either sensor when you are trying to close the tailgate.
Be careful not to scratch the sensors with a sharp object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power Tailgate Button
Models with multi-information display
Models without multi-information display
* Not available on all models

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*

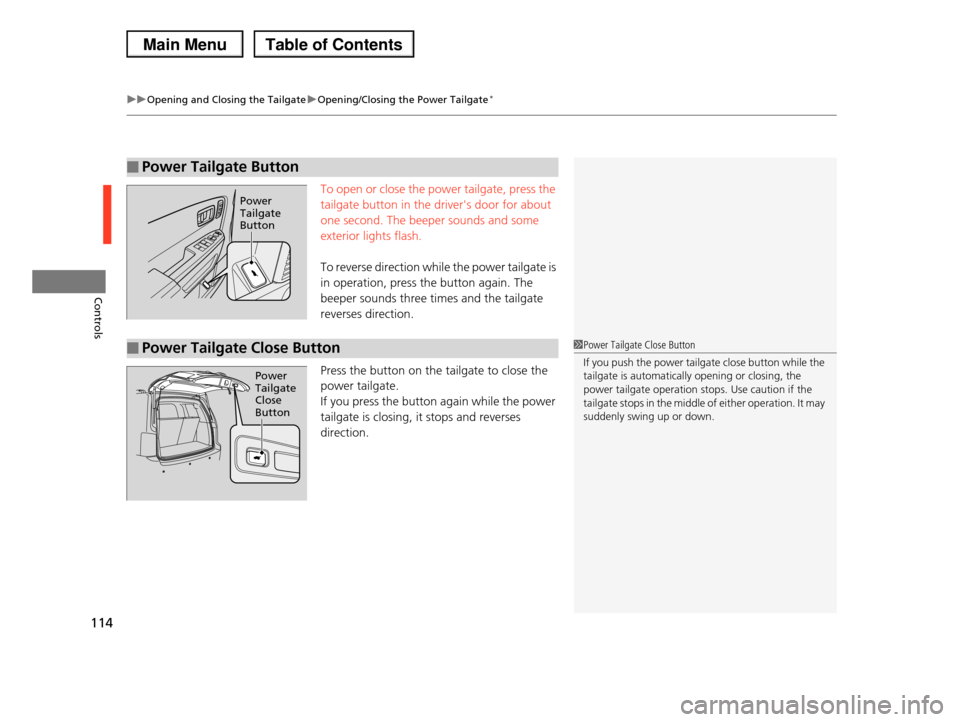

114
Controls
To open or close the power tailgate, press the
tailgate button in the driver's door for about
one second. The beeper sounds and some
exterior lights flash.
To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
Press the button on the tailgate to close the
power tailgate.
If you press the button again while the power
tailgate is closing, it stops and reverses
direction.
■Power Tailgate Button
Power Tailgate Button
■Power Tailgate Close Button1Power Tailgate Close Button
If you push the power tailgate close button while the tailgate is automatically opening or closing, the
power tailgate operation stops. Use caution if the
tailgate stops in the middle of either operation. It may suddenly swing up or down.
Power Tailgate Close Button

115
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate*
Controls

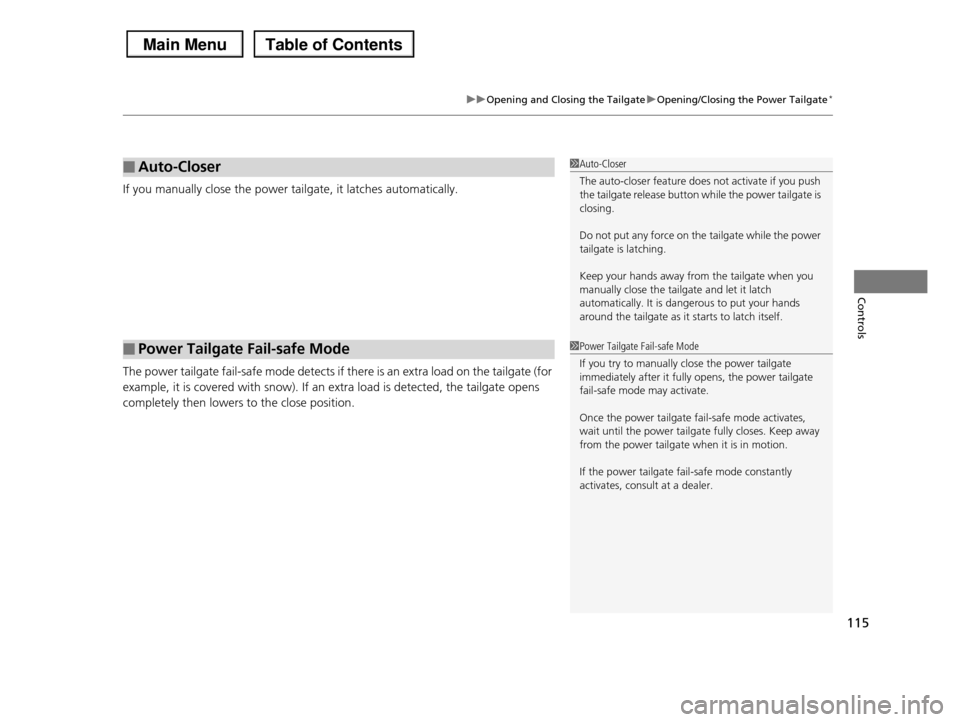

If you manually close the power tailgate, it latches automatically.
The power tailgate fail-safe mode detects if there is an extra load on the tailgate (for
example, it is covered with snow). If an extra load is detected, the tailgate opens
completely then lowers to the close position.
■Auto-Closer
■Power Tailgate Fail-safe Mode
1Auto-Closer
The auto-closer feature does not activate if you push
the tailgate release button while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailgate and let it latch automatically. It is dangerous to put your hands
around the tailgate as it starts to latch itself.
1Power Tailgate Fail-safe Mode
If you try to manually close the power tailgate
immediately after it fully opens, the power tailgate
fail-safe mode may activate.
Once the power tailgate fail-safe mode activates,
wait until the power tailgate fully closes. Keep away from the power tailgate when it is in motion.
If the power tailgate fail-safe mode constantly activates, consult at a dealer.

116
uuOpening and Closing the TailgateuOpening/Closing the Glass Hatch
Controls

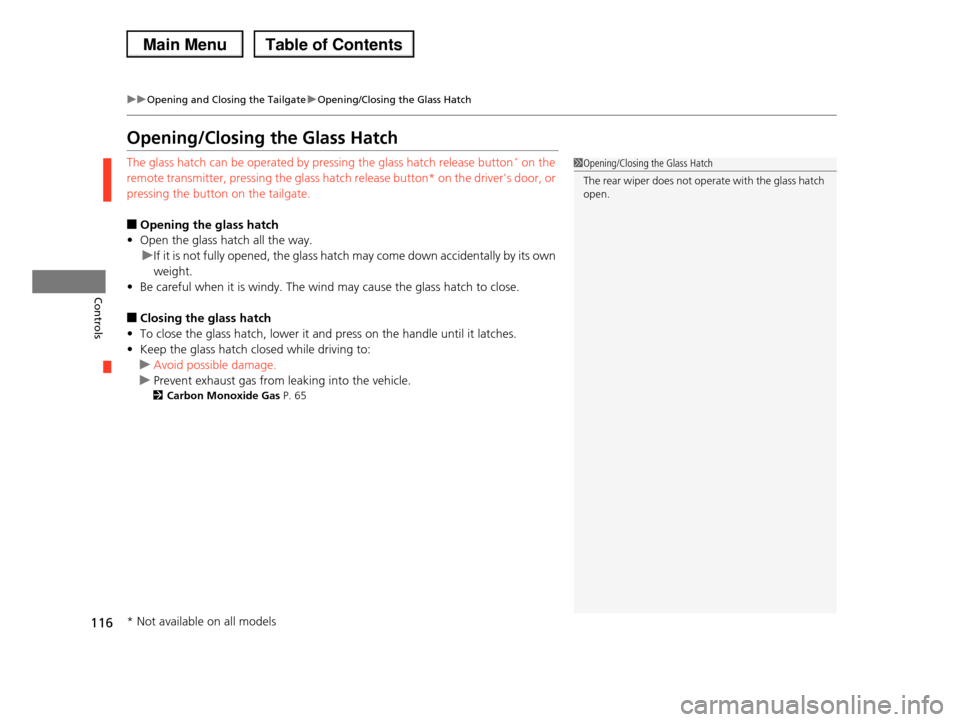

Opening/Closing the Glass Hatch
The glass hatch can be operated by pressing the glass hatch release button* on the
remote transmitter, pressing the glass hatch release button* on the driver's door, or
pressing the button on the tailgate.
■Opening the glass hatch
•Open the glass hatch all the way.
uIf it is not fully opened, the glass hatch may come down accidentally by its own
weight.
•Be careful when it is windy. The wind may cause the glass hatch to close.
■Closing the glass hatch
•To close the glass hatch, lower it and press on the handle until it latches.
•Keep the glass hatch closed while driving to:
uAvoid possible damage.
uPrevent exhaust gas from leaking into the vehicle.
2Carbon Monoxide Gas P. 65
1Opening/Closing the Glass Hatch
The rear wiper does not operate with the glass hatch open.
* Not available on all models

117
uuOpening and Closing the TailgateuOpening/Closing the Glass Hatch
Controls

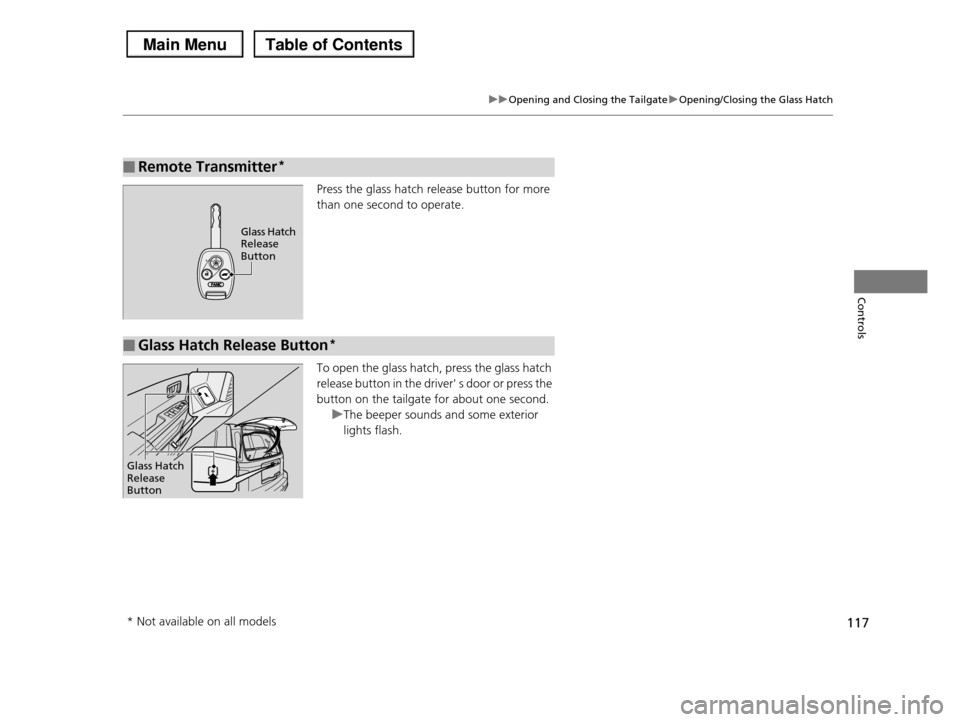

Press the glass hatch release button for more
than one second to operate.
To open the glass hatch, press the glass hatch
release button in the driver' s door or press the
button on the tailgate for about one second.
uThe beeper sounds and some exterior
lights flash.
■Remote Transmitter*
Glass Hatch Release Button
■Glass Hatch Release Button*
Glass Hatch Release Button
* Not available on all models

118
Controls

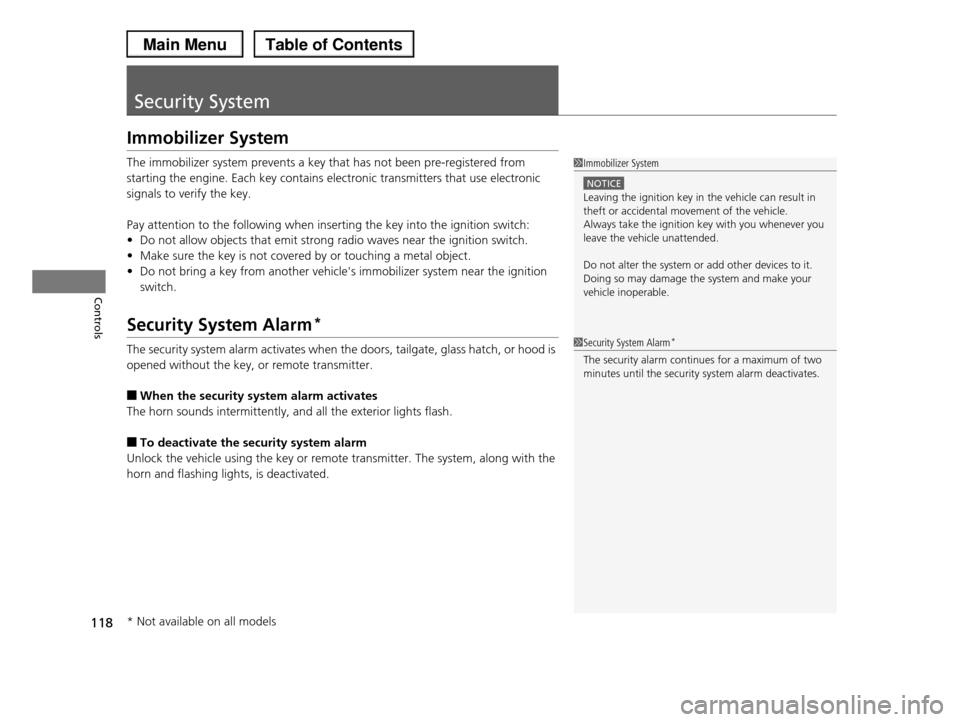

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserting the key into the ignition switch:
•Do not allow objects that emit strong radio waves near the ignition switch.
•Make sure the key is not covered by or touching a metal object.
•Do not bring a key from another vehicle's immobilizer system near the ignition
switch.
Security System Alarm*
The security system alarm activates when the doors, tailgate, glass hatch, or hood is
opened without the key, or remote transmitter.
■When the security system alarm activates
The horn sounds intermittently, and all the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key or remote transmitter. The system, along with the
horn and flashing lights, is deactivated.
1Immobilizer System
NOTICE
Leaving the ignition key in the vehicle can result in
theft or accidental movement of the vehicle.
Always take the ignition key with you whenever you leave the vehicle unattended.
Do not alter the system or add other devices to it.Doing so may damage the system and make your
vehicle inoperable.
1Security System Alarm*
The security alarm continues for a maximum of two minutes until the security system alarm deactivates.
* Not available on all models

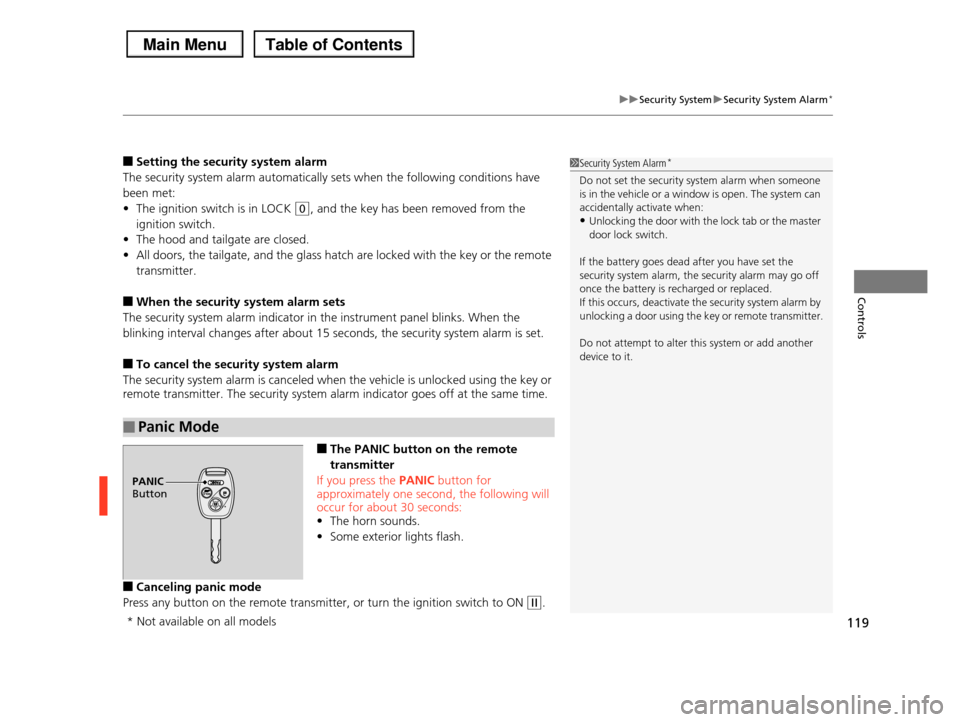

119
uuSecurity SystemuSecurity System Alarm*
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
•The ignition switch is in LOCK (0, and the key has been removed from the
ignition switch.
•The hood and tailgate are closed.
•All doors, the tailgate, and the glass hatch are locked with the key or the remote
transmitter.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the key or
remote transmitter. The security system alarm indicator goes off at the same time.
■The PANIC button on the remote
transmitter
If you press the PANIC button for
approximately one second, the following will occur for about 30 seconds:
•The horn sounds.
•Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON (w.
■Panic Mode
1Security System Alarm*
Do not set the security system alarm when someone is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab or the master door lock switch.
If the battery goes dead after you have set the security system alarm, the security alarm may go off
once the battery is recharged or replaced.
If this occurs, deactivate the security system alarm by unlocking a door using the key or remote transmitter.
Do not attempt to alter this system or add another device to it.
PANIC Button
* Not available on all models
