Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w
.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Shows the number of engine revolutions per minute.
Displays the amount of fuel
left in the fuel tank.
Displays the temperature of the engin
e coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 448

81
uu Gauges and Displays u Information Display *
Continued
Instrument Panel

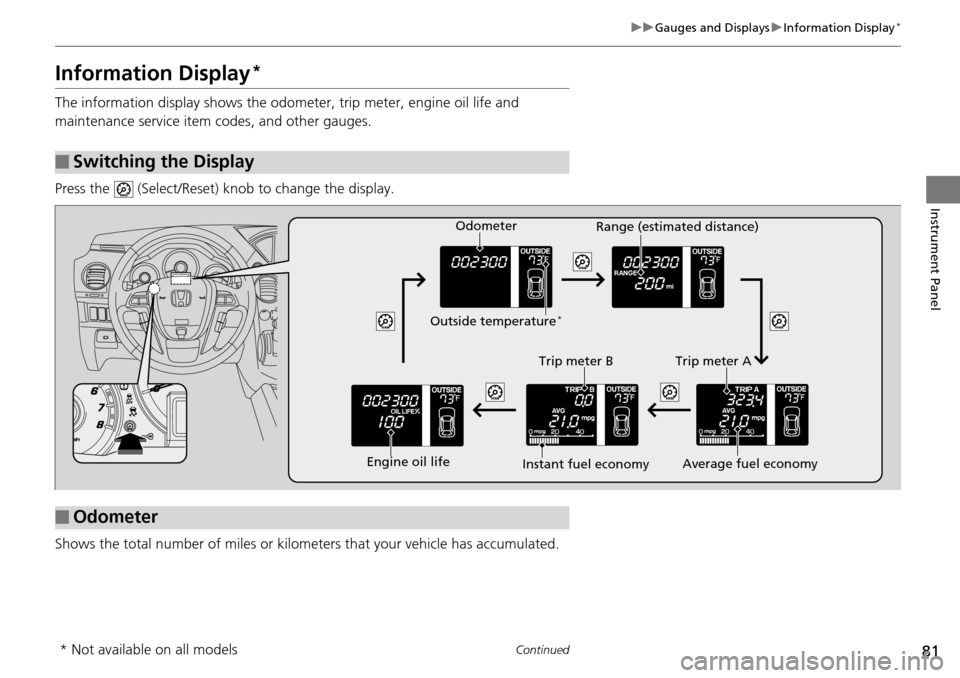

Information Display *
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.
Shows the total number of miles or kilome ters that your
vehicle has accumulated.
■Switching the Display
■Odometer
Engine oil lifeTrip meter B
Average fuel economy
Trip meter A
Instant fuel economy Range (estimated distance)
Outside temperature
*
Odometer
* Not available on all models

uu Gauges and Displays u Information Display *
82
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.
0 .
Shows the instant fuel economy as a bar
graph in mpg or l/100 km.
Shows the estimated average fuel economy of each
trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance Minder™ P. 381
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
■Trip Meter
■Instant Fuel Economy
■Average Fuel Economy
■Engine Oil Life
■Range
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.

83
uu Gauges and Displays u Information Display *
Continued
Instrument Panel

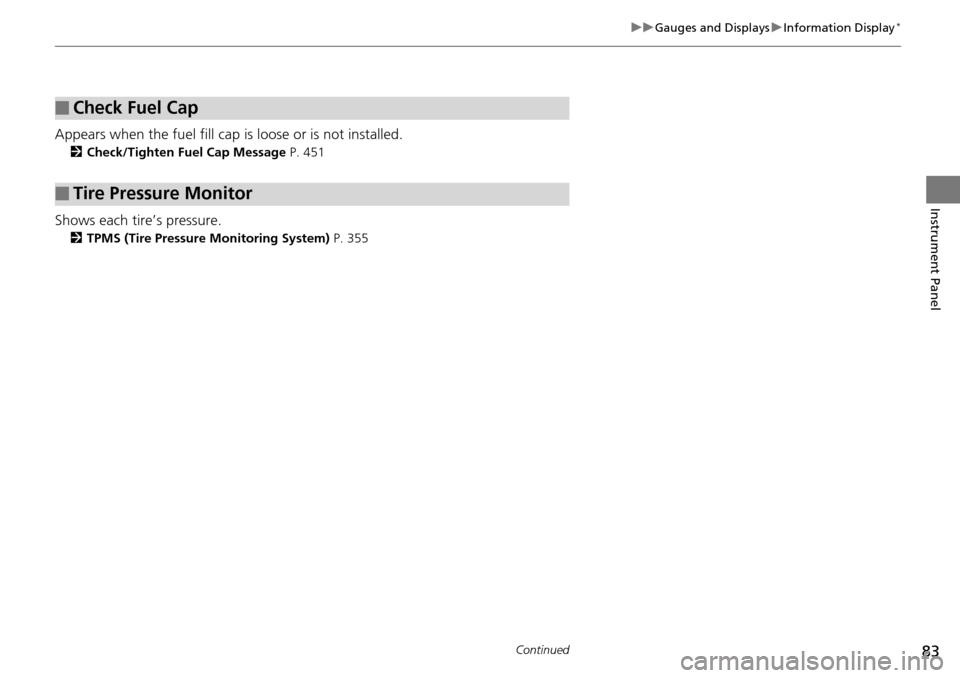

Appears when the fuel fill cap is loose or is not installed.
2 Check/Tighten Fuel Cap Message P. 451
Shows each tire’s pressure.
2 TPMS (Tire Pressure Monitoring System) P. 355
■Check Fuel Cap
■Tire Pressure Monitor

uu Gauges and Displays u Information Display *
84
Instrument Panel

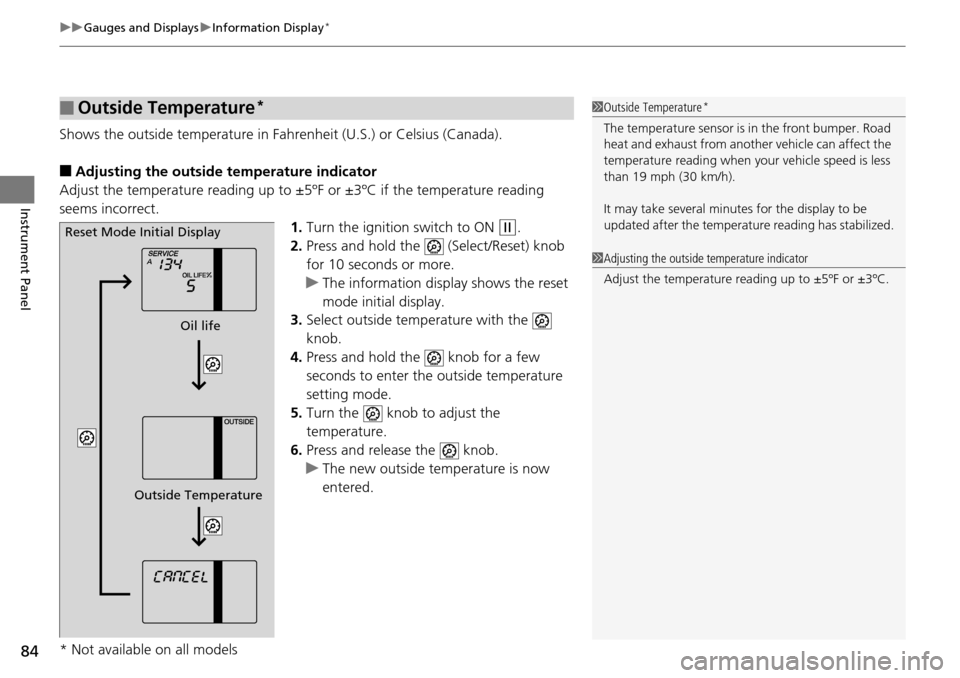

Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ±5ºF
or ±3ºC if the temperature reading
seems incorrect.
1.Turn
the ignition switch to ON (w
.
2. Press and
hold the (Select/Reset) knob
for 10 seconds or more.
u T
he information display shows the reset
mode initial display.
3. Select
outside temperature with the
knob.
4. Press and
hold the knob for a few
seconds to enter the outsi
de temperature
setting mode.
5. Turn the knob to adjust the
temperature.
6. Press and
release the knob.
u Th
e new outside temperature is now
entered.
■Outside Temperature *1Outside Temperature *
The temperature sensor is in the front bumper. Road
heat and exhaust from anothe r vehicle can affect the
temperature reading when your vehicle speed is less
than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1 Adjusting the outside temperature indicator
Adjust the temperature reading up to ±5ºF or ±3ºC.
Reset Mode Initial Display
Oil life
Outside Temperature
* Not available on all models

85
uu Gauges and Displays u Multi-Informat ion Display *
Continued
Instrument Panel
Multi-Information Display *
Shows the odometer, trip meter, outside te mperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful informat
ion.
Press the / (information) button or the SEL/
RESET button to change the
display.
■Switching the Display
SEL/RESET
Button Tire Pressure Monitor
/ Button
Engine oil life
Trip meter B
Trip meter A Odometer
Customize SettingsTrip Computer
* Not available on all models

86
uu Gauges and Displays u Multi-Information Display *
Instrument Panel

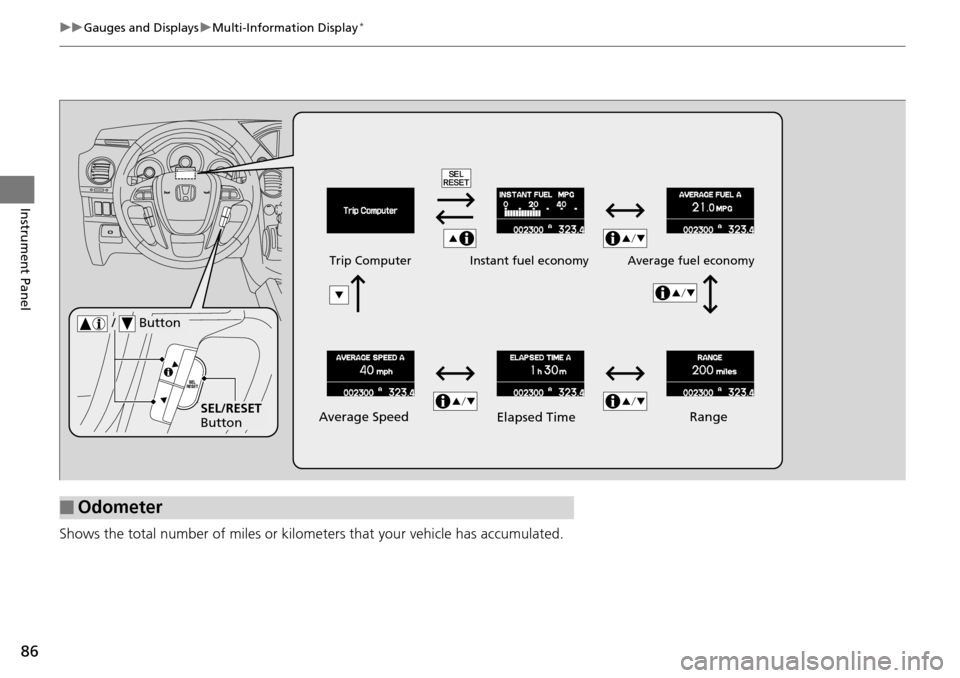

Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Odometer
Average Speed
Average fuel economy
Trip Computer
Instant fuel economy
SEL/RESET
Button
/ Button
Range
Elapsed Time

Continued87
uu Gauges and Displays u Multi-Informat ion Display *
Instrument Panel

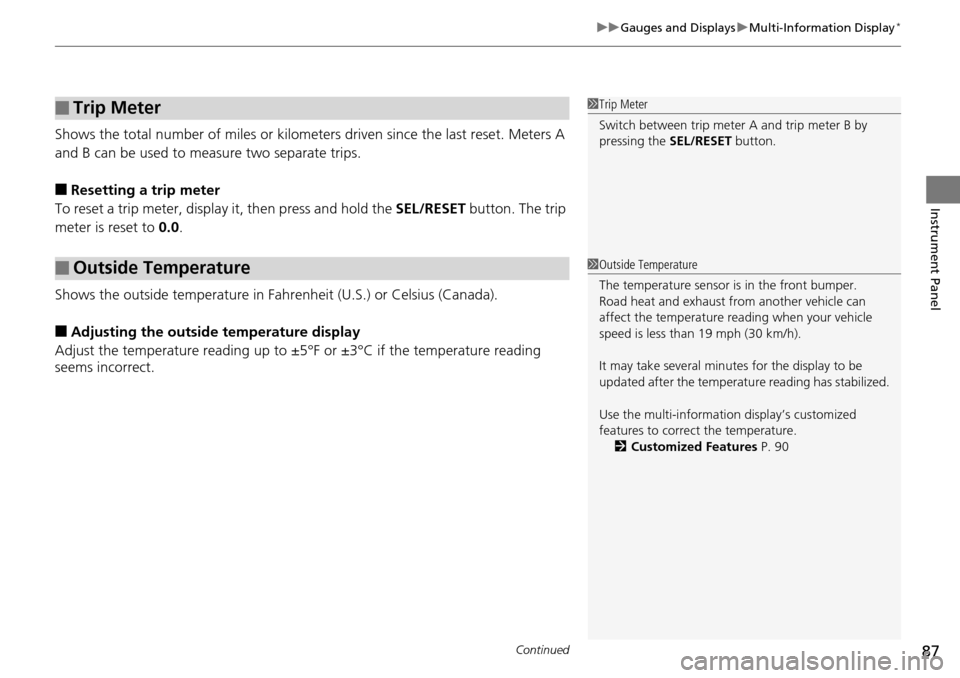

Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it,
then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the outside temperature in Fahr enhe
it (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±
3°C if the temperature reading
seems incorrect.
■Trip Meter
■Outside Temperature
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display’s customized
features to correct the temperature.
2 Customized Features P. 90

uu Gauges and Displays u Multi-Information Display *
88
Instrument Panel
Shows the instant fuel eco nomy, average fuel economy, range, elapsed time, and
average speed.
■Instant Fuel Economy
Shows the instant fuel economy as a bar gr aph in
mpg (U.S.) or l/100 km (Canada).
■Average Fuel Economy
Shows the estimated average fuel economy of each
trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
■Range
Shows the estimated distance you can travel on the re
maining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
■Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average Speed
Shows the average speed in mph or km/h si nce the last t
ime Trip A or Trip B was
reset.
Shows each tire's pressure.
2 TPMS (Tire Pressure Monitoring System) P. 355
■Trip Computer
■Tire Pressure Monitor
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 90
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 90
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 90

89
uu Gauges and Displays u Multi-Informat ion Display *
Continued
Instrument Panel

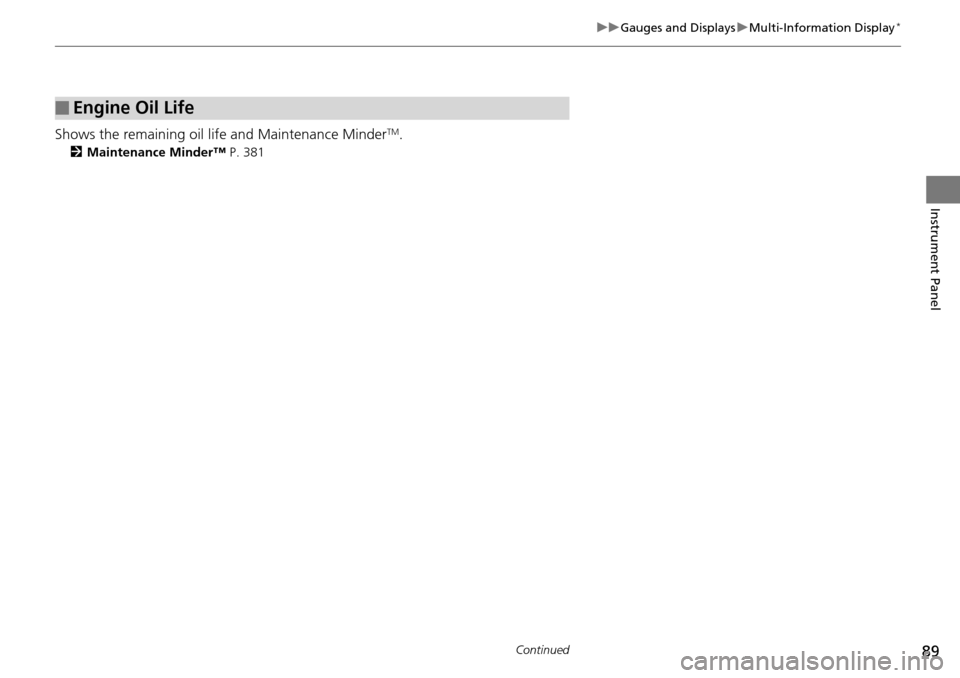

Shows the remaining oil life and Maintenance MinderTM.
2Maintenance Minder™ P. 381
■Engine Oil Life
