HONDA PILOT 2016 3.G Navigation Manual

uuInformation Functions uWhere I've Been
120
Other Features
2. Select a help topic you want to
confirm.

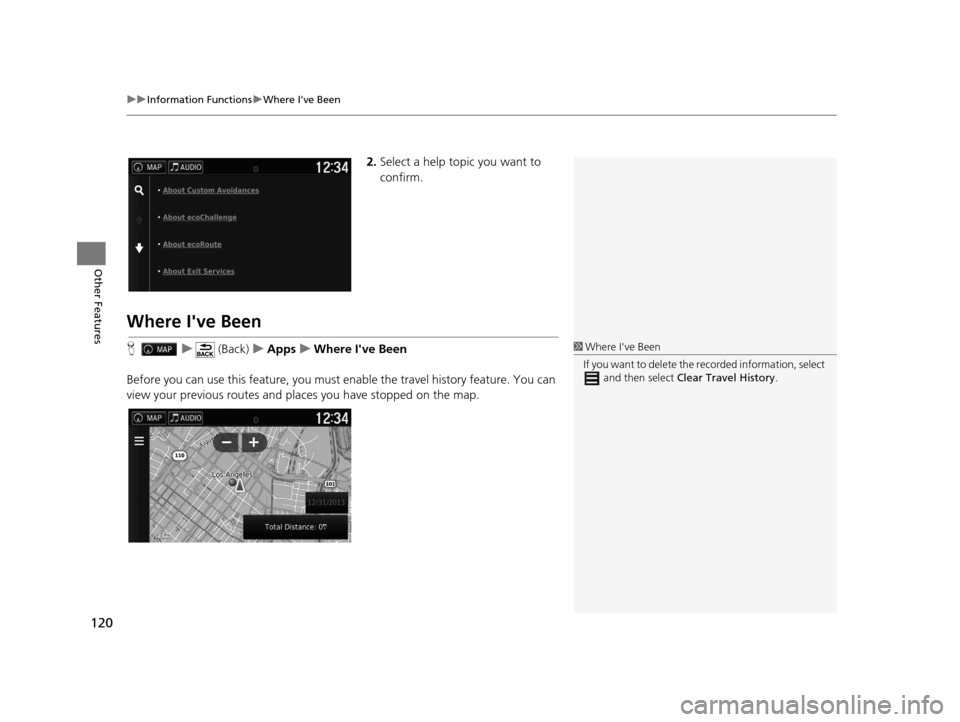

Where I've Been
H u (Back) uApps uWhere I've Been
Before you can use this feature, you must enable the travel history feature. You can
view your previous routes and places you have stopped on the map.1 Where I've Been
If you want to delete the re corded information, select
and then select Clear Travel History .
16 PILOT NAVI-31TG78000.book 120 ページ ２０１５年４月２１日　火曜日　午前８時３０分

121
uuInformation Functions uCalculator
Other Features

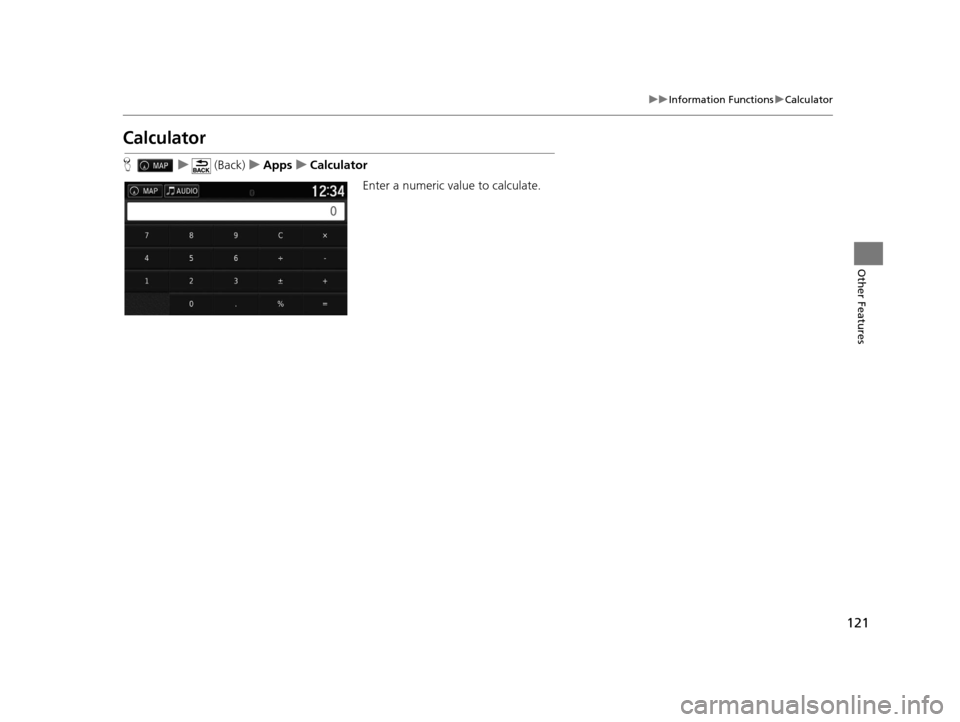

Calculator
H u (Back) uApps uCalculator
Enter a numeric value to calculate.
16 PILOT NAVI-31TG78000.book 121 ページ ２０１５年４月２１日　火曜日　午前８時３０分

122
uuInformation Functions uUnit Converter
Other Features
Unit Converter
H u (Back) uApps uUnit Converter
1.If necessary, select a measurement
category (e.g., Distance).
u Select a measurement category
from the list. Select Save.
2. If necessary, select a unit of
measurement (e.g., km).
u Select a unit of measurement
from the list. Select Save.
3. Enter a numeric value to convert
(e.g., 1000). Select Done.
16 PILOT NAVI-31TG78000.book 122 ページ ２０１５年４月２１日　火曜日　午前８時３０分

123
uuInformation Functions uGPS Information
Other Features
GPS Information
H u (Back)
The GPS info screen displays the satellites status. Select and hold the .
uA solid bar indicates that the GPS
satellite is ready for use.
16 PILOT NAVI-31TG78000.book 123 ページ ２０１５年４月２１日　火曜日　午前８時３０分

124
16 PILOT NAVI-31TG78000.book 124 ページ ２０１５年４月２１日　火曜日　午前８時３０分

125

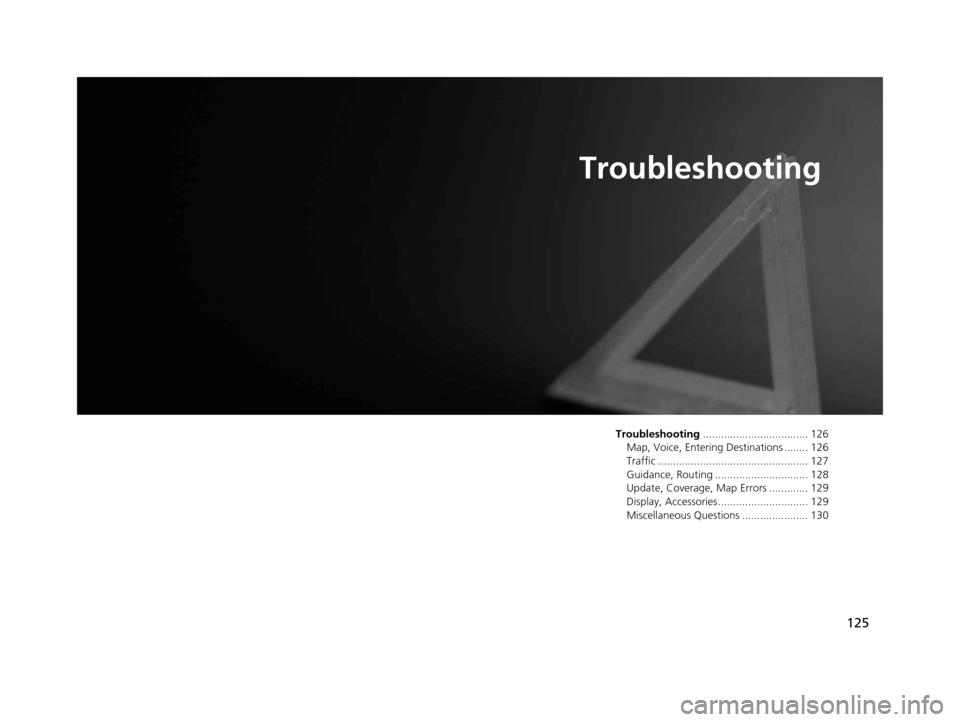

Troubleshooting
Troubleshooting................................... 126
Map, Voice, Entering Destinations ........ 126
Traffic .................................................. 127
Guidance, Routing ............................... 128
Update, Coverage, Map Errors ............. 129
Display, Accessories.............................. 129
Miscellaneous Questions ...................... 130
16 PILOT NAVI-31TG78000.book 125 ページ ２０１５年４月２１日　火曜日　午前８時３０分

126
Troubleshooting
Troubleshooting
Map, Voice, Entering Destinations
ProblemSolution
The Startup Confirmation screen is displayed every
time I start the car.This is normal. The Startup Confirmation screen reminds you and your guest
drivers to always operate the navigation system in a safe manner. The Startup
Confirmation screen goes off after a certa in period of time, even if you do not
select OK.
The navigation system reboots by itself (returns to
the opening screen).A reboot can be caused by extreme temper atures or shock from bumpy roads, and
does not necessarily indicate a problem. If this happens frequently, please see your
dealer.
How do I specify a destinat ion when an entered city
or street could not be found?Try selecting the destination directly from the map.
2 Map Input P. 75
How do I delete saved places, or the Home Address?1.Select > > Saved > > Delete Saved Places .
2. Select saved places you want to delete.
3. Select Delete .
4. Select Yes.
I cannot hear the navigation system voice.1.Select > Settings > Navigation and set Voice Prompt to on.
2Navigation P. 36
2.Press the (Home) icon. Select Settings > System > Sound/Beep tab.
Turn up Guidance Volume , if guidance volume is low.
For more details, see the Owner’s Manual.
16 PILOT NAVI-31TG78000.book 126 ページ ２０１５年４月２１日　火曜日　午前８時３０分

127
uuTroubleshooting uTraffic
Troubleshooting
Traffic
ProblemSolution
Traffic information is missing or is not displaying
properly. What is wrong?Verify the following:●Traffic information relies on a clear signal. If signal strength is low, traffic data
may not be available.
●Check that the traffic icons are turned on.
2 Traffic Information P. 88●It is possible that there is a temporary technical problem with your metropolitan
area traffic. You can call Honda Automobile Customer Service to see if there is
an outage.
2 Honda Automobile Customer Service Contact Information P. 134●If the situation persists, see your Honda dealer for assistance.●Traffic information is available only in certain areas.
16 PILOT NAVI-31TG78000.book 127 ページ ２０１５年４月２１日　火曜日　午前８時３０分

128
uuTroubleshooting uGuidance, Routing
Troubleshooting
Guidance, Routing
ProblemSolution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.The navigation system attempts to generate the optimal route. You can change the
route preferences used when calculating a route.
2 Recalculate Using Another Route Preference P. 108
The street I’m on is not shown on the map screen.The mapping database is constantly undergoing revision.
The vehicle position icon is not following the road. ●Check that the GPS antenna (located in the dashboard) is not blocked. For best
reception, remove items from the dashboar d, such as radar detectors, cellular
phones, or loose articles.
●Metallic tinting or other aftermarket devices can interfere with the GPS reception.
Please consult your dealer.
2 GPS System P. 132
How do I stop the map from rotating as I drive
along?1.Select and then pres s the (Back) icon.
2. Select Settings > Map & Vehicle > Driving Map View .
3. Check that Driving Map View is set to Track Up or 3-D .
4. Select North Up and the select Save.
The “arrive time” display sometimes increases even
though I am getting closer to my destination.“Arrival time” is based on the speed lim it on each road. Depending on the traffic
conditions, the “arrival time” may be calculated to be earlier or later.
My elevation (shown when I display the current
position) seems to fluc tuate even though my
elevation has not changed.This is normal. The elevation can vary ±100 ft (30 m) due to GPS calculation errors.
2 GPS System P. 132
My elevation is missing on the “current position”
screen.The elevation is only displayed if the GP S antenna can receive signals from at least
four satellites. Try moving the vehicle into an open area. The elevation is also not
displayed if the calculated elevation is zero or below sea level.
16 PILOT NAVI-31TG78000.book 128 ページ ２０１５年４月２１日　火曜日　午前８時３０分

129
uuTroubleshooting uUpdate, Coverage, Map Errors
Troubleshooting
Update, Coverage, Map Errors
Display, Accessories
ProblemSolution
My city is not part of a fully verified detailed
coverage area.The mapping database is constantly undergoing revision.
Does the navigation syst em work outside North
America?The navigation system contains maps fo r the contiguous United States, Alaska,
Hawaii, Canada, and Puerto Rico. The navigation system will not work in other
countries.
2 Map Coverage P. 134
ProblemSolution
The display appears dim when starting the car in
really cold weather.This is normal. The display will become brighter after a few minutes.
16 PILOT NAVI-31TG78000.book 129 ページ ２０１５年４月２１日　火曜日　午前８時３０分
