Page 621 of 661

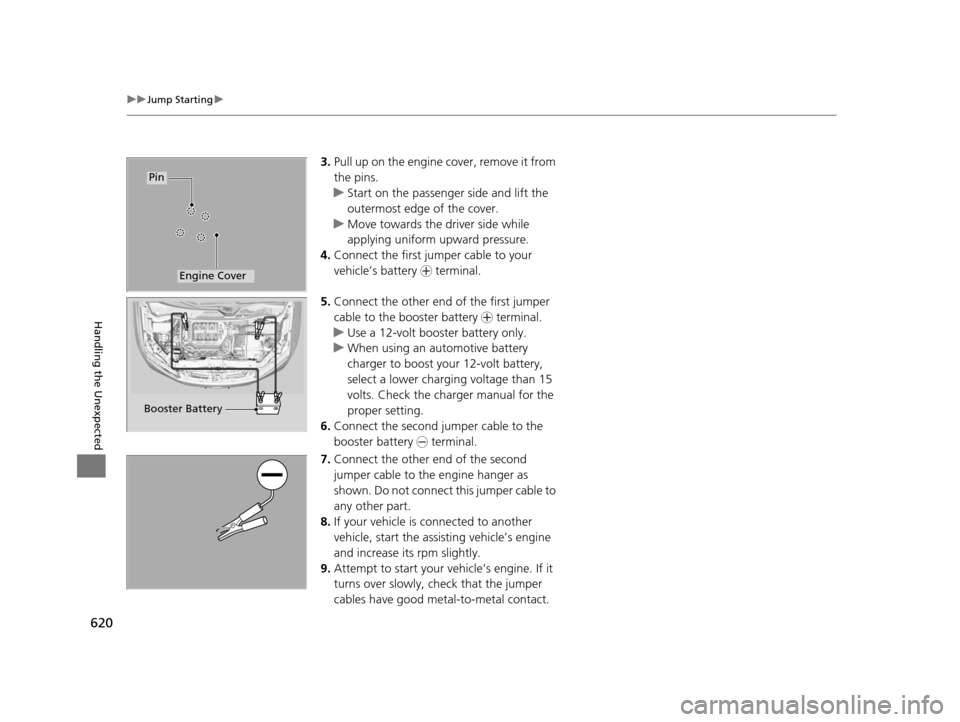

HONDA PILOT 2016 3.G Owners Manual 620
uuJump Starting u
Handling the Unexpected
3.Pull up on the engine  cover, remove it from
the pins.
u Start on the passenger side and lift the
outermost edge of the cover.
u Move towards the driv

Page 622 of 661

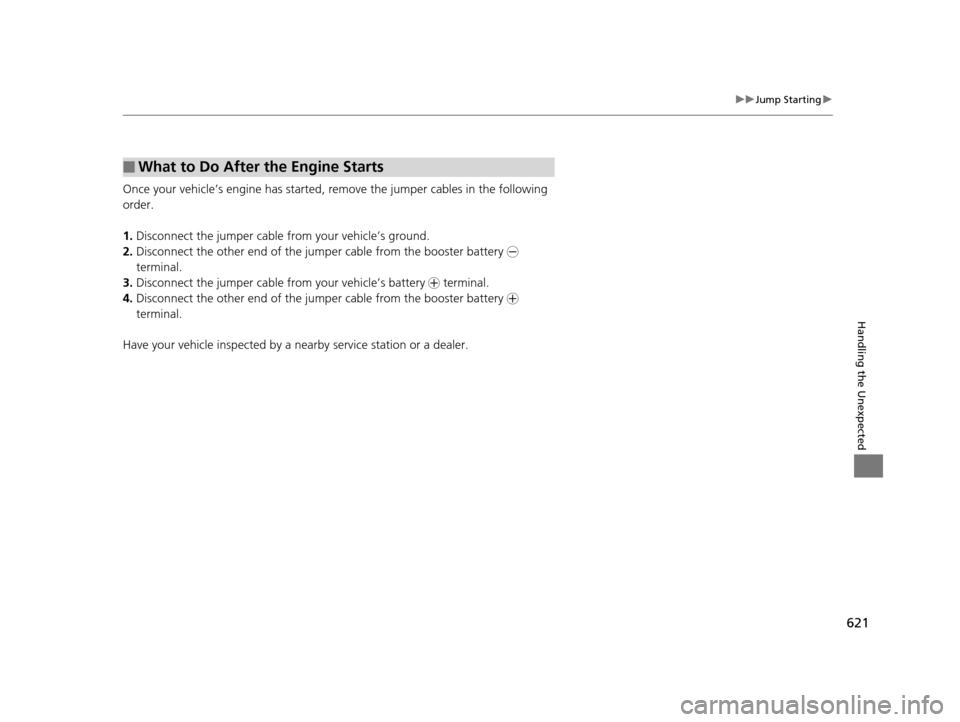

HONDA PILOT 2016 3.G Owners Manual 621
uuJump Starting u
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.

Page 623 of 661

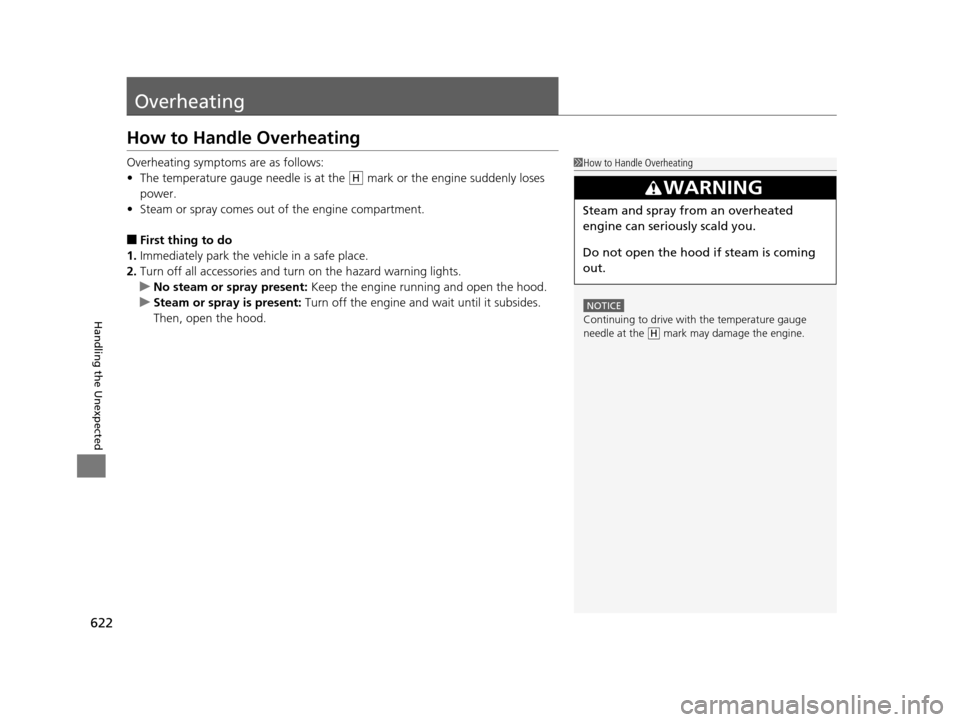

HONDA PILOT 2016 3.G Owners Manual 622
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge needle is at the   mark or the engine suddenly loses
power.
• Steam o

Page 624 of 661

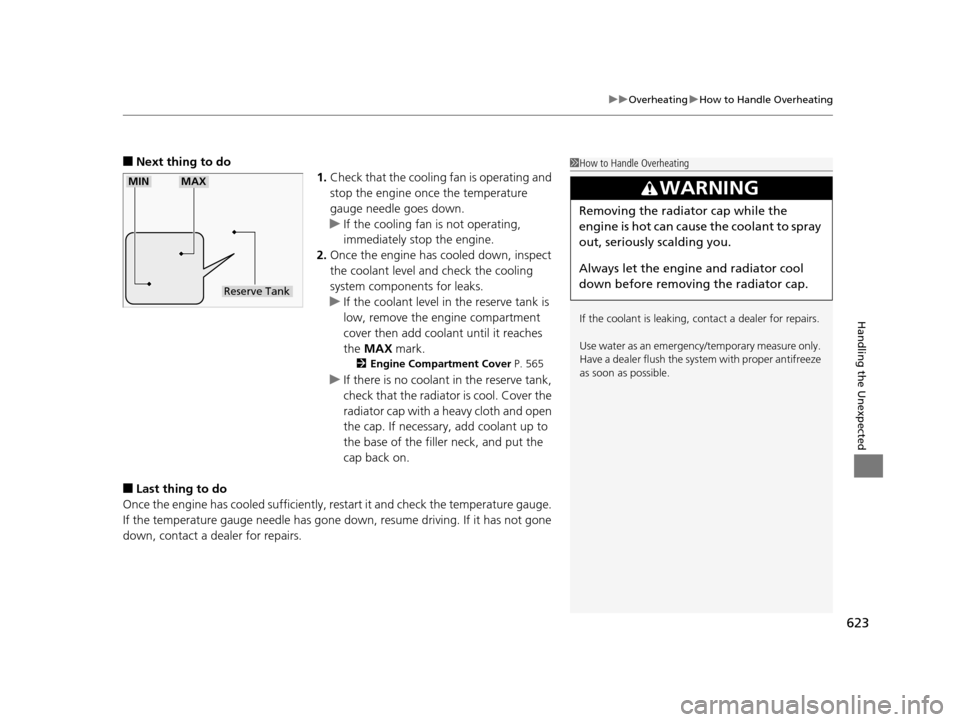

HONDA PILOT 2016 3.G Owners Manual 623
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling  fan is operating and
stop the engine once the temperature
gauge needle goes down.
u

Page 625 of 661

HONDA PILOT 2016 3.G Owners Manual 624
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do

Page 626 of 661

HONDA PILOT 2016 3.G Owners Manual 625

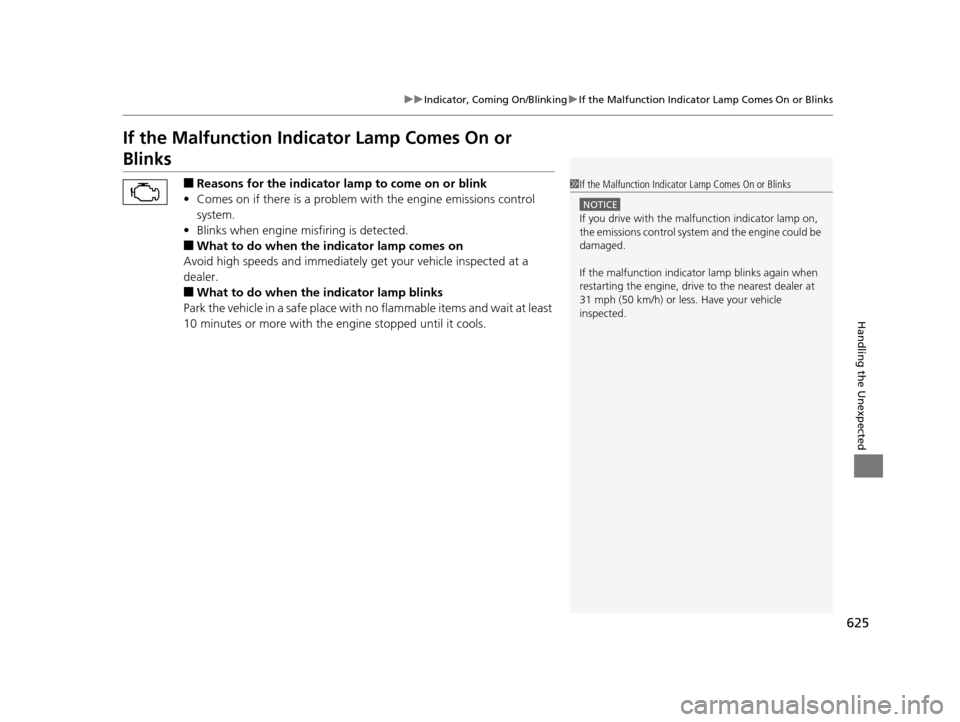

uuIndicator, Coming On/Blinking uIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indica tor Lamp Comes On or
Blinks
■Reasons for the indicator la

Page 627 of 661

HONDA PILOT 2016 3.G Owners Manual 626

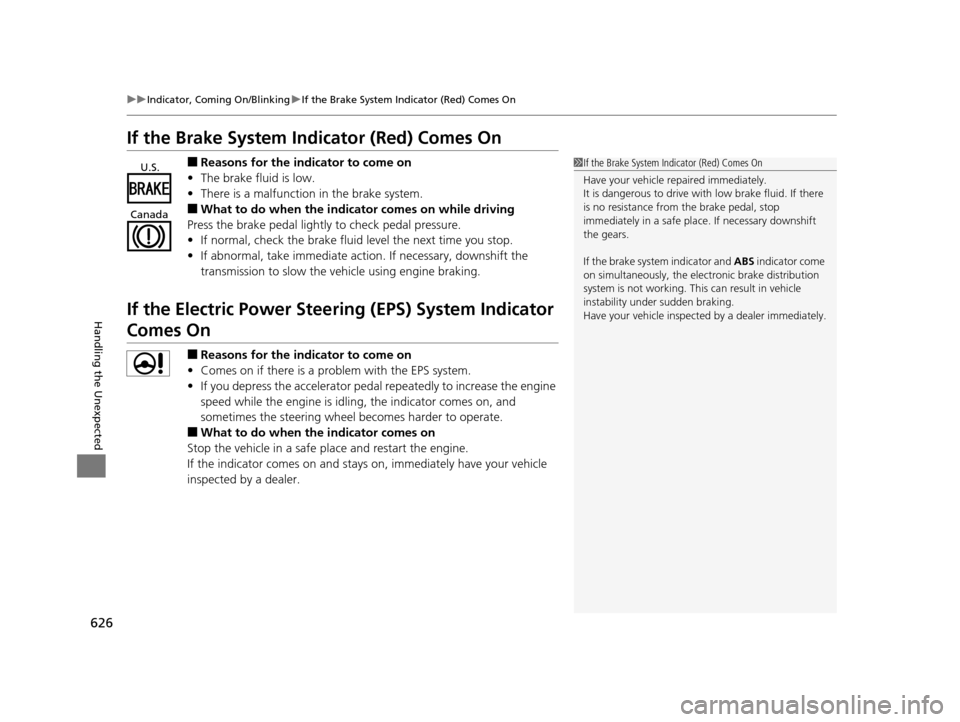

uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The b

Page 628 of 661

HONDA PILOT 2016 3.G Owners Manual 627

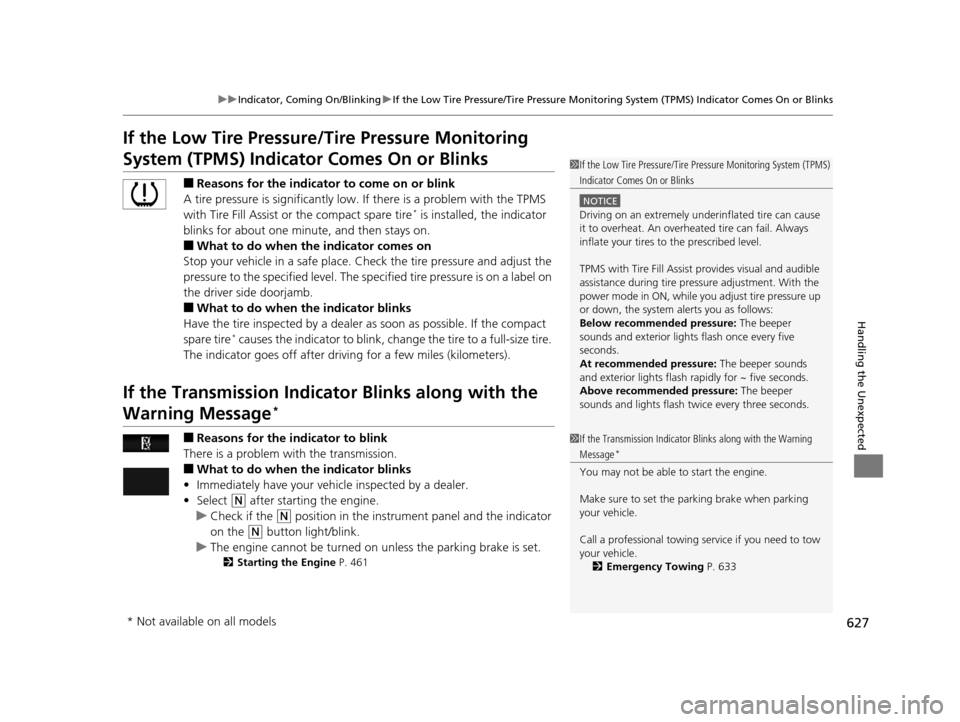

uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/T ire Pressure Monito

Page 629 of 661

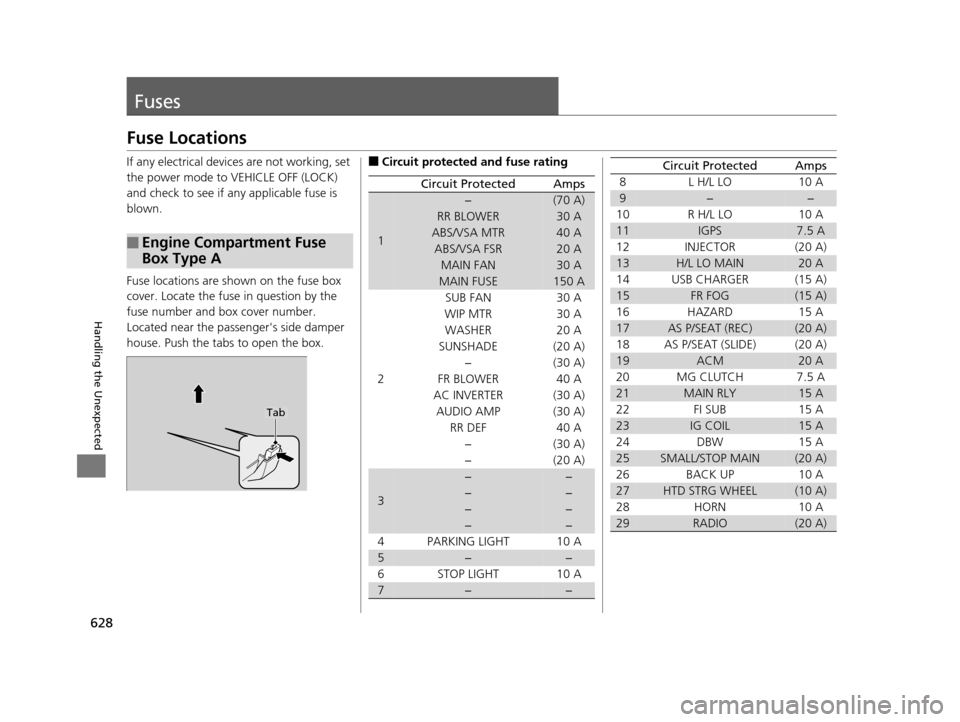

HONDA PILOT 2016 3.G Owners Manual 628
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations

Page 630 of 661

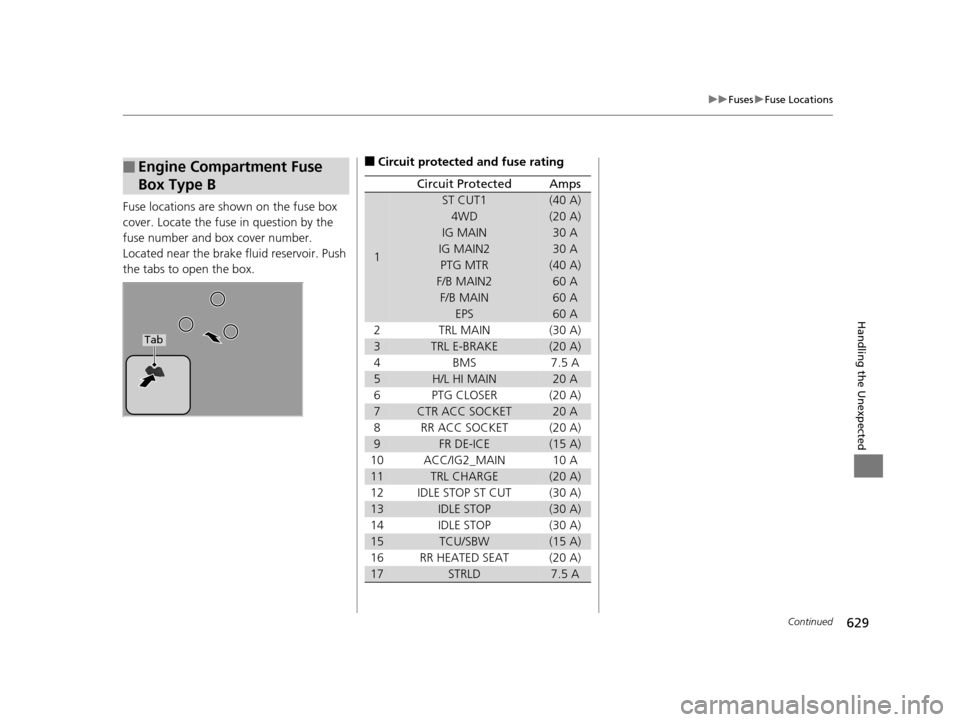

HONDA PILOT 2016 3.G Owners Manual 629
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the br
