HONDA PILOT 2017 3.G Owners Manual

330
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM*
Features
1. Press the SETUP button on the remote to
display the SETUP screen.
2. Select an item and then press the ENTER
button on the remote.
The following items are available:
• Display Adjust : Adjusts the screen's preferences.
2Adjusting the Screen P. 331
•Aspect Ratio : Selects an aspect ratio of the image.
2Setting the Aspect Ratio P. 332
•PERSONAL SURROUND : Sets the surround of the wireless headphones.
2Setting the Personal Surround P. 332
•Language : Sets the system language used on all screens.
2Setting the Language P. 333
After you make all the adjustments, the sc reen goes back to the top SETUP screen,
or press the CANCEL button to return.

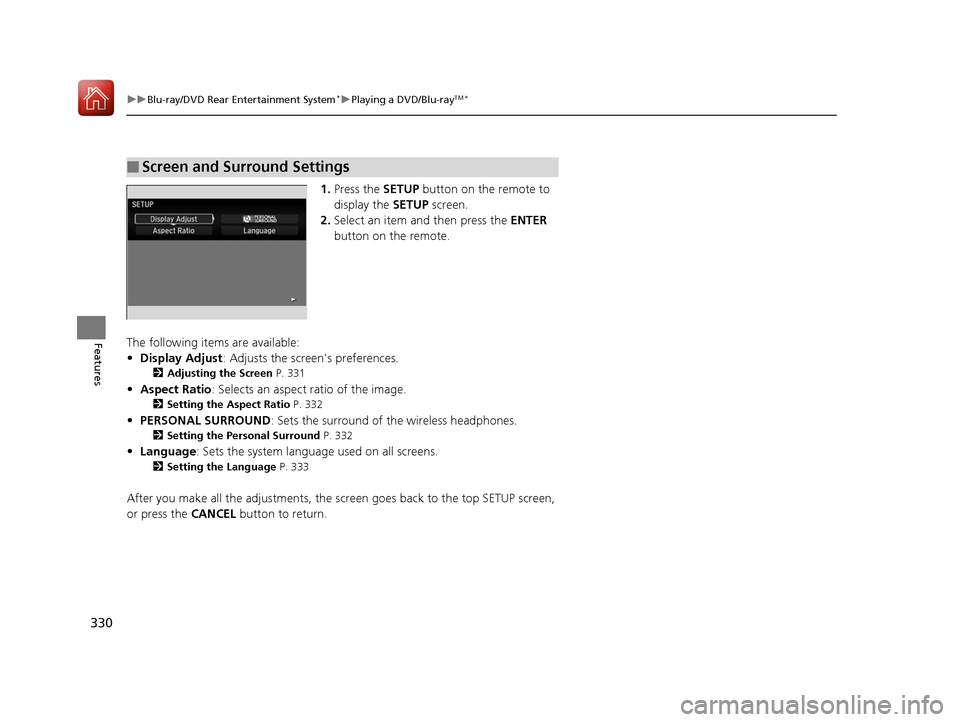

■Screen and Surround Settings
17 PILOT-31TG76100.book 330 ページ ２０１６年９月２０日　火曜日　午後４時９分

331
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM*
Continued
Features

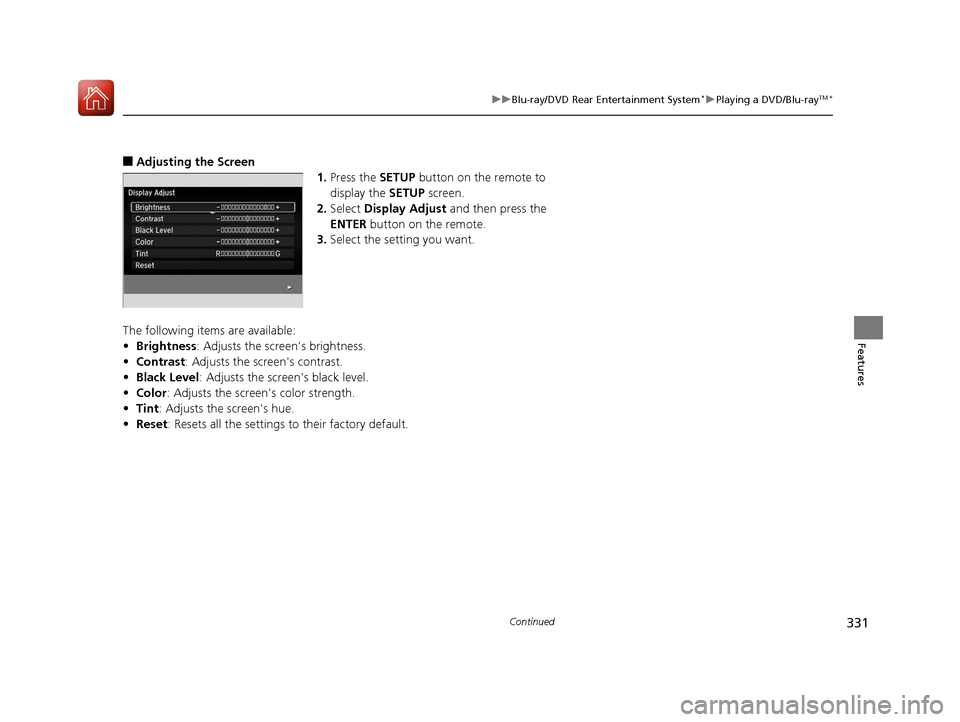

■Adjusting the Screen
1.Press the SETUP button on the remote to
display the SETUP screen.
2. Select Display Adjust and then press the
ENTER button on the remote.
3. Select the setting you want.
The following items are available:
• Brightness: Adjusts the screen's brightness.
• Contrast : Adjusts the screen's contrast.
• Black Level : Adjusts the screen's black level.
• Color : Adjusts the screen 's color strength.
• Tint : Adjusts the screen's hue.
• Reset : Resets all the settings to their factory default.
17 PILOT-31TG76100.book 331 ページ ２０１６年９月２０日　火曜日　午後４時９分

332
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM*
Features

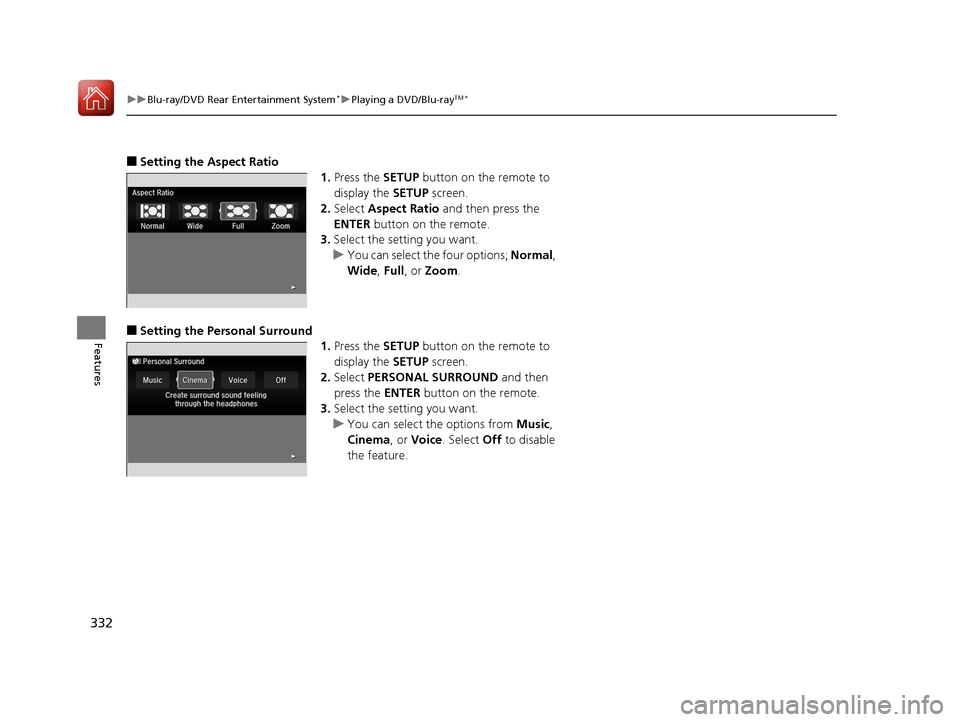

■Setting the Aspect Ratio
1.Press the SETUP button on the remote to
display the SETUP screen.
2. Select Aspect Ratio and then press the
ENTER button on the remote.
3. Select the setting you want.
u You can select the four options; Normal,
Wide , Full , or Zoom .
■Setting the Pers onal Surround
1.Press the SETUP button on the remote to
display the SETUP screen.
2. Select PERSONAL SURROUND and then
press the ENTER button on the remote.
3. Select the setting you want.
u You can select the options from Music,
Cinema, or Voice. Select Off to disable
the feature.
17 PILOT-31TG76100.book 332 ページ ２０１６年９月２０日　火曜日　午後４時９分

333
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM*
Continued
Features
■Setting the Language
1.Press the SETUP button on the remote to
display the SETUP screen.
2. Select Language and then press the
ENTER button on the remote.
3. Select the setting you want.
u You can select the language from
English, French, or Spanish.
17 PILOT-31TG76100.book 333 ページ ２０１６年９月２０日　火曜日　午後４時９分

334
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM*
Features

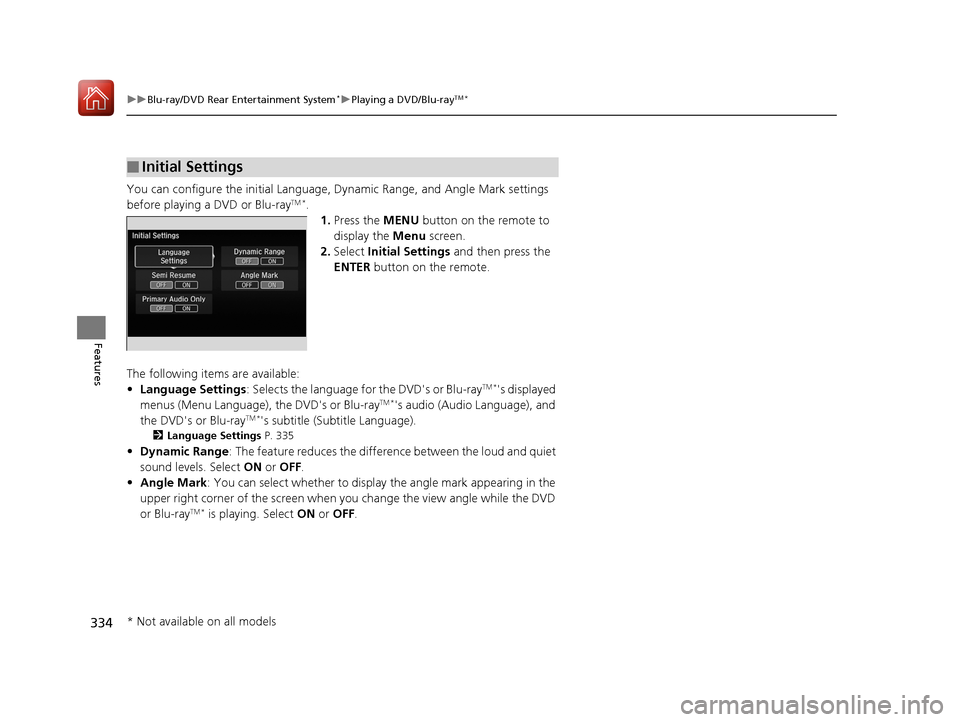

You can configure the initial Language, Dynamic Range, and Angle Mark settings
before playing a DVD or Blu-rayTM *.
1.Press the MENU button on the remote to
display the Menu screen.
2. Select Initial Settings and then press the
ENTER button on the remote.
The following items are available:
• Language Settings : Selects the language for the DVD's or Blu-ray
TM *'s displayed
menus (Menu Language), the DVD's or Blu-rayTM *'s audio (Audio Language), and
the DVD's or Blu-rayTM *'s subtitle (Subtitle Language).
2 Language Settings P. 335
•Dynamic Range : The feature reduces the difference between the loud and quiet
sound levels. Select ON or OFF .
• Angle Mark : You can select whether to displa y the angle mark appearing in the
upper right corner of the screen when you change the view angle while the DVD
or Blu-ray
TM * is playing. Select ON or OFF .
■Initial Settings
* Not available on all models
17 PILOT-31TG76100.book 334 ページ ２０１６年９月２０日　火曜日　午後４時９分

335
uuBlu-ray/DVD Rear Entertainment System*uPlaying a DVD/Blu-rayTM*
Features

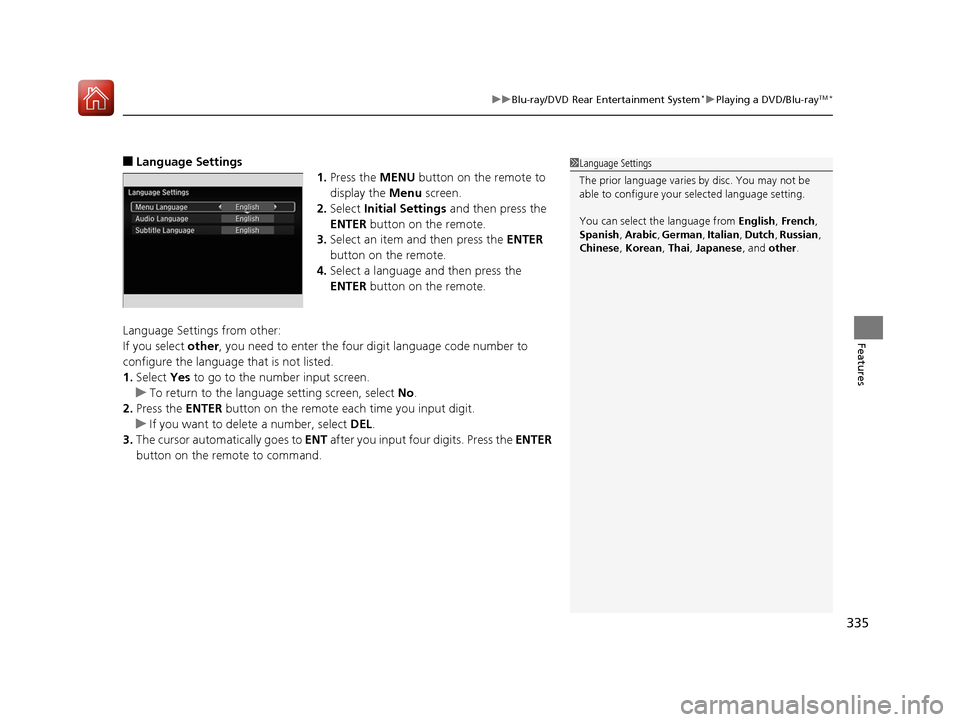

■Language Settings
1.Press the MENU button on the remote to
display the Menu screen.
2. Select Initial Settings and then press the
ENTER button on the remote.
3. Select an item and then press the ENTER
button on the remote.
4. Select a language and then press the
ENTER button on the remote.
Language Settings from other:
If you select other, you need to enter the four digit language code number to
configure the language that is not listed.
1. Select Yes to go to the number input screen.
u To return to the language setting screen, select No.
2. Press the ENTER button on the remote each time you input digit.
u If you want to delete a number, select DEL.
3. The cursor automatically goes to ENT after you input four digits. Press the ENTER
button on the remote to command.1 Language Settings
The prior language varies by disc. You may not be
able to configure your selected language setting.
You can select th e language from English, French ,
Spanish , Arabic , German , Italian , Dutch , Russian ,
Chinese , Korean , Thai, Japanese , and other .
17 PILOT-31TG76100.book 335 ページ ２０１６年９月２０日　火曜日　午後４時９分

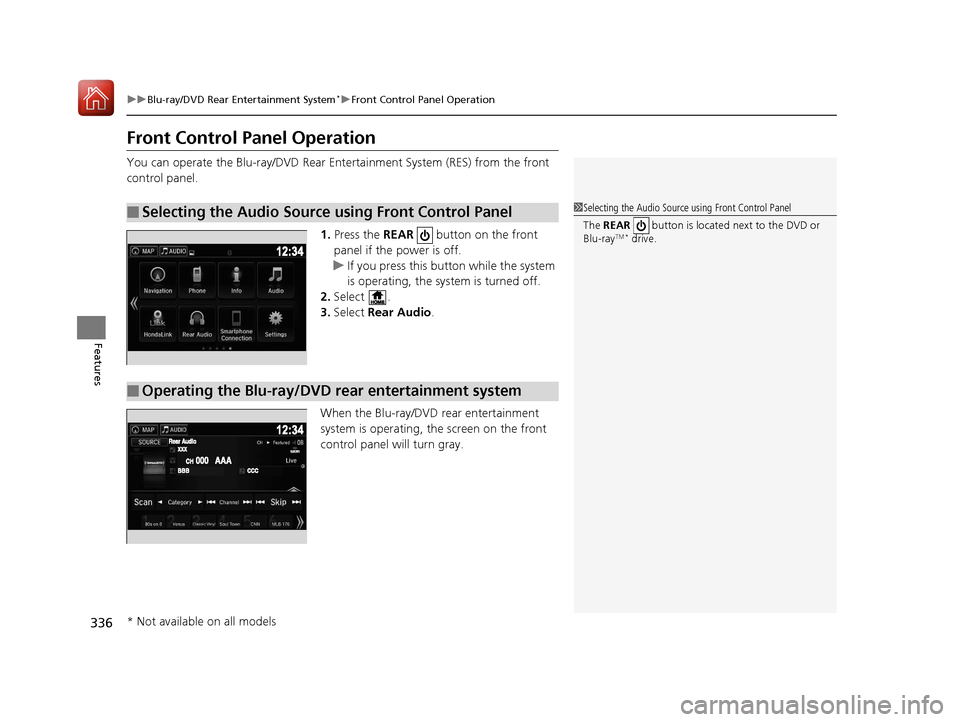

336
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features
Front Control Panel Operation
You can operate the Blu-ray/DVD Rear En tertainment System (RES) from the front
control panel.
1.Press the REAR button on the front
panel if the power is off.
u If you press this button while the system
is operating, the system is turned off.
2. Select .
3. Select Rear Audio .
When the Blu-ray/DVD rear entertainment
system is operating, the screen on the front
control panel will turn gray.
■Selecting the Audio Source using Front Control Panel1 Selecting the Audio Source using Front Control Panel
The REAR button is located next to the DVD or
Blu-ray
TM * drive.
■Operating the Blu-ray/DVD rear entertainment system
* Not available on all models
17 PILOT-31TG76100.book 336 ページ ２０１６年９月２０日　火曜日　午後４時９分

Continued337
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features

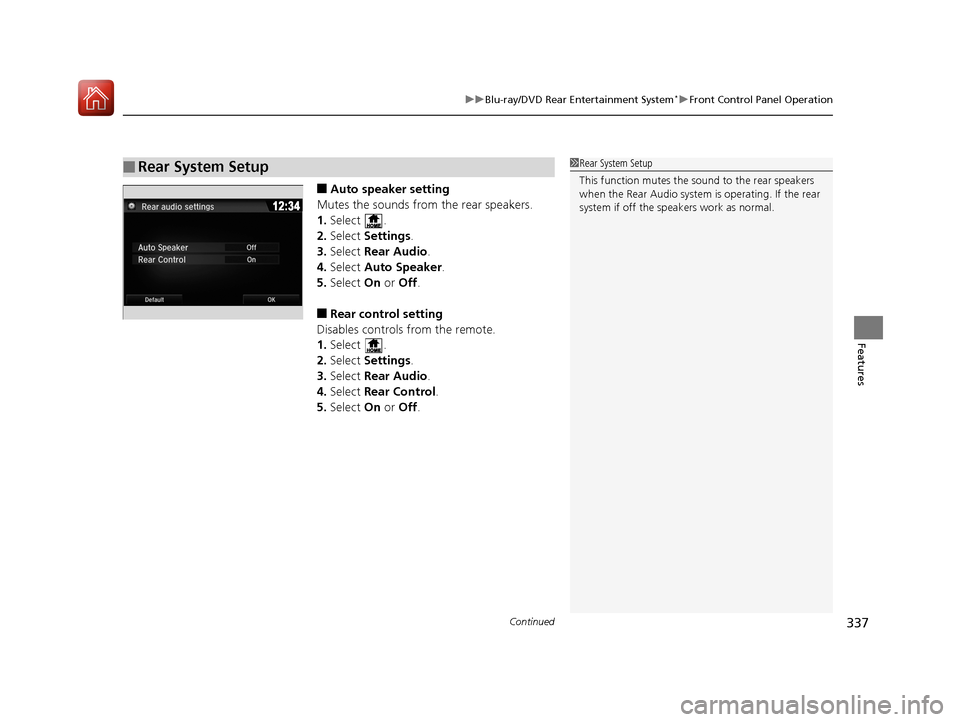

■Auto speaker setting
Mutes the sounds from the rear speakers.
1. Select .
2. Select Settings .
3. Select Rear Audio.
4. Select Auto Speaker .
5. Select On or Off .
■Rear control setting
Disables controls from the remote.
1. Select .
2. Select Settings .
3. Select Rear Audio.
4. Select Rear Control .
5. Select On or Off .
■Rear System Setup1Rear System Setup
This function mutes the sound to the rear speakers
when the Rear Audio system is operating. If the rear
system if off the speakers work as normal.
17 PILOT-31TG76100.book 337 ページ ２０１６年９月２０日　火曜日　午後４時９分

338
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features
Select while a DVD or Blu-rayTM * is
playing. u Select Other Functions to display
additional menu entries.

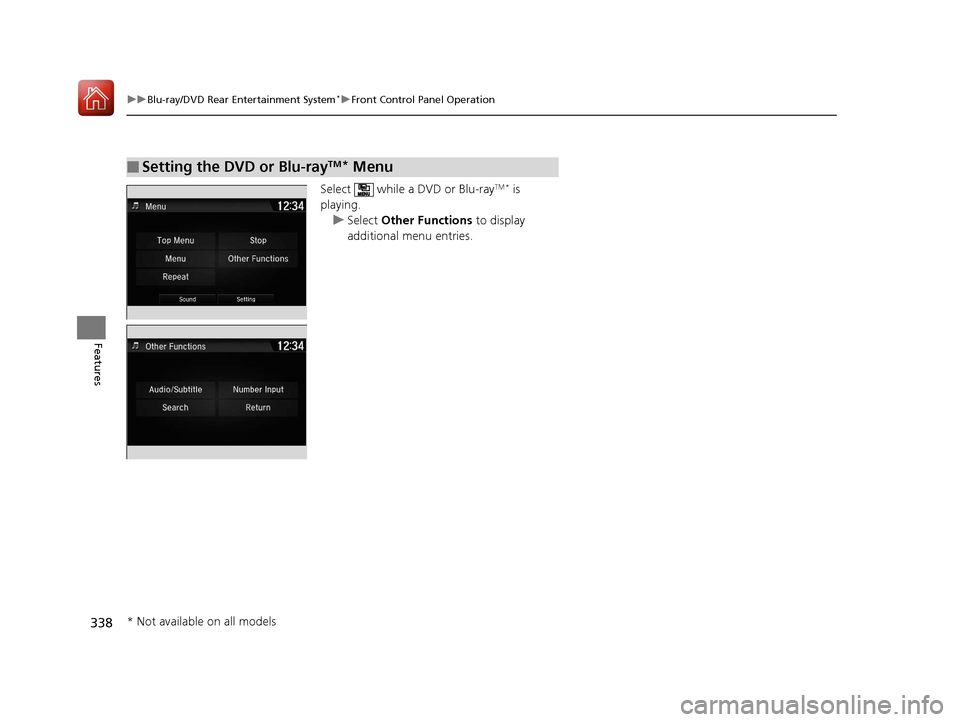

■Setting the DVD or Blu-rayTM* Menu
* Not available on all models
17 PILOT-31TG76100.book 338 ページ ２０１６年９月２０日　火曜日　午後４時９分

339
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features

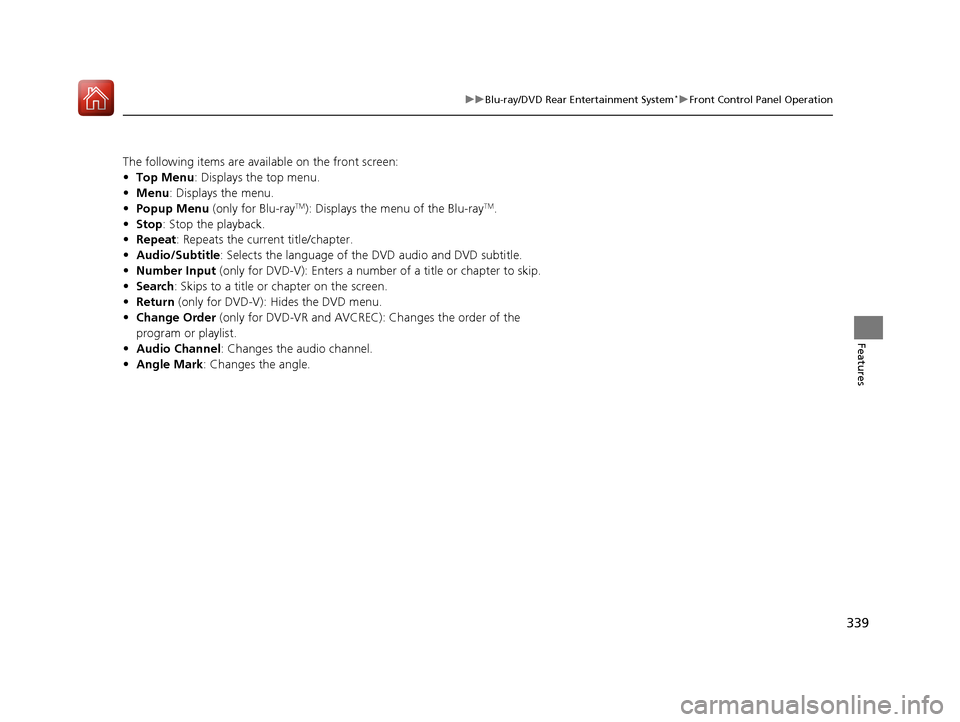

The following items are ava ilable on the front screen:
• Top Menu : Displays the top menu.
• Menu : Displays the menu.
• Popup Menu (only for Blu-ray
TM): Displays the menu of the Blu-rayTM.
• Stop : Stop the playback.
• Repeat : Repeats the current title/chapter.
• Audio/Subtitle: Selects the language of the DVD audio and DVD subtitle.
• Number Input (only for DVD-V): Enters a number of a title or chapter to skip.
• Search : Skips to a title or chapter on the screen.
• Return (only for DVD-V): Hides the DVD menu.
• Change Order (only for DVD-VR and AVCREC): Changes the order of the
program or playlist.
• Audio Channel: Changes the audio channel.
• Angle Mark : Changes the angle.
17 PILOT-31TG76100.book 339 ページ ２０１６年９月２０日　火曜日　午後４時９分
