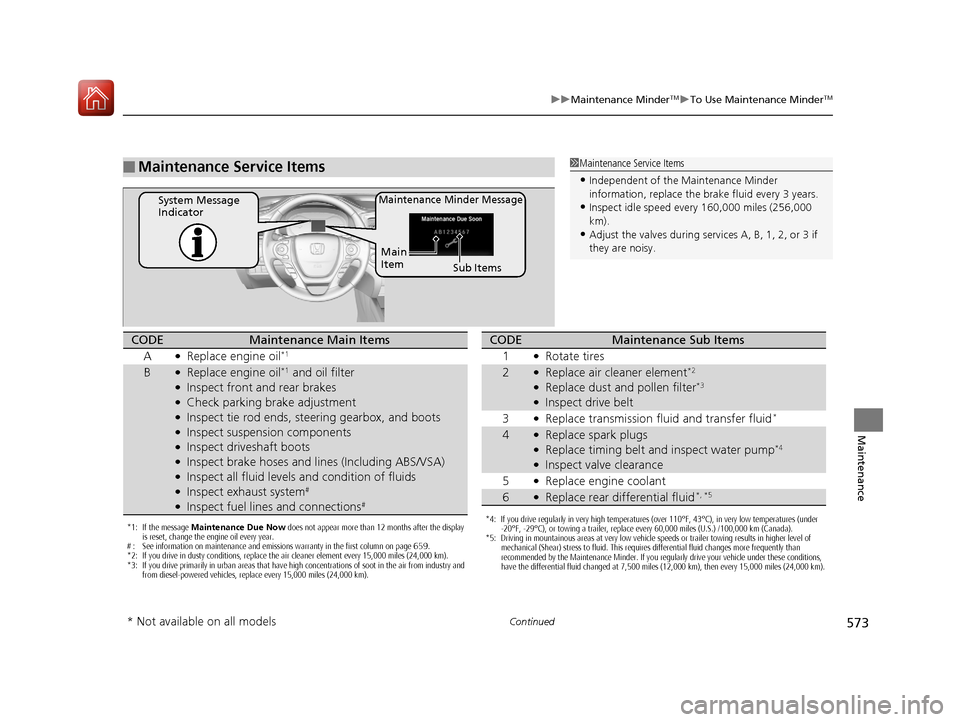

573
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub Items
Main
Item
*1: If the message
Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 659.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under
-20°F, -29°C), or towing a trailer, replace every 60,000 miles (U.S.) /100,000 km (Canada).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fl uid and transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *5
* Not available on all models
17 PILOT-31TG76100.book 573 ページ ２０１６年９月２０日　火曜日　午後４時９分

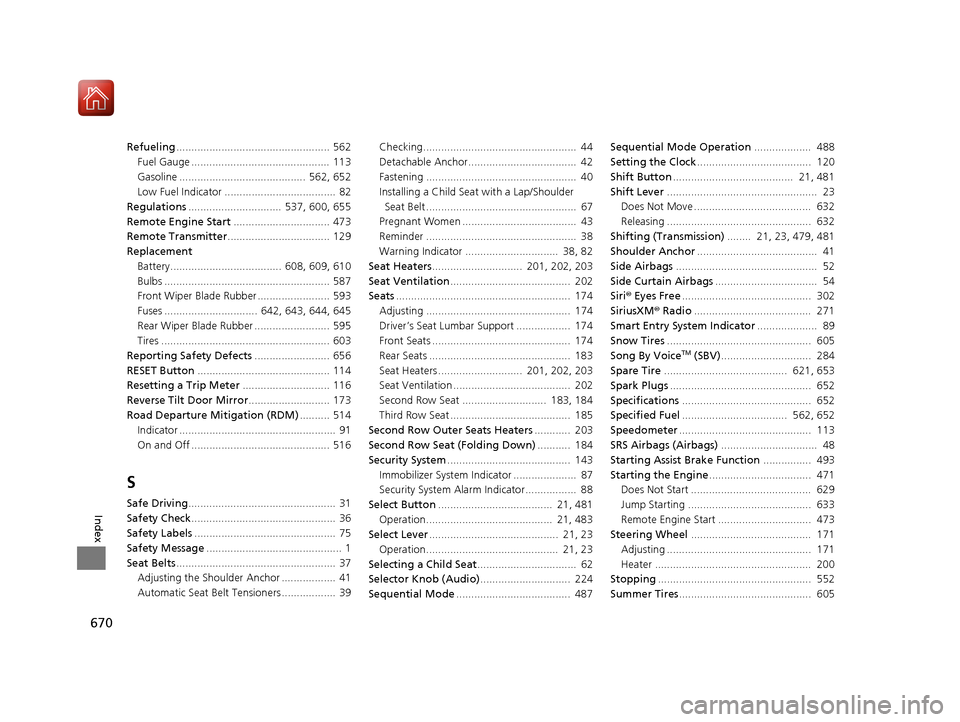

670
Index
Refueling................................................... 562
Fuel Gauge .............................................. 113
Gasoline .......................................... 562, 652
Low Fuel Indicator ..................................... 82
Regulations ............................... 537, 600, 655
Remote Engine Start ................................ 473
Remote Transmitter .................................. 129
Replacement
Battery..................................... 608, 609, 610
Bulbs ....................................................... 587
Front Wiper Blade Rubber ........................ 593
Fuses ............................... 642, 643, 644, 645
Rear Wiper Blade Rubber ......................... 595
Tires ........................................................ 603
Reporting Safety Defects ......................... 656
RESET Button ............................................ 114
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror ........................... 173
Road Departure Mitigation (RDM) .......... 514
Indicator .................................................... 91
On and Off .............................................. 516
S
Safe Driving ................................................. 31
Safety Check ................................................ 36
Safety Labels ............................................... 75
Safety Message ............................................. 1
Seat Belts ..................................................... 37
Adjusting the Shoulder Anchor .................. 41
Automatic Seat Belt Tensioners .................. 39 Checking................................................... 44
Detachable Anchor.................................... 42
Fastening .................................................. 40
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Pregnant Women ...................................... 43
Reminder .................................................. 38
Warning Indicator ............................... 38, 82
Seat Heaters .............................. 201, 202, 203
Seat Ventilation ........................................ 202
Seats .......................................................... 174
Adjusting ................................................ 174
Driver’s Seat Lumbar Support .................. 174
Front Seats .............................................. 174
Rear Seats ............................................... 183
Seat Heaters ............................ 201, 202, 203
Seat Ventilation ....................................... 202
Second Row Seat ............................ 183, 184
Third Row Seat ........................................ 185
Second Row Outer Seats Heaters ............ 203
Second Row Seat (Folding Down) ........... 184
Security System ......................................... 143
Immobilizer System Indicator ..................... 87
Security System Alarm Indicator................. 88
Select Button ...................................... 21, 481
Operation.......................................... 21, 483
Select Lever ........................................... 21, 23
Operation............................................ 21, 23
Selecting a Child Seat ................................. 62
Selector Knob (Audio) .............................. 224
Sequential Mode ...................................... 487 Sequential Mode Operation
................... 488
Setting the Clock ...................................... 120
Shift Button ........................................ 21, 481
Shift Lever .................................................. 23
Does Not Move ....................................... 632
Releasing ................................................ 632
Shifting (Transmission) ........ 21, 23, 479, 481
Shoulder Anchor ........................................ 41
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
Siri ® Eyes Free ........................................... 302
SiriusXM ® Radio ....................................... 271
Smart Entry System Indicator .................... 89
Snow Tires ................................................ 605
Song By Voice
TM (SBV) .............................. 284
Spare Tire ......................................... 621, 653
Spark Plugs ............................................... 652
Specifications ........................................... 652
Specified Fuel ................................... 562, 652
Speedometer ............................................ 113
SRS Airbags (Airbags) ................................ 48
Starting Assist Brake Function ................ 493
Starting the Engine .................................. 471
Does Not Start ........................................ 629
Jump Starting ......................................... 633
Remote Engine Start ............................... 473
Steering Wheel ........................................ 171
Adjusting ................................................ 171
Heater .................................................... 200
Stopping ................................................... 552
Summer Tires ............................................ 605
17 PILOT-31TG76100.book 670 ページ ２０１６年９月２０日　火曜日　午後４時９分
