HONDA PILOT 2018 Owner's Manual (in English)

Continued459
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

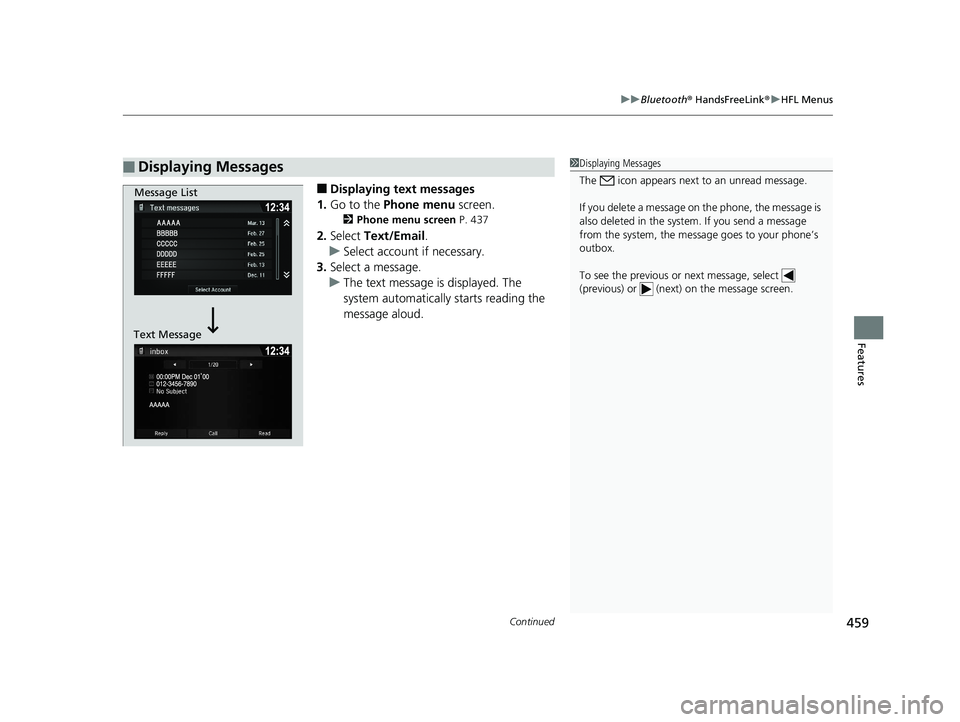

■Displaying text messages
1. Go to the Phone menu screen.
2Phone menu screen P. 437
2.Select Text/Email .
u Select account if necessary.
3. Select a message.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, select
(previous) or (next) on the message screen.
Message List
Text Message
18 PILOT-31TG76200.book 459 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

460
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

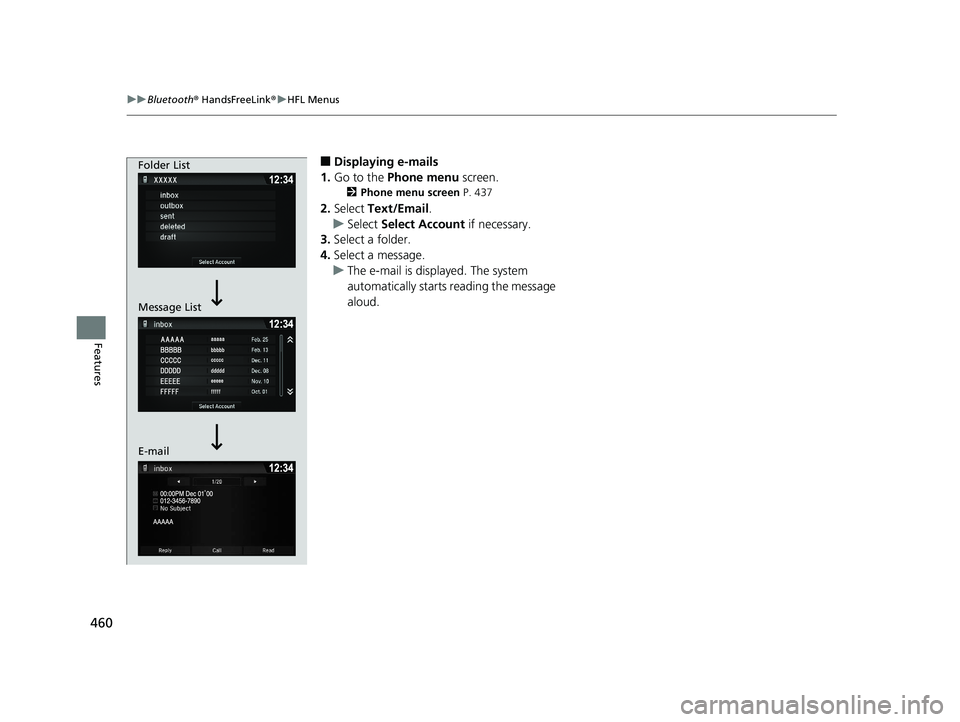

■Displaying e-mails
1. Go to the Phone menu screen.
2Phone menu screen P. 437
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail is displayed. The system
automatically starts reading the message
aloud.
Folder List
Message List
E-mail
18 PILOT-31TG76200.book 460 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

Continued461
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

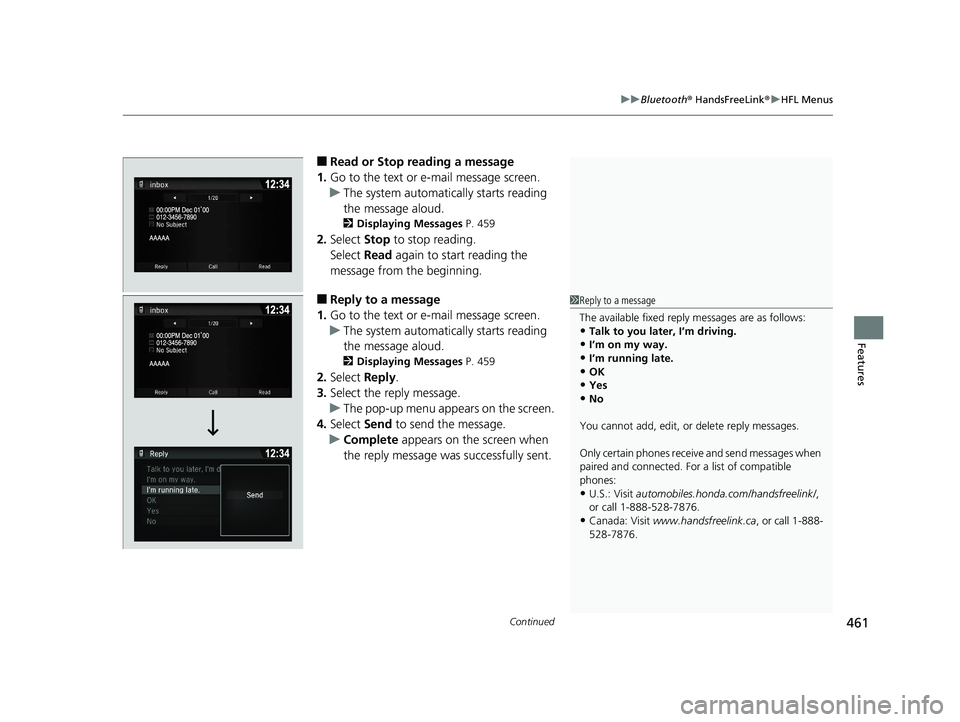

■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 459
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 459
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit automobiles.honda.com /handsfreelink/,
or call 1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
18 PILOT-31TG76200.book 461 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

462
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

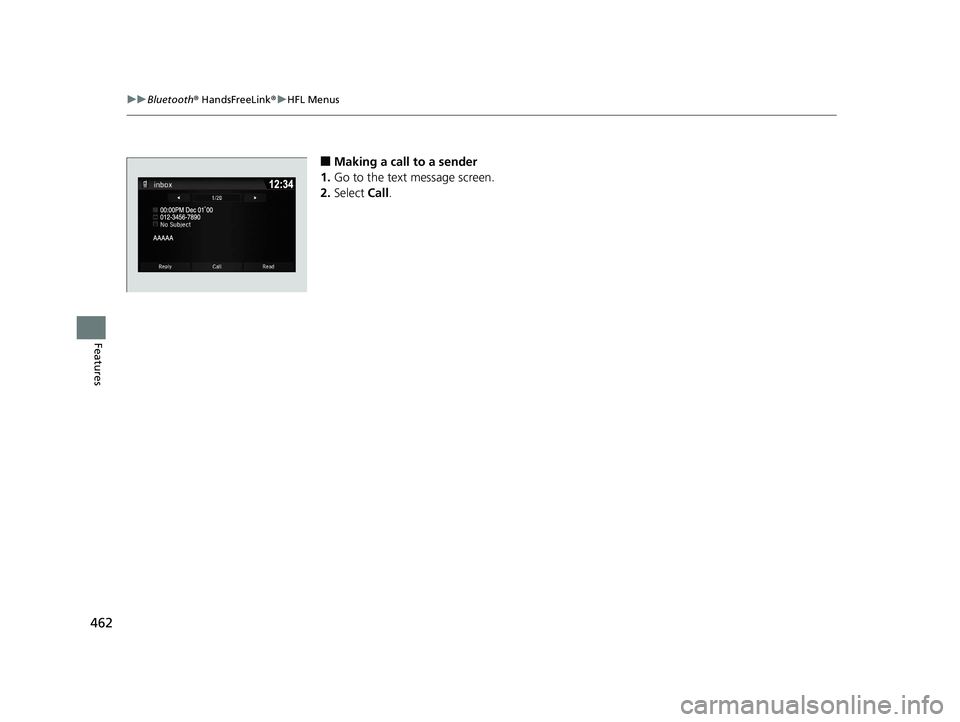

■Making a call to a sender
1. Go to the text message screen.
2. Select Call.
18 PILOT-31TG76200.book 462 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

Continued463
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

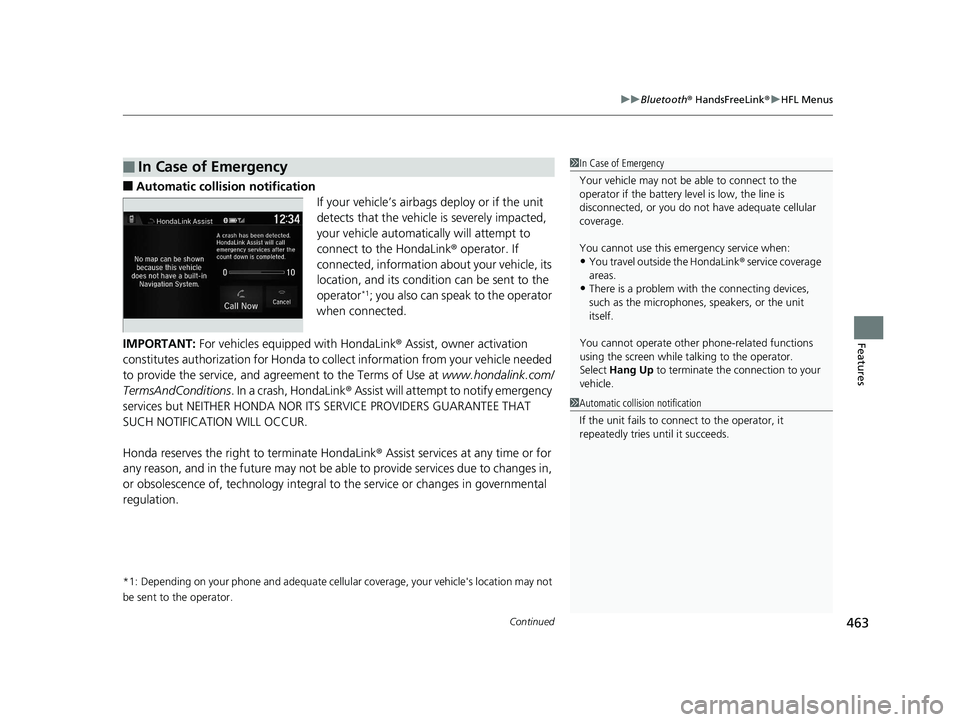

■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink ® operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with HondaLink ® Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink ® Assist will attempt to notify emergency
services but NEITHER HONDA NOR I TS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink ® Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and adequate cellul ar coverage, your vehicle's location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink ® service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
18 PILOT-31TG76200.book 463 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

uuBluetooth ® HandsFreeLink ®u HFL Menus
464
Features

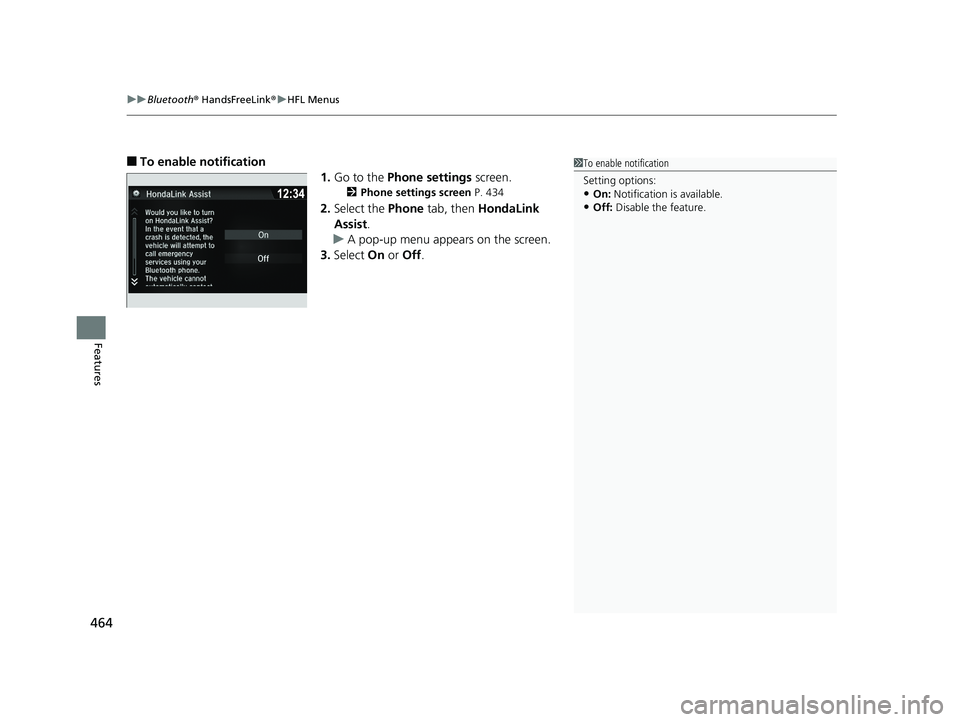

■To enable notification
1.Go to the Phone settings screen.
2Phone settings screen P. 434
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
18 PILOT-31TG76200.book 464 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

465
Features
Compass*
When you set the power mode to ON, the compass self-calibrates, and the compass
display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system. 1.Set the power mode to ON.
2. On the top screen of any audio source,
press and hold for five seconds.
u The display swit ches to the Compass
settings screen.
3. Select Calibration .
4. Select Calibration Start .
5. Drive the vehicle slow ly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations•Crossing a bridge
•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
Models without navigation system
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass, select to cancel the
setting mode and return to the previous screen.
Models with navigation self -calibrate using GPS. The
compass in the MID and the direction arrow on the
map screen (when Track Up view selected) may not
be in sync when first starting the vehicle, but should
correct themselves as you drive.
If the compass in the MID continues to indicate an
incorrect direction, please see your Honda dealer.
Models with navigation system
* Not available on all models
18 PILOT-31TG76200.book 465 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

466
uuCompass*uCompass Zone Selection
Features

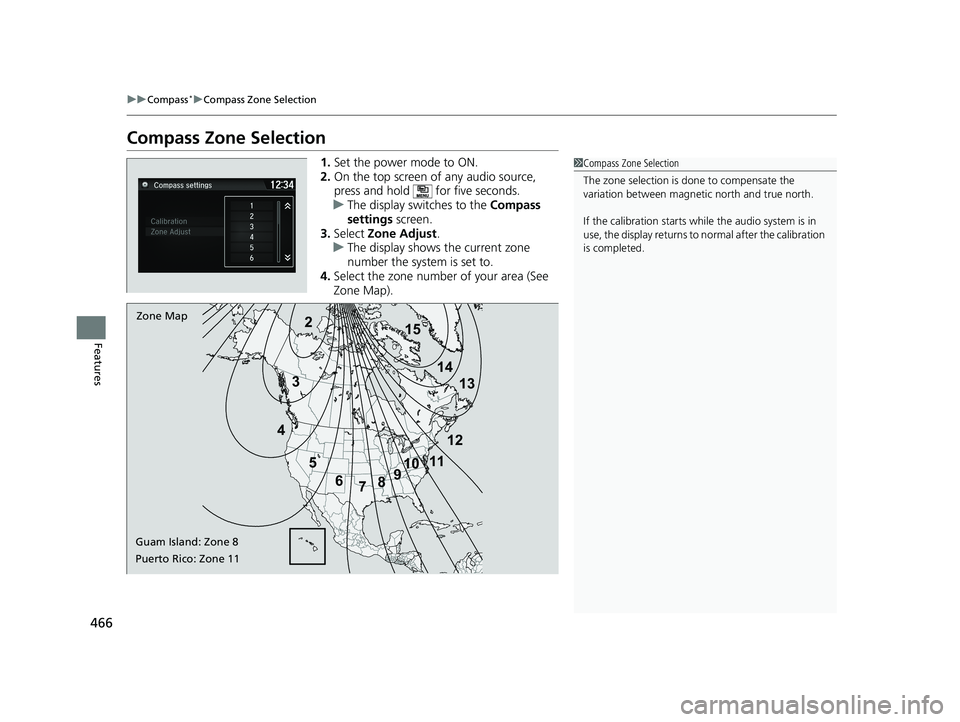

Compass Zone Selection
1. Set the power mode to ON.
2. On the top screen of any audio source,
press and hold for five seconds.
u The display switches to the Compass
settings screen.
3. Select Zone Adjust .
u The display shows the current zone
number the system is set to.
4. Select the zone number of your area (See
Zone Map).1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
2
3
4 5678910
111213
14
15Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
18 PILOT-31TG76200.book 466 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

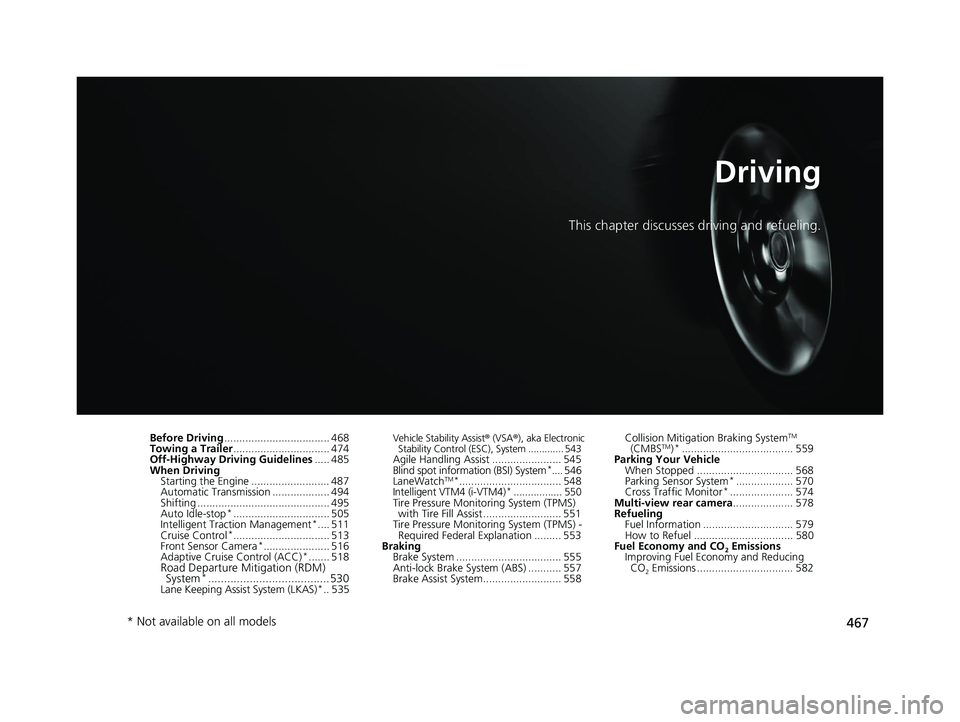

467
Driving
This chapter discusses driving and refueling.
Before Driving................................... 468
Towing a Trailer ................................ 474
Off-Highway Driving Guidelines ..... 485
When Driving Starting the Engine .......................... 487
Automatic Transmission ................... 494
Shifting ............................................ 495
Auto Idle-stop
*................................ 505
Intelligent Traction Management*.... 511
Cruise Control*................................ 513
Front Sensor Camera*...................... 516
Adaptive Cruise Control (ACC)*....... 518Road Departure Mi tigation (RDM)
System*...................................... 530Lane Keeping Assist System (LKAS)*.. 535
Vehicle Stability Assist ® (VSA ®), aka Electronic
Stability Control (ESC), System ............. 543
Agile Handling Assist ....................... 545
Blind spot inform ation (BSI) System*.... 546
LaneWatchTM*.................................. 548Intelligent VTM4 (i-VTM4)*................. 550Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 551
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 553
Braking Brake System ................................... 555
Anti-lock Brake System (ABS) ........... 557
Brake Assist System.......................... 558 Collision Mitigation Braking System
TM
(CMBSTM)*..................................... 559
Parking Your Vehicle
When Stopped ................................ 568
Parking Sensor System
*................... 570
Cross Traffic Monitor*..................... 574
Multi-view rear camera .................... 578
Refueling Fuel Information .............................. 579
How to Refuel ................................. 580
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing
CO
2 Emissions ................................ 582
* Not available on all models
18 PILOT-31TG76200.book 467 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

468
Driving

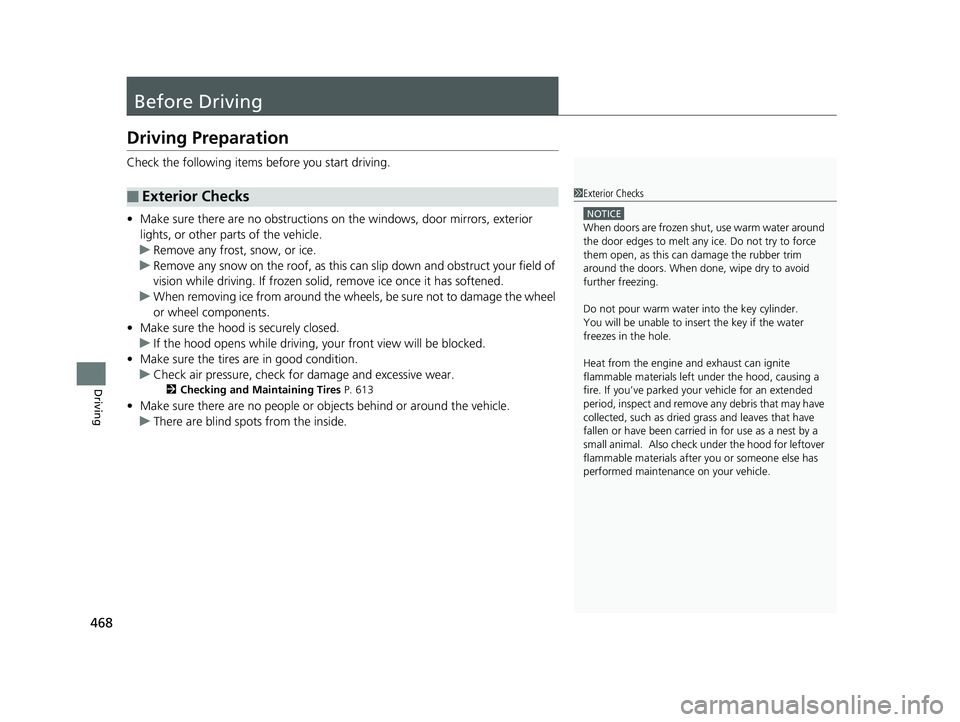

Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on th e windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheel s, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressure, check for damage and excessive wear.
2 Checking and Maintaining Tires P. 613
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
18 PILOT-31TG76200.book 468 ページ ２０１８年３月３０日　金曜日　午前１１時５１分
