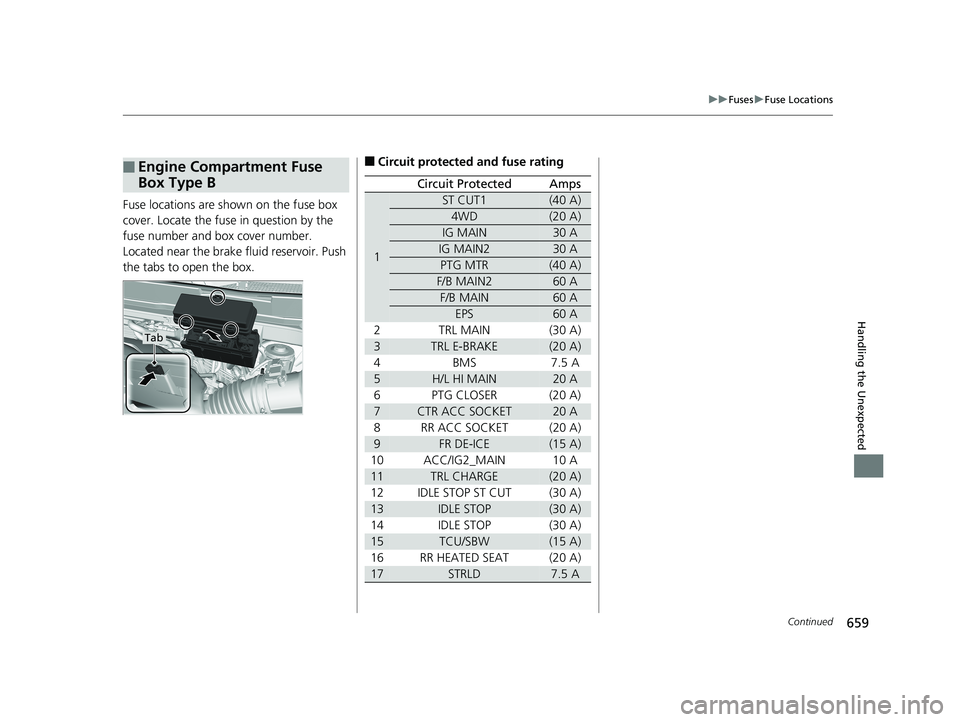

HONDA PILOT 2018 Owner's Manual (in English)

659
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
ST CUT1(40 A)
4WD(20 A)
IG MAIN30 A
IG MAIN230 A
PTG MTR(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRL MAIN(30 A)
3TRL E-BRAKE(20 A)
4 BMS 7.5 A
5H/L HI MAIN20 A
6 PTG CLOSER (20 A)
7CTR ACC SOCKET20 A
8 RR ACC SOCKET (20 A)
9FR DE-ICE(15 A)
10 ACC/IG2_MAIN 10 A
11TRL CHARGE(20 A)
12IDLE STOP ST CUT(30 A)
13IDLE STOP(30 A)
14IDLE STOP(30 A)
15TCU/SBW(15 A)
16RR HEATED SEAT(20 A)
17STRLD7.5 A
18 PILOT-31TG76200.book 659 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

660
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DR P/W20 A
2DOOR LOCK20 A
3SMART7.5 A
4AS P/W20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9IG1 SMART*17.5 A
ABS/VSA*27.5 A
10SRS10 A
11REAR LEFT P/W20 A
12−−
13REAR RIGHT P/W20 A
14FUEL LID20 A
15DR P/SEAT (REC)(20 A)
16REAR FOG(7.5 A)
17FR SEAT HEATER(20 A)
18INTR LT7.5 A
19DR REAR DOOR UNLOCK10 A
20AS SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
*1:Models with Auto idle-stop system
*2:Models without Auto idle-stop system
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT*17.5 A
METER*27.5 A
30REAR WIPER10 A
31ST MOTOR*17.5 A
MISS SOL*27.5 A
32SRS7.5 A
33AS SIDE DOOR LOCK10 A
34DR DOOR LOCK10 A
35DR DOOR UNLOCK10 A
36DR P/SEAT (SLIDE)(20 A)
37RIGHT H/L HI10 A
38LEFT H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DR REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps
18 PILOT-31TG76200.book 660 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

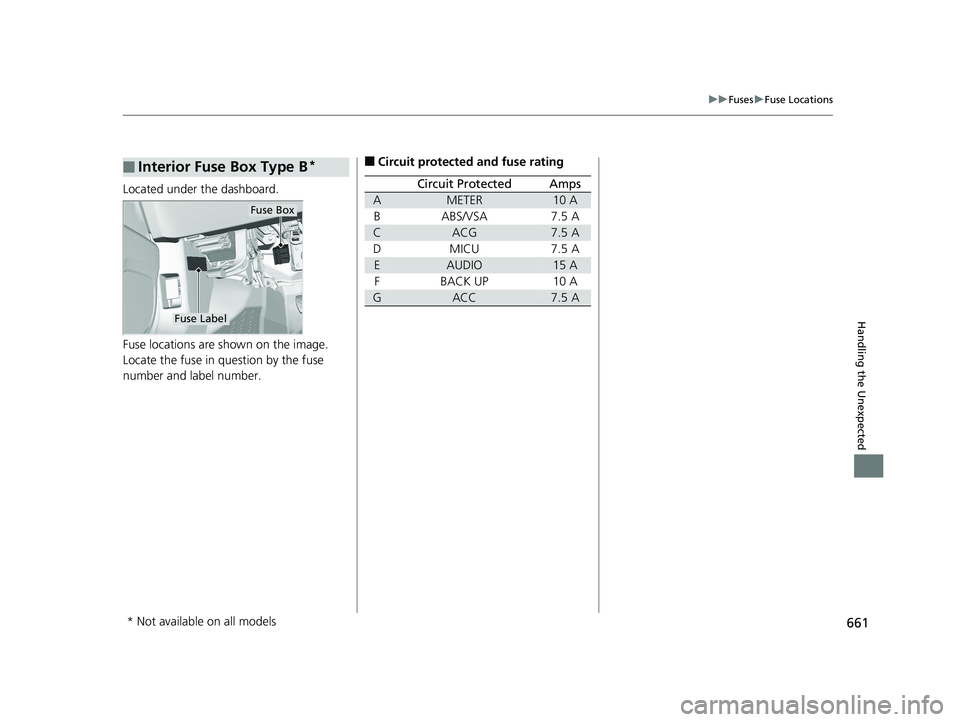

661
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type B*
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
AMETER10 A
BABS/VSA7.5 A
CACG7.5 A
DMICU7.5 A
EAUDIO15 A
FBACK UP10 A
GACC7.5 A
* Not available on all models
18 PILOT-31TG76200.book 661 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

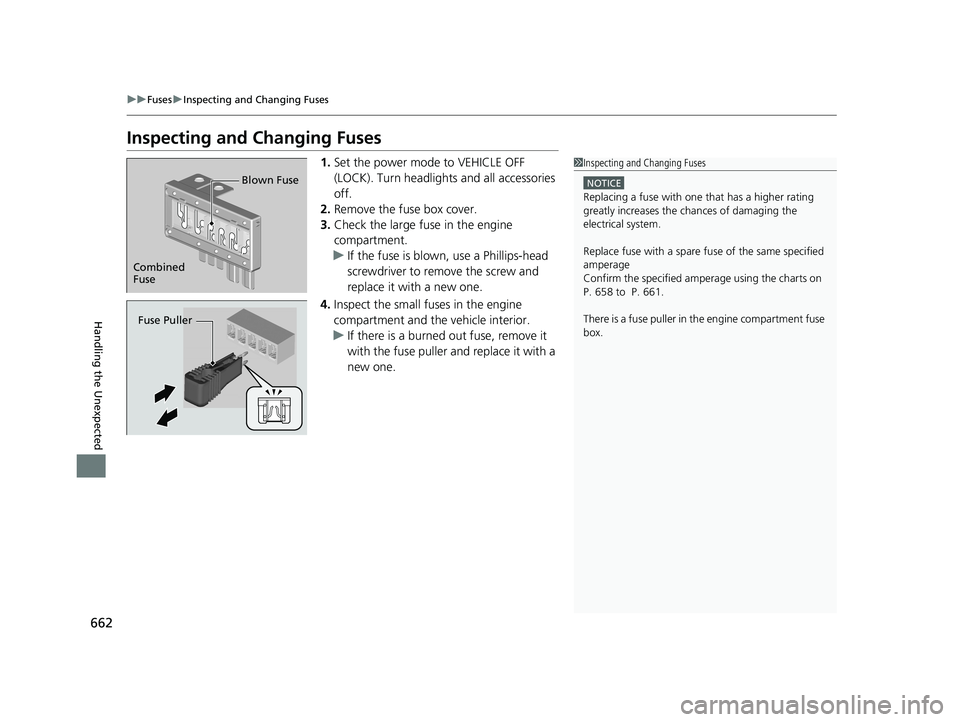

662
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 658 to P. 661.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
18 PILOT-31TG76200.book 662 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

663
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
All models
2WD models
18 PILOT-31TG76200.book 663 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

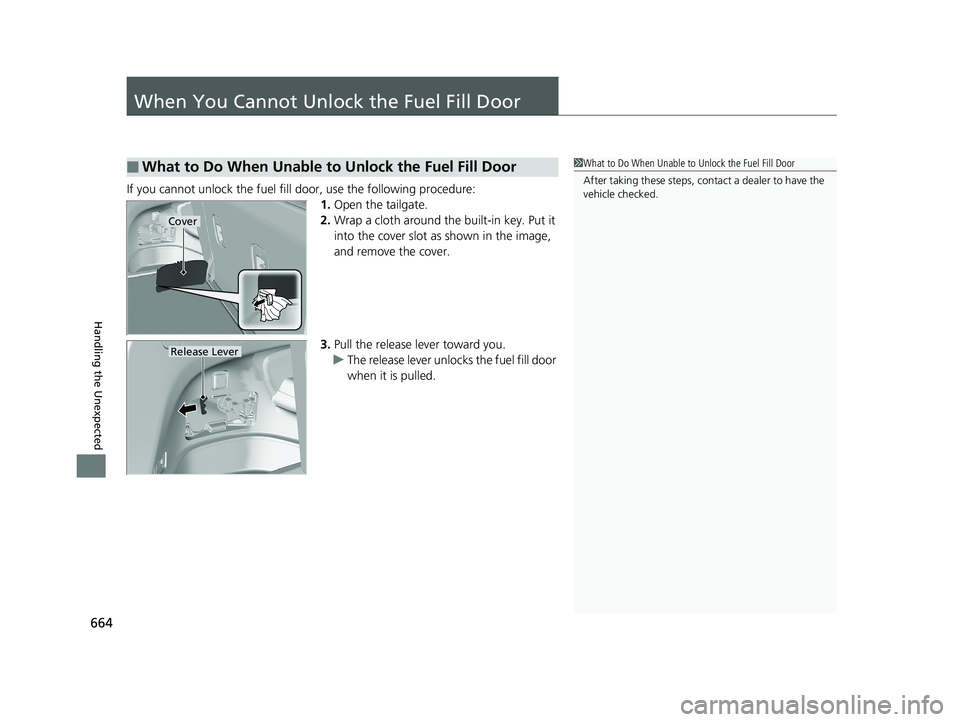

664
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:1.Open the tailgate.
2. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
3. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
18 PILOT-31TG76200.book 664 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

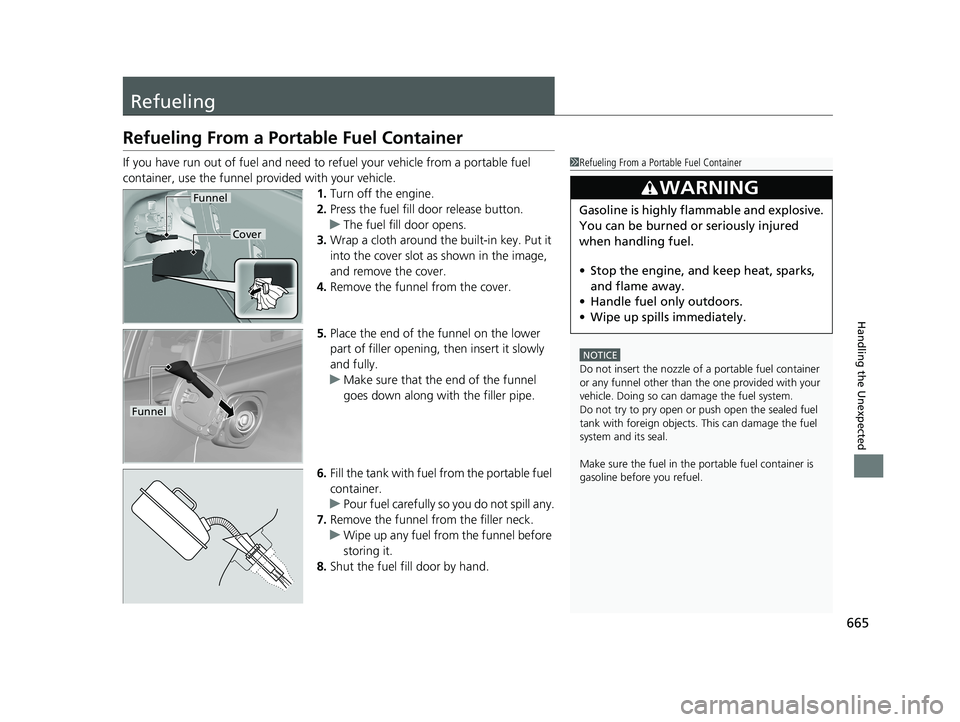

665
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
4. Remove the funnel from the cover.
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
Cover
Funnel
18 PILOT-31TG76200.book 665 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

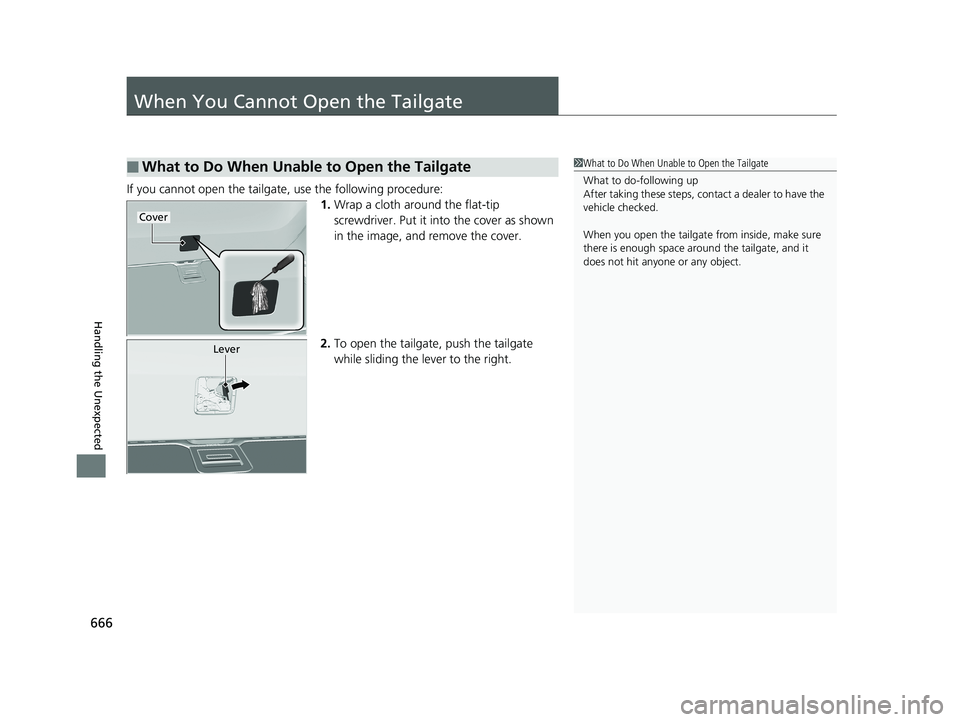

666
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure:1.Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover as shown
in the image, and remove the cover.
2. To open the tailgate, push the tailgate
while sliding the le ver to the right.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-following up
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
18 PILOT-31TG76200.book 666 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

667
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 668
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 670
Devices that Emit Radio Waves ....... 671
Reporting Safety Defects ................. 672Emissions Testing
Testing of Readiness Codes.............. 673
Warranty Coverages ........................ 675
Authorized Manuals ......................... 677
Customer Service Information ......... 678
18 PILOT-31TG76200.book 667 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

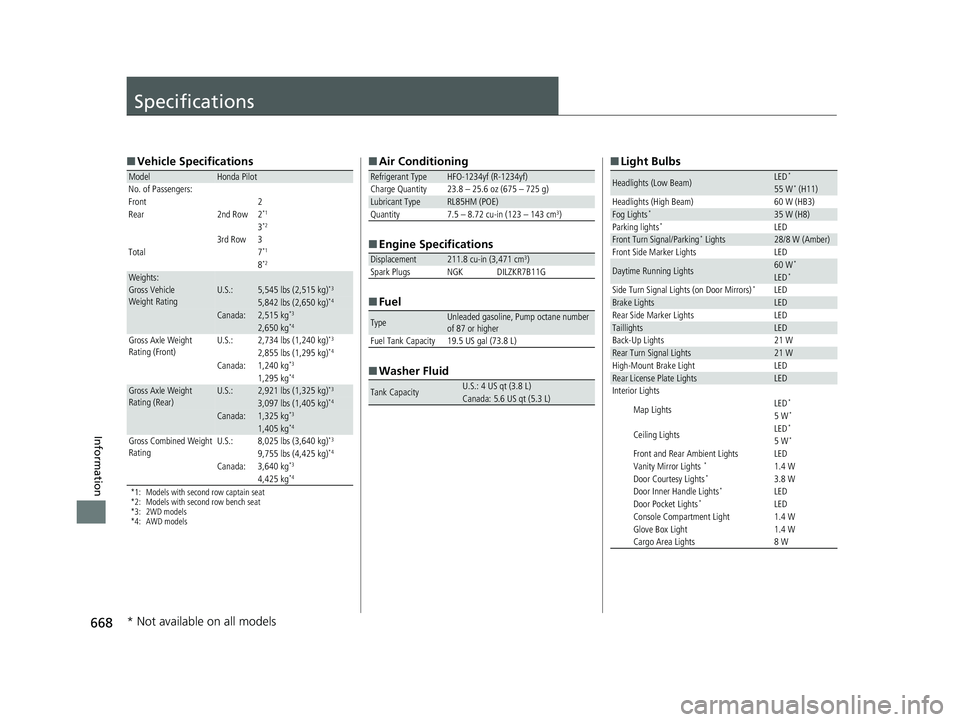

668
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
*3: 2WD models
*4: AWD models
ModelHonda Pilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingU.S.:5,545 lbs (2,515 kg)*3
5,842 lbs (2,650 kg)*4
Canada:2,515 kg*3
2,650 kg*4
Gross Axle Weight
Rating (Front)U.S.:2,734 lbs (1,240 kg)*3
2,855 lbs (1,295 kg)*4
Canada:1,240 kg*3
1,295 kg*4
Gross Axle Weight
Rating (Rear)U.S.:2,921 lbs (1,325 kg)*3
3,097 lbs (1,405 kg)*4
Canada:1,325 kg*3
1,405 kg*4
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*3
9,755 lbs (4,425 kg)*4
Canada:3,640 kg*3
4,425 kg*4
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 23.8 – 25.6 oz (675 – 725 g)
Lubricant TypeRL85HM (POE)
Quantity 7.5 – 8.72 cu-in (123 – 143 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
Headlights (Low Beam)LED*
55 W* (H11)Headlights (High Beam)60 W (HB3)Fog Lights*35 W (H8)Parking lights*LEDFront Turn Signal/Parking* Lights28/8 W (Amber)Front Side Marker LightsLED
Daytime Running Lights60 W*
LED*
Side Turn Signal Lights (on Door Mirrors)*LEDBrake LightsLED
Rear Side Marker Lights LED
TaillightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate LightsLEDInterior Lights
Map LightsLED*
5 W*
Ceiling LightsLED*
5 W*
Front and Rear Ambient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
