HONDA PILOT 2019 Owner's Manual (in English)

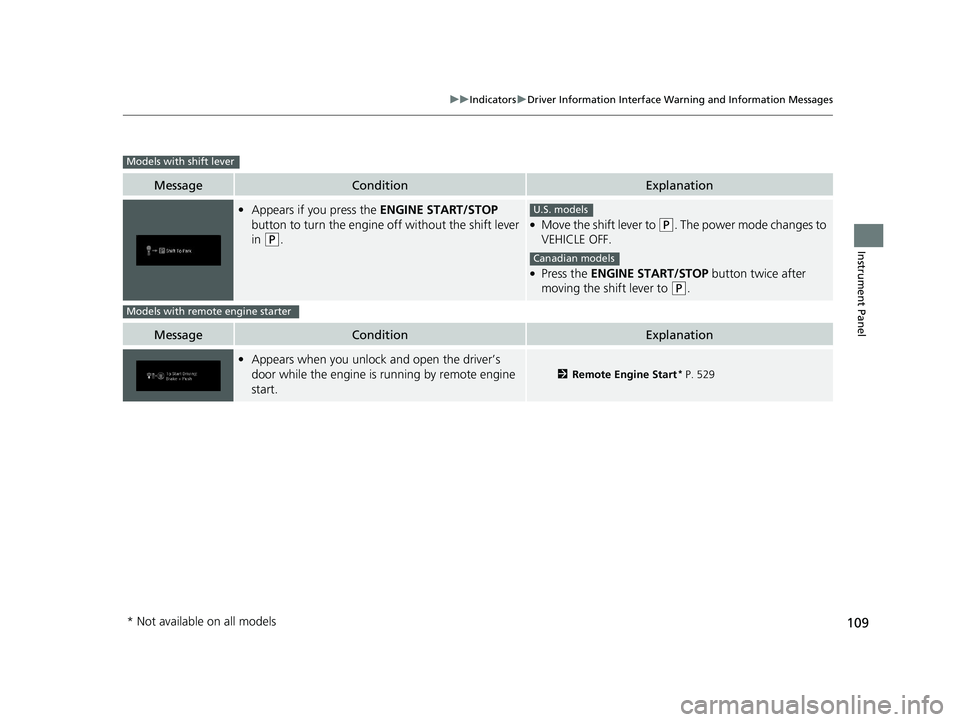

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
MessageConditionExplanation
• Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2 Remote Engine Start* P. 529
Models with shift lever
U.S. models
Canadian models
Models with remote engine starter
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 109 ページ ２０１９年３月１５日　金曜日　午後６時８分

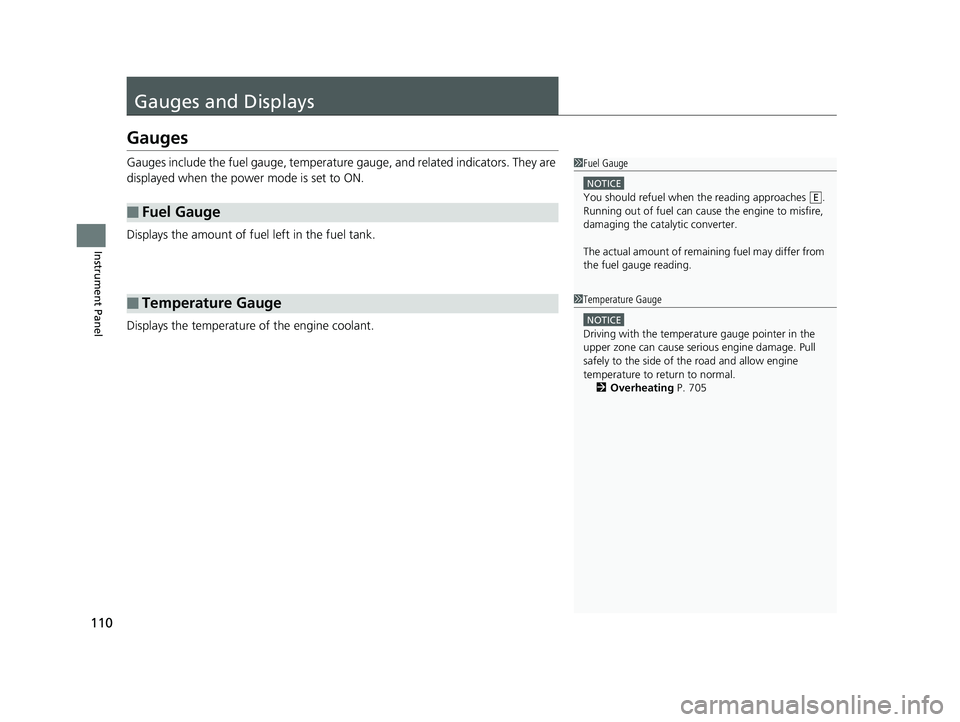

110
Instrument Panel
Gauges and Displays
Gauges
Gauges include the fuel gauge, temperature gauge, and related indicators. They are
displayed when the power mode is set to ON.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 705
19 PILOT HMA ELP-31TG76310.book 110 ページ ２０１９年３月１５日　金曜日　午後６時８分

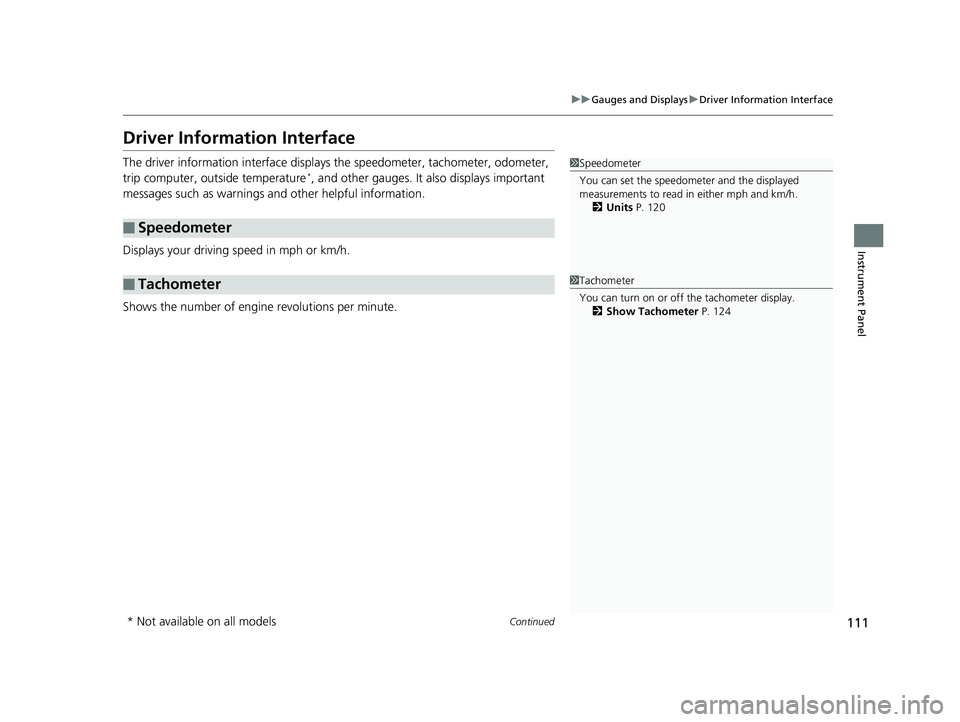

111
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Driver Information Interface
The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature*, and other gauges. It also displays important
messages such as warnings and other helpful information.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Speedometer
■Tachometer
1 Speedometer
You can set the speedometer and the displayed
measurements to read in either mph and km/h.
2 Units P. 120
1Tachometer
You can turn on or off the tachometer display.
2 Show Tachometer P. 124
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 111 ページ ２０１９年３月１５日　金曜日　午後６時８分

uuGauges and Displays uDriver Information Interface
112
Instrument Panel
Shows the total number of miles or kilometers
that your vehicle has accumulated.
Shows the outside temperature in Fahrenheit
(U.S.) or Celsius (Canada).
Adjusting the outs ide temperature
display
Adjust the temperature reading by up to ±5°F
or ±3°C if the temperature reading seems
incorrect.
Use the driver information interface
* or audio/
information screen* to correct the
temperature.
2 Vehicle Customization P. 125
2 Customized Features P. 432
■Odometer
Odometer
■Outside Temperature*1Outside Temperature*
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Outside Temperature
Models with color audio system
Models with Display Audio
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 112 ページ ２０１９年３月１５日　金曜日　午後６時８分

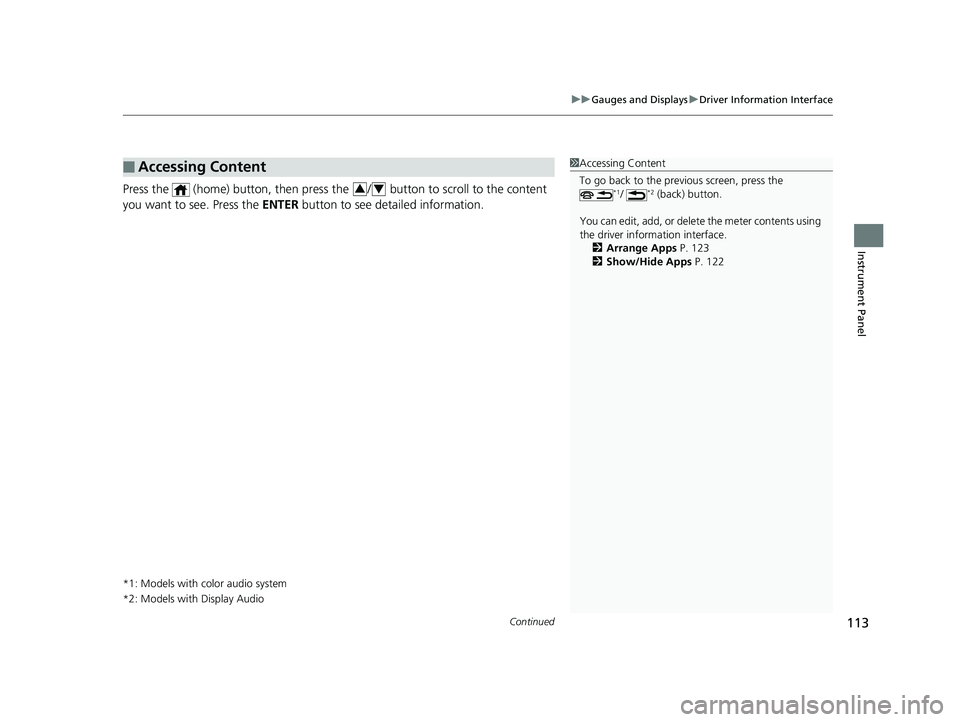

Continued113
uuGauges and Displays uDriver Information Interface
Instrument Panel
Press the (home) button, then press the / button to scroll to the content
you want to see. Press the ENTER button to see detailed information.
*1: Models with color audio system
*2: Models with Display Audio
■Accessing Content1Accessing Content
To go back to the previous screen, press the
*1/ *2 (back) button.
You can edit, add, or delete the meter contents using
the driver information interface. 2 Arrange Apps P. 123
2 Show/Hide Apps P. 12234
19 PILOT HMA ELP-31TG76310.book 113 ページ ２０１９年３月１５日　金曜日　午後６時８分

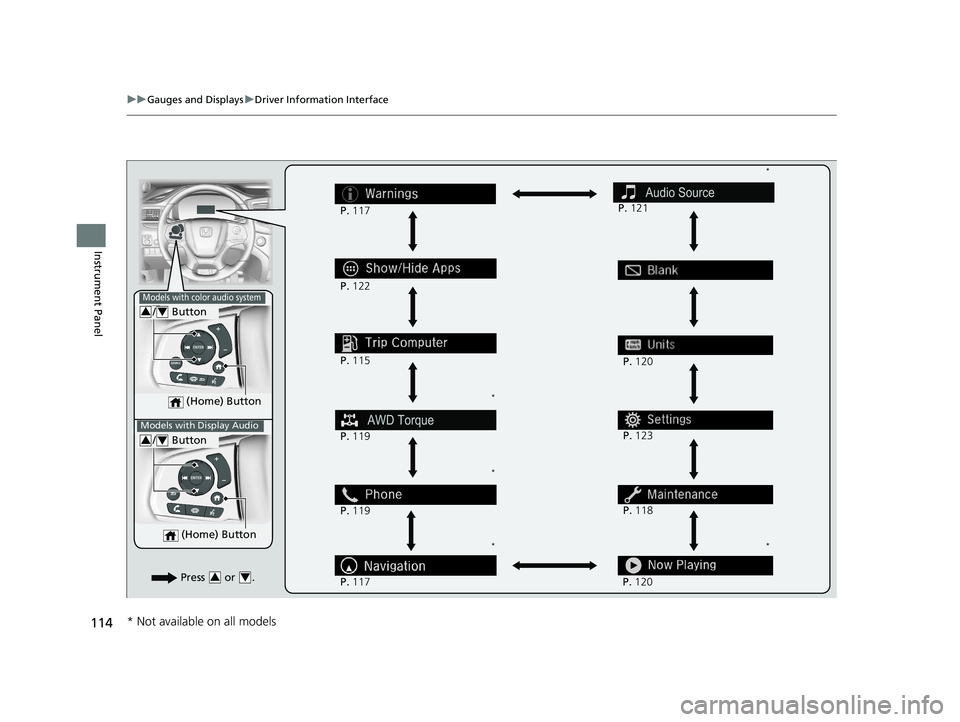

114
uuGauges and Displays uDriver Information Interface
Instrument Panel
(Home) Button
/ Button34
*
*
Press or .34
P. 117
P. 122
P. 115
P. 119
P. 117 P.
120
P. 123
P. 118
P. 120
Models with color audio system
Models with Display Audio
(Home) Button
/ Button34
P. 121
* *
P.
119
*
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 114 ページ ２０１９年３月１５日　金曜日　午後６時８分

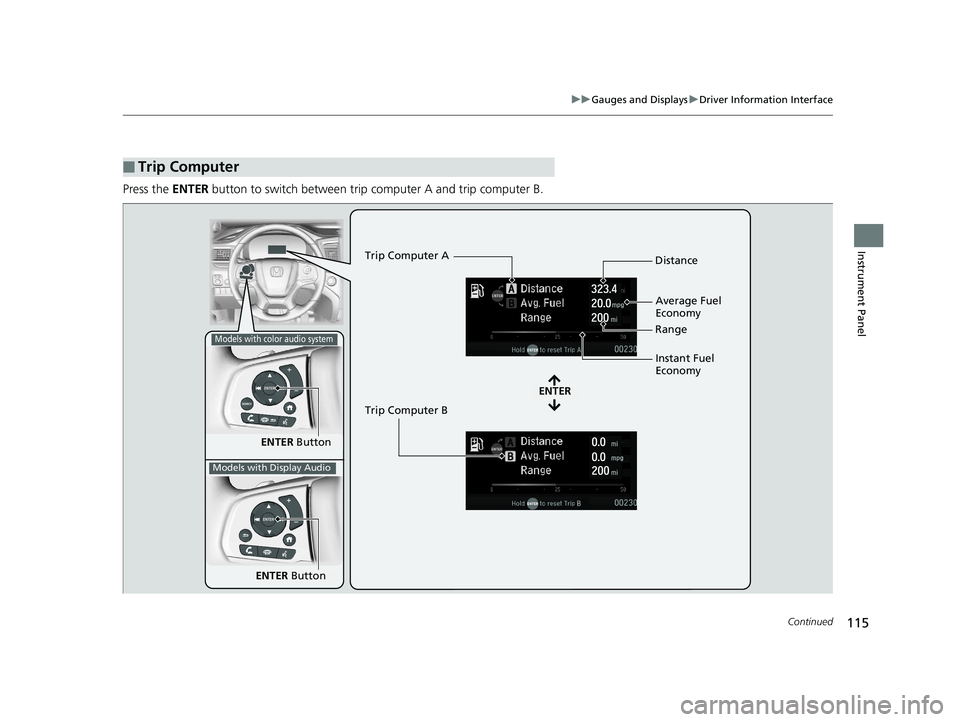

115
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
Press the ENTER button to switch between trip computer A and trip computer B.
■Trip Computer
ENTER Button
ENTER
Trip Computer A
Trip Computer B Distance
Range
Average Fuel
Economy
Instant Fuel
Economy
Models with color audio system
Models with Display Audio
ENTER
Button
19 PILOT HMA ELP-31TG76310.book 115 ページ ２０１９年３月１５日　金曜日　午後６時８分

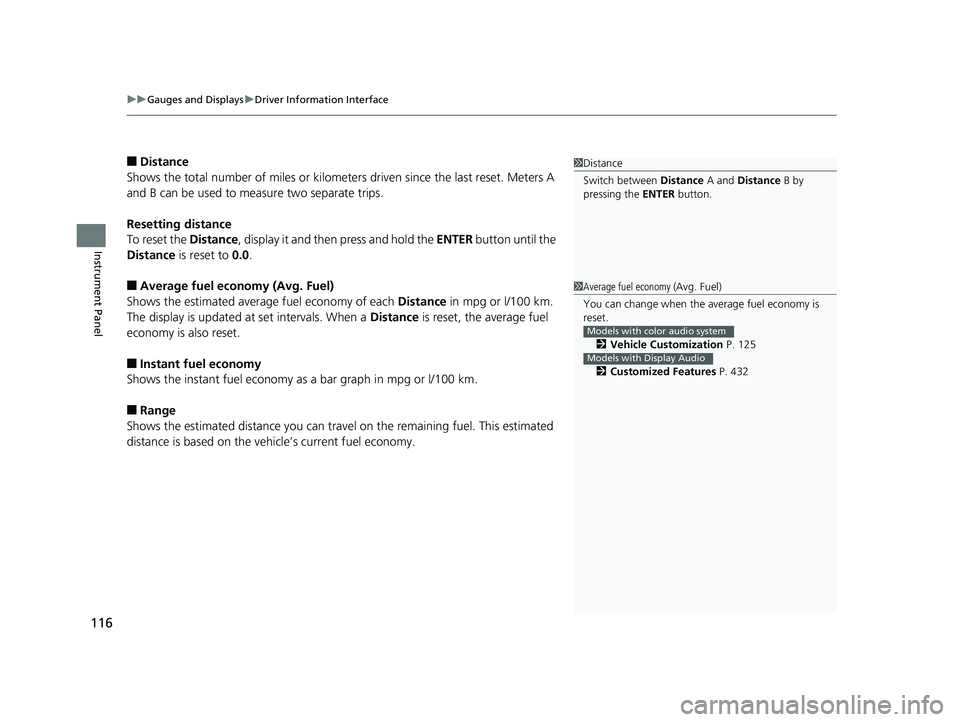

uuGauges and Displays uDriver Information Interface
116
Instrument Panel
■Distance
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting distance
To reset the Distance , display it and then press and hold the ENTER button until the
Distance is reset to 0.0.
■Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each Distance in mpg or l/100 km.
The display is updated at set intervals. When a Distance is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle’s current fuel economy.
1Distance
Switch between Distance A and Distance B by
pressing the ENTER button.
1Average fuel economy ( Avg. Fuel)
You can change when the average fuel economy is
reset.
2 Vehicle Customization P. 125
2 Customized Features P. 432
Models with color audio system
Models with Display Audio
19 PILOT HMA ELP-31TG76310.book 116 ページ ２０１９年３月１５日　金曜日　午後６時８分

Continued117
uuGauges and Displays uDriver Information Interface
Instrument Panel
Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface.
2 Refer to the navigation system
2 Driver Information Interface Warning and
Information Messages P. 96
■Navigation1Navigation
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto
TM.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 432
Models with Display Audio
Compass
Turn-By-Turn Driving Directions
Models with Display Audio
Models with navigation system
■Warnings1Warnings
The Warnings app is dynamic a nd will only appear
when there are active warnings. If there are no
Warnings, this app will not be shown.
(Example)
19 PILOT HMA ELP-31TG76310.book 117 ページ ２０１９年３月１５日　金曜日　午後６時８分

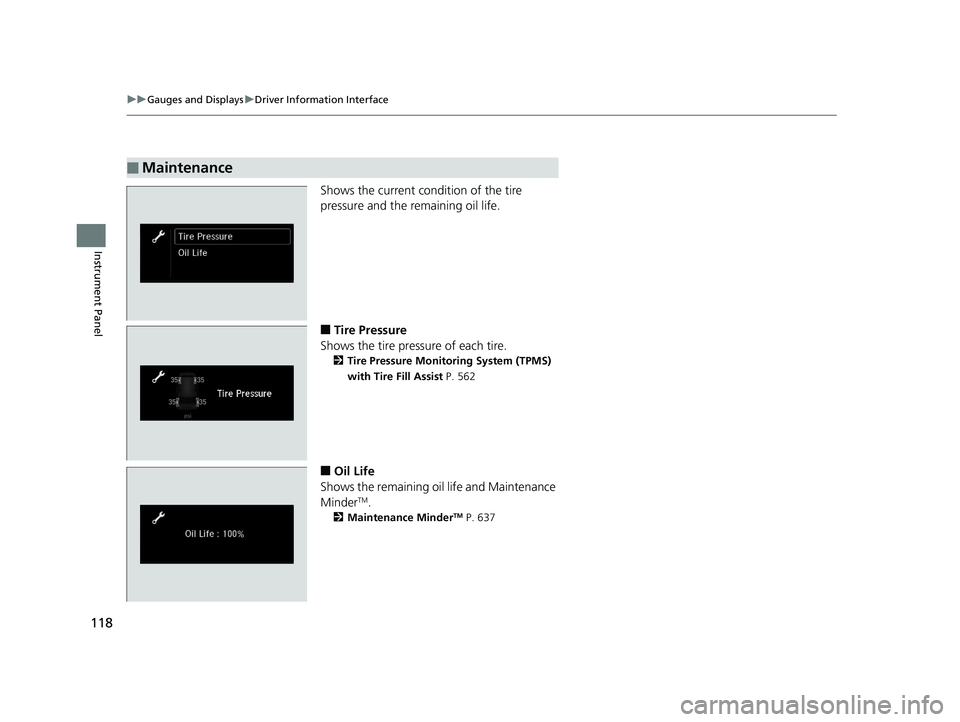

118
uuGauges and Displays uDriver Information Interface
Instrument Panel
Shows the current condition of the tire
pressure and the remaining oil life.
■Tire Pressure
Shows the tire pressure of each tire.
2 Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist P. 562
■Oil Life
Shows the remaining oil life and Maintenance
Minder
TM.
2 Maintenance MinderTM P. 637
■Maintenance
