Page 682 of 747

680

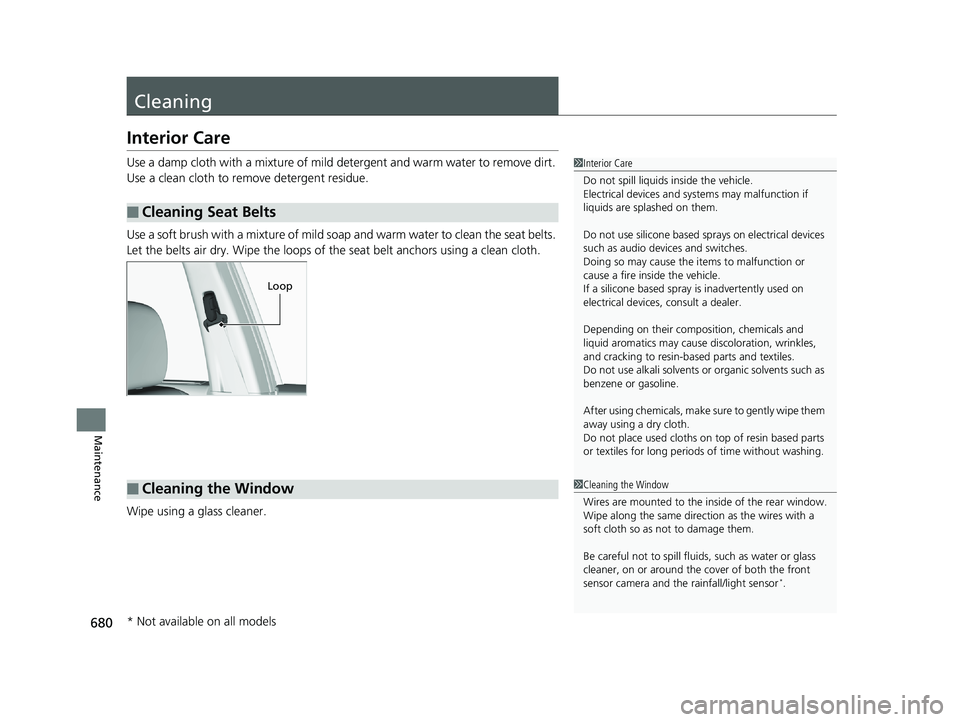

Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle.
Electrical devices and sy stems may malfunction if
liquids are splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches.
Doing so may cause the items to malfunction or
cause a fire inside the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 680 ページ 2019年3月15日 金曜日 午後6時8分
Page 691 of 747

689Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Change the gear position to
(P.
2. Move the shift lever to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
Automatic transmission models with electronic gear selector
Automatic transmission models with shift lever
All models
19 PILOT HMA ELP-31TG76310.book 689 ページ 2019年3月15日 金曜日 午後6時8分
Page 698 of 747

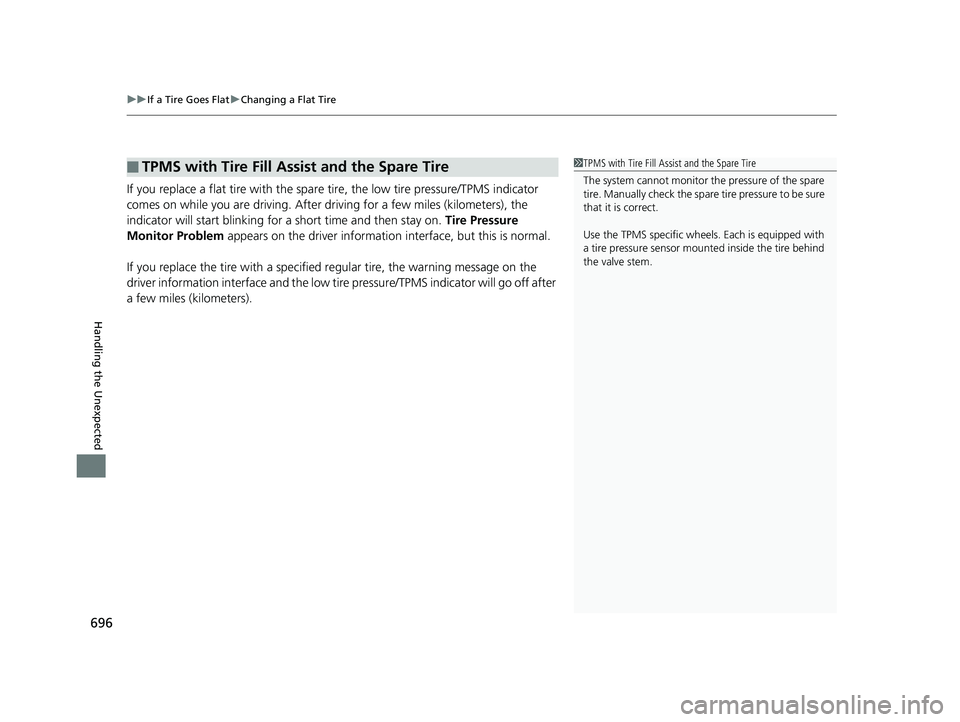

uuIf a Tire Goes Flat uChanging a Flat Tire
696
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the driver informati on interface, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
driver information interface and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).
■TPMS with Tire Fill Assist and the Spare Tire1 TPMS with Tire Fill Assist and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
19 PILOT HMA ELP-31TG76310.book 696 ページ 2019年3月15日 金曜日 午後6時8分
Page 714 of 747

712
uuFuses uFuse Locations
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
ST CUT1*(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 RR ACC SOCKET*(20 A)
9FR WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT*(30 A)
13IDLE STOP*(30 A)
14IDLE STOP*(30 A)
15ELECTRONIC GEAR SELECTOR*(15 A)
16RR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 712 ページ 2019年3月15日 金曜日 午後6時8分
Page 727 of 747

725Continued
Information

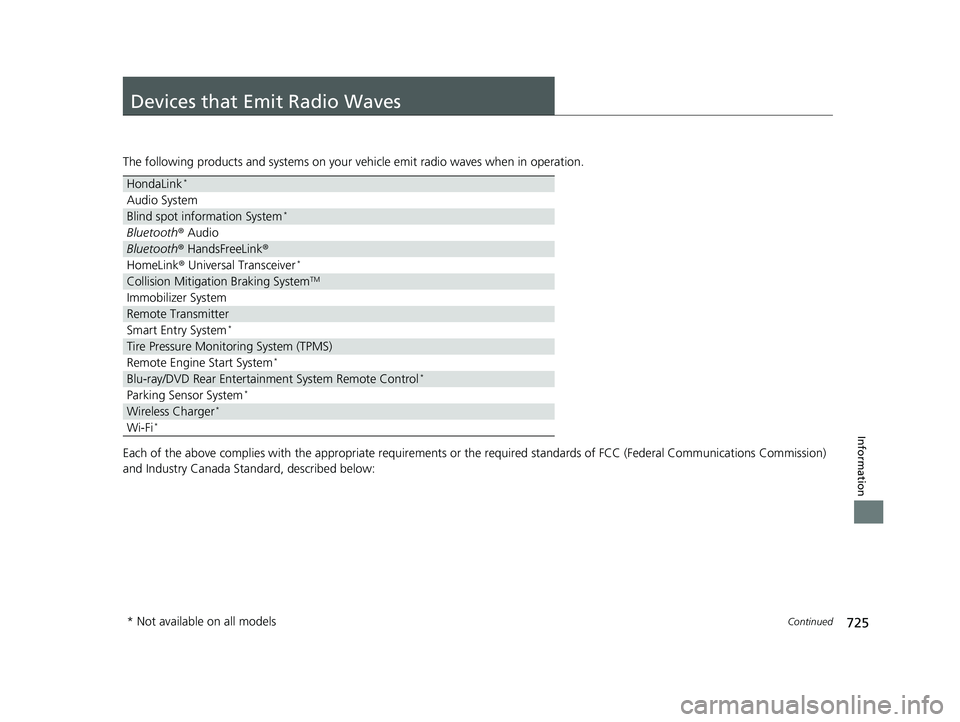

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC (Federal Communications Commissio n)
and Industry Canada Standard, described below:
HondaLink*
Audio System
Blind spot information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver*
Collision Mitigati on Braking SystemTM
Immobilizer System
Remote Transmitter
Smart Entry System*
Tire Pressure Monitoring System (TPMS)
Remote Engine Start System*
Blu-ray/DVD Rear Entertainme nt System Remote Control*
Parking Sensor System*
Wireless Charger*
Wi-Fi*
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 725 ページ 2019年3月15日 金曜日 午後6時8分
Page 737 of 747

Index
735
Index
Index
A
AAC................................... 263, 316, 322, 325
ABS (Anti-lock Brake System) .................. 613
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 685
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) ................ 581
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 93
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 93
Additives Coolant .................................................. 651
Engine Oil ............................................... 646
Washer ................................................... 654
Additives, Engine Oil ............................... 646
Adjusting
Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 200, 201, 202
Mirrors.................................................... 192
Rear Seats ............................................... 204
Second Row Seats................................... 198
Steering Wheel ....................................... 191
third row seat ......................................... 199
Agile Handling Assist ............................... 555
Air Conditioning System (Climate Control System) ...................................... 235
Changing the Mode................................ 235
Defrosting the Windshield and Windows .............................................. 236 Dust and Pollen Filter ............................... 679
Recirculation/Fresh Air Mode ................... 236
Sensor ..................................................... 241
Synchronization Mode ............................. 238
Using Automatic Climate Control ............ 235
Air Conditioning System (Heating and Cooling System) ...................................... 230
Cooling ................................................... 232
Defrosting the Windshield and Windows ............................................... 233
Heating ................................................... 231
Air Pressure ....................................... 665, 723
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 57, 85
Passenger Airbag Off Indicator .................. 58
Sensors ...................................................... 47
Side Airbags .............................................. 54
Side Curtain Airbags .................................. 56
All-wheel drive (AWD) Indicator ............... 90
AM/FM Radio .................................... 258, 302
Android Auto ............................................ 344
Anti-lock Brake System (ABS) .................. 613
Indicator .................................................... 84
Apple CarPlay ........................................... 341
Armrest ..................................................... 207
Audio Remote Controls ............................ 248 Audio System
............................ 244, 251, 269
Adjusting the Sound........................ 256, 296
AM/FM Radio .................................. 258, 302
Android Auto .......................................... 344
Apple CarPlay.......................................... 341
Audio/Information Screen................ 252, 270
Auxiliary Input Jack.................................. 246
Changing the Screen Brightness .............. 297
Display Setup .................................. 257, 297
Error Messages ........................................ 348
File Manager ........................................... 290
General Information ................................ 353
HD Subchannel ....................................... 305
Home Screen........................................... 276
HondaLink ®............................................. 333
How to Delete a File ................................ 293
How to Transfer a File ............................. 290
How to Update Wirelessly ....................... 284
How to Update with a USB Device........... 288
iPod ................................................ 260, 319
Limitations for Manual Operation ............ 298
MP3/WMA/AAC .............. 263, 316, 322, 325
My Honda Music ..................................... 325
Playing a CD............................................ 316
Playing AM/FM Radio .............................. 302
Playing Bluetooth ® Audio ................ 266, 329
Playing SiriusXM ® Radio
.......................... 306
Playing Social Playlist ............................... 331
Reactivating ............................................ 247
Recommended CDs ................................. 354
Remote Controls ..................................... 248
19 PILOT HMA ELP-31TG76310.book 735 ページ 2019年3月15日 金曜日 午後6時8分
Page 739 of 747

737
Index
Front Side Marker Lights ......................... 656
Front Turn Signal Lights .......................... 657
Headlights .............................................. 655
High-Mount Brake Light.......................... 659
Parking Lights ......................................... 656
Rear License Plate Lights ......................... 659
Rear Side Marker Lights .......................... 658
Rear Turn Signal Lights............................ 658
Side Turn Signal/Emergency Indicator Lights .................................................... 658
Bulb Specifications ................................... 722
C
CabinTalkTM.............................................. 505
Car Wash Mode ........................................ 541
Carbon Monoxide Gas ............................... 76
Carrying Cargo ................................. 509, 511
CD Player .................................................. 316
Certification Label ................................... 724
Changing Bulbs ........................................ 655
Charging System Indicator ................ 81, 707
Child Safety ................................................ 60
Childproof Door Locks ............................ 151
Child Seat ................................................... 60
Booster Seats ............................................ 75
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 69
Larger Children ......................................... 74 Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 682
Cleaning the Interior ................................ 680
Climate Control System ............................ 235
Changing the Mode ................................ 235
Defrosting the Windshield and
Windows ............................................... 236
Dust and Pollen Filter ............................... 679
Recirculation and Fresh Air Mode ............ 236
Sensors .................................................... 241
Synchronization Mode ............................. 238
Using Automatic Climate Control ............ 235
Clock .......................................................... 136
Coat Hook ................................................. 221
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 569
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 93, 94
Compact Spare Tire .......................... 689, 723
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 651
Adding to the Radiator ............................ 652
Adding to the Reserve Tank ..................... 651
Overheating ............................................ 705
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 534
Cross Traffic Monitor ................................ 622
Cup Holders .............................................. 215 Customer Service Information
................. 733
Customized Features ................ 125, 425, 432
D
Daytime Running Lights .......................... 182
Dead Battery ............................................. 702
Defaulting All the Settings ...................... 450
Defrosting the Windshield and Windows ......................................... 233, 236
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 725
Dimming
Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 647
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 667
Driver Information Interface ................... 111
Accessing Content .................................. 113
19 PILOT HMA ELP-31TG76310.book 737 ページ 2019年3月15日 金曜日 午後6時8分
Page 740 of 747

738
Index
Warning and Information Messages........... 96
Driving ....................................................... 507
Adaptive Cruise Control (ACC) ................ 581
Automatic Transmission ........................... 534
Braking .................................................... 611
Off-Highway Driving Guidelines ............... 525
Shifting Gear ........................................... 537
Starting the Engine .................................. 527
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 679
E
Eco Assist® System ....................................... 10
ECON Button ............................................. 550
Econ Mode
Indicator .................................................... 89
Electric Power Steering (EPS) System
Indicator ............................................ 86, 709
Electronic Stability Control (ESC) ............. 553
Emergency ................................................. 716
Emissions Testing (Readiness Codes) ....... 728
Engine Coolant ................................................... 651
Jump Starting .......................................... 702
Number ................................................... 724
Oil ........................................................... 646
Remote Engine Start ................................ 529
Starting ................................................... 527
Engine Compartment Cover .................... 645Engine Coolant
......................................... 651
Adding to the Radiator ............................ 652
Adding to the Reserve Tank..................... 651
Overheating ............................................ 705
Temperature Gauge ................................ 110
Engine Oil ................................................. 646
Adding .................................................... 648
Checking................................................. 647
Displaying Maintenance Minder Information ........................................... 638
Low Oil Pressure Symbol.......................... 707
Recommended Engine Oil ....................... 646
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 709
Exhaust Gas Hazard (Carbon Monoxide) .. 76
Exterior Care (Cleaning) ........................... 682
Exterior Mirrors ........................................ 193
F
Features.................................................... 243
File Manager ............................................. 290
Filters Dust and Pollen ....................................... 679
Oil ........................................................... 649
Flat Tire ..................................................... 689
Floor Mats ................................................. 681
Fluids Automatic Transmission .......................... 653
Brake ...................................................... 654
Engine Coolant ....................................... 651 Windshield Washer ................................. 654
FM/AM Radio ................................... 258, 302
Fog Light Indicator .................................... 88
Fog Lights ................................................. 178
Folding Down the Second Row Seat ...... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 612
Front Airbags (SRS) .................................... 50
Front Seats ................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 608
Fuel ..................................................... 25, 628
Economy................................................. 631
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator..................................... 84
Range ..................................................... 116
Recommendation.................................... 628
Refueling ................................................ 628
Fuel Economy ........................................... 631
Fuel Fill Cap .............................................. 630
Fuel Fill Door ...................................... 25, 629
Unable to Unlock .................................... 717
Fuses ......................................................... 711
Inspecting and Changing ........................ 715
Locations ........................ 711, 712, 713, 714
G
Gasoline (Fuel)
Economy................................................. 631
19 PILOT HMA ELP-31TG76310.book 738 ページ 2019年3月15日 金曜日 午後6時8分
Page 743 of 747

741
Index
M
Maintenance.................................... 118, 633
Battery .................................................... 673
Brake Fluid .............................................. 654
Cleaning ................................................. 680
Coolant .................................................. 651
Maintenance Minder
TM............................ 637
Oil .......................................................... 647
Precautions ............................................. 634
Radiator .................................................. 652
Remote Control ...................................... 676
Remote Transmitter ................................ 675
Replacing Light Bulbs .............................. 655
Safety ..................................................... 635
Service Items ........................................... 640
Tires........................................................ 664
Transmission Fluid ................................... 653
Under the Hood ...................................... 643
Wireless Headphone ............................... 677
Malfunction Indicator Lamp ............. 81, 708
Map Lights ................................................ 210
Maximum Load Limit ............................... 511
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 685
Moonroof ................................................. 169
MP3 ................................... 263, 316, 322, 325 MP3/WMA/AAC
................ 263, 316, 322, 325
Multi-View Rear Camera .......................... 626
My Honda Music ....................................... 325
N
Navigation................................................ 117
Now Playing .............................................. 120
Numbers (Identification) .......................... 724
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 525
Oil (Engine) ............................................... 646
Adding .................................................... 648
Checking ................................................. 647
Displaying Maintenance Minder Information ........................................... 638
Low Oil Pressure Symbol .......................... 707
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 646
Viscosity .................................................. 646
Open Source Licenses ............................... 371
Opening/Closing Hood ....................................................... 644
Moonroof................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the Steering Wheel ....................................... 171 Outside Temperature Display
.................. 112
Overheating .............................................. 705
P
Paddle Shifters (Sequential Mode) .... 23, 544
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 615
Parking Brake ........................................... 611
Parking Brake and Brake System Indicator .................................................. 709
Parking Brake and Brake System
Indicator (Amber) ..................................... 80
Parking Brake and Brake System Indicator (Red) .......................................... 80
Parking Sensor System ............................. 617
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 266, 329
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 533
Driving Guidelines for Your Utility Vehicle .................................................. 533
Rain ........................................................ 533
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 689
19 PILOT HMA ELP-31TG76310.book 741 ページ 2019年3月15日 金曜日 午後6時8分
Page 745 of 747

743
Index
Siri Eyes Free............................................. 340
SiriusXM ® Radio ....................................... 306
Snow Tires ................................................ 672
Social Playlist ............................................ 331
Spare Tire ......................................... 689, 723
Spark Plugs ............................................... 722
Specifications ........................................... 722
Specified Fuel ................................... 628, 722
Speedometer ............................................ 111
SRS Airbags (Airbags) ................................ 50
Starting Assist Brake Function ................ 549
Starting the Engine .................................. 527
Does Not Start ........................................ 697
Jump Starting ......................................... 702
Remote Engine Start ............................... 529
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 227
Stopping ................................................... 615
Summer Tires ............................................ 672
Sunglasses Holder .................................... 222
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ............................................ 4, 5, 171
SYNC Mode .............................................. 238
System Message Indicator ......................... 89
System Updates ........................................ 284T
Tachometer............................................... 111
Tailgate ..................................................... 153
Unable to Open ....................................... 719
Temperature
Gauge ..................................................... 110
Outside Temperature Display ................... 112
Temperature Gauge ................................. 110
Temperature Sensor ......................... 112, 241
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access .............................. 204
Tie-down Anchors .................................... 228
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 710
Tire Pressure .............................................. 118
Tire Pressure Moni toring System (TPMS)
Indicator .................................................... 87
Tires ........................................................... 664
Air Pressure ..................................... 665, 723
Checking and Maintaining ....................... 664
Inspection ................................................ 664
Labeling .................................................. 665
Puncture (Flat Tire) ................................... 689
Regulations ............................................. 667
Rotation .................................................. 671
Spare Tire ........................................ 689, 723
Summer .................................................. 672
Tire Chains .............................................. 672
Wear Indicators ....................................... 669
Winter ..................................................... 672
Tools .......................................................... 688 Towing a Trailer
....................................... 514
Equipment and Accessories ..................... 518
Load Limits .............................................. 514
Towing Your Vehicle ................................ 524
Emergency .............................................. 716
TPMS (Tire Pressure Monitoring System) Indicator.................................................... 87
TPMS with Tire Fill Assist ......................... 562
Indicator.................................................. 710
Tire Fill Assist ........................................... 710
Trailer Stability Assist ............................... 522
Transmission ......................... 22, 24, 535, 537
Automatic ........................... 22, 24, 535, 537
Fluid ........................................................ 653
Gear Position Indicator ...................... 81, 539
Number................................................... 724
Sequential Mode ..................................... 543
Transmission System Indicator ................... 82
Trip Computer .......................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 687
Blown Fuse...................... 711, 712, 713, 714
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 716
Engine Won’t Start .................................. 697
Noise When Braking .................................. 31
Overheating ............................................ 705
Puncture/Flat Tire .................................... 689
Rear Door Won’t Open...................... 30, 151
Shift Lever Does Not Move ...................... 701
19 PILOT HMA ELP-31TG76310.book 743 ページ 2019年3月15日 金曜日 午後6時8分
