Page 721 of 739

719Continued
Information

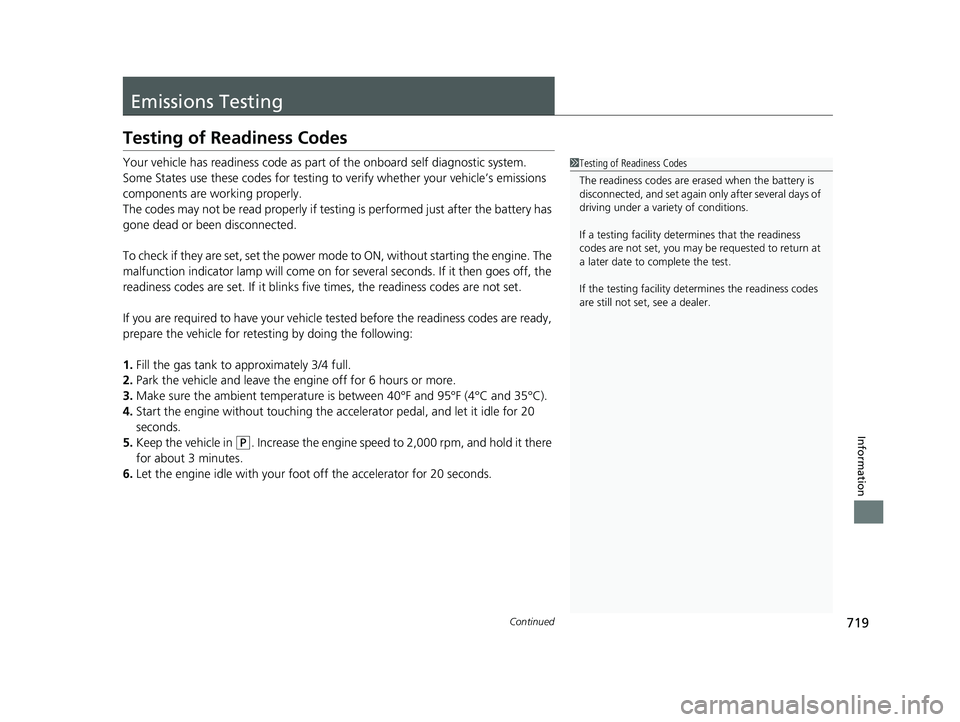

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
21 PILOT-31TG76500.book 719 ページ 2020年3月18日 水曜日 午後4時38分
Page 722 of 739

720

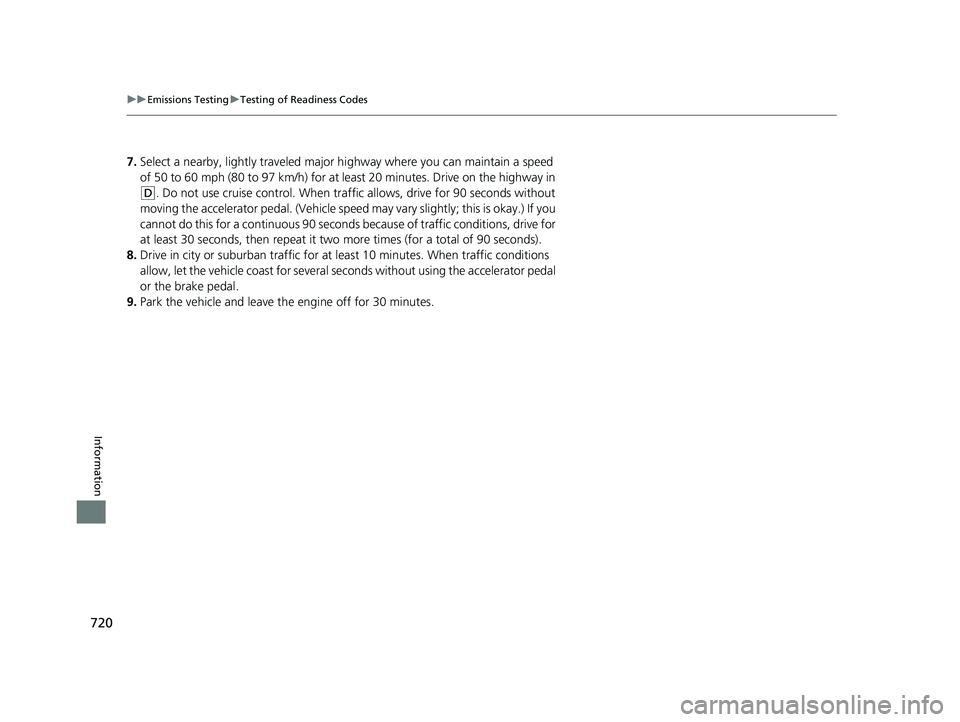

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
21 PILOT-31TG76500.book 720 ページ 2020年3月18日 水曜日 午後4時38分
Page 727 of 739

725
Information

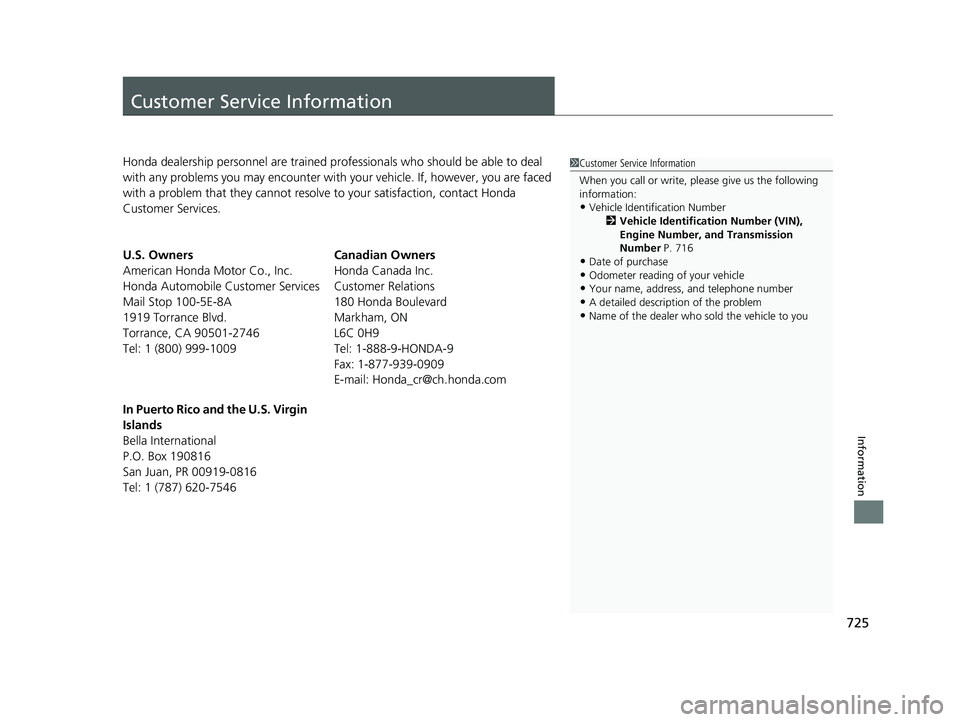

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 716
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
21 PILOT-31TG76500.book 725 ページ 2020年3月18日 水曜日 午後4時38分
Page 729 of 739

Index
727
Index
Index
A
AAC................................... 259, 312, 318, 321
ABS (Anti-lock Brake System) .................. 608
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 679
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) ................ 576
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 94
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 94
Additives Coolant .................................................. 645
Engine Oil ............................................... 640
Washer ................................................... 648
Additives, Engine Oil ............................... 640
Adjusting
Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 200, 201, 202
Mirrors.................................................... 192
Rear Seats ............................................... 204
Second Row Seats................................... 198
Steering Wheel ....................................... 191
third row seat ......................................... 199
Agile Handling Assist ............................... 550
Air Conditioning System (Climate Control System) ....................... 231
Changing the Mode................................ 231
Defrosting the Windshield and Windows .............................................. 232 Dust and Pollen Filter ............................... 673
Recirculation/Fresh Air Mode ................... 232
Sensor ..................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Air Pressure ....................................... 659, 715
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 58, 86
Passenger Airbag Off Indicator .................. 59
Sensors ...................................................... 47
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-wheel drive (AWD) Indicator ............... 91
AM/FM Radio .................................... 254, 298
Android Auto ............................................ 341
Anti-lock Brake System (ABS) .................. 608
Indicator .................................................... 85
Apple CarPlay ........................................... 338
Armrest ..................................................... 207
Audio Remote Controls ............................ 244
Audio System ............................ 240, 247, 265
Adjusting the Sound ........................ 252, 292
AM/FM Radio .................................. 254, 298
Android Auto .......................................... 341
Apple CarPlay .......................................... 338
Audio/Information Screen ................ 248, 266 Auxiliary Input Jack.................................. 242
Changing the Screen Brightness .............. 293
Display Setup .................................. 253, 293
Error Messages ........................................ 345
File Manager ........................................... 286
General Information ................................ 350
HD Subchannel ....................................... 301
Home Screen........................................... 272
HondaLink
®........................................... 329
How to Delete a File ................................ 289
How to Transfer a File ............................. 286
How to Update Wirelessly ....................... 280
How to Update with a USB Device........... 284
iPod ................................................ 256, 315
Limitations for Manual Operation ............ 294
MP3/WMA/AAC .............. 259, 312, 318, 321
My Honda Music ..................................... 321
Playing a CD............................................ 312
Playing AM/FM Radio .............................. 298
Playing Bluetooth ® Audio ................ 262, 325
Playing SiriusXM ® Radio .......................... 302
Playing Social Playlist ............................... 327
Reactivating ............................................ 243
Recommended CDs ................................. 351
Remote Controls ..................................... 244
Security Code .......................................... 243
Selecting an Audio Source ....................... 294
Siri Eyes Free ........................................... 337
Status Area
............................................. 277
System Updates....................................... 280
Theft Protection ...................................... 243
21 PILOT-31TG76500.book 727 ページ 2020年3月18日 水曜日 午後4時38分
Page 731 of 739

729
Index
Side Turn Signal/Emergency Indicator Lights .................................................... 652
Bulb Specifications ................................... 714
C
CabinTalkTM.............................................. 503
Car Wash Mode ........................................ 536
Carbon Monoxide Gas ............................... 78
Carrying Cargo ................................. 507, 509
CD Player .................................................. 312
Certification Label ................................... 716
Changing Bulbs ........................................ 649
Charging System Indicator ................ 83, 699
Child Safety ................................................ 62
Childproof Door Locks ............................ 151
Child Seat ................................................... 62
Booster Seats ............................................ 77
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 76
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 676
Cleaning the Interior ............................... 674
Climate Control System ........................... 231
Changing the Mode................................ 231 Defrosting the Windshield and
Windows ............................................... 232
Dust and Pollen Filter ............................... 673
Recirculation and Fresh Air Mode ............ 232
Sensors .................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Clock .......................................................... 136
Coat Hook ................................................. 222
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 564
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 94, 95
Compact Spare Tire .......................... 683, 715
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 645
Adding to the Radiator ............................ 646
Adding to the Reserve Tank ..................... 645
Overheating ............................................ 697
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 531
Cross Traffic Monitor ................................ 617
Cup Holders .............................................. 215
Customer Service Information ................. 725
Customized Features ................ 125, 423, 430
D
Daytime Running Lights ........................... 182
Dead Battery ............................................. 694 Defaulting All the Settings
...................... 448
Defrosting the Windshield and
Windows ................................................. 232
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 717
Dimming Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 661
Driver Information Interface ................... 111
Accessing Content .................................. 113
Warning and Information Messages .......... 97
Driving ...................................................... 505
Adaptive Cruise Control (ACC) ................ 576
Automatic Transmission .......................... 531
Braking ................................................... 606
Off-Highway Driving Guidelines............... 522
Shifting Gear ........................................... 532
21 PILOT-31TG76500.book 729 ページ 2020年3月18日 水曜日 午後4時38分
Page 732 of 739

730
Index
Starting the Engine .................................. 524
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 673
E
Eco Assist® System ....................................... 12
ECON Button ............................................. 545
Econ Mode Indicator .................................................... 90
Electric Power Steering (EPS) System Indicator ............................................ 87, 701
Electronic Stability Control (ESC) ............. 548
Emergency ................................................. 708
Emissions Testing (Readiness Codes) ....... 719
Engine
Coolant ................................................... 645
Jump Starting .......................................... 694
Number ................................................... 716
Oil ........................................................... 640
Remote Engine Start ................................ 526
Starting ................................................... 524
Engine Compartment Cover .................... 639
Engine Coolant ......................................... 645
Adding to the Radiator ............................ 646
Adding to the Reserve Tank ..................... 645
Overheating............................................. 697
Temperature Gauge................................. 110
Engine Oil .................................................. 640
Adding .................................................... 642
Checking ................................................. 641 Displaying Maintenance Minder
Information ........................................... 632
Low Oil Pressure Symbol.......................... 699
Recommended Engine Oil ....................... 640
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 701
Exhaust Gas Hazard (Carbon Monoxide) .. 78
Exterior Care (Cleaning) ........................... 676
Exterior Mirrors ........................................ 193
F
Features.................................................... 239
File Manager ............................................. 286
Filters Dust and Pollen ....................................... 673
Oil ........................................................... 643
Flat Tire ..................................................... 683
Floor Mats ................................................. 675
Fluids Automatic Transmission .......................... 647
Brake ...................................................... 648
Engine Coolant ....................................... 645
Windshield Washer ................................. 648
FM/AM Radio .................................... 254, 298
Fog Light Indicator ..................................... 89
Fog Lights ................................................. 178
Folding Down the Second Row Seat ....... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 607
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 603
Fuel ..................................................... 25, 623
Economy................................................. 626
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Range ..................................................... 116
Recommendation.................................... 623
Refueling ................................................ 623
Fuel Economy ........................................... 626
Fuel Fill Door ...................................... 25, 624
Unable to Unlock .................................... 709
Fuses ......................................................... 703
Inspecting and Changing ........................ 707
Locations ........................ 703, 704, 705, 706
G
Gasoline (Fuel)
Economy................................................. 626
Gauge .................................................... 110
Information............................................. 623
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Refueling ................................................ 623
Gauges ...................................................... 110
Gear Position Indicator ...................... 83, 534
Gear Shift Positions
Automatic Transmission .......................... 532
21 PILOT-31TG76500.book 730 ページ 2020年3月18日 水曜日 午後4時38分
Page 733 of 739

731
Index
Glass (care)............................................... 677
Glove Box ................................................. 213
H
Handling the Unexpected ....................... 681
Hands Free Access .................................... 155
HandsFreeLink ® (HFL) ...................... 452, 477
Automatic Import of Cellular Phonebook
and Call History............................. 466, 486
Automatic Transferring ........................... 485
Caller ID Information............................... 464
Displaying Messages ............................... 496
Favorite Contacts .................................... 487
HFL Buttons .................................... 452, 477
HFL Menus...................................... 454, 480
HFL Status Display ........................... 453, 479
In Case of Emergency ............................. 500
Limitations for Manual Operation.... 453, 479
Making a Call ................................. 471, 489
Options During a Call...................... 476, 492
Phone Setup ................................... 458, 482
Receiving a Call............................... 475, 492
Receiving a Text Message........................ 494
Ring Tone ....................................... 464, 485
Selecting a Phone ................................... 495
Speed Dial .............................................. 467
To Clear the System ................................ 465
To Set Up a Text Message Options .......... 493
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 301 HDMI
TM Port
.............................................. 378
Head Restraints ......................... 200, 201, 202
Headlights ................................................. 175
Auto High-Beam ...................................... 179
Automatic Operation ............................... 176
Dimming ......................................... 175, 182
Operating ................................................ 175
Heated Steering Wheel ............................ 228
Heated Windshield Button ...................... 187
Heater (Steering Wheel) .......................... 228
Heaters (Seat) ........................... 225, 226, 227
HFL (HandsFreeLink ®)....................... 452, 477
High Beam Indicator .................................. 88
Hill Start Assist System ............................. 529
HomeLink® Universal Transceiver ............ 449
Honda App License Agreement ............... 355
Honda Sensing ®........................................ 26
HondaLink ®............................................. 329
I
Identification Numbers ............................ 716
Engine and Transmission ......................... 716
Vehicle Identification ............................... 716
Illumination Control ................................. 188
Button ..................................................... 188
Immobilizer System .................................. 163
Indicator .................................................... 89
Indicators .................................................... 82
Adaptive Cruise Control (ACC) (Amber) ..... 94
Adaptive Cruise Control (ACC) (Green) ...... 94 All-wheel drive (AWD) ............................... 91
Anti-lock Brake System (ABS)..................... 85
Auto High-Beam ....................................... 86
Auto Idle Stop (Amber).............................. 91
Auto Idle Stop (Green)............................... 91
Blind spot information ....................... 96, 552
Brake System (Amber) ............................... 82
Brake System (Red) ............................ 82, 701
Charging System ............................... 83, 699
Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 94, 95
Econ Mode................................................ 90
Electric Power Steering (EPS) System .. 87, 701
Fog Light ................................................... 89
Gear Position............................................. 83
Hazard Warning ........................................ 88
High Beam ................................................ 88
Immobilizer System ................................... 89
Lane Keeping Assist System (LKAS) .......... 591
Lane Keeping Assist System (LKAS) (Amber) ................................................... 92
Lane Keeping Assist System (LKAS)
(Green) .................................................... 92
Lights On .................................................. 88
Low Fuel ................................................... 85
Low Oil Pressure Symbol.......................... 699
Low Tire Pressure/TPMS ..................... 88, 702
Malfunction Indicator Lamp............... 83, 700
Parking Brake and Brake System .............. 701
Parking Brake and Brake System (Amber) .. 82
Parking Brake and Brake System (Red) ....... 82
21 PILOT-31TG76500.book 731 ページ 2020年3月18日 水曜日 午後4時38分
Page 735 of 739

733
Index
Safety ..................................................... 629
Service Items ........................................... 634
Tires........................................................ 658
Transmission Fluid ................................... 647
Under the Hood ...................................... 637
Wireless Headphone ............................... 671
Malfunction Indicator Lamp ............. 83, 700
Map Lights ................................................ 210
Maximum Load Limit ............................... 509
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 679
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 621
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 716
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 522
Oil (Engine) ............................................... 640
Adding .................................................... 642
Checking ................................................. 641
Displaying Maintenance Minder Information ........................................... 632
Low Oil Pressure Symbol .......................... 699
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 640
Viscosity .................................................. 640
Open Source Licenses ............................... 369
Opening/Closing
Hood ....................................................... 638
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 697
P
Paddle Shifters (Sequential Mode) .... 24, 539
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 610
Parking Brake ........................................... 606 Parking Brake and Brake System
Indicator .................................................. 701
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 612
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 530
Driving Guidelines for Your Utility Vehicle .................................................. 530
Rain ........................................................ 530
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 683
R
Radiator.................................................... 646
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 719
21 PILOT-31TG76500.book 733 ページ 2020年3月18日 水曜日 午後4時38分
Page 736 of 739

734
Index
Rear Climate Control SystemFrom the Rear Panel................................. 236
Rear Defogger/Heated Door Mirror Button ...................................................... 186
Rear Entertainment System ..................... 375
Rear Seats .................................................. 204
Second Row Seat ............................. 204, 205
Third Row Seat ........................................ 206
Rearview Mirror ........................................ 192
Refueling ................................................... 623
Fuel Gauge .............................................. 110
Gasoline .......................................... 623, 714
Low Fuel Indicator ..................................... 85
Regulations ............................... 559, 661, 717
Remote Engine Start ................................ 526
Remote Transmitter .................................. 147
Replacement
Battery..................................... 669, 670, 671
Bulbs ....................................................... 649
Front Wiper Blade Rubber ........................ 654
Fuses ............................... 703, 704, 705, 706
Rear Wiper Blade Rubber ......................... 656
Tires ........................................................ 664
Reporting Safety Defects ......................... 718
Reverse Tilt Door Mirror ........................... 193
Road Departure Mitigation (RDM) .......... 598
On and Off .............................................. 600
Road Departure Mitigation (RDM)
Indicator .................................................... 93S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 79
Safety Message ............................................. 2
Seat Belts .................................................... 39
Adjusting the Shoulder Anchor.................. 43
Automatic Seat Belt Tensioners ................. 41
Checking................................................... 46
Detachable Anchor.................................... 44
Fastening .................................................. 42
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Pregnant Women ...................................... 45
Reminder .................................................. 40
Warning Indicator ............................... 40, 85
Seat Heaters .............................. 225, 226, 227
Seat Ventilation ........................................ 226
Seats .......................................................... 194
Adjusting ................................................ 194
Driver’s Seat Lumbar Support .................. 194
Front Seats .............................................. 194
Rear Seats ............................................... 204
Seat Heaters ............................ 225, 226, 227
Seat Ventilation ....................................... 226
Second Row Seat ............................ 204, 205
Third Row Seat ........................................ 206
Second Row Outer Seats Heaters ............ 227
Second Row Seat (Folding Down) ........... 205
Security System ......................................... 163
Immobilizer System Indicator ..................... 89 Security System Alarm Indicator ................ 89
Select Button ...................................... 23, 532
Operation ......................................... 23, 534
Selecting a Child Seat ................................ 66
Selector Knob (Audio) ............................. 247
Sequential Mode ...................................... 538
Sequential Mode Operation ................... 539
Setting the Clock ...................................... 136
Settings Arrange Apps ......................................... 123
Show Tachometer ................................... 124
Shift Button ........................................ 23, 532
Shifting (Transmission) ...................... 23, 532
Shoulder Anchor ........................................ 43
Show Tachometer .................................... 124
Show/Hide Apps ....................................... 122
Side Airbags ............................................... 55
Side Curtain Airbags .................................. 57
Siri Eyes Free ............................................. 337
SiriusXM ® Radio ....................................... 302
Snow Tires ................................................ 666
Social Playlist ............................................ 327
Spare Tire ......................................... 683, 715
Spark Plugs ............................................... 714
Specifications ........................................... 714
Specified Fuel ................................... 623, 714
Speedometer ............................................ 111
SRS Airbags (Airbags) ................................ 50
Starting Assist Brake Function ................ 544
Starting the Engine .................................. 524
Does Not Start ........................................ 691
21 PILOT-31TG76500.book 734 ページ 2020年3月18日 水曜日 午後4時38分
Page 737 of 739

735
Index
Jump Starting ......................................... 694
Remote Engine Start ............................... 526
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 228
Stopping ................................................... 610
Summer Tires ............................................ 666
Sunglasses Holder .................................... 223
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ........ 6, 7, 171
SYNC Mode .............................................. 234
System Message Indicator ......................... 90
System Updates ........................................ 280
T
Tachometer.............................................. 111
Tailgate ..................................................... 153
Unable to Open ...................................... 711
Temperature
Gauge .................................................... 110
Outside Temperature Display .................. 112
Temperature Gauge ................................ 110
Temperature Sensor ........................ 112, 237
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 204
Tie-down Anchors .................................... 229
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 702
Tire Pressure ............................................. 118 Tire Pressure Moni
toring System (TPMS)
Indicator .................................................... 88
Tires ........................................................... 658
Air Pressure ..................................... 659, 715
Checking and Maintaining ....................... 658
Inspection ................................................ 658
Labeling .................................................. 659
Puncture (Flat Tire) ................................... 683
Regulations ............................................. 661
Rotation .................................................. 665
Spare Tire ........................................ 683, 715
Summer .................................................. 666
Tire Chains .............................................. 666
Wear Indicators ....................................... 663
Winter ..................................................... 666
Tools .......................................................... 682
Towing a Trailer ....................................... 512
Equipment and Accessories ..................... 515
Load Limits .............................................. 512
Towing Your Vehicle ................................ 521
Emergency .............................................. 708
TPMS (Tire Pressure Monitoring System)
Indicator .................................................... 88
TPMS with Tire Fill Assist .......................... 557
Indicator .................................................. 702
Tire Fill Assist ........................................... 702
Trailer Stability Assist ............................... 519
Transmission ....................................... 23, 532
Automatic ......................................... 23, 532
Fluid ........................................................ 647
Gear Position Indicator ...................... 83, 534 Number................................................... 716
Sequential Mode ..................................... 538
Trip Computer .......................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 681
Blown Fuse...................... 703, 704, 705, 706
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 708
Engine Won’t Start .................................. 691
Noise When Braking .................................. 31
Overheating ............................................ 697
Puncture/Flat Tire .................................... 683
Rear Door Won’t Open...................... 29, 151
Warning Indicators .................................... 82
Turn Signals .............................................. 174
Indicators (Instrument Panel) ..................... 88
U
Under-floor Storage Area ........................ 230
Units .......................................................... 120
Unlocking the Doors ................................ 142
Unlocking the Fron t Doors from the
Inside ....................................................... 149
USB Flash Drives ....................... 259, 318, 354
USB Port .................................................... 241
21 PILOT-31TG76500.book 735 ページ 2020年3月18日 水曜日 午後4時38分
