spark plugs replace HONDA PILOT 2021 Owner's Manual (in English)

634
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 721.
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles (U.S.) /100,000 km (Canada).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of
mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *5
7●Replace brake fluid*6
* Not available on all models
21 PILOT-31TG76500.book 634 ページ ２０２０年３月１８日　水曜日　午後４時３８分

635
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 24,000 km (15,000 miles).
*4: If you drive regularly in very high temperatures (over 43ºC, 110ºF), in very low temperatures (under -29ºC, -20ºF), replace every 100,000 km (60,000 miles).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 12,000km (7,500 miles), then every 24,000 km (15,000 miles).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 721.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*5
7●Replace brake fluid*6
9●Service front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
21 PILOT-31TG76500.book 635 ページ ２０２０年３月１８日　水曜日　午後４時３８分

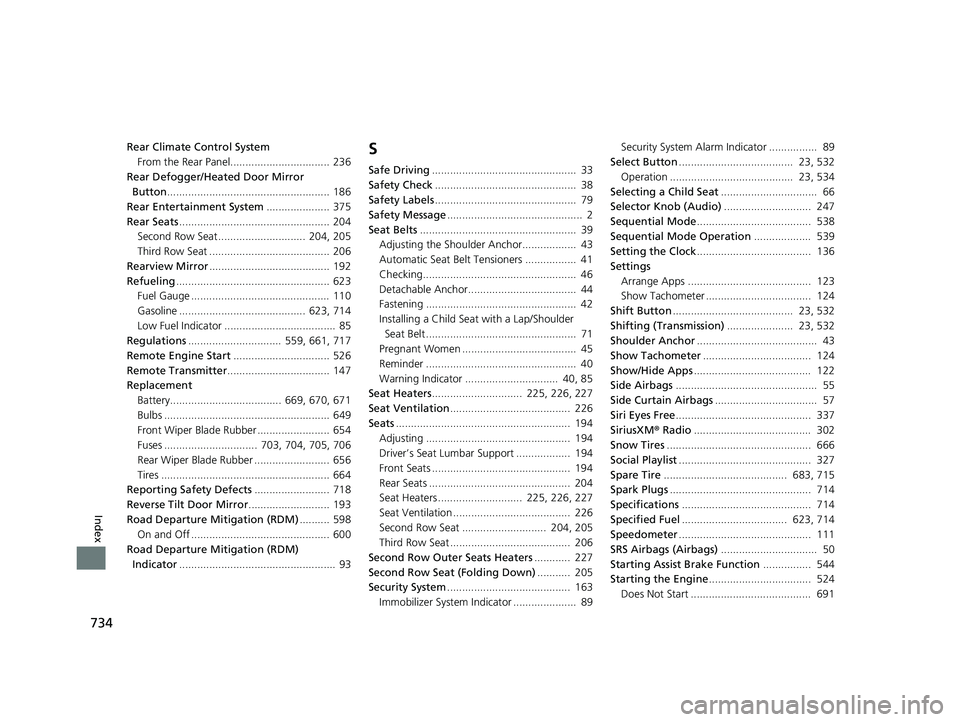

734
Index
Rear Climate Control SystemFrom the Rear Panel................................. 236
Rear Defogger/Heated Door Mirror Button ...................................................... 186
Rear Entertainment System ..................... 375
Rear Seats .................................................. 204
Second Row Seat ............................. 204, 205
Third Row Seat ........................................ 206
Rearview Mirror ........................................ 192
Refueling ................................................... 623
Fuel Gauge .............................................. 110
Gasoline .......................................... 623, 714
Low Fuel Indicator ..................................... 85
Regulations ............................... 559, 661, 717
Remote Engine Start ................................ 526
Remote Transmitter .................................. 147
Replacement
Battery..................................... 669, 670, 671
Bulbs ....................................................... 649
Front Wiper Blade Rubber ........................ 654
Fuses ............................... 703, 704, 705, 706
Rear Wiper Blade Rubber ......................... 656
Tires ........................................................ 664
Reporting Safety Defects ......................... 718
Reverse Tilt Door Mirror ........................... 193
Road Departure Mitigation (RDM) .......... 598
On and Off .............................................. 600
Road Departure Mitigation (RDM)
Indicator .................................................... 93S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 79
Safety Message ............................................. 2
Seat Belts .................................................... 39
Adjusting the Shoulder Anchor.................. 43
Automatic Seat Belt Tensioners ................. 41
Checking................................................... 46
Detachable Anchor.................................... 44
Fastening .................................................. 42
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Pregnant Women ...................................... 45
Reminder .................................................. 40
Warning Indicator ............................... 40, 85
Seat Heaters .............................. 225, 226, 227
Seat Ventilation ........................................ 226
Seats .......................................................... 194
Adjusting ................................................ 194
Driver’s Seat Lumbar Support .................. 194
Front Seats .............................................. 194
Rear Seats ............................................... 204
Seat Heaters ............................ 225, 226, 227
Seat Ventilation ....................................... 226
Second Row Seat ............................ 204, 205
Third Row Seat ........................................ 206
Second Row Outer Seats Heaters ............ 227
Second Row Seat (Folding Down) ........... 205
Security System ......................................... 163
Immobilizer System Indicator ..................... 89 Security System Alarm Indicator ................ 89
Select Button ...................................... 23, 532
Operation ......................................... 23, 534
Selecting a Child Seat ................................ 66
Selector Knob (Audio) ............................. 247
Sequential Mode ...................................... 538
Sequential Mode Operation ................... 539
Setting the Clock ...................................... 136
Settings Arrange Apps ......................................... 123
Show Tachometer ................................... 124
Shift Button ........................................ 23, 532
Shifting (Transmission) ...................... 23, 532
Shoulder Anchor ........................................ 43
Show Tachometer .................................... 124
Show/Hide Apps ....................................... 122
Side Airbags ............................................... 55
Side Curtain Airbags .................................. 57
Siri Eyes Free ............................................. 337
SiriusXM ® Radio ....................................... 302
Snow Tires ................................................ 666
Social Playlist ............................................ 327
Spare Tire ......................................... 683, 715
Spark Plugs ............................................... 714
Specifications ........................................... 714
Specified Fuel ................................... 623, 714
Speedometer ............................................ 111
SRS Airbags (Airbags) ................................ 50
Starting Assist Brake Function ................ 544
Starting the Engine .................................. 524
Does Not Start ........................................ 691
21 PILOT-31TG76500.book 734 ページ ２０２０年３月１８日　水曜日　午後４時３８分
