uuHonda Sensing ®u Adaptive Cruise Control (ACC)
Driving
■Detection limitations
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle ahead of you at high
speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicl e and a vehicle in front of you is
significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
21 PILOT-31TG76500.book 582 ページ ２０２０年３月１８日　水曜日　午後４時３８分

uuHonda Sensing ®u Adaptive Cruise Control (ACC)
586
Driving
To cancel ACC, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
u ACC indicator goes off.
• Depress the brake pedal while the vehicle is
moving forward.
■Automatic cancellation
The beeper sounds and a message appears on the driver information interface when
ACC is automatically canceled. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.).
• When the radar sensor behind the emblem gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC range is too close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
■To Cancel1To Cancel
Resuming the prior set speed: After you have
canceled ACC, you can resume the prior set speed
while it is still displayed. Press the RES/+ button
when driving at a speed of at least 25 mph (40 km/h)
or more.
The set speed cannot be set or resumed when ACC
has been turned off using the MAIN button. Press
the MAIN button to activate the system, then set the
desired speed.
MAIN
Button
CANCEL
Button
1 Automatic cancellation
Even though ACC has been automatically canceled,
you can still resume the prior set speed. Wait until the
condition that caused ACC to cancel improves, then
press the RES/+ button.
21 PILOT-31TG76500.book 586 ページ ２０２０年３月１８日　水曜日　午後４時３８分

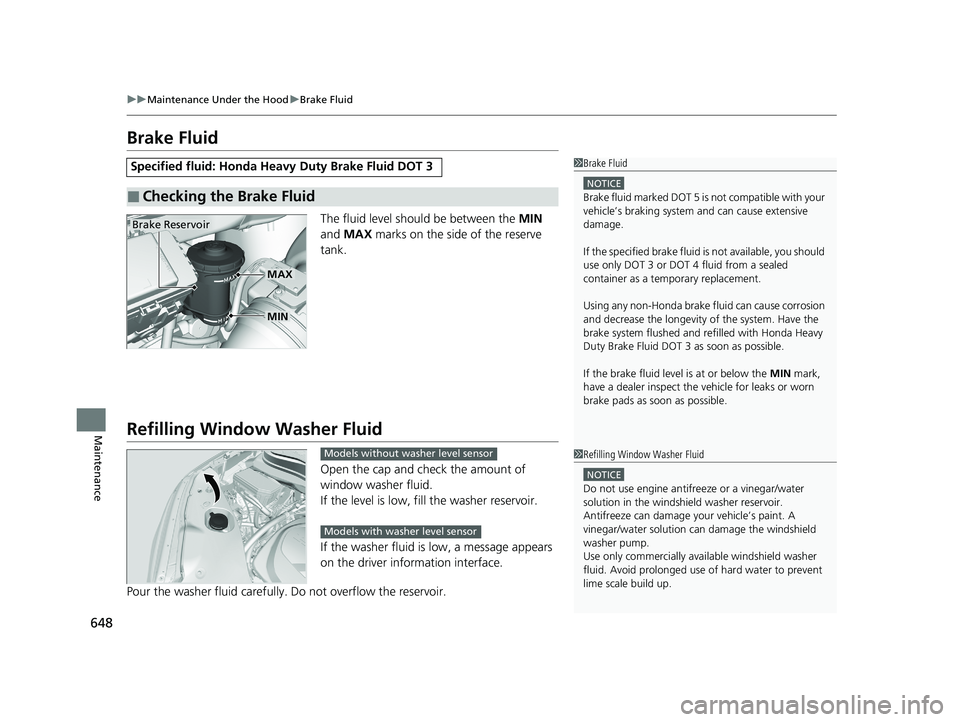

648
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
Open the cap and check the amount of
window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Brake Reservoir
MIN
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid. Avoid prolonged use of hard water to prevent
lime scale build up.
Models without washer level sensor
Models with washer level sensor
21 PILOT-31TG76500.book 648 ページ ２０２０年３月１８日　水曜日　午後４時３８分

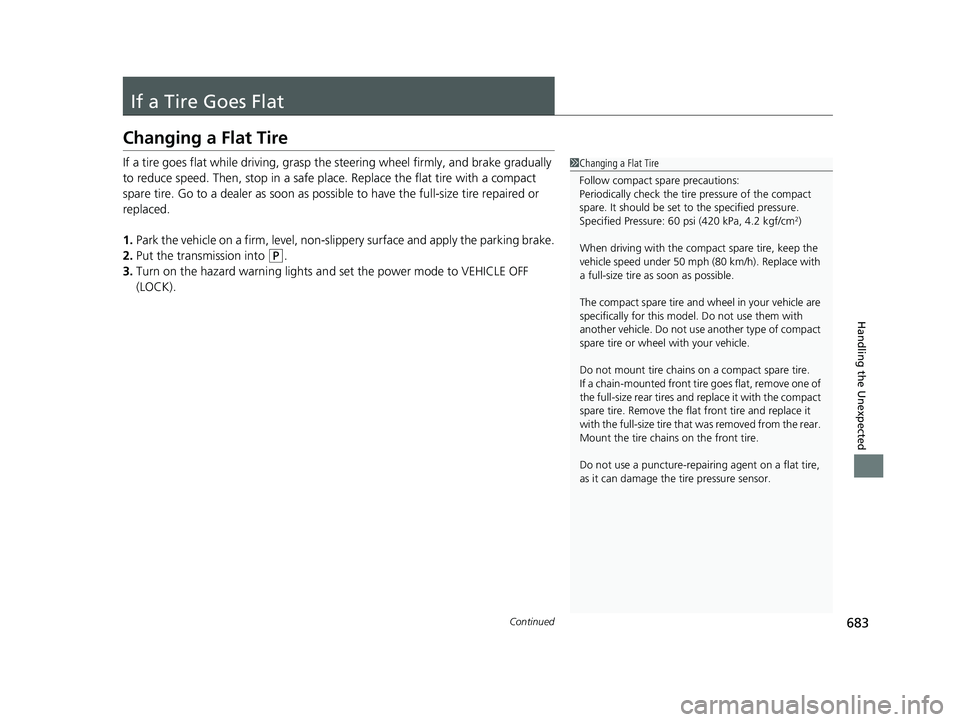

683Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
21 PILOT-31TG76500.book 683 ページ ２０２０年３月１８日　水曜日　午後４時３８分

704
uuFuses uFuse Locations
Handling the Unexpected
*1:Models with Display Audio
*2:Models with color audio system
Circuit ProtectedAmps
20 MG CLUTCH 7.5 A
21MAIN RLY15 A
22 FI SUB 15 A
23IG COIL15 A
24 DBW 15 A
25SMALL/STOP MAIN20 A
26 BACK UP 10 A
27HTD STRG WHEEL*(15 A)*1
−−*2
28 HORN 10 A
29RADIO15 A*1
20 A*2
Fuse locations are sh own on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
ST CUT1*(40 A)
4WD*(20 A)
IG MAIN30 A
IG MAIN230 A
P/TAILGATE MOTOR*(40 A)
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2TRAILER MAIN(30 A)
3TRAILER E-BRAKE(20 A)
4 BATTERY SENSOR 7.5 A
5H/L HI MAIN20 A
6 P/TAILGATE CLOSER*(20 A)
7CTR ACC SOCKET20 A
8 REAR ACC SOCKET*(20 A)
9FRONT WIPER DEICER*(15 A)
10 ACC/IG2_MAIN 10 A
11TRAILER CHARGE(20 A)
12IDLE STOP ST CUT(30 A)
13IDLE STOP(30 A)
14IDLE STOP(30 A)
15ELECTRONIC GEAR SELECTOR(15 A)
16REAR HEATED SEAT*(20 A)
17ST CUT FEED BACK7.5 A
* Not available on all models
21 PILOT-31TG76500.book 704 ページ ２０２０年３月１８日　水曜日　午後４時３８分

Index
727
Index
Index
A
AAC................................... 259, 312, 318, 321
ABS (Anti-lock Brake System) .................. 608
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 679
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) ................ 576
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 94
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 94
Additives Coolant .................................................. 645
Engine Oil ............................................... 640
Washer ................................................... 648
Additives, Engine Oil ............................... 640
Adjusting
Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 200, 201, 202
Mirrors.................................................... 192
Rear Seats ............................................... 204
Second Row Seats................................... 198
Steering Wheel ....................................... 191
third row seat ......................................... 199
Agile Handling Assist ............................... 550
Air Conditioning System (Climate Control System) ....................... 231
Changing the Mode................................ 231
Defrosting the Windshield and Windows .............................................. 232 Dust and Pollen Filter ............................... 673
Recirculation/Fresh Air Mode ................... 232
Sensor ..................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Air Pressure ....................................... 659, 715
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 58, 86
Passenger Airbag Off Indicator .................. 59
Sensors ...................................................... 47
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-wheel drive (AWD) Indicator ............... 91
AM/FM Radio .................................... 254, 298
Android Auto ............................................ 341
Anti-lock Brake System (ABS) .................. 608
Indicator .................................................... 85
Apple CarPlay ........................................... 338
Armrest ..................................................... 207
Audio Remote Controls ............................ 244
Audio System ............................ 240, 247, 265
Adjusting the Sound ........................ 252, 292
AM/FM Radio .................................. 254, 298
Android Auto .......................................... 341
Apple CarPlay .......................................... 338
Audio/Information Screen ................ 248, 266 Auxiliary Input Jack.................................. 242
Changing the Screen Brightness .............. 293
Display Setup .................................. 253, 293
Error Messages ........................................ 345
File Manager ........................................... 286
General Information ................................ 350
HD Subchannel ....................................... 301
Home Screen........................................... 272
HondaLink
®........................................... 329
How to Delete a File ................................ 289
How to Transfer a File ............................. 286
How to Update Wirelessly ....................... 280
How to Update with a USB Device........... 284
iPod ................................................ 256, 315
Limitations for Manual Operation ............ 294
MP3/WMA/AAC .............. 259, 312, 318, 321
My Honda Music ..................................... 321
Playing a CD............................................ 312
Playing AM/FM Radio .............................. 298
Playing Bluetooth ® Audio ................ 262, 325
Playing SiriusXM ® Radio .......................... 302
Playing Social Playlist ............................... 327
Reactivating ............................................ 243
Recommended CDs ................................. 351
Remote Controls ..................................... 244
Security Code .......................................... 243
Selecting an Audio Source ....................... 294
Siri Eyes Free ........................................... 337
Status Area

............................................. 277
System Updates....................................... 280
Theft Protection ...................................... 243
21 PILOT-31TG76500.book 727 ページ ２０２０年３月１８日　水曜日　午後４時３８分

730
Index
Starting the Engine .................................. 524
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 673
E
Eco Assist® System ....................................... 12
ECON Button ............................................. 545
Econ Mode Indicator .................................................... 90
Electric Power Steering (EPS) System Indicator ............................................ 87, 701
Electronic Stability Control (ESC) ............. 548
Emergency ................................................. 708
Emissions Testing (Readiness Codes) ....... 719
Engine
Coolant ................................................... 645
Jump Starting .......................................... 694
Number ................................................... 716
Oil ........................................................... 640
Remote Engine Start ................................ 526
Starting ................................................... 524
Engine Compartment Cover .................... 639
Engine Coolant ......................................... 645
Adding to the Radiator ............................ 646
Adding to the Reserve Tank ..................... 645
Overheating............................................. 697
Temperature Gauge................................. 110
Engine Oil .................................................. 640
Adding .................................................... 642
Checking ................................................. 641 Displaying Maintenance Minder
Information ........................................... 632
Low Oil Pressure Symbol.......................... 699
Recommended Engine Oil ....................... 640
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 701
Exhaust Gas Hazard (Carbon Monoxide) .. 78
Exterior Care (Cleaning) ........................... 676
Exterior Mirrors ........................................ 193
F
Features.................................................... 239
File Manager ............................................. 286
Filters Dust and Pollen ....................................... 673
Oil ........................................................... 643
Flat Tire ..................................................... 683
Floor Mats ................................................. 675
Fluids Automatic Transmission .......................... 647
Brake ...................................................... 648
Engine Coolant ....................................... 645
Windshield Washer ................................. 648
FM/AM Radio .................................... 254, 298
Fog Light Indicator ..................................... 89
Fog Lights ................................................. 178
Folding Down the Second Row Seat ....... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 607
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 603
Fuel ..................................................... 25, 623
Economy................................................. 626
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Range ..................................................... 116
Recommendation.................................... 623
Refueling ................................................ 623
Fuel Economy ........................................... 626
Fuel Fill Door ...................................... 25, 624
Unable to Unlock .................................... 709
Fuses ......................................................... 703
Inspecting and Changing ........................ 707
Locations ........................ 703, 704, 705, 706
G
Gasoline (Fuel)
Economy................................................. 626
Gauge .................................................... 110
Information............................................. 623
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Refueling ................................................ 623
Gauges ...................................................... 110
Gear Position Indicator ...................... 83, 534
Gear Shift Positions
Automatic Transmission .......................... 532
21 PILOT-31TG76500.book 730 ページ ２０２０年３月１８日　水曜日　午後４時３８分

733
Index
Safety ..................................................... 629
Service Items ........................................... 634
Tires........................................................ 658
Transmission Fluid ................................... 647
Under the Hood ...................................... 637
Wireless Headphone ............................... 671
Malfunction Indicator Lamp ............. 83, 700
Map Lights ................................................ 210
Maximum Load Limit ............................... 509
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 679
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 621
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 716
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 522
Oil (Engine) ............................................... 640
Adding .................................................... 642
Checking ................................................. 641
Displaying Maintenance Minder Information ........................................... 632
Low Oil Pressure Symbol .......................... 699
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 640
Viscosity .................................................. 640
Open Source Licenses ............................... 369
Opening/Closing
Hood ....................................................... 638
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 697
P
Paddle Shifters (Sequential Mode) .... 24, 539
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 610
Parking Brake ........................................... 606 Parking Brake and Brake System
Indicator .................................................. 701
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 612
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 530
Driving Guidelines for Your Utility Vehicle .................................................. 530
Rain ........................................................ 530
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 683
R
Radiator.................................................... 646
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 719
21 PILOT-31TG76500.book 733 ページ ２０２０年３月１８日　水曜日　午後４時３８分

735
Index
Jump Starting ......................................... 694
Remote Engine Start ............................... 526
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 228
Stopping ................................................... 610
Summer Tires ............................................ 666
Sunglasses Holder .................................... 223
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ........ 6, 7, 171
SYNC Mode .............................................. 234
System Message Indicator ......................... 90
System Updates ........................................ 280
T
Tachometer.............................................. 111
Tailgate ..................................................... 153
Unable to Open ...................................... 711
Temperature
Gauge .................................................... 110
Outside Temperature Display .................. 112
Temperature Gauge ................................ 110
Temperature Sensor ........................ 112, 237
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 204
Tie-down Anchors .................................... 229
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 702
Tire Pressure ............................................. 118 Tire Pressure Moni
toring System (TPMS)
Indicator .................................................... 88
Tires ........................................................... 658
Air Pressure ..................................... 659, 715
Checking and Maintaining ....................... 658
Inspection ................................................ 658
Labeling .................................................. 659
Puncture (Flat Tire) ................................... 683
Regulations ............................................. 661
Rotation .................................................. 665
Spare Tire ........................................ 683, 715
Summer .................................................. 666
Tire Chains .............................................. 666
Wear Indicators ....................................... 663
Winter ..................................................... 666
Tools .......................................................... 682
Towing a Trailer ....................................... 512
Equipment and Accessories ..................... 515
Load Limits .............................................. 512
Towing Your Vehicle ................................ 521
Emergency .............................................. 708
TPMS (Tire Pressure Monitoring System)
Indicator .................................................... 88
TPMS with Tire Fill Assist .......................... 557
Indicator .................................................. 702
Tire Fill Assist ........................................... 702
Trailer Stability Assist ............................... 519
Transmission ....................................... 23, 532
Automatic ......................................... 23, 532
Fluid ........................................................ 647
Gear Position Indicator ...................... 83, 534 Number................................................... 716
Sequential Mode ..................................... 538
Trip Computer .......................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 681
Blown Fuse...................... 703, 704, 705, 706
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 708
Engine Won’t Start .................................. 691
Noise When Braking .................................. 31
Overheating ............................................ 697
Puncture/Flat Tire .................................... 683
Rear Door Won’t Open...................... 29, 151
Warning Indicators .................................... 82
Turn Signals .............................................. 174
Indicators (Instrument Panel) ..................... 88
U
Under-floor Storage Area ........................ 230
Units .......................................................... 120
Unlocking the Doors ................................ 142
Unlocking the Fron t Doors from the
Inside ....................................................... 149
USB Flash Drives ....................... 259, 318, 354
USB Port .................................................... 241
21 PILOT-31TG76500.book 735 ページ ２０２０年３月１８日　水曜日　午後４時３８分
