key HONDA PILOT 2021 (in English) Owner's Guide

481
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

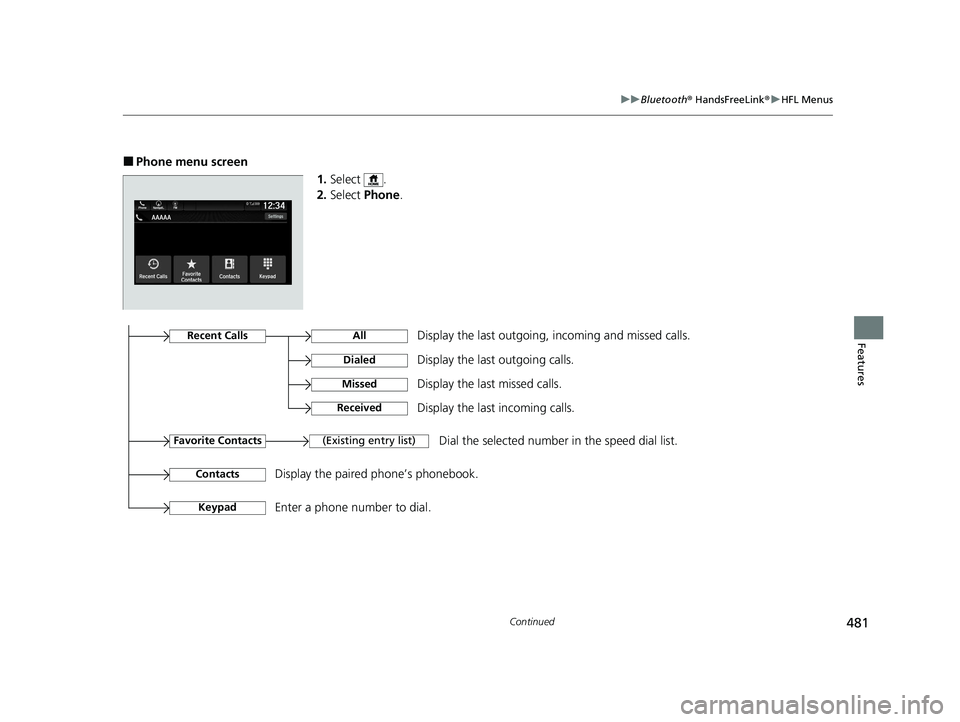

■Phone menu screen
1.Select .
2. Select Phone .
Display the last outgoing, incoming and missed calls.Recent Calls
Favorite Contacts
All
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.
MissedDisplay the last missed calls.
KeypadEnter a phone number to dial.
(Existing entry list)Dial the selected number in the speed dial list.
ContactsDisplay the paired phone’s phonebook.
21 PILOT-31TG76500.book 481 ページ ２０２０年３月１８日　水曜日　午後４時３８分

487
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
To store a speed dial number:
1. Go to the phone menu screen.
2 Phone menu screen P. 481
2.Select the Recent Calls , Contacts, or
Keypad screen.
3. Select the star icon.
u A notification appears on the screen if
the speed dial is su ccessfully stored.
u To remove the speed dial, select the star
icon again.
■Favorite Contacts
Recent Calls Screen
Contacts Screen
Keypad Screen Star Icon
Star Icon
Star Icon
21 PILOT-31TG76500.book 487 ページ ２０２０年３月１８日　水曜日　午後４時３８分

490
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

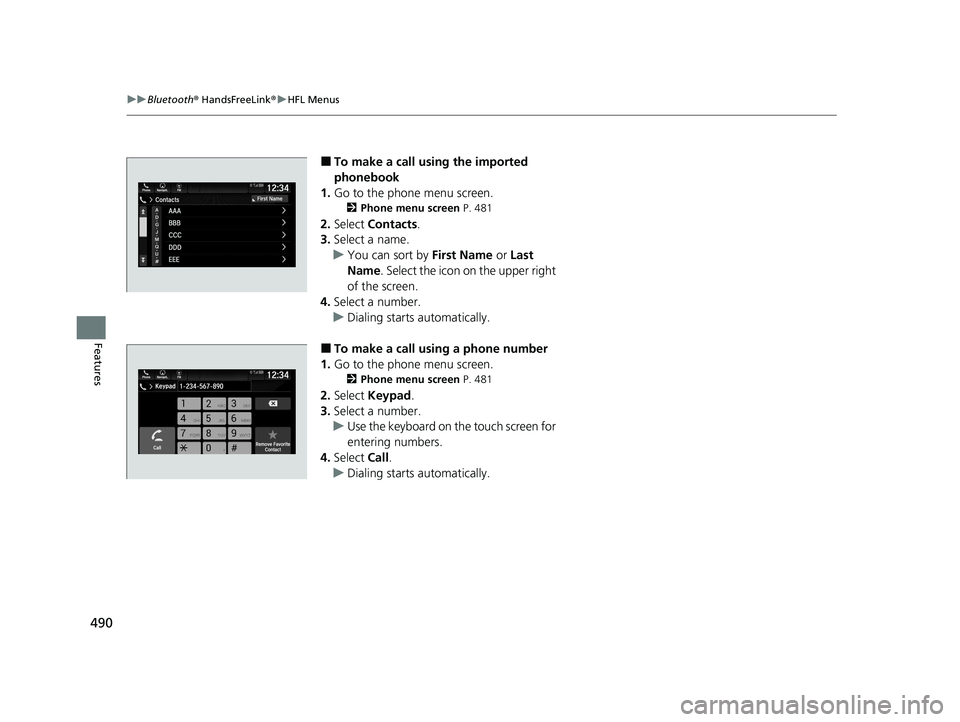

■To make a call using the imported
phonebook
1. Go to the phone menu screen.
2 Phone menu screen P. 481
2.Select Contacts .
3. Select a name.
u You can sort by First Name or Last
Name . Select the icon on the upper right
of the screen.
4. Select a number.
u Dialing starts automatically.
■To make a call using a phone number
1. Go to the phone menu screen.
2 Phone menu screen P. 481
2.Select Keypad .
3. Select a number.
u Use the keyboard on the touch screen for
entering numbers.
4. Select Call.
u Dialing starts automatically.
21 PILOT-31TG76500.book 490 ページ ２０２０年３月１８日　水曜日　午後４時３８分

uuBluetooth ® HandsFreeLink ®u HFL Menus
492
Features

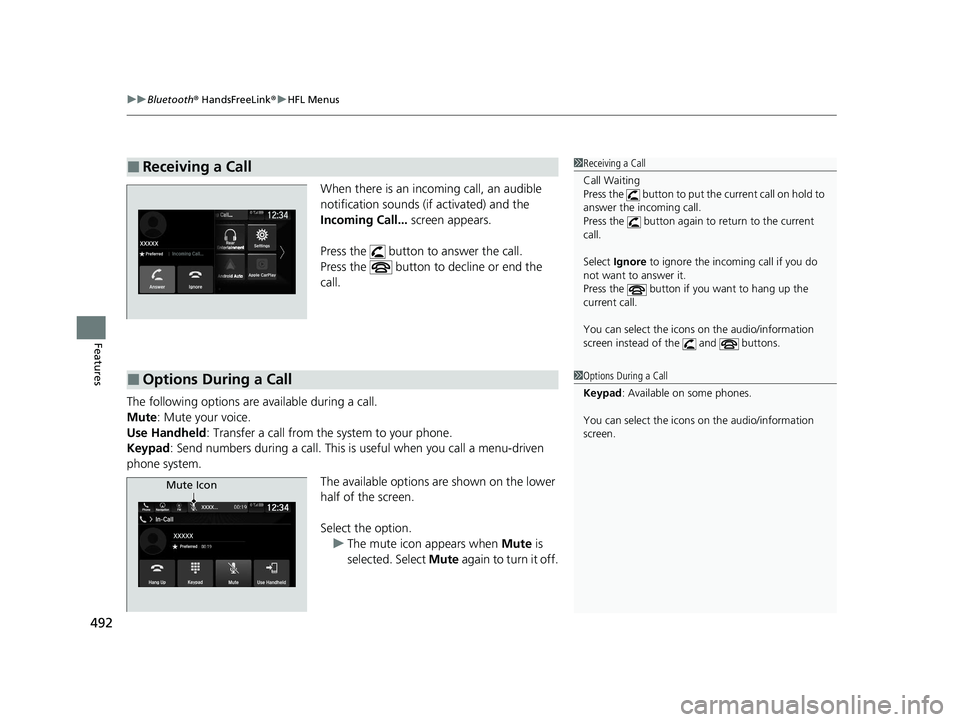

When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming Call... screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
The following options are available during a call.
Mute : Mute your voice.
Use Handheld : Transfer a call from the system to your phone.
Keypad : Send numbers during a call. This is useful when you call a menu-driven
phone system.
The available options are shown on the lower
half of the screen.
Select the option. u The mute icon appears when Mute is
selected. Select Mute again to turn it off.
■Receiving a Call1Receiving a Call
Call Waiting
Press the button to put th e current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons.
■Options During a Call1 Options During a Call
Keypad : Available on some phones.
You can select the icons on the audio/information
screen.
Mute Icon
21 PILOT-31TG76500.book 492 ページ ２０２０年３月１８日　水曜日　午後４時３８分

uuBluetooth ® HandsFreeLink ®u HFL Menus
498
Features

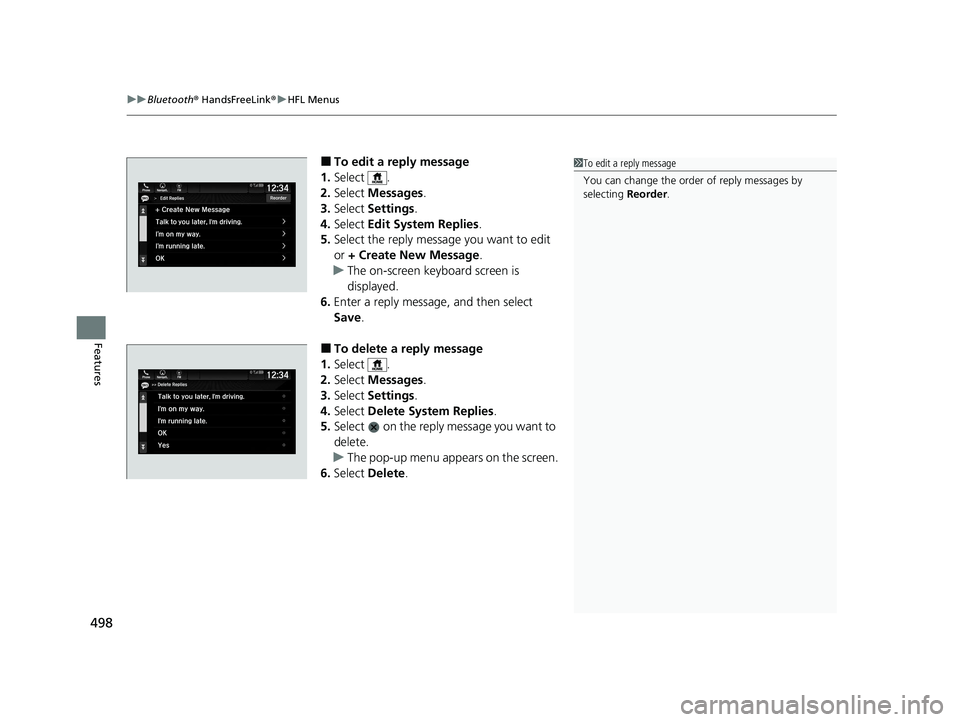

■To edit a reply message
1. Select .
2. Select Messages.
3. Select Settings .
4. Select Edit System Replies .
5. Select the reply message you want to edit
or + Create New Message .
u The on-screen keyboard screen is
displayed.
6. Enter a reply message, and then select
Save.
■To delete a reply message
1. Select .
2. Select Messages.
3. Select Settings .
4. Select Delete System Replies .
5. Select on the reply message you want to
delete.
u The pop-up menu appears on the screen.
6. Select Delete.
1To edit a reply message
You can change the order of reply messages by
selecting Reorder.
21 PILOT-31TG76500.book 498 ページ ２０２０年３月１８日　水曜日　午後４時３８分

506
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 658
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
21 PILOT-31TG76500.book 506 ページ ２０２０年３月１８日　水曜日　午後４時３８分

Continued527
uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start*
•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is any antenna failure.•The door is unlocked with the built-in key.
•The engine oil pressure is low.
•The engine coolant temper ature is extremely high.•The telematics* unit malfunctions.
•The security system alarm is not set.
The engine may stop whil e it is running if:
•You do not start the vehicl e within 10 minutes of
starting the engine with the smart entry remote.
•The engine is stopped by using the smart entry
remote.
•There is any antenna failure.
•The security system alarm is not set.•The door is unlocked with the built-in key.
•The hood is open, or any door, or the tailgate is
unlocked.
•Any door is open.
•The telematics* unit malfunction.
•The engine coolant temper ature is extremely high.•The battery is low.
Press and hold the
button for
one second.
Go within the range,
and try again.
The exterior lights will not flash when the remote
is out of the smart entry system range.
The engine will not stop.
The exterior lights flash once if the engine stops
successfully.
* Not available on all models
21 PILOT-31TG76500.book 527 ページ ２０２０年３月１８日　水曜日　午後４時３８分

669
Maintenance

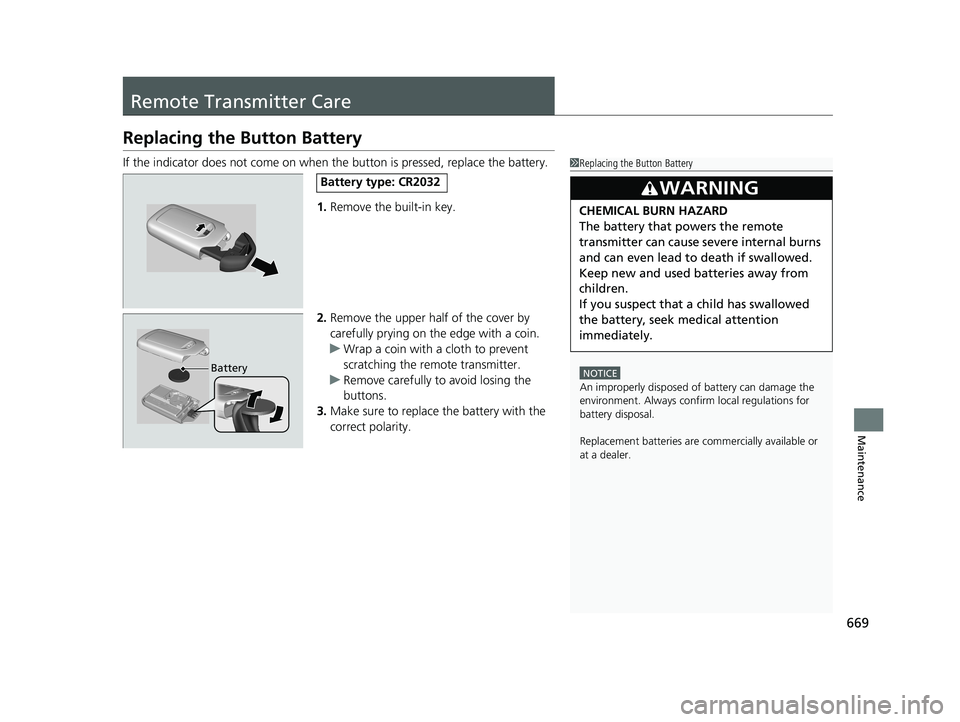

Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the remote transmitter.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
21 PILOT-31TG76500.book 669 ページ ２０２０年３月１８日　水曜日　午後４時３８分

705
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DRIVER P/WINDOW20 A
2DOOR LOCK20 A
3SMART7.5 A
4PASSENGER P/WINDOW20 A
5FRONT ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9IG1 SMART7.5 A
10SRS10 A
11DRIVER REAR P/WINDOW20 A
12−−
13PASSENGER REAR
P/WINDOW20 A
14FUEL LID20 A
15DRIVER P/SEAT (RECLINE)*(20 A)
16−(7.5 A)
17FRONT SEAT HEATER*(20 A)
18INTR LT7.5 A
19DRIVER REAR
DOOR UNLOCK10 A
20PASSENGER SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT*(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT7.5 A
30REAR WIPER10 A
31ST MOTOR7.5 A
32SRS7.5 A
33PASSENGER SIDE
DOOR LOCK10 A
34DRIVER SIDE DOOR LOCK10 A
35DRIVER SIDE
DOOR UNLOCK10 A
36DRIVER P/SEAT (SLIDE)*(20 A)
37PASSENGER H/L HI10 A
38DRIVER H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DRIVER REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps
* Not available on all models
21 PILOT-31TG76500.book 705 ページ ２０２０年３月１８日　水曜日　午後４時３８分

709
Handling the Unexpected

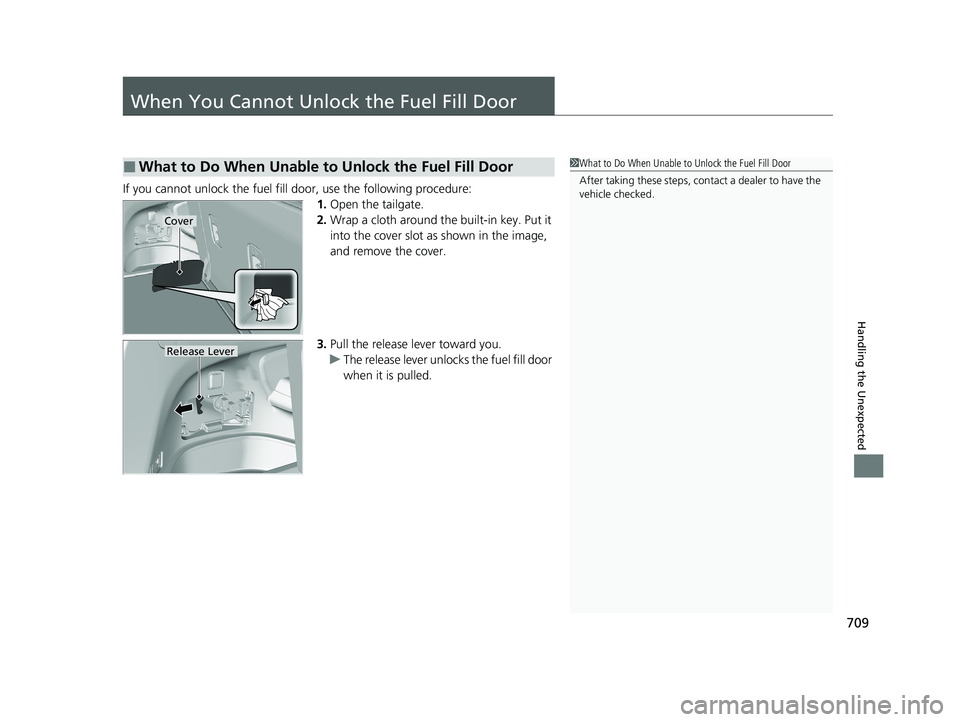

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:
1.Open the tailgate.
2. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
3. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
