Handling the Unexpected
Refueling

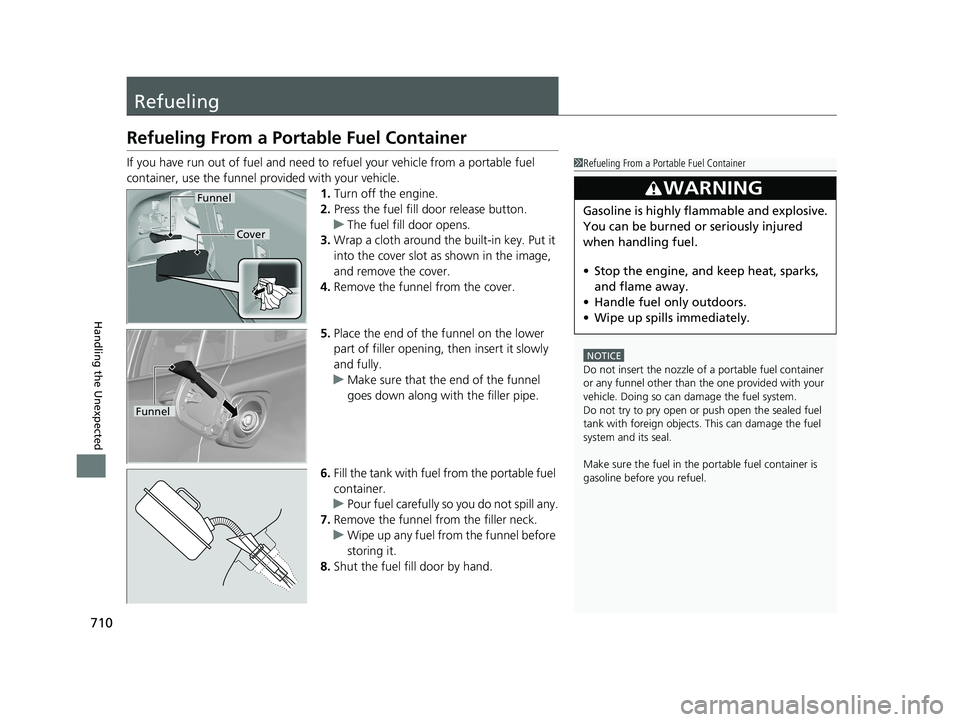

Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
4. Remove the funnel from the cover.
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
Cover
Funnel
21 PILOT-31TG76500.book 710 ページ ２０２０年３月１８日　水曜日　午後４時３８分

729
Index
Side Turn Signal/Emergency Indicator Lights .................................................... 652
Bulb Specifications ................................... 714
C
CabinTalkTM.............................................. 503
Car Wash Mode ........................................ 536
Carbon Monoxide Gas ............................... 78
Carrying Cargo ................................. 507, 509
CD Player .................................................. 312
Certification Label ................................... 716
Changing Bulbs ........................................ 649
Charging System Indicator ................ 83, 699
Child Safety ................................................ 62
Childproof Door Locks ............................ 151
Child Seat ................................................... 62
Booster Seats ............................................ 77
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 76
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 676
Cleaning the Interior ............................... 674
Climate Control System ........................... 231
Changing the Mode................................ 231 Defrosting the Windshield and
Windows ............................................... 232
Dust and Pollen Filter ............................... 673
Recirculation and Fresh Air Mode ............ 232
Sensors .................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Clock .......................................................... 136
Coat Hook ................................................. 222
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 564
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 94, 95
Compact Spare Tire .......................... 683, 715
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 645
Adding to the Radiator ............................ 646
Adding to the Reserve Tank ..................... 645
Overheating ............................................ 697
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 531
Cross Traffic Monitor ................................ 617
Cup Holders .............................................. 215
Customer Service Information ................. 725
Customized Features ................ 125, 423, 430
D
Daytime Running Lights ........................... 182
Dead Battery ............................................. 694 Defaulting All the Settings
...................... 448
Defrosting the Windshield and
Windows ................................................. 232
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 717
Dimming Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 641
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 661
Driver Information Interface ................... 111
Accessing Content .................................. 113
Warning and Information Messages .......... 97
Driving ...................................................... 505
Adaptive Cruise Control (ACC) ................ 576
Automatic Transmission .......................... 531
Braking ................................................... 606
Off-Highway Driving Guidelines............... 522
Shifting Gear ........................................... 532
21 PILOT-31TG76500.book 729 ページ ２０２０年３月１８日　水曜日　午後４時３８分

732
Index
Road Departure Mitigation (RDM) .............. 93
Seat Belt Reminder .............................. 40, 85
Security System Alarm ............................... 89
Supplemental Restraint System ............ 58, 86
System Message ........................................ 90
Turn Signal ................................................ 88
Vehicle Stability Assist
TM (VSA®) OFF ... 87, 549
Vehicle Stability AssistTM (VSA ®)
System ............................................. 86, 548
Information ............................................... 713
Instant Fuel Economy ............................... 116
Instrument Panel ........................................ 81
Brightness Control ................................... 188
Intelligent Traction Management
System ...................................................... 546
Intelligent VTM4 (i-VTM4) ....................... 556
Interior Lights ........................................... 209
Interior Rearview Mirror .......................... 192
iPad ............................................................ 353
iPhone ....................................................... 353
iPod ............................................ 256, 315, 353
J
Jack (Wheel Nut Wrench) ......................... 687
Jump Starting ............................................ 694
K
Key Number Tag ....................................... 140
Keyless Lockout Prevention ..................... 148Keys
........................................................... 139
Lockout Prevention.................................. 148
Number Tag ............................................ 140
Rear Door Won’t Open............................ 151
Remote Transmitter ................................. 147
Types and Functions ................................ 139
Kickdown (Automatic Transmission) ....... 531
L
Lane Keeping Assist System (LKAS)......... 589
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 92
Lane Keeping Assist System (LKAS) Indicator (Green) ...................................... 92
LaneWatch
TM............................................. 554
LATCH (Child Seats) .............................. 67, 73
Legal Information on Apple CarPlay/
Android Auto .......................................... 367
License Information ................................. 370
Lights ................................................. 175, 649
Automatic ............................................... 176
Bulb Replacement ................................... 649
Daytime Running Lights........................... 182
High Beam Indicator .................................. 88
Interior .................................................... 209
Light Switches ......................................... 175
Lights On Indicator .................................... 88
Turn Signals ............................................ 174
Load Limits ................................................ 509 Locking/Unlocking
................................... 139
Auto Door Locking/Unlocking ................. 152
Childproof Door Locks ............................ 151
From Inside ............................................. 149
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 148
Lockout Prevention System ..................... 148
Low Battery Charge ................................. 699
Low Fuel Indicator ..................................... 85
Low Oil Pressure Symbol ......................... 699
Lower Anchors ..................................... 67, 73
Lubricant Specifications Chart ................ 715
Luggage (Maximum Load Limit) ............. 509
Lumbar Support ............................... 194, 195
Lumbar Support Adjustment Switch ...... 195
M
Maintenance.................................... 118, 627
Battery .................................................... 667
Brake Fluid .............................................. 648
Cleaning ................................................. 674
Coolant .................................................. 645
Maintenance Minder
TM............................ 631
Oil .......................................................... 641
Precautions ............................................. 628
Radiator .................................................. 646
Remote Control ...................................... 670
Remote Transmitter ................................ 669
Replacing Light Bulbs .............................. 649
