HONDA PILOT 2021 Owner's Manual (in English)

389
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Continued
Features

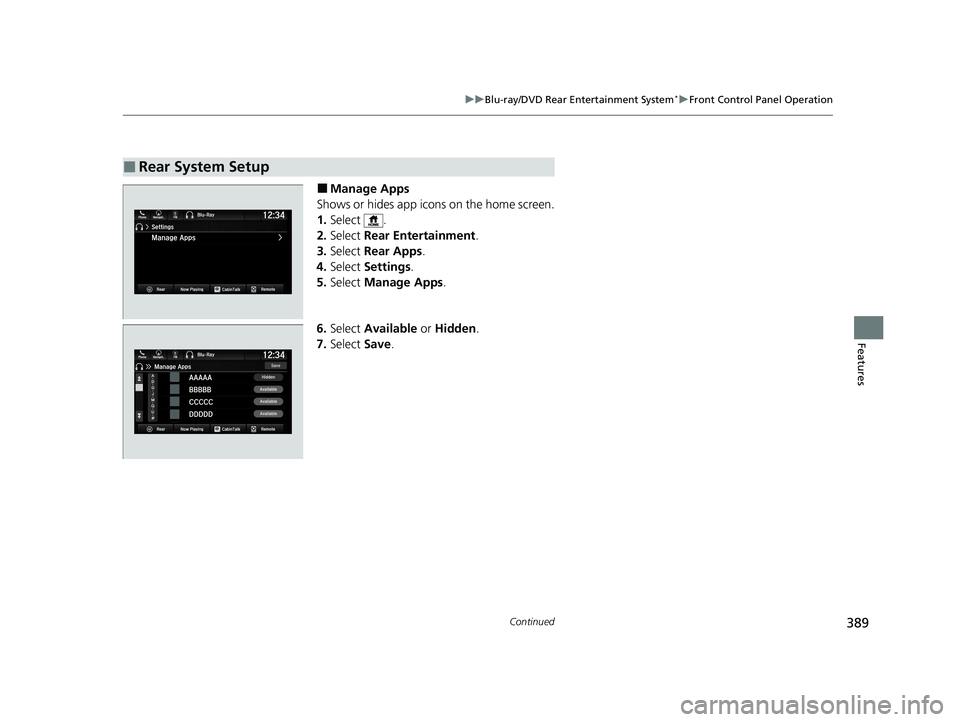

■Manage Apps
Shows or hides app icons on the home screen.
1. Select .
2. Select Rear Entertainment .
3. Select Rear Apps .
4. Select Settings .
5. Select Manage Apps .
6. Select Available or Hidden .
7. Select Save.
■Rear System Setup
21 PILOT-31TG76500.book 389 ページ ２０２０年３月１８日　水曜日　午後４時３８分

uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
390
Features

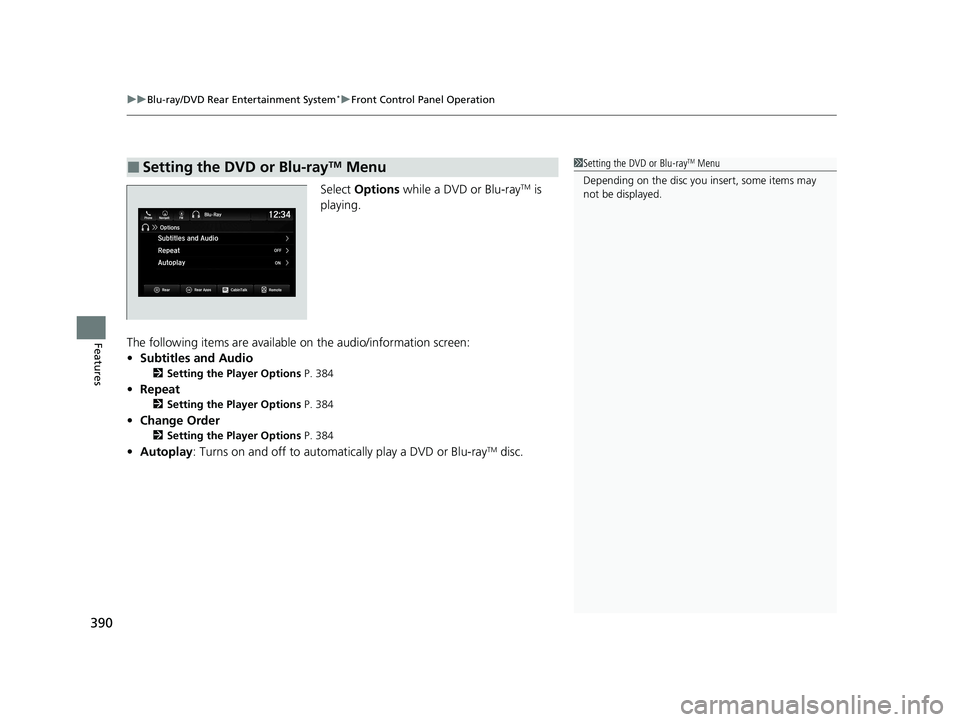

Select Options while a DVD or Blu-rayTM is
playing.
The following items are available on the audio/information screen:
• Subtitles and Audio
2 Setting the Player Options P. 384
•Repeat
2 Setting the Player Options P. 384
•Change Order
2 Setting the Player Options P. 384
•Autoplay: Turns on and off to automatically play a DVD or Blu-rayTM disc.
■Setting the DVD or Blu-rayTM Menu1Setting the DVD or Blu-rayTM Menu
Depending on the disc you insert, some items may
not be displayed.
21 PILOT-31TG76500.book 390 ページ ２０２０年３月１８日　水曜日　午後４時３８分

391
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Continued
Features

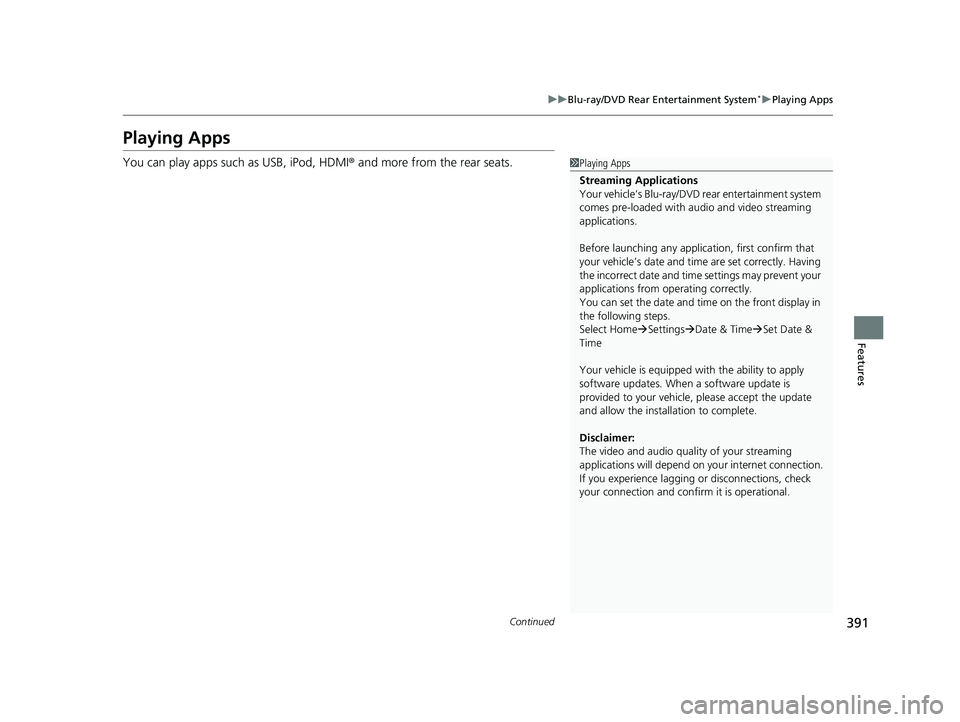

Playing Apps
You can play apps such as USB, iPod, HDMI ® and more from the rear seats.1Playing Apps
Streaming Applications
Your vehicle’s Blu-ray/DVD rear entertainment system
comes pre-loaded with a udio and video streaming
applications.
Before launching any application, first confirm that
your vehicle’s date and time are set correctly. Having
the incorrect date and time settings may prevent your
applications from operating correctly.
You can set the date and ti me on the front display in
the following steps.
Select Home Settings Date & Time Set Date &
Time
Your vehicle is equipped wi th the ability to apply
software updates. When a software update is
provided to your vehicle, please accept the update
and allow the installation to complete.
Disclaimer:
The video and audio qual ity of your streaming
applications will depend on your internet connection.
If you experience lagging or disconnections, check
your connection and conf irm it is operational.
21 PILOT-31TG76500.book 391 ページ ２０２０年３月１８日　水曜日　午後４時３８分

392
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features

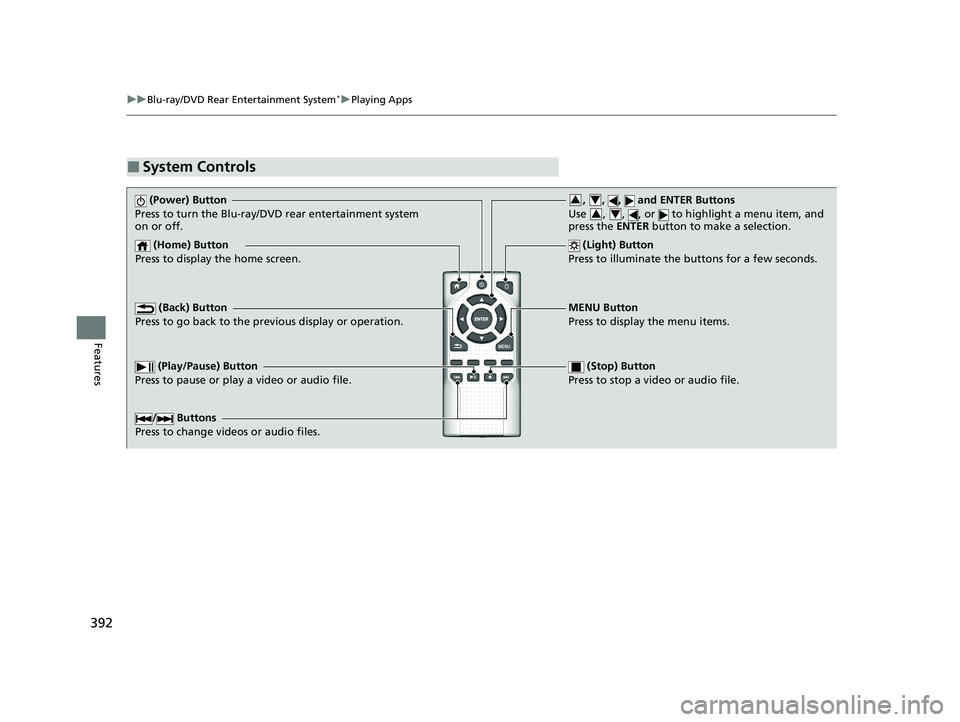

■System Controls
(Power) Button
Press to turn the Blu-ray/DVD rear entertainment system
on or off.
(Home) Button
Press to display the home screen. (Light) Button
Press to illuminate the buttons for a few seconds.
/ Buttons
Press to change videos or audio files.
(Play/Pause) Button
Press to pause or play a video or audio file. (Stop) Button
Press to stop a video or audio file.
MENU Button
Press to display the menu items.
(Back) Button
Press to go back to the pr evious display or operation.
, , , and ENTER Buttons
Use , , , or to highlight a menu item, and
press the ENTER button to make a selection.34
34
21 PILOT-31TG76500.book 392 ページ ２０２０年３月１８日　水曜日　午後４時３８分

Continued393
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features
To play a disc, press the (home) button on the remote, and then select the Blu-
ray Disc icon on th e overhead screen.
When you press the MENU button on the remote while the CD is playing, the audio
menu appears on the overhead screen.
The available options app ear on the overhead screen are repeat, random,
brightness, and contrast.
To play an iPod and a USB flash drive, press the (home) button on the remote,
and then select the USB icon on the overhead screen.
When you press the MENU button on the remote while the iPod or USB flash drive
is playing, the audio menu ap pears on the overhead screen.
The available options appear on the overhead screen are repeat, random, aspect
ratio, brightness, and contrast.
■Playing a Disc in the Rear
■Playing an iPod and a USB Flash Drive in the Rear
1 System Controls
You can also operate the Blu-ray/DVD rear
entertainment system on the audio/information
screen.
21 PILOT-31TG76500.book 393 ページ ２０２０年３月１８日　水曜日　午後４時３８分

394
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features
To play videos from an HDMITM-compatible device, connect the device using an
HDMITM cable.
2 HDMITM Port P. 378
Press the (home) button on the remote, and then select the HDMI icon on the
overhead screen.
When you press the MENU button on the remote wh ile the video using the HDMI
TM
is playing, the audio menu ap pears on the overhead screen.
The available options appear on the overhead screen are aspect ratio, brightness,
and contrast.
■Playing a Video Using the HDMITM
21 PILOT-31TG76500.book 394 ページ ２０２０年３月１８日　水曜日　午後４時３８分

395
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features
Displays the current location temperature, time remaining, distance traveled, and
distance remaining with an animation.
To play the app, press the (home) bu tton on the remote, and then select the
How Much Farther? icon on the overhead screen.
You can select a background from five ty pes using or on the remote, and bring
some items (at top of the scre en) up and down using or .
Plays a stored video or audio file from a connected device via Wi-Fi.
Connect the device using Wi-Fi.
2 Wi-Fi Connection P. 334
Press the (home) button on the remote, and then select the Media Servers icon
on the overhead screen.
The operation are the same as the USB mode.
■How Much Farther?TM*
■Media Servers
1 How Much Farther?TM*
When there is no destinat ion set on the navigation
system, an animated demons tration will be displayed.
34
1Media Servers
NOTE: For this feature to work, an app that exposes
your device as a media se rver must be installed on
your device. Open this a pp on your device prior to
selecting the Media Servers icon. This feature is only
supported on Android phones.
* Not available on all models
21 PILOT-31TG76500.book 395 ページ ２０２０年３月１８日　水曜日　午後４時３８分

396
uuBlu-ray/DVD Rear Entertainment System*uAudio Sources for Front and Rear Seats
Features

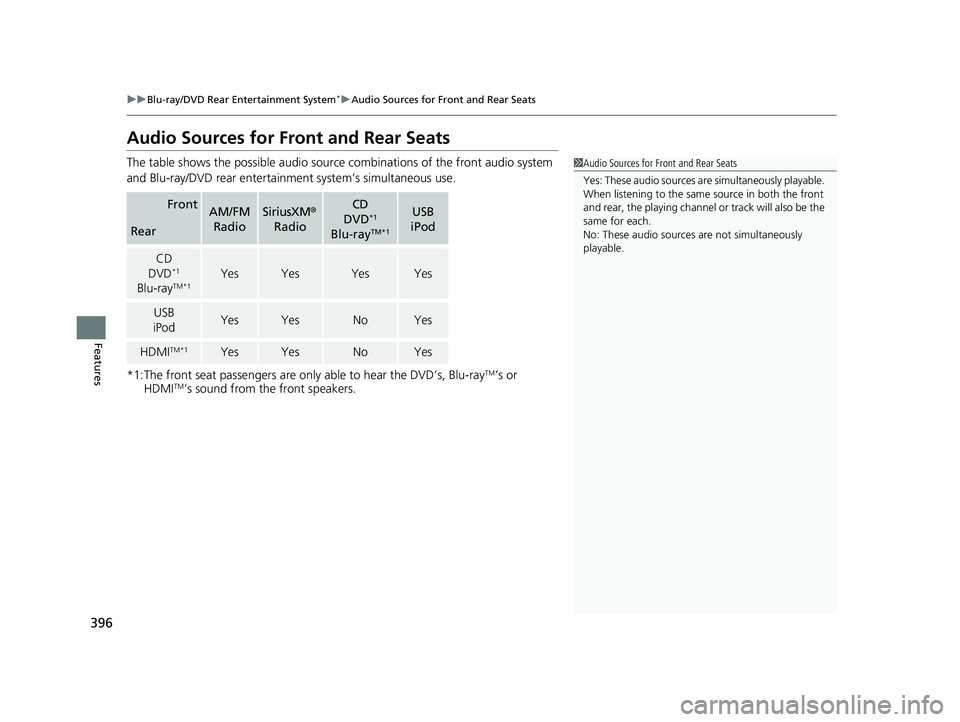

Audio Sources for Front and Rear Seats
The table shows the possible audio source combinations of the front audio system
and Blu-ray/DVD rear entertainme nt system’s simultaneous use.
*1:The front seat passengers are only able to hear the DVD’s, Blu-ray
TM’s or
HDMITM’s sound from the front speakers.
FrontAM/FM
RadioSiriusXM ®
RadioCD
DVD*1
Blu-rayTM*1
USB
iPod
Rear
CD
DVD*1
Blu-rayTM*1YesYesYesYes
USB
iPodYesYesNoYes
HDMITM*1YesYesNoYes
1 Audio Sources for Front and Rear Seats
Yes: These audio sources ar e simultaneously playable.
When listening to the same source in both the front
and rear, the playing channel or track will also be the
same for each.
No: These audio sources are not simultaneously
playable.
21 PILOT-31TG76500.book 396 ページ ２０２０年３月１８日　水曜日　午後４時３８分

397
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features
Playable Discs
The discs that come with these labels can be played in your vehicle’s Blu-ray/DVD
rear entertainment system.
Also look for the region code of 1, ALL, or on the package or jacket on the
disc.
DVD-ROMs and Blu-ray
TM ROMs (BD ROM) are not playable in this unit.
1 Playable Discs
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights.
This item incorporates co py protection technology
that is protected by U.S. patents and other
intellectual property righ ts of Rovi Corporation.
Reverse engineering and di sassembly are prohibited.
For DTS patents, see http://patents.dts.com .
Manufactured under licens e from DTS Licensing
Limited. DTS, DTS-HD, the Symbol, & DTS and the
Symbol together are regist ered trademarks of DTS,
Inc.©DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, Pro Logic, and the double-D
symbol are trademarks of Dolby Laboratories.
“Blu-ray Disc
TM”, “Blu-rayTM”, and the logos are
trademarks of the Blu-ray Disc Association.
is a trademark of DVD Format/Logo Licensing
Corporation.
The disc packages or jackets should have one of these marks.
Also includes:
21 PILOT-31TG76500.book 397 ページ ２０２０年３月１８日　水曜日　午後４時３８分

398
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features

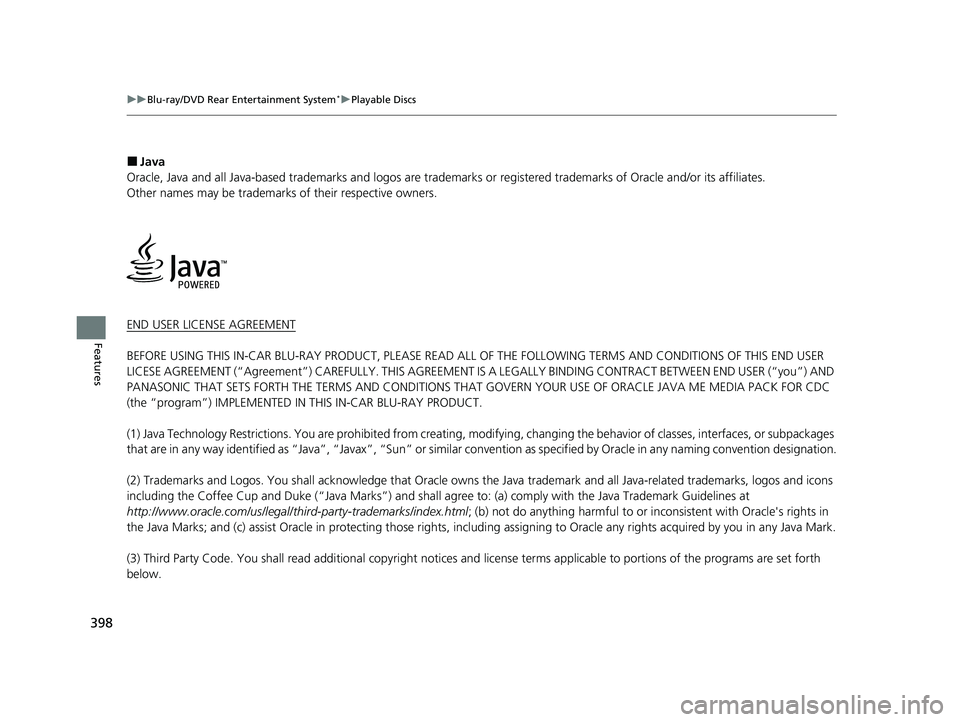

■Java
Oracle, Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates.
Other names may be trademarks of their respective owners.
END USER LICENSE AGREEMENT
BEFORE USING THIS IN-CAR BLU-RAY PRODUCT, PLEASE READ ALL OF THE FOLLOWING TERMS AND CONDITIONS OF THIS END USER
LICESE AGREEMENT (“Agreement”) CAREFULLY. THIS AGREEMENT IS A LEGALLY BINDING CONTRACT BETWEEN END USER (“you”) AND
PANASONIC THAT SETS FORTH THE TERMS AND CONDITIONS THAT GOVERN YOUR USE OF ORACLE JAVA ME MEDIA PACK FOR CDC
(the “program”) IMPLEMENTED IN THIS IN-CAR BLU-RAY PRODUCT.
(1) Java Technology Restrictions. You are prohibited from creating, modifying, changing the behavior of classes, interfaces, or subpackages
that are in any way identified as “Java”, “Javax”, “Sun” or similar convention as specified by Oracle in any naming convention designation.
(2) Trademarks and Logos. You shall acknowledge that Oracle owns the Java trademark and all Java-related trademarks, logos and icons
including the Coffee Cup and Duke (“Java Ma rks”) and shall agree to: (a) comply with the Java Trademark Guidelines at
http://www.oracle .com/us/legal/third-pa rty-trademarks/index.html ; (b) not do anything harmfu l to or inconsistent with Oracle's rights in
the Java Marks; and (c) assist Oracle in protecting those rights, including assigning to Oracle any rights acquired by you in a ny Java Mark.
(3) Third Party Code. You shall read additional copyright notices and license terms applicable to portions of the programs are set forth
below.
21 PILOT-31TG76500.book 398 ページ ２０２０年３月１８日　水曜日　午後４時３８分
