heated steering HONDA PILOT 2021 Owner's Manual (in English)

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Gauges (P110)
❚Driver Information
Interface
(P111)
❚System Indicators (P82)
❚ECON Button (P545)
❚Audio System (P247, 265)
❚Navigation System*
() See the Navigation System Manual
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P549)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P567)
❚Heated Windshield Button* (P187)
❚Road Departure Mitigation (RDM)
Button
(P600)
❚Parking Sensor System Button* (P613)
❚Blu-ray/DVD Rear Entertainment System*
(P375)
❚Steering Wheel Adjustments (P191)
❚ENGINE START/STOP Button (P171)
❚Front Seat Heater Buttons* (P225)
❚Front Seat Heaters and Seat
Ventilation Buttons* (P226)
❚Climate Control System (P231)
❚Audio/Information Screen (P248, 266)
❚Hazard Warning Button
❚Rear Defogger/Heated Door Mirror*
Button
(P186)
21 PILOT-31TG76500.book 6 ページ ２０２０年３月１８日　水曜日　午後４時３８分

7
Quick Reference Guide❚Headlights/Turn Signals (P174, 175)
❚Fog Lights* (P178)
❚LaneWatchTM * (P554)
❚Paddle Shifter (Shift down) (P539)
❚Wipers/Washers (P183)
❚Paddle Shifter (Shift up) (P539)
❚Brightness Control (P188)
❚Lane Keeping Assist System (LKAS) Button
(P591)
❚Horn (Press an area around .)
❚Navigation System Voice Control Buttons* () See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice Control Buttons (P452, 477)
❚Heated Steering Wheel Button* (P228)
❚ENTER Button (P113, 244)
❚Interval Button (P584)
❚Adaptive Cruise Control (ACC) Buttons
(P576)
❚ (home) Button (P113, 244)
❚Audio Remote Control Buttons (P244)
❚MAIN Button (P577)
❚/ Button (P113, 244)34
* Not available on all models
21 PILOT-31TG76500.book 7 ページ ２０２０年３月１８日　水曜日　午後４時３８分

183
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting (+) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogge r or heated windshield
*
to warm the windshield, then turn the wipers on.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
21 PILOT-31TG76500.book 183 ページ ２０２０年３月１８日　水曜日　午後４時３８分

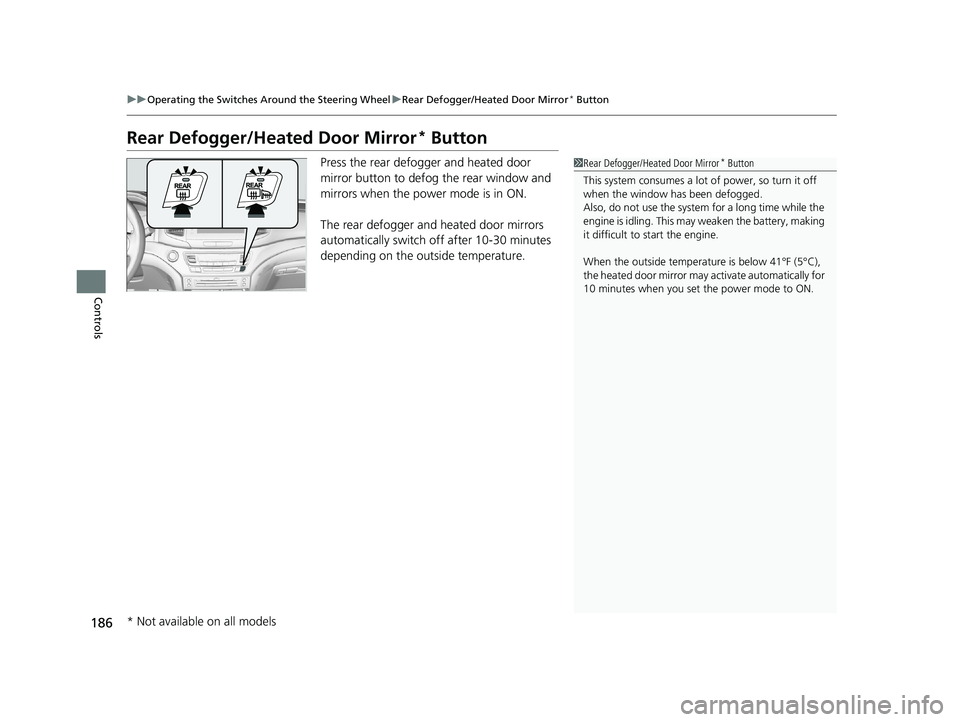

186
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror* Button
Controls
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door
mirror button to defog the rear window and
mirrors when the power mode is in ON.
The rear defogger and heated door mirrors
automatically switch off after 10-30 minutes
depending on the outside temperature.1Rear Defogger/Heated Door Mirror* Button
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.
When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.
* Not available on all models
21 PILOT-31TG76500.book 186 ページ ２０２０年３月１８日　水曜日　午後４時３８分

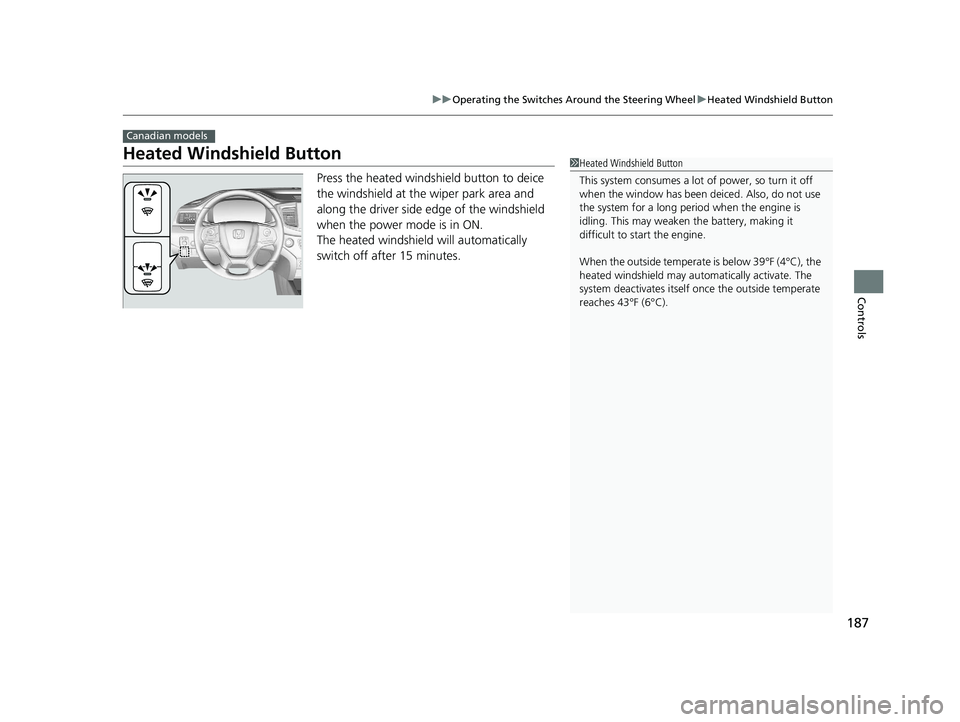

187
uuOperating the Switches Around the Steering Wheel uHeated Windshield Button
Controls
Heated Windshield Button
Press the heated windshield button to deice
the windshield at the wiper park area and
along the driver side edge of the windshield
when the power mode is in ON.
The heated windshield will automatically
switch off after 15 minutes.
Canadian models
1Heated Windshield Button
This system consumes a lot of power, so turn it off
when the window has been deiced. Also, do not use
the system for a long peri od when the engine is
idling. This may weaken the battery, making it
difficult to start the engine.
When the outside temperate is below 39°F (4°C), the
heated windshield may auto matically activate. The
system deactivates itself once the outside temperate
reaches 43°F (6°C).
21 PILOT-31TG76500.book 187 ページ ２０２０年３月１８日　水曜日　午後４時３８分

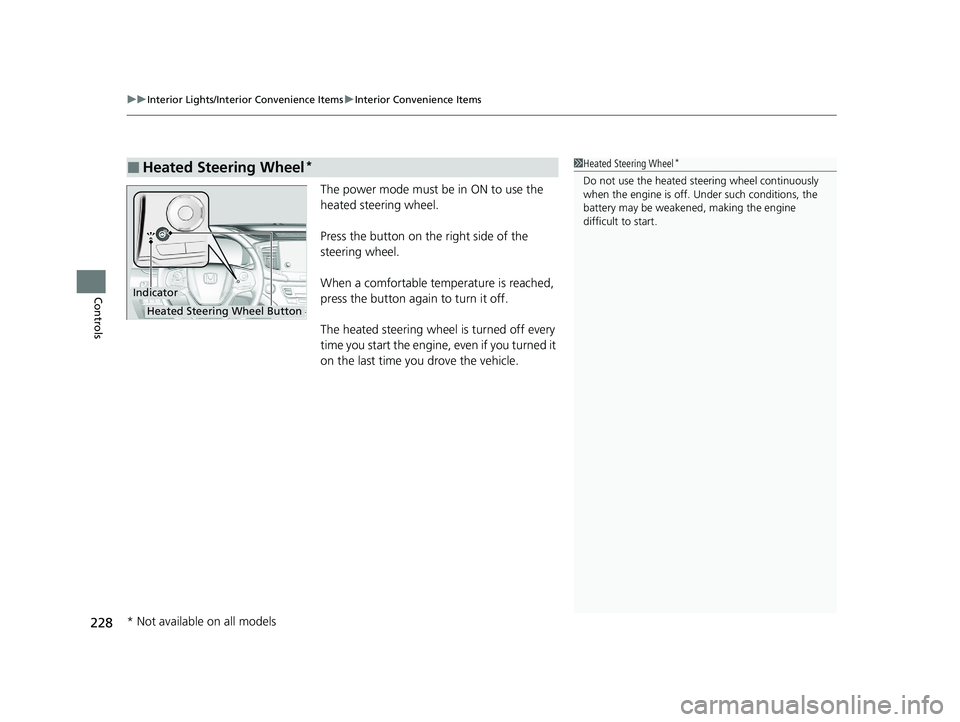

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
228
Controls
The power mode must be in ON to use the
heated steering wheel.
Press the button on the right side of the
steering wheel.
When a comfortable temperature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the engine, even if you turned it
on the last time you drove the vehicle.
■Heated Steering Wheel*1Heated Steering Wheel*
Do not use the heated st eering wheel continuously
when the engine is off. Under such conditions, the
battery may be weaken ed, making the engine
difficult to start.
Indicator
Heated Steering Wheel Button
* Not available on all models
21 PILOT-31TG76500.book 228 ページ ２０２０年３月１８日　水曜日　午後４時３８分

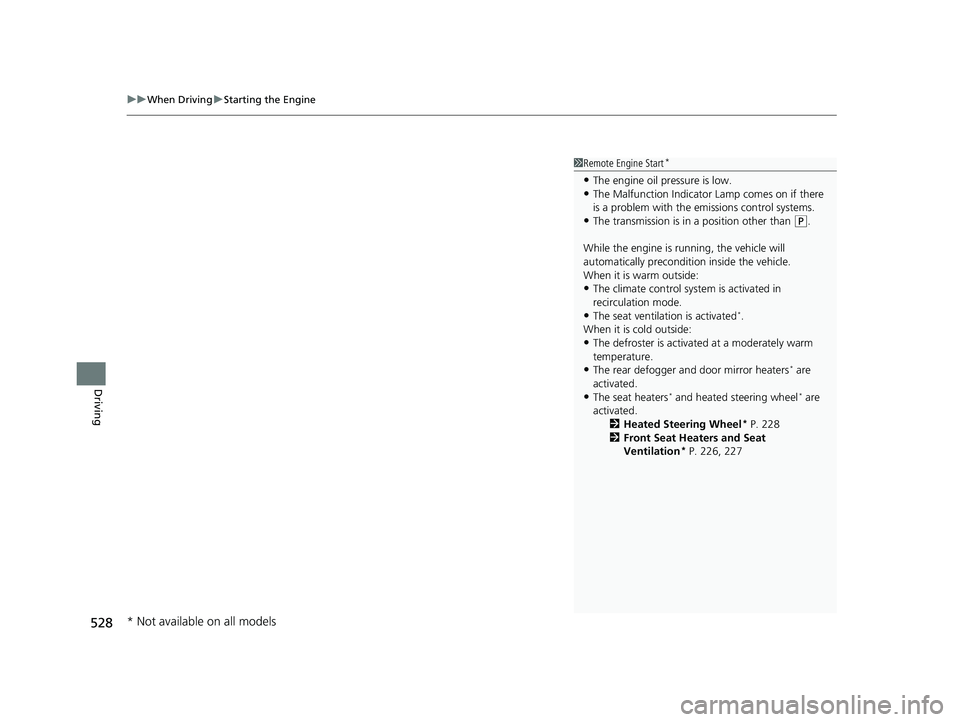

uuWhen Driving uStarting the Engine
528
Driving
1Remote Engine Start*
•The engine oil pressure is low.•The Malfunction Indicator Lamp comes on if there
is a problem with the em issions control systems.
•The transmission is in a position other than (P.
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The climate control system is activated in
recirculation mode.
•The seat ventilation is activated*.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters* are
activated.
•The seat heaters* and heated steering wheel* are
activated. 2Heated Steering Wheel
* P. 228
2 Front Seat Heaters and Seat
Ventilation
* P. 226, 227
* Not available on all models
21 PILOT-31TG76500.book 528 ページ ２０２０年３月１８日　水曜日　午後４時３８分

731
Index
Glass (care)............................................... 677
Glove Box ................................................. 213
H
Handling the Unexpected ....................... 681
Hands Free Access .................................... 155
HandsFreeLink ® (HFL) ...................... 452, 477
Automatic Import of Cellular Phonebook
and Call History............................. 466, 486
Automatic Transferring ........................... 485
Caller ID Information............................... 464
Displaying Messages ............................... 496
Favorite Contacts .................................... 487
HFL Buttons .................................... 452, 477
HFL Menus...................................... 454, 480
HFL Status Display ........................... 453, 479
In Case of Emergency ............................. 500
Limitations for Manual Operation.... 453, 479
Making a Call ................................. 471, 489
Options During a Call...................... 476, 492
Phone Setup ................................... 458, 482
Receiving a Call............................... 475, 492
Receiving a Text Message........................ 494
Ring Tone ....................................... 464, 485
Selecting a Phone ................................... 495
Speed Dial .............................................. 467
To Clear the System ................................ 465
To Set Up a Text Message Options .......... 493
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 301 HDMI
TM Port
.............................................. 378
Head Restraints ......................... 200, 201, 202
Headlights ................................................. 175
Auto High-Beam ...................................... 179
Automatic Operation ............................... 176
Dimming ......................................... 175, 182
Operating ................................................ 175
Heated Steering Wheel ............................ 228
Heated Windshield Button ...................... 187
Heater (Steering Wheel) .......................... 228
Heaters (Seat) ........................... 225, 226, 227
HFL (HandsFreeLink ®)....................... 452, 477
High Beam Indicator .................................. 88
Hill Start Assist System ............................. 529
HomeLink® Universal Transceiver ............ 449
Honda App License Agreement ............... 355
Honda Sensing ®........................................ 26
HondaLink ®............................................. 329
I
Identification Numbers ............................ 716
Engine and Transmission ......................... 716
Vehicle Identification ............................... 716
Illumination Control ................................. 188
Button ..................................................... 188
Immobilizer System .................................. 163
Indicator .................................................... 89
Indicators .................................................... 82
Adaptive Cruise Control (ACC) (Amber) ..... 94
Adaptive Cruise Control (ACC) (Green) ...... 94 All-wheel drive (AWD) ............................... 91
Anti-lock Brake System (ABS)..................... 85
Auto High-Beam ....................................... 86
Auto Idle Stop (Amber).............................. 91
Auto Idle Stop (Green)............................... 91
Blind spot information ....................... 96, 552
Brake System (Amber) ............................... 82
Brake System (Red) ............................ 82, 701
Charging System ............................... 83, 699
Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 94, 95
Econ Mode................................................ 90
Electric Power Steering (EPS) System .. 87, 701
Fog Light ................................................... 89
Gear Position............................................. 83
Hazard Warning ........................................ 88
High Beam ................................................ 88
Immobilizer System ................................... 89
Lane Keeping Assist System (LKAS) .......... 591
Lane Keeping Assist System (LKAS) (Amber) ................................................... 92
Lane Keeping Assist System (LKAS)
(Green) .................................................... 92
Lights On .................................................. 88
Low Fuel ................................................... 85
Low Oil Pressure Symbol.......................... 699
Low Tire Pressure/TPMS ..................... 88, 702
Malfunction Indicator Lamp............... 83, 700
Parking Brake and Brake System .............. 701
Parking Brake and Brake System (Amber) .. 82
Parking Brake and Brake System (Red) ....... 82
21 PILOT-31TG76500.book 731 ページ ２０２０年３月１８日　水曜日　午後４時３８分
