engine HONDA PILOT 2022 Repair Manual

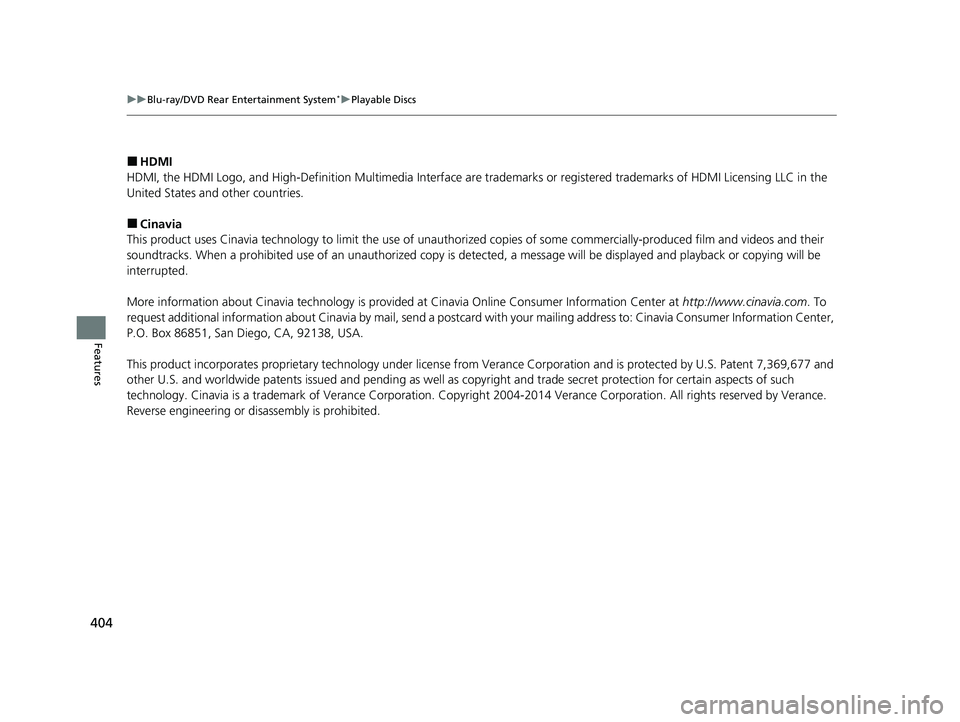

404
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features
■HDMI
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trade marks of HDMI Licensing LLC in the
United States and other countries.
■Cinavia
This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their
soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be
interrupted.
More information about Cinavia technology is provid ed at Cinavia Online Consumer Information Center at http://www.cinavia.com. To
request additional information about Cinavia by mail, send a postca rd with your mailing address to: Cinavia Consumer Information Center,
P.O. Box 86851, San Diego, CA, 92138, USA.
This product incorporates proprietary technology under license fro m Verance Corporation and is protected by U.S. Patent 7,369,677 and
other U.S. and worldwide patents issued and pending as well as c opyright and trade secret protection for certain aspects of such
technology. Cinavia is a trademark of Verance Corporation. Copy right 2004-2014 Verance Corporation. All rights reserved by Vera nce.
Reverse engineering or di sassembly is prohibited.
22 PILOT-31TG76600.book 404 ページ ２０２１年６月１１日　金曜日　午後４時４０分

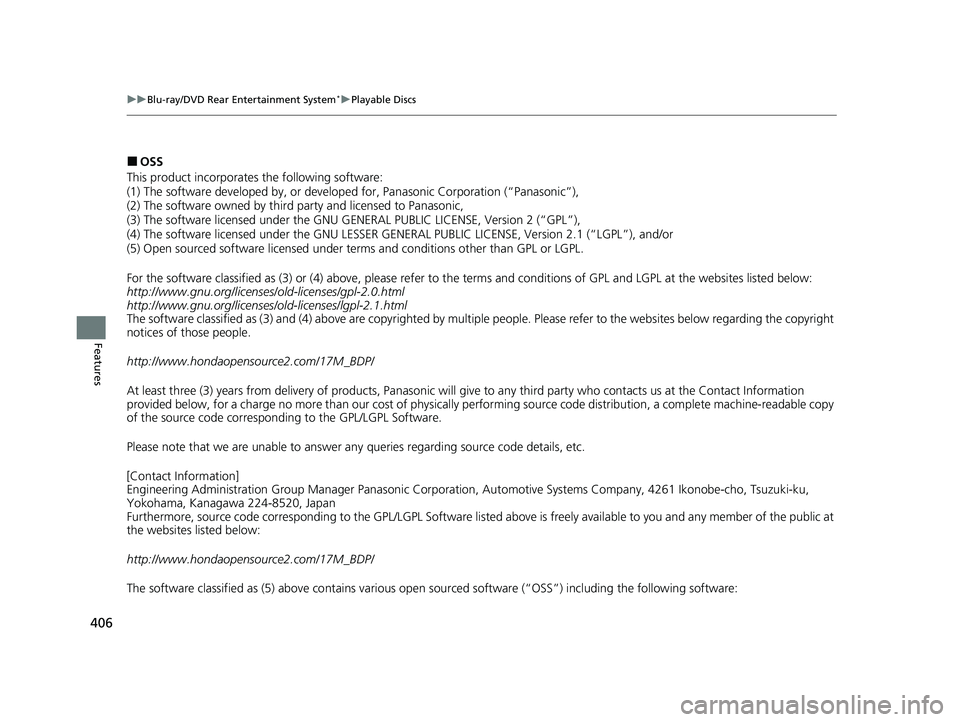

406
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features
■OSS
This product incorporates the following software:
(1) The software developed by, or developed for, Panasonic Corporation (“Panasonic”),
(2) The software owned by third party and licensed to Panasonic,
(3) The software licensed under the GNU GENERAL PUBLIC LICENSE, Version 2 (“GPL”),
(4) The software licensed under the GNU LESSER GENE RAL PUBLIC LICENSE, Version 2.1 (“LGPL”), and/or
(5) Open sourced software licensed under terms and conditions other than GPL or LGPL.
For the software classified as (3) or (4) above, please refer to the terms and conditions of GPL and LGPL at the websites liste d below:
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
The software classified as (3) and (4) above are copyrighted by multiple people. Please refer to the websites below regarding the copyright
notices of those people.
http://www.hondaopensource2.com/17M_BDP/
At least three (3) years from delivery of pr oducts, Panasonic will give to any third party who contacts us at the Contact Information
provided below, for a charge no more than our cost of physically performing source code distri bution, a complete machine-readable copy
of the source code corresponding to the GPL/LGPL Software.
Please note that we are unable to answer any queries regarding source code details, etc.
[Contact Information]
Engineering Administration Group Manager Panasonic Corporation, Automotive Systems Company, 4261 Ikonobe-cho, Tsuzuki-ku,
Yokohama, Kanagawa 224-8520, Japan
Furthermore, source code corresponding to the GPL/LGPL Software li sted above is freely available to you and any member of the public at
the websites listed below:
http://www.hondaopensource2.com/17M_BDP/
The software classified as (5) above co ntains various open sourced software (“OSS”) including the following software:
22 PILOT-31TG76600.book 406 ページ ２０２１年６月１１日　金曜日　午後４時４０分

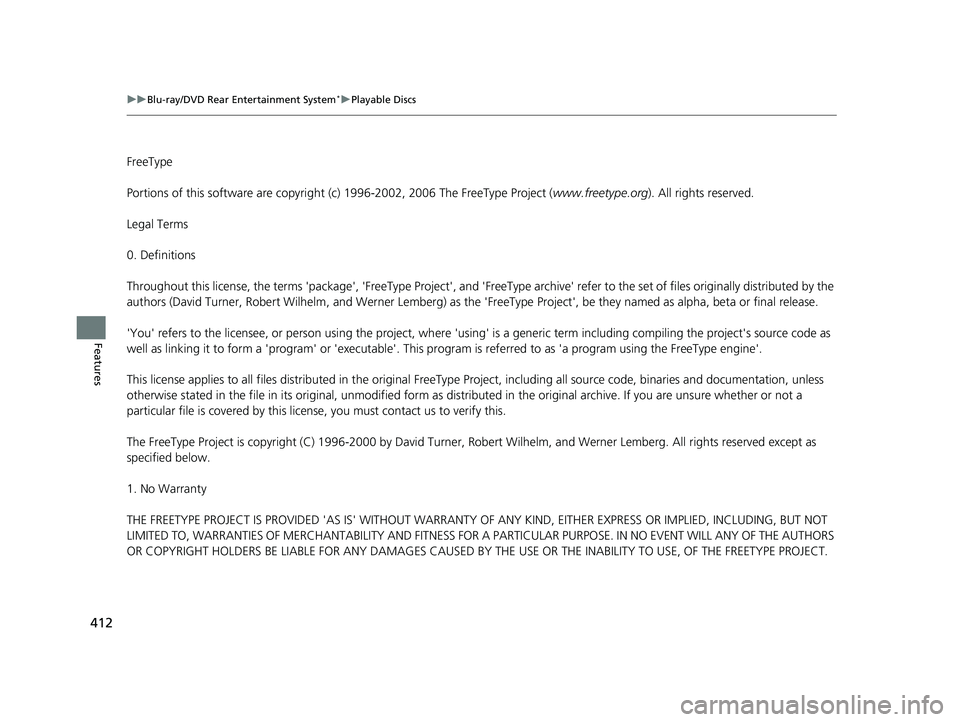

412
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features
FreeType
Portions of this software are copyright (c) 1996-2002, 2006 The FreeType Project ( www.freetype.org). All rights reserved.
Legal Terms
0. Definitions
Throughout this license, the terms 'package ', 'FreeType Project', and 'FreeType archive' refer to the set of files originally distributed by the
authors (David Turner, Robert Wilhelm, and We rner Lemberg) as the 'FreeType Project', be they named as alpha, beta or final release.
'You' refers to the licensee, or person using the project, wh ere 'using' is a generic term including compiling the project's so urce code as
well as linking it to form a 'program' or 'executable'. This program is referred to as 'a program using the FreeType engine'.
This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documen tation, unless
otherwise stated in the file in its original , unmodified form as distributed in the original archive. If you are unsure whether or not a
particular file is covered by this licens e, you must contact us to verify this.
The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as
specified below.
1. No Warranty
THE FREETYPE PROJECT IS PROVIDED 'AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PART ICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS
OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.
22 PILOT-31TG76600.book 412 ページ ２０２１年６月１１日　金曜日　午後４時４０分

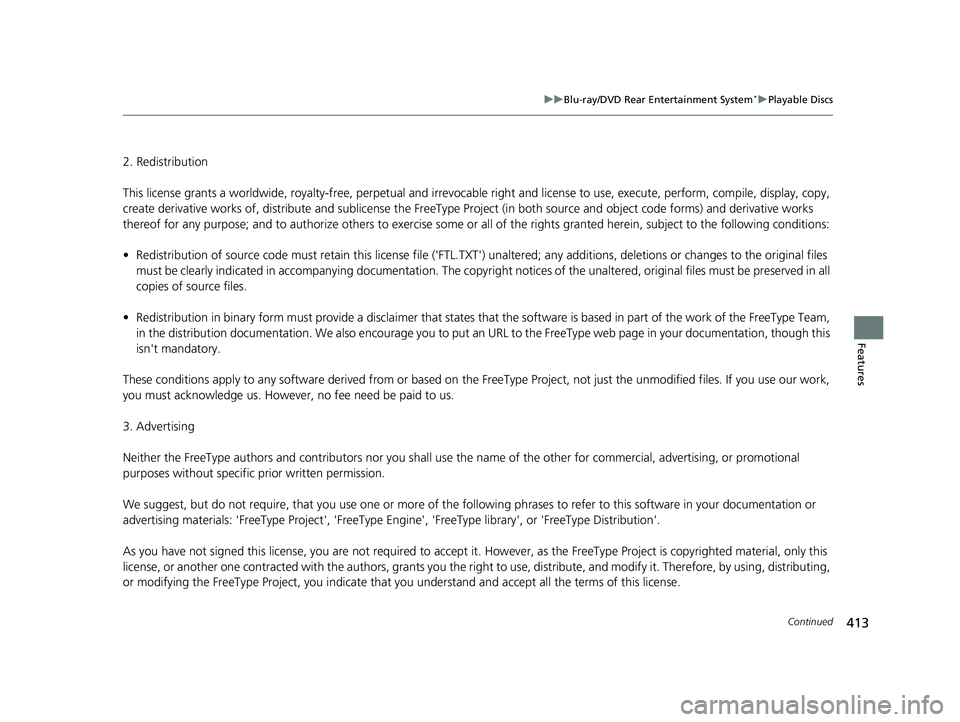

413
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features
2. Redistribution
This license grants a worldwide, royalty-fr ee, perpetual and irrevocable right and license to use, execute, perform, compile, display, copy,
create derivative works of, distribute and sublicense the FreeType Project (in both source and object code forms) and derivative works
thereof for any purpose; and to authorize others to exercise some or all of the rights granted herein, subject to the following conditions:
• Redistribution of source code must retain this license file ('FTL.TXT') unaltered; any additions, de letions or changes to the original files
must be clearly indicated in accompanying do cumentation. The copyright notices of the unaltered, original files must be preserv ed in all
copies of source files.
• Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeT ype Team,
in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though t his
isn't mandatory.
These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work,
you must acknowledge us. However, no fee need be paid to us.
3. Advertising
Neither the FreeType authors and c ontributors nor you shall use the name of the other for commercial, advertising, or promotion al
purposes without specific prior written permission.
We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or
advertising materials: 'FreeType Projec t', 'FreeType Engine', 'FreeType library', or 'FreeType Distribution'.
As you have not signed this lic ense, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this
license, or another one contracted with the authors, grants you the right to use, distribute, a nd modify it. Therefore, by using, distributing,
or modifying the FreeType Project, you indicate that y ou understand and accept all the terms of this license.
22 PILOT-31TG76600.book 413 ページ ２０２１年６月１１日　金曜日　午後４時４０分

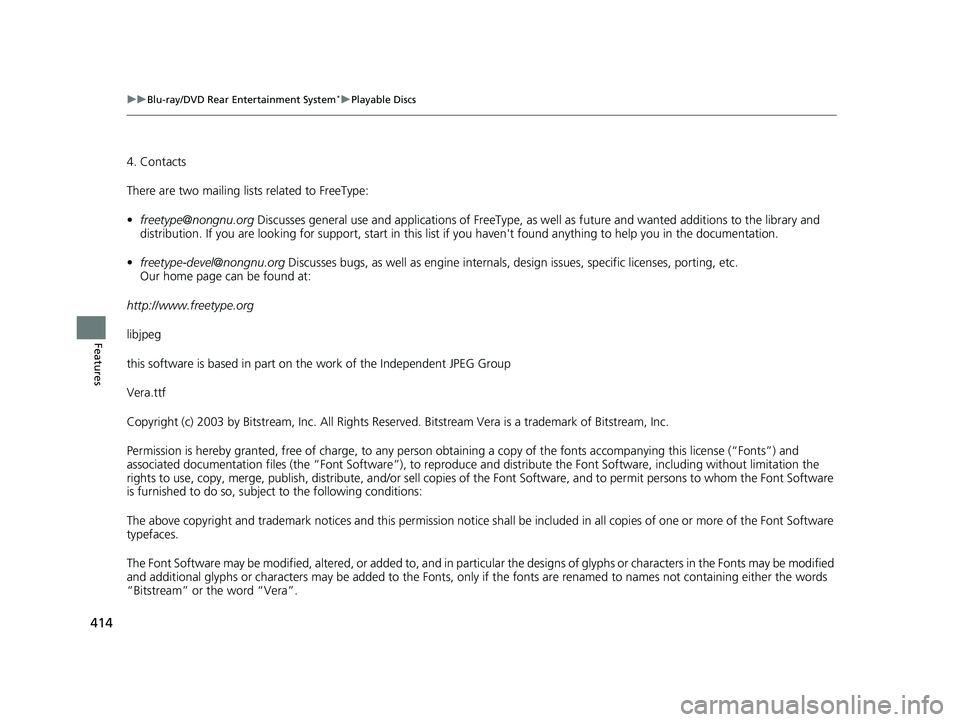

414
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features
4. Contacts
There are two mailing lists related to FreeType:
• [email protected] Discusses general use and applications of FreeType, as well as future and wanted additions to the library and
distribution. If you are looking for support, start in this lis t if you haven't found anything to help you in the documentation .
• [email protected] Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.
Our home page can be found at:
http://www.freetype.org
libjpeg
this software is based in part on the work of the Independent JPEG Group
Vera.ttf
Copyright (c) 2003 by Bitstream, Inc. All Rights Reserv ed. Bitstream Vera is a trademark of Bitstream, Inc.
Permission is hereby granted, free of charge, to any person obtai ning a copy of the fonts accompanying this license (“Fonts”) and
associated documentation files (the “Font Software”), to reproduc e and distribute the Font Software, including without limitation the
rights to use, copy, merge, pub lish, distribute, and/or sell copies of the Font Software, and to permit persons to whom the Fon t Software
is furnished to do so, subject to the following conditions:
The above copyright and trademark notices and this permission notice shall be included in all copies of one or more of the Font Software
typefaces.
The Font Software may be modified, altered, or added to, and in particular the designs of glyphs or characters in the Fonts may be modified
and additional glyphs or characters may be added to the Fonts, only if the fonts are renamed to names not containing either the words
“Bitstream” or the word “Vera”.
22 PILOT-31TG76600.book 414 ページ ２０２１年６月１１日　金曜日　午後４時４０分

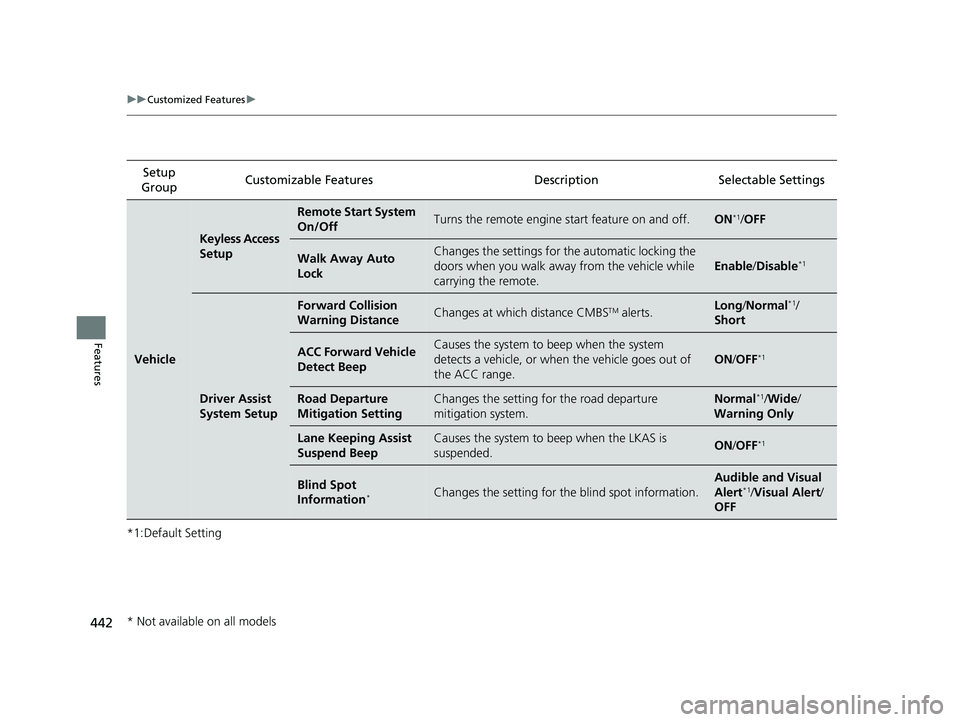

442
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Keyless Access
Setup
Remote Start System
On/OffTurns the remote engine
start feature on and off.ON*1/OFF
Walk Away Auto
LockChanges the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the remote.
Enable /Disable*1
Driver Assist
System Setup
Forward Collision
Warning DistanceChanges at which distance CMBSTM alerts.Long /Normal*1/
Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Normal*1/ Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
Blind Spot
Information*Changes the setting for th e blind spot information.
Audible and Visual
Alert*1/Visual Alert /
OFF
* Not available on all models
22 PILOT-31TG76600.book 442 ページ ２０２１年６月１１日　金曜日　午後４時４０分

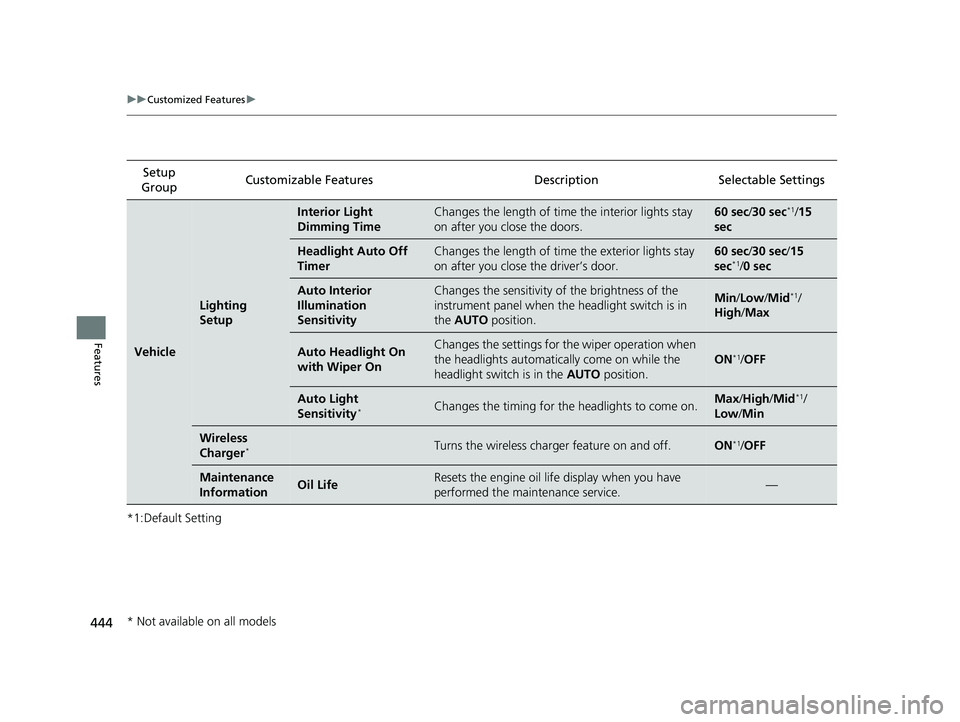

444
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Lighting
Setup
Interior Light
Dimming TimeChanges the length of time the interior lights stay
on after you close the doors.60 sec/
30 sec*1/15
sec
Headlight Auto Off
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60 sec/ 30 sec/ 15
sec*1/ 0 sec
Auto Interior
Illumination
SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in
the AUTO position.Min/Low/Mid*1/
High /Max
Auto Headlight On
with Wiper OnChanges the settings for th e wiper operation when
the headlights automati cally come on while the
headlight switch is in the AUTO position.
ON*1/OFF
Auto Light
Sensitivity*Changes the timing for the headlights to come on.Max /High /Mid*1/
Low /Min
Wireless
Charger*Turns the wireless charger feature on and off.ON*1/OFF
Maintenance
InformationOil LifeResets the engine oil life display when you have
performed the maintenance service.—
* Not available on all models
22 PILOT-31TG76600.book 444 ページ ２０２１年６月１１日　金曜日　午後４時４０分

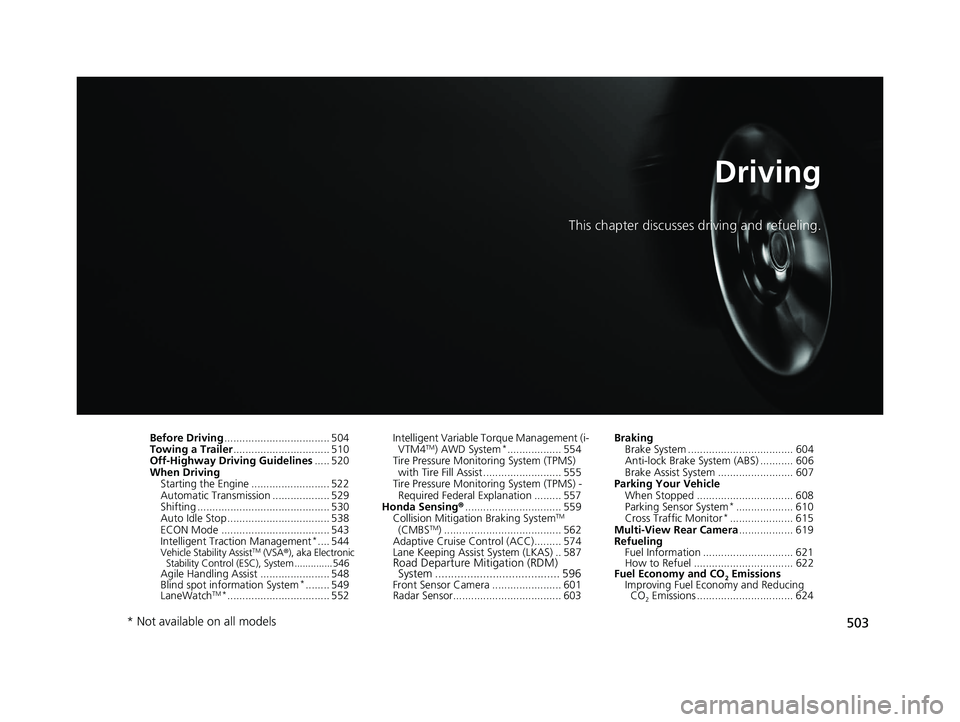

503
Driving
This chapter discusses driving and refueling.
Before Driving................................... 504

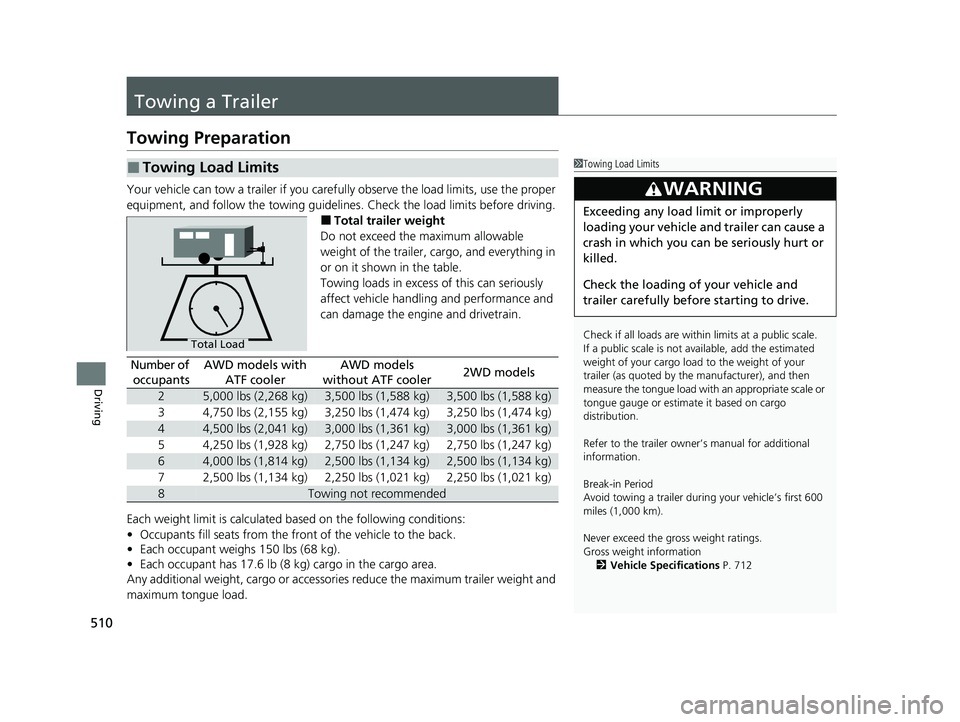

Towing a Trailer ................................ 510
Off-Highway Driving Guidelines ..... 520
When Driving Starting the Engine .......................... 522
Automatic Transmission ................... 529
Shifting ............................................ 530
Auto Idle Stop .................................. 538
ECON Mode .................................... 543
Intelligent Trac tion Management
*.... 544Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System ..............546
Agile Handling Assist ....................... 548
Blind spot information System*........ 549
LaneWatchTM*.................................. 552 Intelligent Variable To
rque Management (i-
VTM4
TM) AWD System*.................. 554
Tire Pressure Monitoring System (TPMS) with Tire Fill Assist .......................... 555
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 557
Honda Sensing ®................................ 559
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 562
Adaptive Cruise Control (ACC)......... 574
Lane Keeping Assist System (LKAS) .. 587
Road Departure Mitigation (RDM)
System ....................................... 596
Front Sensor Camera ....................... 601
Radar Sensor.................................... 603 Braking
Brake System ................................... 604
Anti-lock Brake System (ABS) ........... 606
Brake Assist System ......................... 607
Parking Your Vehicle
When Stopped ................................ 608
Parking Sensor System
*................... 610
Cross Traffic Monitor*..................... 615
Multi-View Rear Camera .................. 619
Refueling Fuel Information .............................. 621
How to Refuel ................................. 622
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 624
* Not available on all models
22 PILOT-31TG76600.book 503 ページ ２０２１年６月１１日　金曜日　午後４時４０分

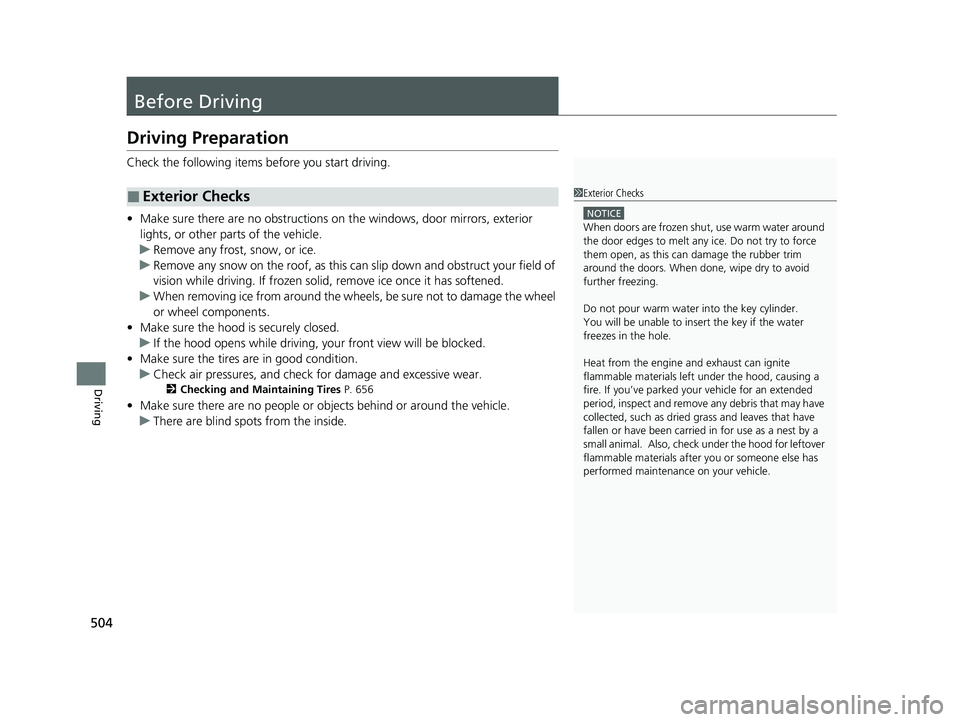

504
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 656
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you’ve parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
22 PILOT-31TG76600.book 504 ページ ２０２１年６月１１日　金曜日　午後４時４０分

510
Driving
Towing a Trailer
Towing Preparation
Your vehicle can tow a trailer if you carefully observe the load limits, use the proper
equipment, and follow the towing guidelin es. Check the load limits before driving.
■Total trailer weight
Do not exceed the maximum allowable
weight of the trailer, cargo, and everything in
or on it shown in the table.
Towing loads in excess of this can seriously
affect vehicle handling and performance and
can damage the engine and drivetrain.
Each weight limit is calculated based on the following conditions:
• Occupants fill seats from the front of the vehicle to the back.
• Each occupant weighs 150 lbs (68 kg).
• Each occupant has 17.6 lb (8 kg) cargo in the cargo area.
Any additional weight, cargo or accessori es reduce the maximum trailer weight and
maximum tongue load.
■Towing Load Limits1 Towing Load Limits
Check if all loads are within limits at a public scale.
If a public scale is not av ailable, add the estimated
weight of your cargo load to the weight of your
trailer (as quoted by the manufacturer), and then
measure the tongue load with an appropriate scale or
tongue gauge or estima te it based on cargo
distribution.
Refer to the trailer owner’s manual for additional
information.
Break-in Period
Avoid towing a trailer duri ng your vehicle’s first 600
miles (1,000 km).
Never exceed the gross weight ratings.
Gross weight information 2 Vehicle Specifications P. 712
3WARNING
Exceeding any load limit or improperly
loading your vehicle and trailer can cause a
crash in which you can be seriously hurt or
killed.
Check the loading of your vehicle and
trailer carefully before starting to drive.
Total Load
Number of
occupantsAWD models with ATF coolerAWD models
without ATF cooler2WD models
25,000 lbs (2,268 kg)3,500 lbs (1,588 kg)3,500 lbs (1,588 kg)
34,750 lbs (2,155 kg)3,250 lbs (1,474 kg)3,250 lbs (1,474 kg)
44,500 lbs (2,041 kg)3,000 lbs (1,361 kg)3,000 lbs (1,361 kg)
54,250 lbs (1,928 kg)2,750 lbs (1,247 kg)2,750 lbs (1,247 kg)
64,000 lbs (1,814 kg)2,500 lbs (1,134 kg)2,500 lbs (1,134 kg)
72,500 lbs (1,134 kg)2,250 lbs (1,021 kg)2,250 lbs (1,021 kg)
8Towing not recommended
22 PILOT-31TG76600.book 510 ページ ２０２１年６月１１日　金曜日　午後４時４０分
