6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Gauges (P110)
❚Driver Information
Interface
(P111)
❚System Indicators (P82)
❚ECON Button (P543)
❚Audio System (P247, 265)
❚Navigation System*
() See the Navigation System Manual
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P547)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P565)
❚Heated Windshield Button* (P187)
❚Road Departure Mitigation (RDM)
Button
(P598)
❚Parking Sensor System Button* (P611)
❚Blu-ray/DVD Rear Entertainment System*
(P374)
❚Steering Wheel Adjustments (P191)
❚ENGINE START/STOP Button (P171)
❚Front Seat Heater Buttons* (P225)
❚Front Seat Heaters and Seat
Ventilator Buttons* (P226)
❚Climate Control System (P231)
❚Audio/Information Screen (P248, 266)
❚Hazard Warning Button
❚Rear Defogger/Heated Door Mirror*
Button
(P186)
22 PILOT-31TG76600.book 6 ページ ２０２１年６月１１日　金曜日　午後４時４０分

7
Quick Reference Guide❚Headlights/Turn Signals (P174, 175)
❚Fog Lights* (P178)
❚LaneWatchTM * (P552)
❚Paddle Shifter (Shift down) (P537)
❚Wipers/Washers (P183)
❚Paddle Shifter (Shift up) (P537)
❚Brightness Control (P188)
❚Lane Keeping Assist System (LKAS) Button
(P589)
❚Horn (Press an area around .)
❚Navigation System Voice Control Buttons* () See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice Control Buttons (P451, 476)
❚Heated Steering Wheel Button* (P228)
❚ENTER Button (P113, 244)
❚Interval Button (P582)
❚Adaptive Cruise Control (ACC) Buttons
(P574)
❚ (home) Button (P113, 244)
❚Audio Remote Control Buttons (P244)
❚MAIN Button (P575)
❚/ Button (P113, 244)34
* Not available on all models
22 PILOT-31TG76600.book 7 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Visual Index
8
Quick Reference Guide❚Power Window Switches (P166)
❚Memory Buttons* (P190)
❚SET Button* (P190)
❚Master Door Lock Switch (P151)
❚Power Tailgate Button* (P157)
❚Fuel Fill Door Release Button
(P622)
❚Door Mirror Controls (P193)
❚Driver’s Front Airbag (P50)
❚Shift Button (P530)
❚Hood Release Handle (P636)
❚Glove Box (P213)
❚Interior Fuse Box (P704)
❚Parking Brake (P604)
❚Interior Fuse Box (P703)
❚Accessory Power Socket (P217)
❚USB Port (P241)
❚Rearview Mirror (P192)
❚HomeLink® Buttons* (P449)
❚Passenger’s Front Airbag (P50)
❚Mode Button* (P544)
❚Accessory Power Socket (P217)
❚Auxiliary Input Jack (P242)
❚USB Port (P241)
❚Auto Idle Stop OFF Button (P539)
❚Snow Button* (P544)
22 PILOT-31TG76600.book 8 ページ ２０２１年６月１１日　金曜日　午後４時４０分

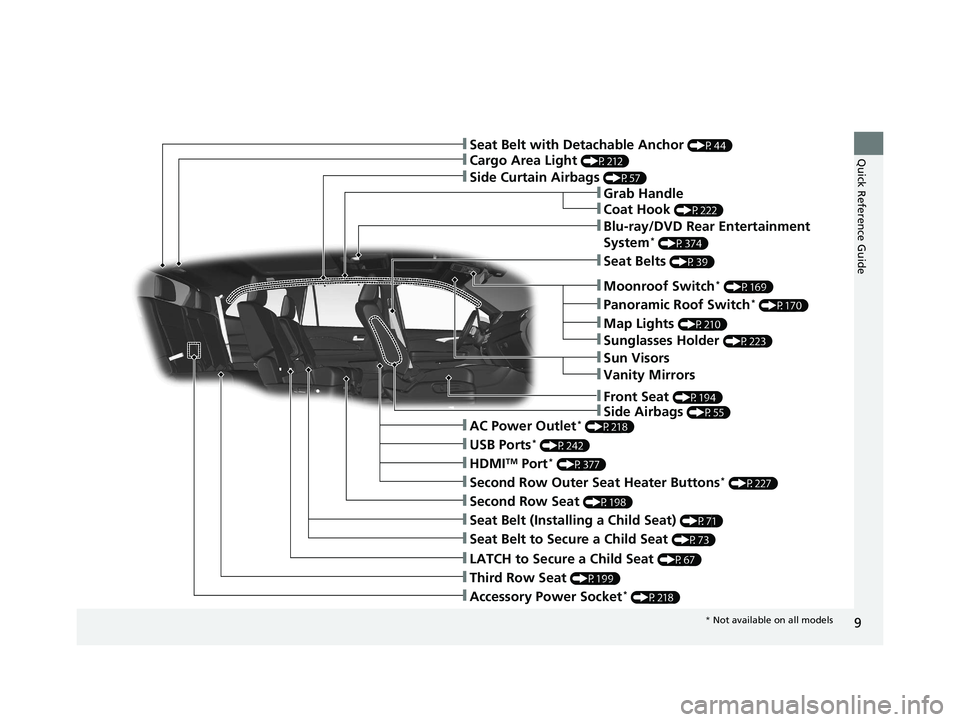

9
Quick Reference Guide
❚Accessory Power Socket* (P218)
❚LATCH to Secure a Child Seat (P67)
❚Seat Belt (Installing a Child Seat) (P71)
❚Third Row Seat (P199)
❚Second Row Seat (P198)
❚Seat Belt to Secure a Child Seat (P73)
❚Cargo Area Light (P212)
❚Side Curtain Airbags (P57)
❚Second Row Outer Seat Heater Buttons* (P227)
❚AC Power Outlet* (P218)
❚HDMITM Port* (P377)
❚USB Ports* (P242)
❚Sun Visors
❚Vanity Mirrors
❚Moonroof Switch* (P169)
❚Panoramic Roof Switch* (P170)
❚Map Lights (P210)
❚Sunglasses Holder (P223)
❚Seat Belt with Detachable Anchor (P44)
❚Side Airbags (P55)
❚Seat Belts (P39)
❚Blu-ray/DVD Rear Entertainment
System* (P374)
❚Grab Handle
❚Coat Hook (P222)
❚Front Seat (P194)
* Not available on all models
22 PILOT-31TG76600.book 9 ページ ２０２１年６月１１日　金曜日　午後４時４０分

19
Quick Reference Guide

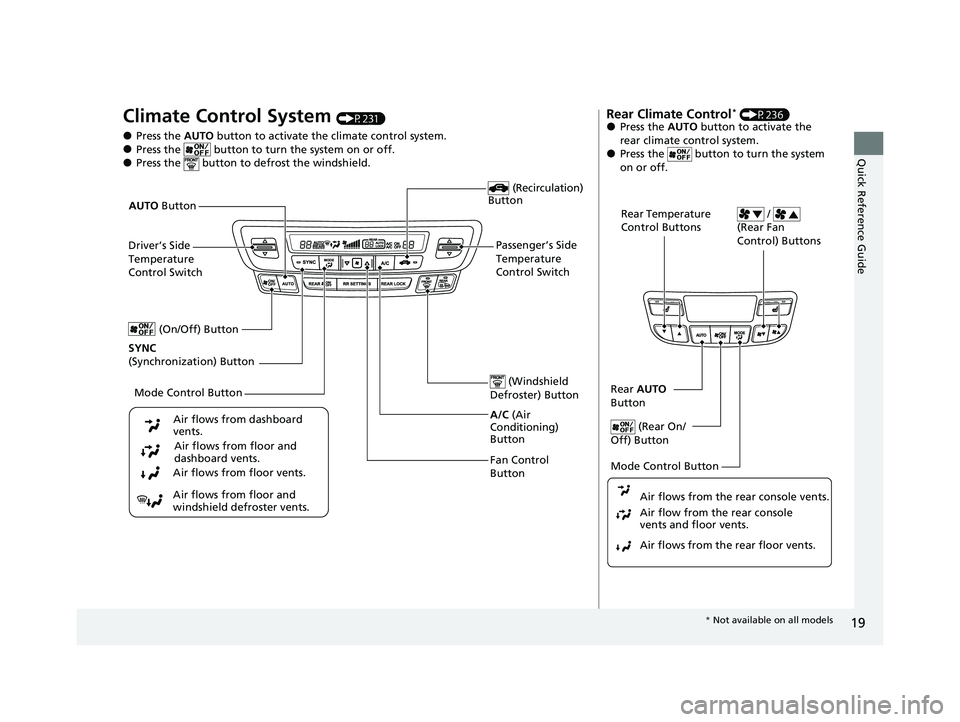

Climate Control System (P231)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control
Button (Windshield
Defroster) Button
A/C (Air
Conditioning)
Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation)
Button
Passenger’s Side
Temperature
Control Switch
AUTO
Button
Driver’s Side
Temperature
Control Switch
Mode Control Button
SYNC

(Synchronization) Button (On/Off) Button
Rear Climate Control* (P236)●Press the
AUTO button to activate the
rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons /
(Rear Fan
Control) Buttons
Rear AUTO
Button
(Rear On/
Off) Button
Mode Control Button
Air flows from the rear floor vents. Air flow from the rear console
vents and floor vents. Air flows from the rear console vents.
* Not available on all models
22 PILOT-31TG76600.book 19 ページ ２０２１年６月１１日　金曜日　午後４時４０分

20
Quick Reference Guide
Features (P239)
Audio system (P240) (P247)
Models with color audio system
MENU/CLOCK Button
Selector Knob
(Day/Night) Button
(Back) Button
(Sound) Button
VOL
/ (Volume/Power)
Knob
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA Button Audio/Information Screen
22 PILOT-31TG76600.book 20 ページ ２０２１年６月１１日　金曜日　午後４時４０分

22
Quick Reference Guide

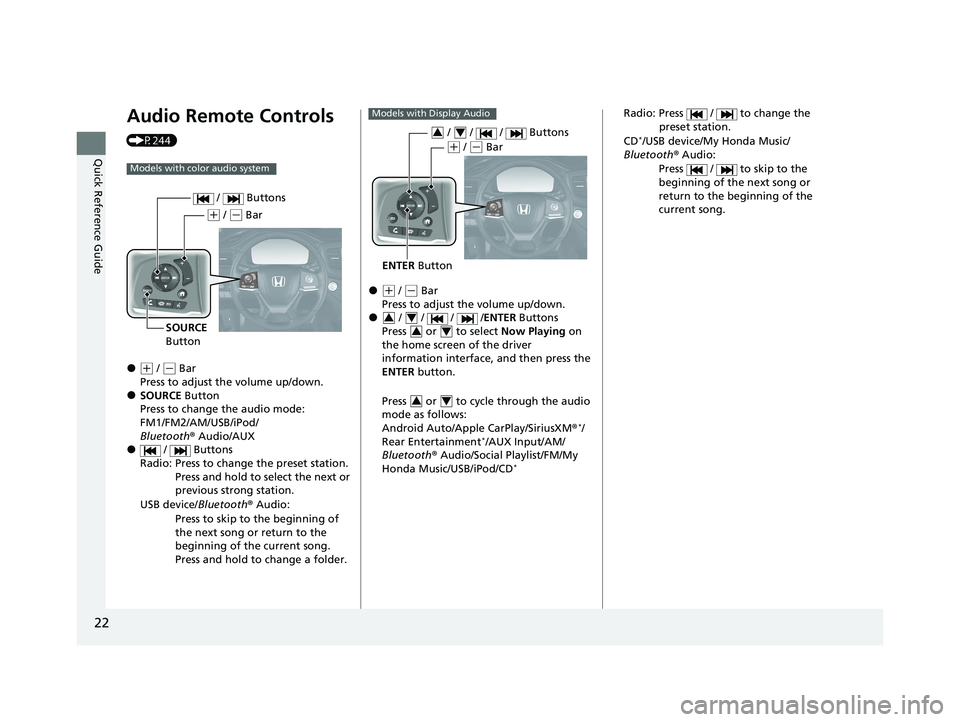

Audio Remote Controls
(P244)
●(+ / ( - Bar
Press to adjust the volume up/down.
●SOURCE Button
Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth ® Audio/AUX
● / Buttons
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device/ Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with color audio system
( + / (- Bar
SOURCE
Button / Buttons
●(
+ / (- Bar
Press to adjust the volume up/down.
● / / / / ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycle through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
Rear Entertainment*/AUX Input/AM/
Bluetooth ® Audio/Social Playlist/FM/My
Honda Music/USB/iPod/CD
*
Models with Display Audio
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
CD
*/USB device/My Honda Music/
Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
22 PILOT-31TG76600.book 22 ページ ２０２１年６月１１日　金曜日　午後４時４０分

81
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 82
Driver Information Interface Warning and Information Messages ...................... 97
Gauges and Displays Gauges ............................................ 110
Driver Information Interface ............. 111
22 PILOT-31TG76600.book 81 ページ ２０２１年６月１１日　金曜日　午後４時４０分

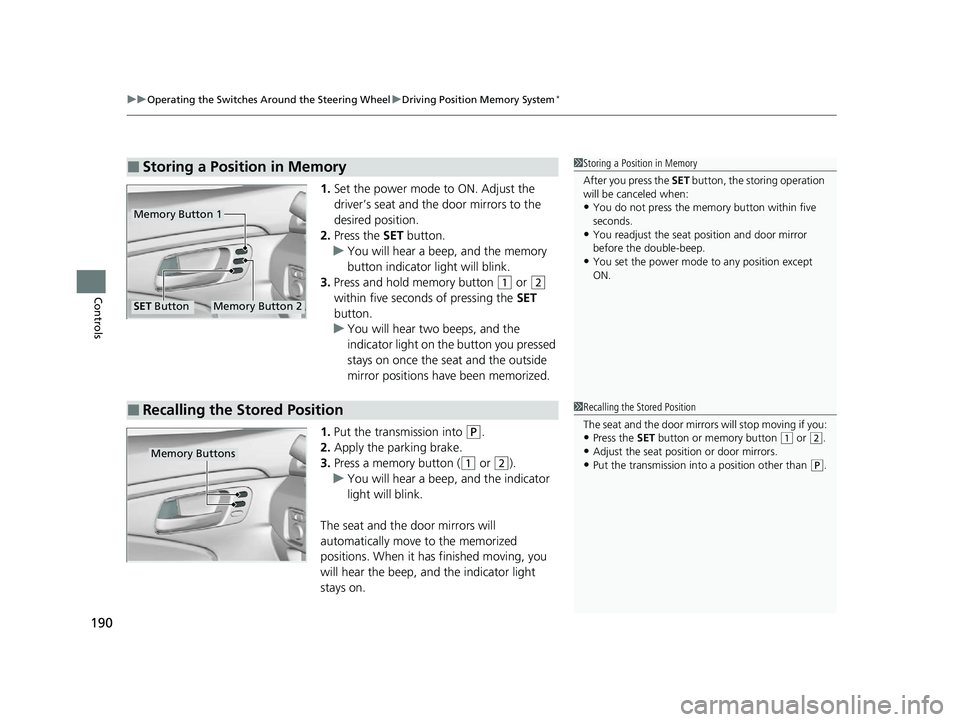

uuOperating the Switches Around the Steering Wheel uDriving Position Memory System*
190
Controls
1. Set the power mode to ON. Adjust the
driver’s seat and th e door mirrors to the
desired position.
2. Press the SET button.
u You will hear a beep, and the memory
button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u You will hear two beeps, and the
indicator light on the button you pressed
stays on once the seat and the outside
mirror positions have been memorized.
1. Put the transmission into
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear a beep, and the indicator
light will blink.
The seat and the door mirrors will
automatically move to the memorized
positions. When it has finished moving, you
will hear the beep, and the indicator light
stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat position and door mirror
before the double-beep.
•You set the power mode to any position except
ON.
Memory Button 1
Memory Button 2SET Button
■Recalling the Stored Position1Recalling the Stored Position
The seat and the door mirrors will stop moving if you:
•Press the SET button or memory button (1 or (2.
•Adjust the seat position or door mirrors.
•Put the transmission into a position other than (P.Memory Buttons
22 PILOT-31TG76600.book 190 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued201

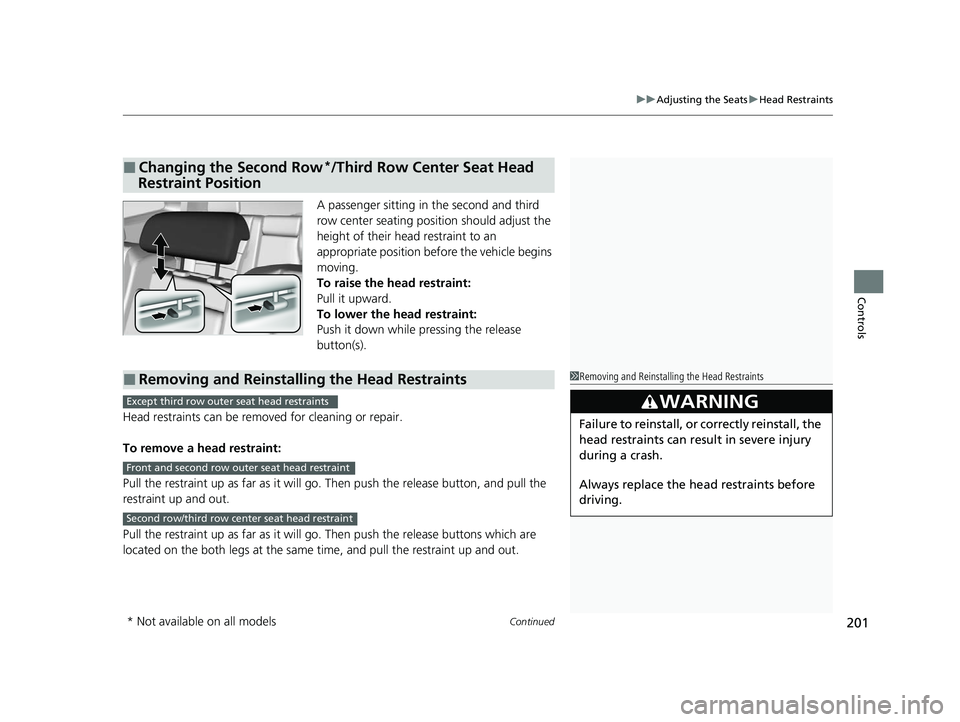

uuAdjusting the Seats uHead Restraints
Controls
A passenger sitting in the second and third
row center seating position should adjust the
height of their head restraint to an
appropriate position before the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button(s).
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
Pull the restraint up as far as it will go. Then push the release buttons which are
located on the both legs at the same time, and pull the restraint up and out.
■Changing the Second Row*/Third Row Center Seat Head
Restraint Position
■Removing and Reinstalling the Head Restraints1 Removing and Reinstalling the Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
Except third row outer seat head restraints
Front and second row outer seat head restraint
Second row/third row center seat head restraint
* Not available on all models
