HONDA PILOT 2023 Owners Manual

uuBluetooth ® HandsFreeLink ®u Using HFL
460
Features

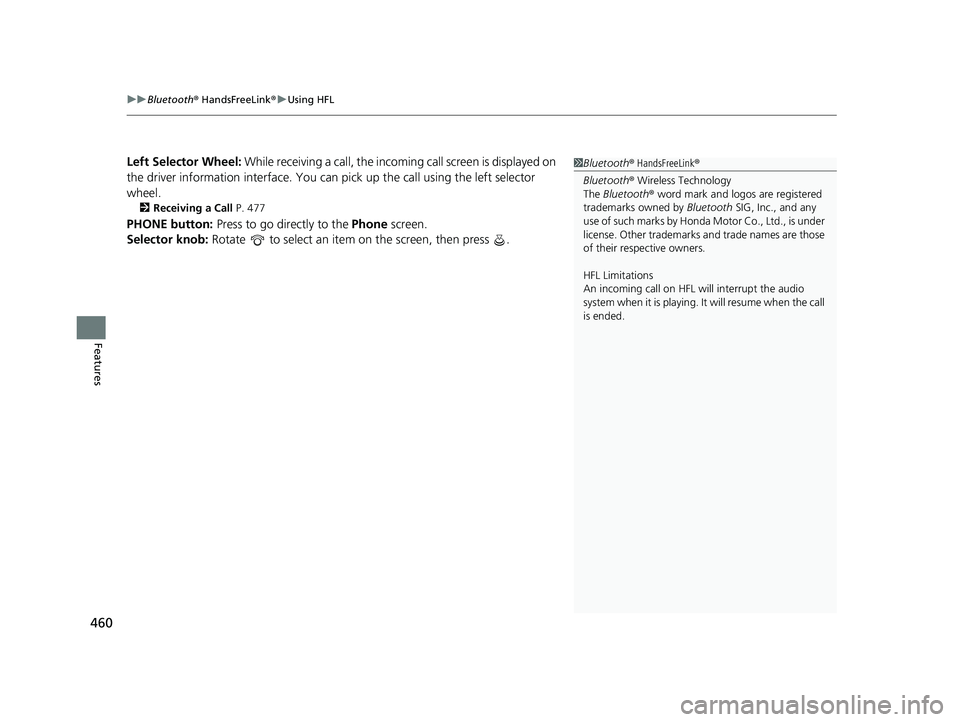

Left Selector Wheel: While receiving a call, the incoming call screen is displayed on
the driver information interface. You can pi ck up the call using the left selector
wheel.
2 Receiving a Call P. 477
PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
1 Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
23 PILOT-31T906000_03.book 460 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

461
uuBluetooth ® HandsFreeLink ®u Using HFL
Features

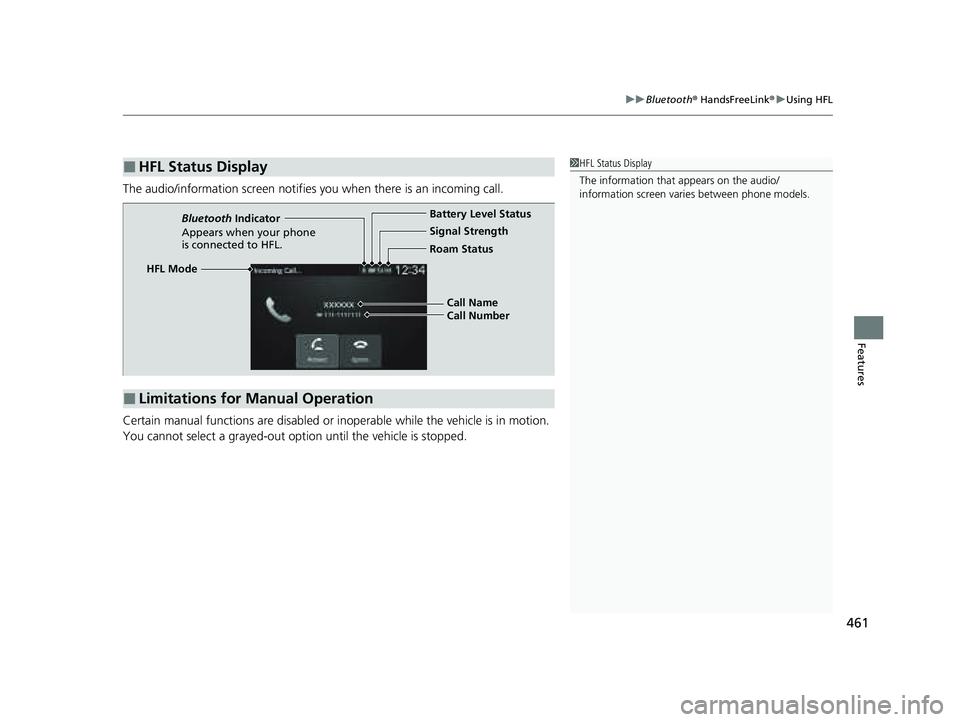

The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■HFL Status Display1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
■Limitations for Manual Operation
HFL Mode Battery Level Status
Signal Strength
Bluetooth
Indicator
Appears when your phone
is connected to HFL. Roam Status
Call Name
Call Number
23 PILOT-31T906000_03.book 461 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

462
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

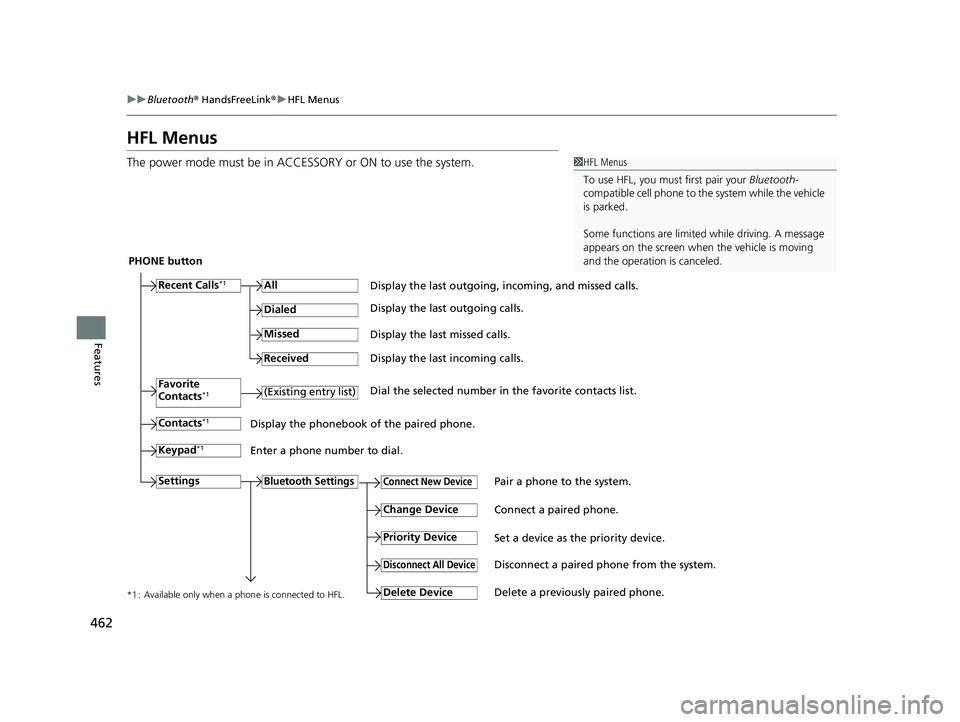

HFL Menus
The power mode must be in ACCESSORY or ON to use the system.1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
PHONE button
Recent Calls
*1All
Pair a phone to the system.Connect New Device
Change DeviceConnect a paired phone.
Priority Device
Set a device as the priority device.
Bluetooth Settings
Keypad*1
Settings
Favorite
Contacts*1(Existing entry list)
Contacts*1
Dialed
Missed
Received
Display the last outgoing, incoming, and missed calls.
Display the last outgoing calls.
Display the last missed calls.
Display the last incoming calls.
Dial the selected number in the favorite contacts list.
Display the phonebook of the paired phone.
Enter a phone number to dial.
Disconnect All DeviceDisconnect a paired phone from the system.
Delete Device
Delete a previously paired phone.*1 : Available only when a phone is connected to HFL.
23 PILOT-31T906000_03.book 462 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

463
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

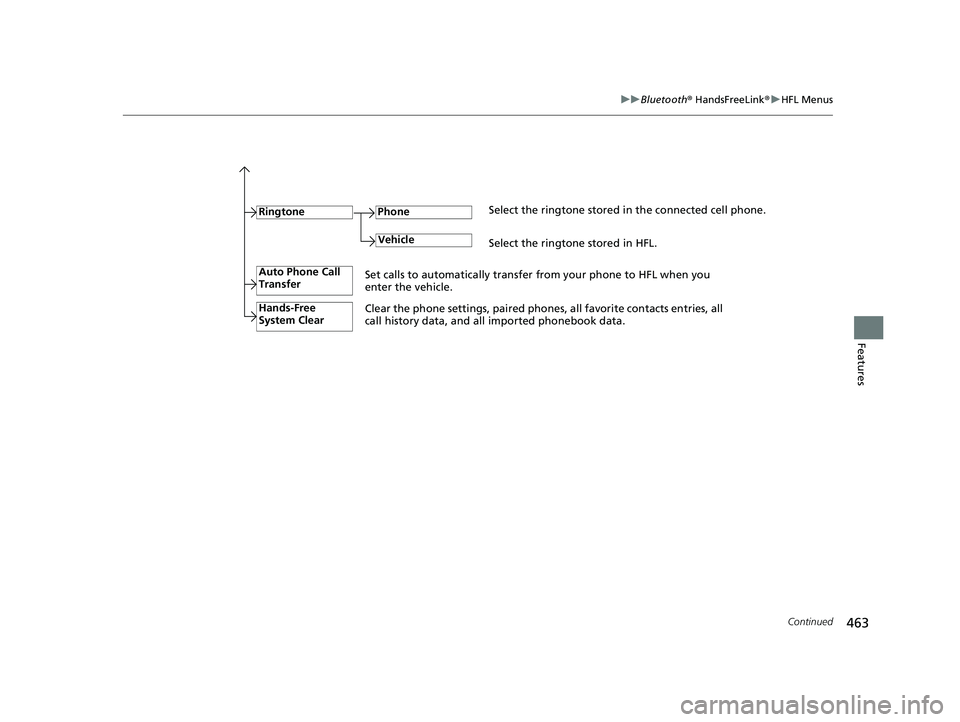

RingtoneSelect the ringtone stored in the connected cell phone.
Phone
VehicleSelect the ringtone stored in HFL.
Auto Phone Call
Transfer
Hands-Free
System Clear
Set calls to automatically transfer from your phone to HFL when you
enter the vehicle.
Clear the phone settings, paired phone s, all favorite contacts entries, all
call history data, and all imported phonebook data.
23 PILOT-31T906000_03.book 463 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuBluetooth ® HandsFreeLink ®u HFL Menus
464
Features

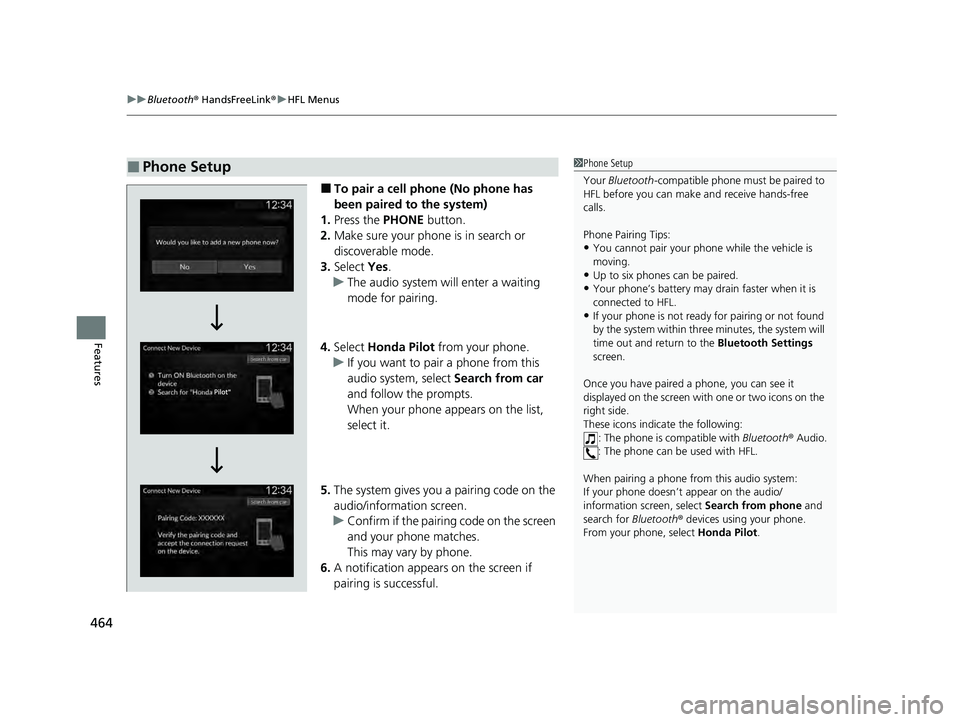

■To pair a cell phone (No phone has
been paired to the system)
1. Press the PHONE button.
2. Make sure your phone is in search or
discoverable mode.
3. Select Yes.
u The audio system will enter a waiting
mode for pairing.
4. Select Honda Pilot from your phone.
u If you want to pair a phone from this
audio system, select Search from car
and follow the prompts.
When your phone appears on the list,
select it.
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone matches.
This may vary by phone.
6. A notification appears on the screen if
pairing is successful.
■Phone Setup1 Phone Setup
Your Bluetooth -compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone’s battery may dr ain faster when it is
connected to HFL.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and return to the Bluetooth Settings
screen.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following: : The phone is compatible with Bluetooth® Audio.
: The phone can be used with HFL.
When pairing a phone from this audio system:
If your phone doesn’t appear on the audio/
information screen, select Search from phone and
search for Bluetooth® devices using your phone.
From your phone, select Honda Pilot .
23 PILOT-31T906000_03.book 464 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

465
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

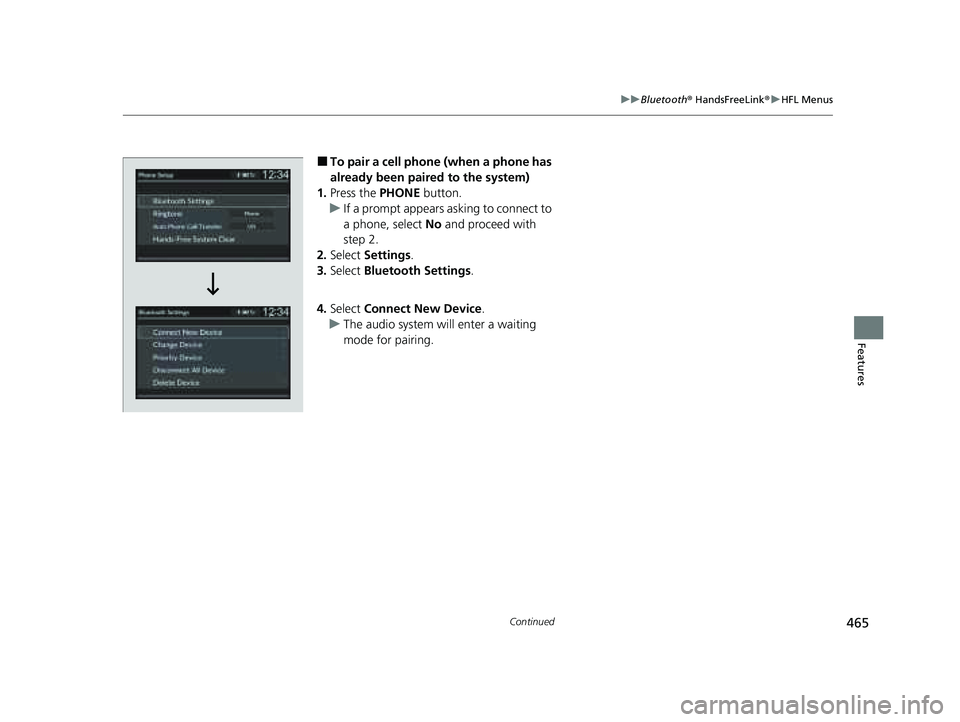

■To pair a cell phone (when a phone has
already been paired to the system)
1. Press the PHONE button.
u If a prompt appears asking to connect to
a phone, select No and proceed with
step 2.
2. Select Settings .
3. Select Bluetooth Settings.
4. Select Connect New Device .
u The audio system will enter a waiting
mode for pairing.
23 PILOT-31T906000_03.book 465 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

466
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
5. Make sure your phone is in search or
discoverable mode.
6. Select Honda Pilot from your phone.
u If you want to pair a phone from this
audio system, select Search from car
and follow the prompts.
When your phone appears on the list,
select it.
7. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone matches.
This may vary by phone.
8. A notification appears on the screen if
pairing is successful.
u You can prioritize a Bluetooth ® device at
the same time. Select Yes if you want to
prioritize the device.
23 PILOT-31T906000_03.book 466 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

467
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To change the currently paired phone
1. Press the PHONE button.
2. Select Settings .
3. Select Bluetooth Settings.
4. Select Change Device .
u The screen changes to a device list.
5. Select a desired device name.
6. Select Both, Audio , or Phone .
u When another device is connected to
Android Auto and you select Both or
Phone , a confirmation message appears.
Select Continue .
u HFL disconnects the connected phone
and starts searching for another paired
phone.
23 PILOT-31T906000_03.book 467 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

468
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To delete a paired phone
1. Press the PHONE button.
2. Select Settings .
3. Select Bluetooth Settings .
4. Select Delete Device .
u The screen changes to a device list.
5. Select a phone you want to delete.
6. A confirmation message appears on the
screen. Select Yes.
u When the device is connected to Android
Auto, a confirmation message appears.
Select Yes.
23 PILOT-31T906000_03.book 468 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued469
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

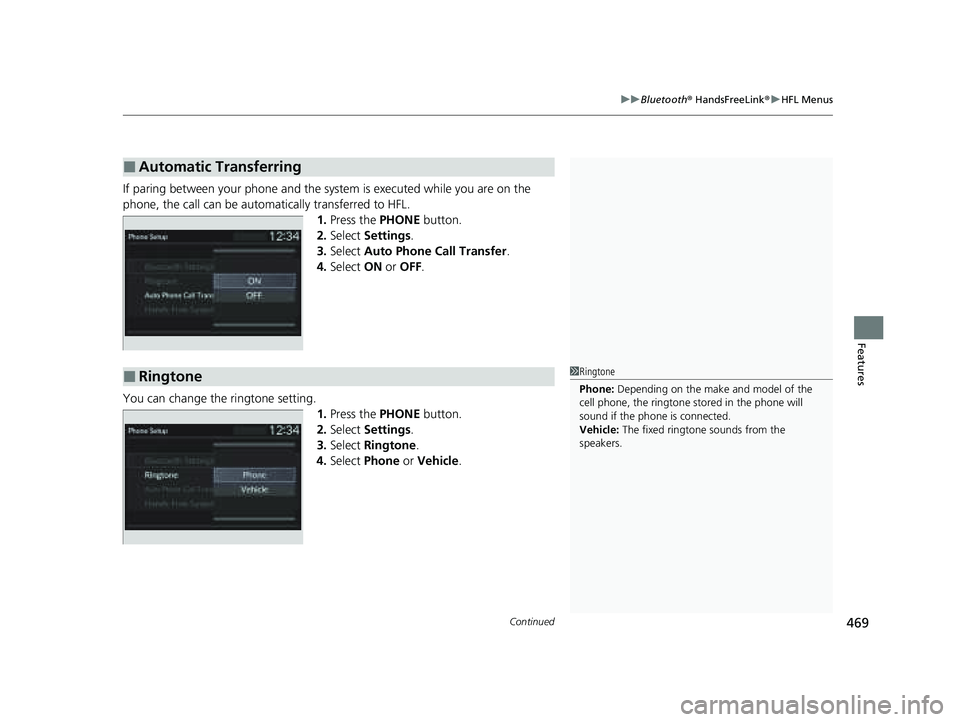

If paring between your phone and the system is executed while you are on the
phone, the call can be automa tically transferred to HFL.
1.Press the PHONE button.
2. Select Settings .
3. Select Auto Phone Call Transfer .
4. Select ON or OFF .
You can change the ringtone setting. 1.Press the PHONE button.
2. Select Settings .
3. Select Ringtone .
4. Select Phone or Vehicle .
■Automatic Transferring
■Ringtone1Ringtone
Phone: Depending on the make and model of the
cell phone, the ringtone st ored in the phone will
sound if the phone is connected.
Vehicle: The fixed ringtone sounds from the
speakers.
23 PILOT-31T906000_03.book 469 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
