HONDA PILOT 2023 Owners Manual

430
uuCustomized Features u
Features
■Customization flow
Press the button.Automatic
Date & Time
Set Date
Touch Panel Sensitivity
Set Date & Time
System Sounds
Date & Time
System
Auto Daylight Saving Time
Date Format
Time Format
Text-to-Speech
Navigation Guidance
Phone Calls
Set Time
(Select time
zone)
System Volumes
Language
Default
Select General Settings .
Automatic
Time Zone*Time Zone
* Not available on all models
23 PILOT-31T906000_03.book 430 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

431
uuCustomized Features u
Continued
Features
Factory Data Reset
Status
Legal Information
Build Number
Data Sharing Setting
Model Number
Android Version
Kernel Version
App ManagerDetail Information
Refuel Recommend*
About
+ Connect New DeviceApple CarPlay
Smartphone
Connection
Android Auto
(Saved Devices)
+ Connect New Device
(Saved Devices)
* Not available on all models
23 PILOT-31T906000_03.book 431 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

432
uuCustomized Features u
Features
ConnectionsOptions
Options
Saved
Networks
Display
Wi-Fi
Bluetooth
Black Level
Default
Contrast
Change Mode
(Available Networks/ Connected Devices)
+ Connect New Device
(Saved Devices)
Bluetooth
Priority Device
Add Network
Brightness
SetupNetwork SSID
Wi-Fi Band
Security
Password
23 PILOT-31T906000_03.book 432 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

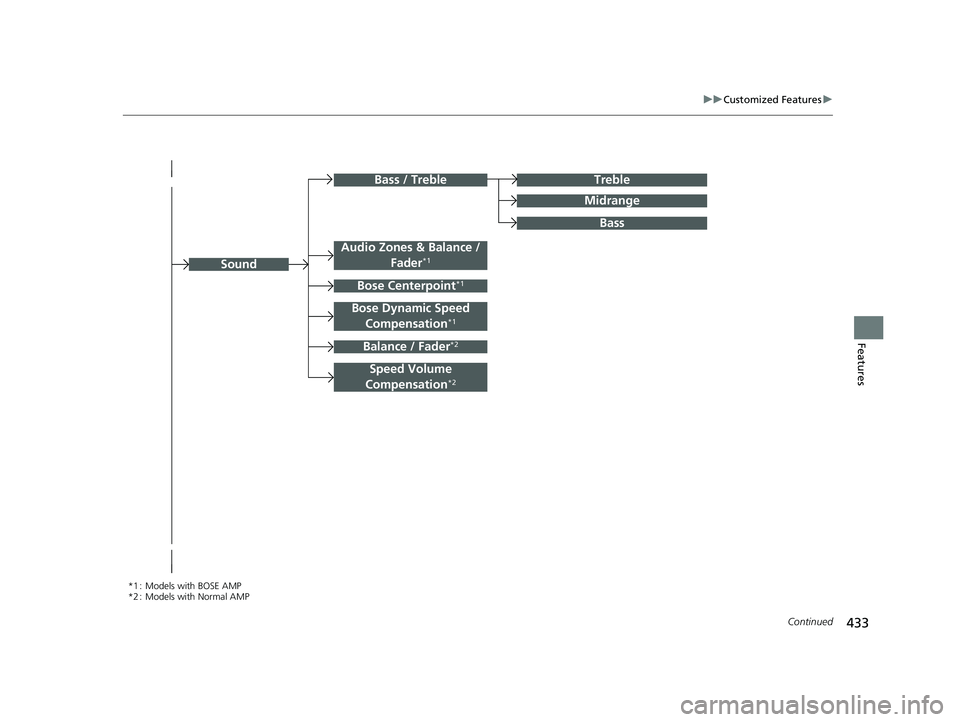

433
uuCustomized Features u
Continued
Features
Treble
Midrange
Bass / Treble
Bass
Speed Volume
Compensation*2
Audio Zones & Balance / Fader*1Sound
Balance / Fader*2
Bose Centerpoint*1
Bose Dynamic Speed Compensation*1
*1 : Models with BOSE AMP
*2 : Models with Normal AMP
23 PILOT-31T906000_03.book 433 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

434
uuCustomized Features u
Features
Fixed Guideline
Dynamic Guideline
Voice Control ModeVoice Control
Rear Camera*
Cross Traffic Monitor
Customize
Fixed
Guideline
Dynamic
Guideline
Multi View Camera*Guidelines
Show after
shifting from Reverse
Auto display
when obstacle is detected
Camera
* Not available on all models
23 PILOT-31T906000_03.book 434 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

435
uuCustomized Features u
Continued
Features
■System
*1:Default Setting
*2:Default Setting for U.S. models
*3:Default Setting for Canadian models Customizable Features Description Selectable Settings
Date & Time
Set
Date &
Time
Automatic
Date & TimeSelects
ON to have the GPS auto matically adjust the
clock. Select OFF to cancel this function.ON*1/OFF
Set DateAdjusts date.
2 Adjusting the Clock P. 176Day/Month/ Year
Set TimeAdjusts time.
2Adjusting the Clock P. 176
Hour/Minute
AM /PM
Time
Zone
Automatic
Time Zone*Sets the audio system to au tomatically adjust the clock
when driving through different time zones.ON*1/ OFF
(Select time
zone)Changes the time zone manually.—
Auto Daylig ht Saving
TimeSets the clock to update based on daylight savings time.ON*1/ OFF
Date FormatSelect a date format.
MM/DD/YYYY*2/
DD/MM/YYYY*3/
YYYY/MM/DD
Time FormatSelect a time format.12H*1/ 24H
* Not available on all models
23 PILOT-31T906000_03.book 435 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

436
uuCustomized Features u
Features
*1:Default SettingCustomizable Features
Description Selectable Settings
LanguageChanges the driver information interface and audio/
information screen language separately.English*1/Español /
Français
Touch Panel
SensitivitySets the sensitivity of the touch panel screen.High /Normal*1
System Volumes
System SoundsSets the system sound volume level.—
Text-to-SpeechSets the text-to-speech volume level.—
Navigation
GuidanceSets the navigation guidance volume level.—
Phone CallsSets the phone call volume level.—
DefaultResets all System Volumes settings to default values.
Data Sharing
SettingTurns the data sharing setting on and off.
2Start Up P. 327ON*1/OFF
Refuel Recommend*Turns the refuel recommend function on and off.
2 Refuel Recommend P. 498ON*1/OFF
* Not available on all models
23 PILOT-31T906000_03.book 436 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

437
uuCustomized Features u
Continued
Features
Customizable FeaturesDescriptionSelectable Settings
About
Status
Displays the Android setting items.—
Legal Information
Model Number
Android Version
Kernel Version
Build Number
Factory Data
ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 455Continue /Cancel
Detail
InformationApp ManagerDisplays the Android system memory and apps
information.—
23 PILOT-31T906000_03.book 437 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

438
uuCustomized Features u
Features
■Smartphone Connection
Customizable Features Desc ription Selectable Settings
Apple CarPlay
+ Connect New DevicePairs a new phone to Apple CarPlay.
2Phone Setup P. 484—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 484—
Android Auto + Connect New Device
Pairs a new phone to Android Auto.
2
Phone Setup P. 484—
(Saved Devices) Connects, disconnects, or deletes a paired phone.
2
Phone Setup P. 484—
23 PILOT-31T906000_03.book 438 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

439
uuCustomized Features u
Continued
Features
■Connections
*1:Default Setting
*2:Appears only when Apple CarPlay or Android Auto is connected wirelessly. Customizable Features Description Selectable Settings
Wi-Fi
Change ModeChanges the Wi-Fi mode.Network*1/
Smartphone*2/ OFF
(Available Networks/Connected
Devices)Displays the available networ k(s) or current connected
device(s).—
OptionsAdd NetworkAdds a new network to connect Wi-Fi.—
Saved NetworksSaves the connected network.—
Setup
Network SSIDSets the network name.—
SecurityDisplays the network security.—
PasswordSets password for require entering password when
connecting Wi-Fi device to the network.—
Wi-Fi BandDisplays the Wi-Fi band.—
Bluetooth
OptionsBluetoothTurns the Bluetooth ® on and off.ON*1/OFF
Priority DeviceDisplays the priority device.—
+ Connect New DevicePairs a new phone to HFL.
2 Phone Setup P. 484—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 484—
23 PILOT-31T906000_03.book 439 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
