HONDA PILOT 2023 Owners Manual

uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
610
Driving
Each time you press the RES/+/SET/– switch up or down, the vehicle speed is
increased or decreased by about 1 mph (1 km/h).
If you keep the RES/+/SET/– switch pressed up or down, the vehicle speed increases
or decreases by about 5 mph or 5 km/h accordingly.
To cancel cruise control, do any of the following:
• Press the CANCEL button.
u The indicator (green) on the gauge change to the indicator (white).
• Press the button.
u indicator (green) goes off.
• Depress the brake pedal.
u The indicator (green) on the gauge change to the indicator (white).
■To Adjust the Vehicle Speed
■To Cancel
1To Cancel
Resuming the prior set speed:
After you have canceled cruise control, you can activate
the cruise control with the prior set speed displayed on
the gauge (in gray) by pressing the RES/+/SET/– switch
up while driving at a speed of at least 25 mph (40 km/h)
or more.
When you turn the cruise control off by pressing the
CANCEL button or depressing the brake pedal, the
prior set speed is displayed on the gauge in gray.
When pressing the RES/+/SET/– switch up, the cruise
control is activated with displayed speed.
If the indicator (white) is displayed and you press
the RES/+ /SET/– switch up, but no prior set speed (in
gray) is displayed, the sp eed will be set to your
vehicle’s current speed.
(white)
Prior Set Speed (gray)
Models with A-type meter
Models with B-type meter
Prior Set Speed (gray)
(white)
23 PILOT-31T906000_03.book 610 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

611
uuHonda Sensing ®u Adaptive Cruise Control (ACC) with Low Speed Follow
Driving
1To Cancel
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h).•When the button is turned off.
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control is canceled automatically.
23 PILOT-31T906000_03.book 611 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

612
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
Lane Keeping Assist System (LKAS)
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual alerts if the ve hicle is detected drifting out of its lane.1Lane Keeping Assist System (LKAS)
Important Safety Reminders
The LKAS is for your convenience only. It is not an
autonomous driving system and always requires
driver attention and control. The system does not
work if you take your hands off the steering wheel or
fail to steer the vehicle.
The LKAS is convenient when it is used on
expressways or freeways.
Do not place objects on the instrument panel.
Objects may reflect on th e windshield and prevent
correct detection of the traffic lanes.
The LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 648
The LKAS may not work properly or may work
improperly under the certain conditions: 2 LKAS Conditions and Limitations P. 621
When you operate the turn signals to chan ge lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operating the turn signals, the LKAS alerts
activate, and torque is applied to the steering.
■Front Sensor
Camera
Monitors the
lane lines■Tactile and visual alerts
Rapid vibrations on the steering wheel
and a warning display alert you that the
vehicle is drifting out of a detected lane.
■Steering input assist
The system applies torque to the steering to keep the vehicle between the left
and right lane lines. The applied torque becomes stronger as the vehicle gets
closer to either of the lane lines.
23 PILOT-31T906000_03.book 612 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued613
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
Provides assistance to keep the vehicle in the center of the lane. When the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.
■Lane Keep Support Function1 Lane Keeping Assist System (LKAS)
When it fails to detect lanes, the system will
temporarily be canceled. When a lane is detected, the
system will recover automatically.
The LKAS may not function as designed while driving
in frequent stop and go traf fic, or on roads with
sharp curves.
23 PILOT-31T906000_03.book 613 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

614
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving

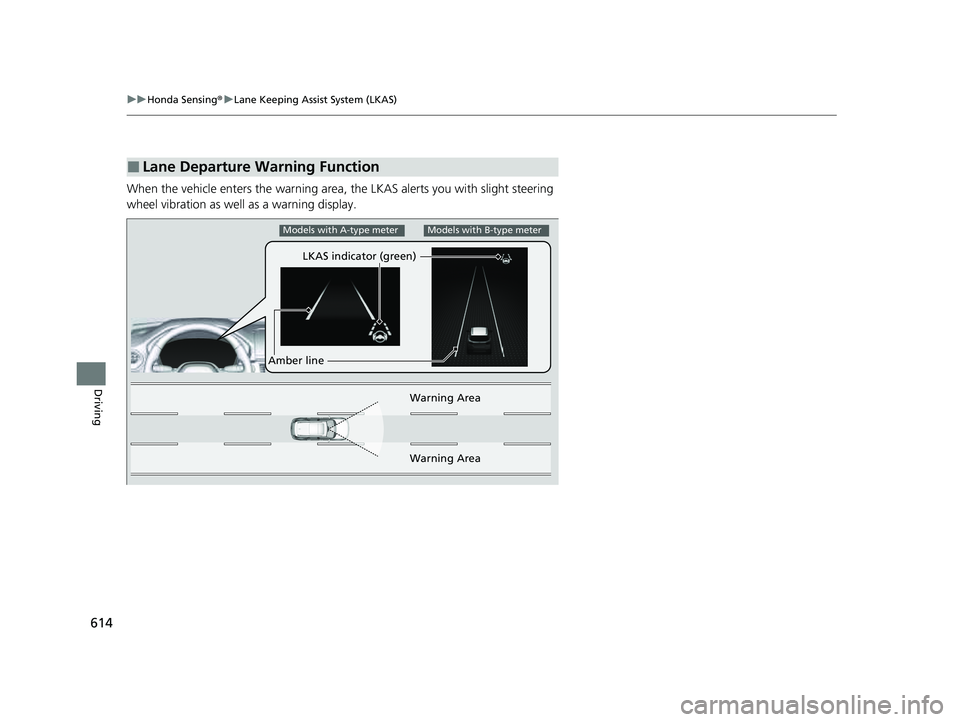

When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as a warning display.
■Lane Departure Warning Function
LKAS indicator (green)
Amber line Warning Area
Warning Area
Models with A-type meterModels with B-type meter
23 PILOT-31T906000_03.book 614 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued615
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
The system can be used when th e following conditions are met.
• The lane in which you are driving has detectable lane markers on both sides, and
your vehicle is in the center of the lane.
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
■When the System can be Used1When the System can be Used
If the vehicle drifts toward ei ther left or right lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by a dealer.
Follow the points below to properly activate the
system:
•Always keep the windshi eld around the camera
clean.
•When cleaning the windshield, be careful not to
apply windshield cleanser to the camera lens.
•Do not touch the camera lens.
•Do not attach a sticker to the area around the
camera.
If LKAS button is pressed when the system can be
used, LKAS is on without standby.
23 PILOT-31T906000_03.book 615 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

616
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving

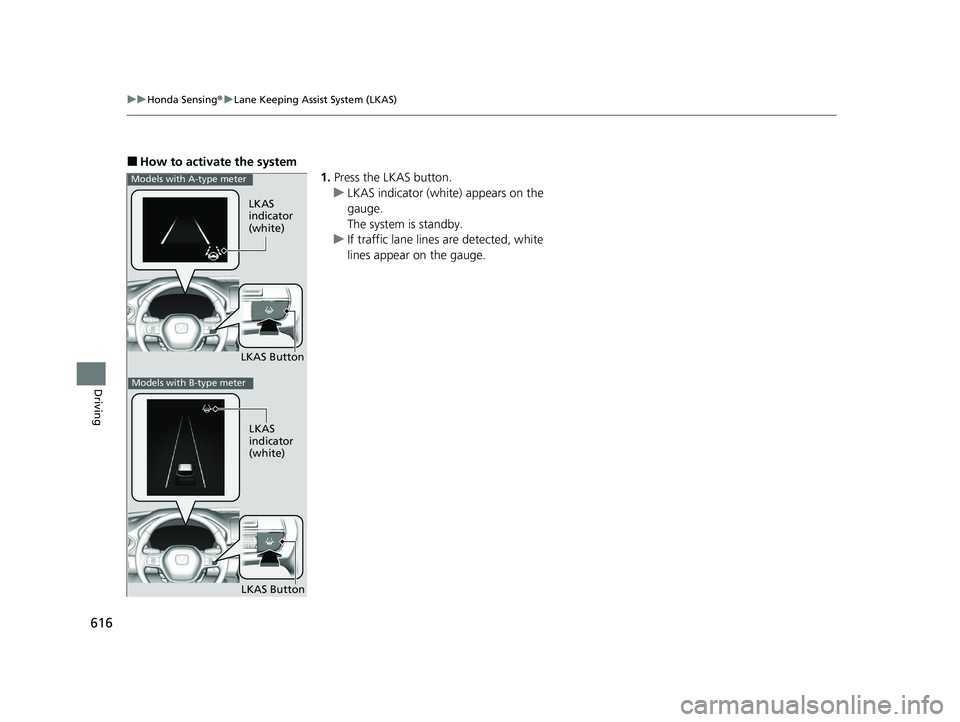

■How to activate the system
1.Press the LKAS button.
u LKAS indicator (white) appears on the
gauge.
The system is standby.
u If traffic lane lines are detected, white
lines appear on the gauge.
LKAS
indicator
(white)
LKAS Button
Models with A-type meter
LKAS
indicator
(white)
LKAS Button
Models with B-type meter
23 PILOT-31T906000_03.book 616 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

617
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Continued
Driving
2. Keep your vehicle near the center of the
lane while driving.
u The LKAS indicator changes from white
to green, and white lines change to
green once the system starts operating
after detecting the left and right lane
markings.
LKAS indicator
(green)
Green lines
Models with A-type meter
Models with B-type meter
LKAS indicator
(green)Green lines
23 PILOT-31T906000_03.book 617 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

618
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
Press the LKAS button.
The LKAS is turned off every time you stop the
engine, even if you turned it on the last time
you drove the vehicle.
■To Cancel
LKAS Button
Models with A-type meter
LKAS Button
Models with B-type meter
23 PILOT-31T906000_03.book 618 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued619
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
■The system operatio n is suspended if
you:
• Decrease the vehicle speed to about 40 mph
(64 km/h) or less.
u Increasing the vehicle speed to about
45 mph (72 km/h) or more resumes the
LKAS.
• Depress the brake pedal.
u The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.
• Your vehicle is driving to the right or the left
of the lane.1To Cancel
You can change the setting for the LKAS.
LKAS suspended beep on and off can be selected.
2 Settings
* P. 140
2 Customized Features P. 429
When the LKAS is suspended,
green lines on the gauge
change to white lines or
disappear, and the beeper
sounds (if activated).LKAS indicator
(white)
White lines
Models with A-type meter
LKAS indicator
(white)
White lines
Models with B-type meter
* Not available on all models
23 PILOT-31T906000_03.book 619 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
