air filter HONDA PILOT 2023 Owners Manual

701
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), or towing a trailer, replace every 60,000 miles (100,000 km).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid●Replace transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
5●Replace engine coolant
6●Replace rear differential fluid*, *5
7●Replace brake fluid*6
* Not available on all models
23 PILOT-31T906000_03.book 701 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

702
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: If you drive regularly in very high temperatures (over 43°C, 110°F), in very low temperatures (under -29°C, -20°F), or towing a trailer, replace every 100,000 km (60,000 miles).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 12,000 km (7,500 miles), then every 24,000 km (15,000 miles).
*6: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid●Replace transfer fluid
4●Replace spark plugs●Replace timing belt and inspect water pump*4
5●Replace engine coolant
6●Replace rear differential fluid*5
7●Replace brake fluid*6
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
23 PILOT-31T906000_03.book 702 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

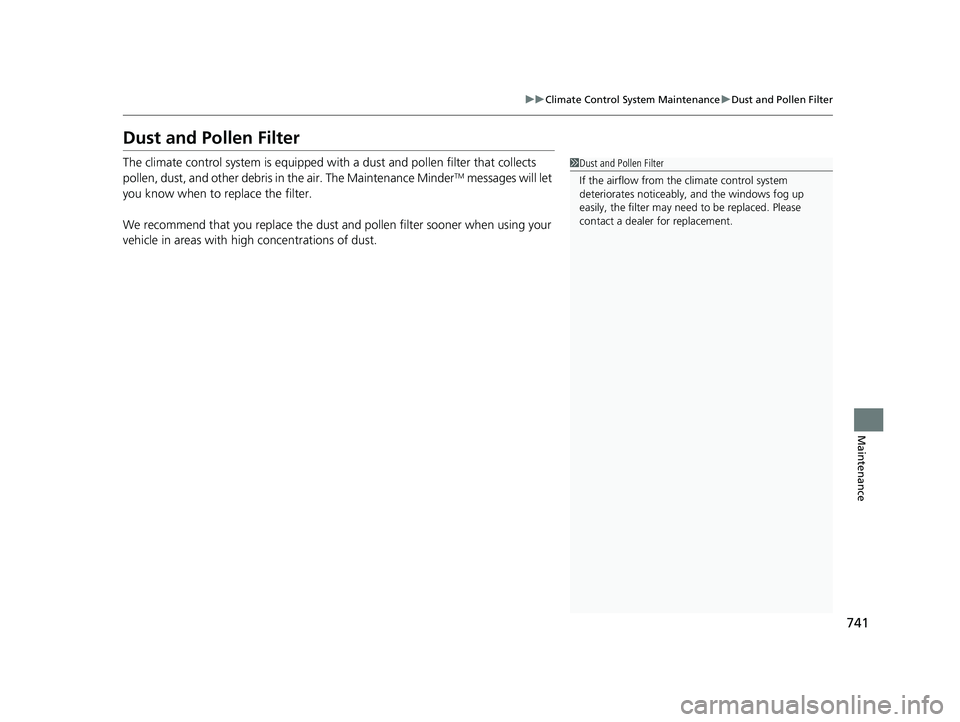

741
uuClimate Control System Maintenance uDust and Pollen Filter
Maintenance
Dust and Pollen Filter
The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you repl ace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
23 PILOT-31T906000_03.book 741 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Index
804
Index
Index
A
ABS (Anti-lock Brake System)................... 659
AC Power Outlet ....................................... 274
Accessories and Modifications ................. 747
Accessory Power Sockets .......................... 273
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 590
Additives
Coolant ................................................... 714
Engine Oil ................................................ 709
Washer .................................................... 717
Additives, Engine Oil ................................ 709
Adjusting Armrest ................................................... 258
Clock ....................................................... 176
Front Seats .............................................. 239
Head Restraints................................ 253, 257
Mirrors .................................................... 236
Sound.............................................. 302, 346
Steering Wheel ........................................ 235
Third row seat ......................................... 249
Agile Handling Assist ................................ 557
Air Conditioning System (Climate Control System) .................................................... 283
Defrosting the Windshield and
Windows ............................................... 285
Dust and Pollen Filter ............................... 741
Sensor ..................................................... 289
Synchronized Mode ................................. 286
Using Automatic Climate Control ............ 283
Air Pressure ....................................... 729, 791 Airbags
........................................................ 59
Advanced Airbags ..................................... 65
After a Collision ........................................ 62
Airbag Care............................................... 76
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 62
Indicator............................................ 73, 106
Knee Airbags............................................. 67
Passenger Airbag Off Indicator .................. 74
Sensors ..................................................... 59
Side Airbags .............................................. 70
Side Curtain Airbags.................................. 72
AM/FM Radio .................................... 304, 352
Android Auto
TM................................ 322, 392
Anti-lock Brake System (ABS) .................. 659
Indicator.................................................. 106
Apple CarPlay ................................... 318, 385
Armrest ..................................................... 258
AT&T Hotspot ........................................... 384
Audio ........................................................ 130
Audio Remote Controls ........................... 296
Audio System ............................ 292, 301, 326
Adjusting the Sound........................ 302, 346
Android Auto
TM............................... 322, 392
Audio/Information Screen........................ 328
Display Setup .................................. 303, 347
Error Messages ........................................ 398
General Information ................................ 400
Home Screen........................................... 334
How to Update ....................................... 340
How to Update Wirelessly ....................... 344 How to Update with a USB Device .......... 345
iPod ................................................ 306, 367
Limitations for Manual
Operation ............................. 348, 461, 481
MP3/WMA/AAC ............................. 309, 370
Reactivating ............................................ 295
Recommended Devices ........................... 401
Remote Controls ..................................... 296
Security Code ......................................... 295
Selecting an Audio Source ...................... 348
Start Up .................................................. 327
Status Area ............................................. 339
System Updates ...................................... 340
System Updates Settings ......................... 341
Theft Protection ...................................... 295
USB Flash Drives...................................... 401
USB Ports ................................................ 293
Wallpaper Setup ..................................... 332
Audio/Information Screen ....................... 328
Authorized Manuals ................................ 800
Auto Door Locking/Unlocking ................ 195
Auto High-Beam ...................................... 226
Indicator ................................................. 108
Auto Idle Stop .......................................... 542
OFF Button ............................................. 543
Automatic Brake Hold ............................. 656
Indicator ......................................... 102, 656
Automatic Brake Hold System
Indicator ......................................... 102, 656
Automatic Folding Door Mirror .............. 238
Automatic Intermittent Wipers .............. 230
23 PILOT-31T906000_03.book 804 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

807
Index
F
Features.................................................... 291
Filters Dust and Pollen....................................... 741
Oil .......................................................... 712
Flat Tire ..................................................... 751
Floor Mats ................................................ 743
Fluids
Automatic Transmission .......................... 716
Brake ...................................................... 717
Engine Coolant ....................................... 714
Transfer Assembly ................................... 716
Windshield Washer ................................. 717
FM/AM Radio ................................... 304, 352
Fog Light Indicator .................................. 108
Folding Down the Second Row Seat ...... 244
Folding Down the Third Row Seat .......... 250
Foot Brake ................................................ 655
Front Airbags (SRS) .................................... 62
Front Seat Heaters ................................... 280
Front Seats Adjusting ................................................ 239
Front Sensor Camera ............................... 648
Fuel ..................................................... 29, 686
Average Fuel Economy .................... 128, 157
Economy................................................. 689
Gauge .................................................... 122
Instant Fuel Economy ...................... 128, 157
Low Fuel Indicator................................... 105
Range ............................................. 128, 157
Recommendation.................................... 686 Refueling ................................................. 686
Fuel Economy ............................................ 689
Fuel Fill Door ............................................. 687
Unable to Unlock ..................................... 786
Fuses .......................................................... 778
Inspecting and Changing ......................... 783
Locations ................................. 778, 780, 782
G
Gasoline (Fuel) Average Fuel Economy .................... 128, 157
Economy ................................................. 689
Gauge ..................................................... 122
Information ............................................. 686
Instant Fuel Economy ....................... 128, 157
Low Fuel Indicator ................................... 105
Refueling ................................................. 686
Gauge Display Settings .................... 139, 167
Gauges ...................................................... 121
Gear Position Indicator .................... 103, 535
Gear Shift Positions Automatic Transmission ........................... 533
Glass (care) ................................................ 745
Glove Box .................................................. 263
H
Handling the Unexpected ........................ 749
HandsFreeLink ® (HFL) ....................... 459, 479
Automatic Import of Ce llular Phonebook and
Call History .................................... 471, 489
Automatic Transferring.................... 469, 488
Favorite Contacts ............................ 472, 490
HFL Buttons..................................... 459, 479
HFL Menus ...................................... 462, 482
HFL Status Display ........................... 461, 481
In Case of Emergency .............................. 496
Limitations for Manual Operation .... 461, 481
Making a Call .................................. 474, 492
Options During a Call ...................... 478, 495
Phone Setup.................................... 464, 484
Receiving a Call ............................... 477, 494
Ringtone ......................................... 469, 488
Hazard Warning Button .............................. 8
HD Radio
TM............................................... 353
Head Restraints ................................ 253, 257
Headlights ................................................. 220
Aiming .................................................... 718
Auto High-Beam ..................................... 226
Dimming ................................................. 220
Operating................................................ 220
Head-Up Display ....................................... 169
Heated Door Mirrors ................................ 232
Heated Steering Wheel ............................ 279
Heated Windshield ................................... 232
Heaters (Front Seat) ................................. 280
Heaters (Seat) ................................... 281, 282
23 PILOT-31T906000_03.book 807 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
