battery HONDA PILOT 2023 Owners Manual

Contents
Child Safety P. 77Exhaust Gas Hazard P. 95Safety Labels P. 96
Tailgate P. 196 Security System P. 207 Windows P. 210
Operating the Switches Around the Steering Wheel P. 217 Mirrors P. 236
Climate Control System P. 283
Audio Error Messages P. 398 General Information on the Audio System P. 400
Bluetooth ® HandsFreeLink ® P. 459, 479 Refuel Recommend P. 498
Off-Highway Driving Guidelines P. 519 When Driving P. 524 Honda Sensing ® P. 567 Braking P. 652
Surround View Camera System* P. 674 Refueling P. 686 Fuel Economy and CO2 Emissions P. 689
Maintenance Under the Hood P.705 Replacing Light Bulbs P. 718
Checking and Maintaining Tires P. 728 Batt ery P. 737 Remote Transmitter Care P. 739
Accessories and Modifications P. 747
Engine Does Not Start P. 762 If the Battery Is Dead P. 767
Fuses P. 778 Emergency Towing P. 785
If You Cannot Open the Tailgate P. 787 Refueling P. 788
Devices that Emit Radio Waves P. 793 Reporting Safety Defects P. 794
Authorized Manuals P. 800 Customer Service Information P. 801 Open Source License P. 802
Quick Reference GuideP. 8
Safe DrivingP. 37
Instrument PanelP. 97
ControlsP. 175
FeaturesP. 291
DrivingP. 501
MaintenanceP. 691
Handling the UnexpectedP. 749
InformationP. 789
IndexP. 804
23 PILOT-31T906000_03.book 7 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

32
Quick Reference Guide
Maintenance (P691)
Under the Hood (P705)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P718)
●Inspect all lights regularly.
Wiper Blades (P723)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P728)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
23 PILOT-31T906000_03.book 32 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Quick Reference Guide
33
Handling the Unexpected (P749)
Flat Tire (P751)
●Park in a safe location and replace the
flat tire with the spare tire located under
the cargo area.
Indicators Come On (P771)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P762)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P778)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P769)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P785)
●Call a professional towing service if you
need to tow your vehicle.
23 PILOT-31T906000_03.book 33 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued49
uuSeat Belts uAbout Your Seat Belts
Safe Driving
A transceiver is installed in the removable seat
to wirelessly communicate the seat belt
fastening information to the vehicle. It will
automatically connect to the vehicle whenever
the seat is in or near its installation position.
Radio waves are transmitted to and from a
transceiver in the removable seat in order to
obtain the seat belt status.
In the following cases, the seat belt may be
displayed as unfastened even if it is fastened:
• Strong radio waves are being transmitted
by nearby equipment, such as a wireless
phone charger.
• Telecommunications equipment, a laptop
computer, cell phone, wireless device, or
another high-powered electronic device is
placed in, under, or close to the removable
seat.
• A metallic object is covering all or part of
the seat, or a large metallic object is placed
in the cabin in a way that is blocking the
vehicle’s antennas from communicating
with the transmitter in the seat.
• The battery in the transceiver dies.
1Seat Belt Reminder
Electronic devices can create radio frequencies which
interfere with the wireless seat belt reminder
communication. If the system does not function as
expected, please check that such items are not in,
under or adjacent to the removable seat. Then turn
the ignition off and then on again. If the malfunction
continues, please see your dealer.
The transceiver has a spec ially designed coin-cell
battery that needs to be replaced periodically. Battery
life is about five years, but this varies depending on
regularity of use.
The battery can be consumed whenever the seat
transceiver is receiving strong radio waves. Avoid
placing high powered electric al devices in or near the
removable seat, such as ga ming consoles or wireless
chargers.
If the battery is low or the seat belt reminder is no
longer working, please see your dealer to have the
battery replaced.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the seat belt
transceiver can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Transceiver
Models equipped with a removable seat
23 PILOT-31T906000_03.book 49 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Parking Brake and
Brake System
Indicator (Amber)
●Comes on if there is a problem with a
system related to braking other than the
conventional brake system.●Comes on while driving - Avoid high speeds and
sudden braking. Take the vehicle to a dealer
immediately.
●Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.●Stays on constantly - Avoid using the parking
brake and have your vehicl e checked by a dealer
immediately.
●Comes on if the brake system is
deactivated temporarily after the battery
has been disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it does
not, have your vehicl e checked by a dealer.
●Comes on if there is a problem with the
radar sensor.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 505●Stays on constantly - Have your vehicle checked
by a dealer.
Automatic Brake
Hold System
Indicator●Comes on when the automatic brake hold
system is on.
2 Automatic Brake Hold P. 656
Automatic Brake
Hold Indicator
●Comes on when the automatic brake hold
is activated.
2Automatic Brake Hold P. 656
U.S.
Canada
(Amber)
U.S.
Canada
23 PILOT-31T906000_03.book 102 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

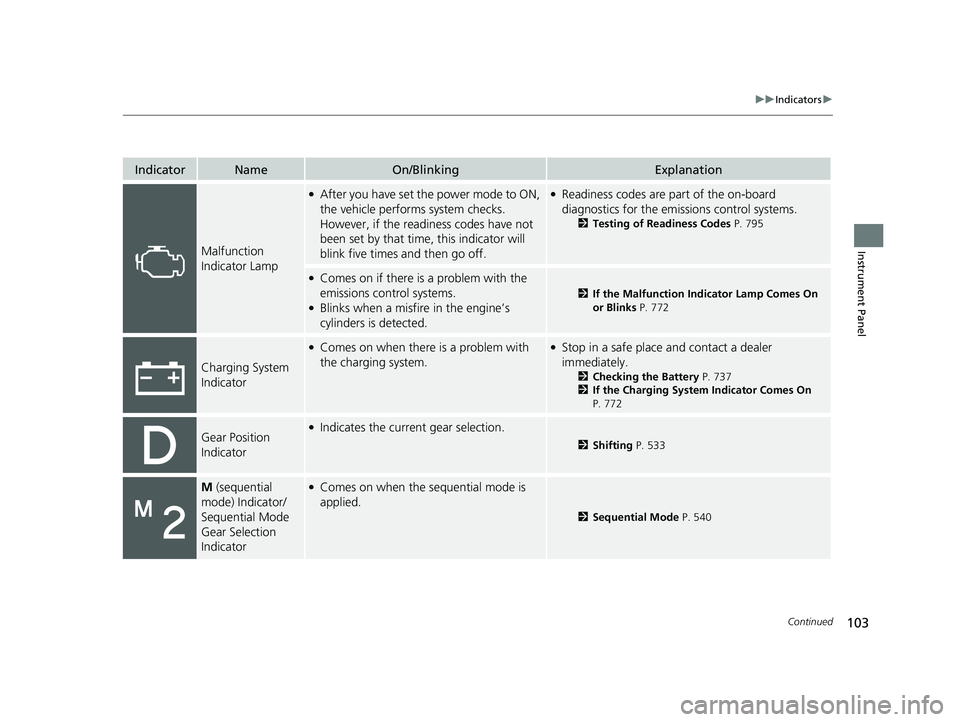

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Malfunction
Indicator Lamp
●After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will
blink five times and then go off.●Readiness codes are part of the on-board
diagnostics for the emissions control systems.
2Testing of Readiness Codes P. 795
●Comes on if there is a problem with the
emissions control systems.
●Blinks when a misfire in the engine’s
cylinders is detected.
2If the Malfunction Indicator Lamp Comes On
or Blinks P. 772
Charging System
Indicator
●Comes on when there is a problem with
the charging system.●Stop in a safe place and contact a dealer
immediately.
2Checking the Battery P. 737
2 If the Charging System Indicator Comes On
P. 772
Gear Position
Indicator●Indicates the current gear selection.
2 Shifting P. 533
M (sequential
mode) Indicator/
Sequential Mode
Gear Selection
Indicator●Comes on when the sequential mode is
applied.
2 Sequential Mode P. 540
23 PILOT-31T906000_03.book 103 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

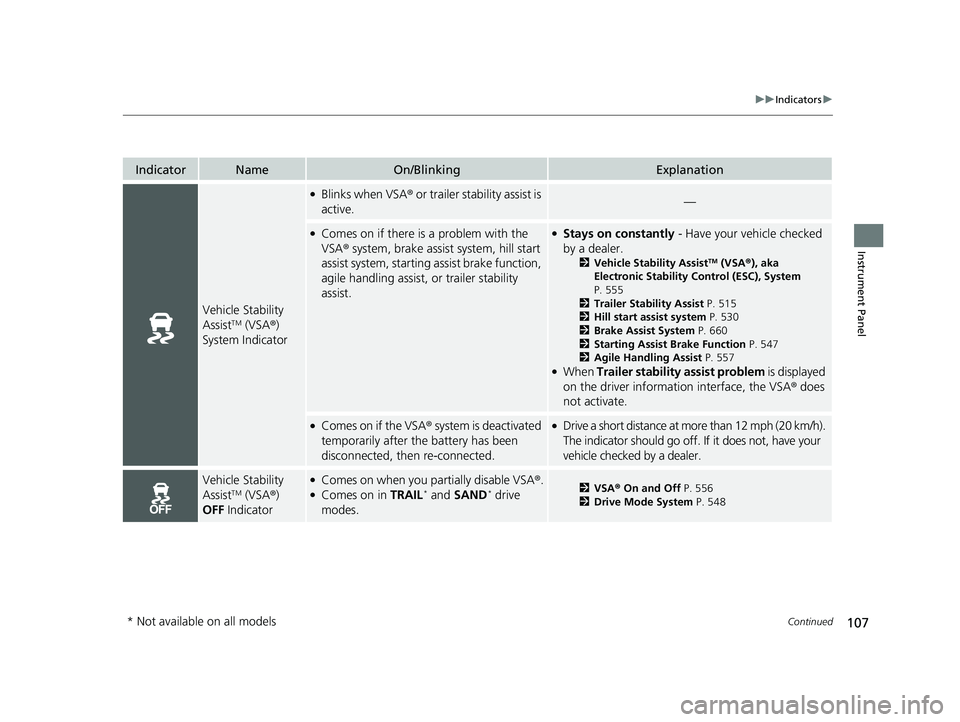

107
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Blinks when VSA ® or trailer stability assist is
active.—
●Comes on if there is a problem with the
VSA ® system, brake assist system, hill start
assist system, starting assist brake function,
agile handling assist, or trailer stability
assist.●Stays on constantly - Have your vehicle checked
by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC), System
P. 555
2 Trailer Stability Assist P. 515
2 Hill start assist system P. 530
2 Brake Assist System P. 660
2 Starting Assist Brake Function P. 547
2 Agile Handling Assist P. 557
●When Trailer stability assist problem is displayed
on the driver information interface, the VSA ® does
not activate.
●Comes on if the VSA ® system is deactivated
temporarily after the battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
Vehicle Stability
AssistTM (VSA ®)
OFF Indicator
●Comes on when you partially disable VSA ®.●Comes on in TRAIL* and SAND* drive
modes.2 VSA ® On and Off P. 556
2 Drive Mode System P. 548
* Not available on all models
23 PILOT-31T906000_03.book 107 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

114
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Suspend Indicator
●Comes on while Auto Idle Stop is
temporarily suspended in the following
situations.
—
-Brake pedal is not fully pressed●Depress the brake pedal firmly.
-The transmission is in a position other than
(D
2Auto Idle Stop P. 542-System charging is prioritized
-Climate control system is prioritized
-Engine coolant temperature is not in
operating range
-SNOW , TOW, SPORT*, TRAIL*, or SAND*
mode is selected.2 Auto Idle Stop P. 542
2 Drive Mode System P. 548
-The battery temperature is too low.
- Auto Idle Stop does not activate for some
reason.
2 Auto Idle Stop P. 542
—
●If you press and hold the Auto Idle Stop OFF
button, you can select whether to display the status
messages or not.
* Not available on all models
23 PILOT-31T906000_03.book 114 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

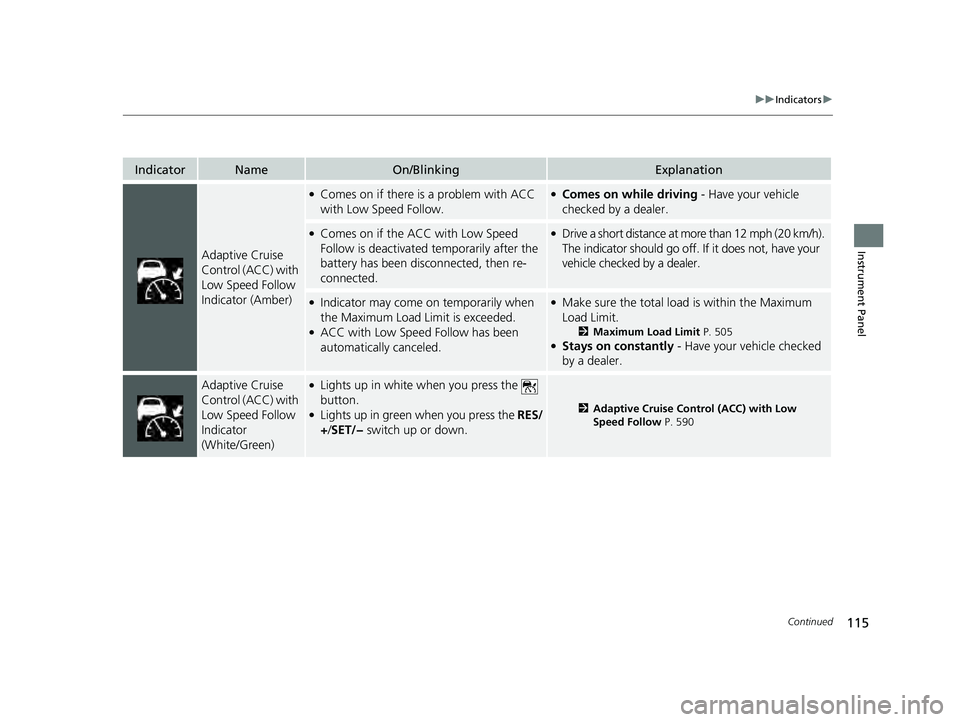

115
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow.●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow is deactivated temporarily after the
battery has been disconnected, then re-
connected.●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 505●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
(White/Green)●Lights up in white when you press the
button.
●Lights up in green when you press the RES/
+/ SET/− switch up or down.2Adaptive Cruise Control (ACC) with Low
Speed Follow P. 590
23 PILOT-31T906000_03.book 115 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

117
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on if there is a problem with Road
Departure Mitigati on system, CMBSTM, Low
Speed Braking Control* or blind spot
information system*.
●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if there is a problem with the
parking sensor.
●Check if the area around the sensor(s) is covered
with mud, ice, snow, etc. If the indicator stays on
even after you clean the area, have the system
checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 505●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if the Road Departure Mitigation
system, CMBSTM and Low Speed Braking
Control* are deactivated temporarily after
the battery has been disconnected and
then re-connected.
●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
Models with Parking Sensor System
* Not available on all models
23 PILOT-31T906000_03.book 117 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
